HB7211-1-C-H-000 datasheet, PDF

HB7211-1-C-H-000: DescriptionLiquid Crystal Driver, 28-Segment, CMOS; CategoryDrivers and interfaces; File Size224KB，8 Pages; ManufacturerHughes Aircraft

Download Datasheet Parametric View All

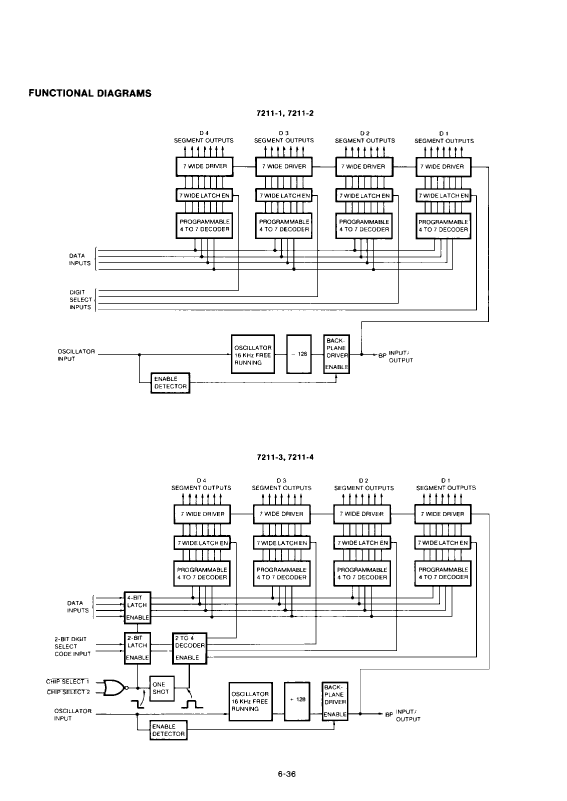

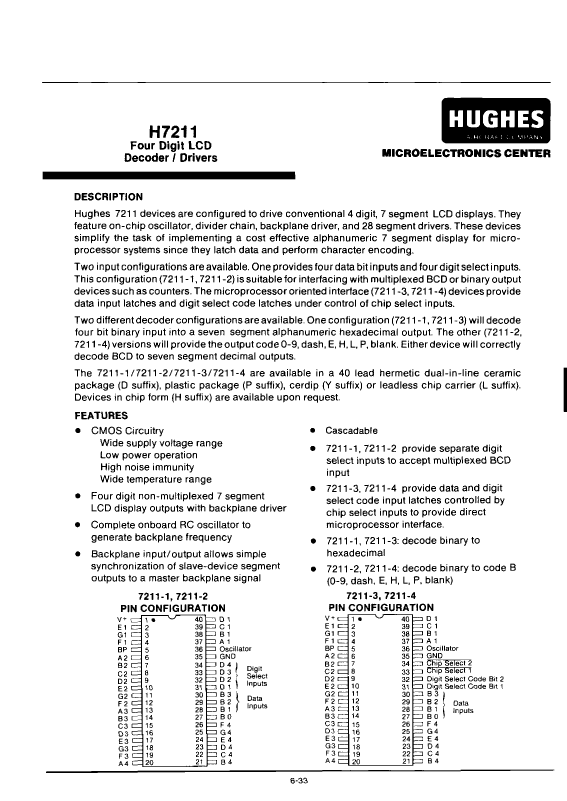

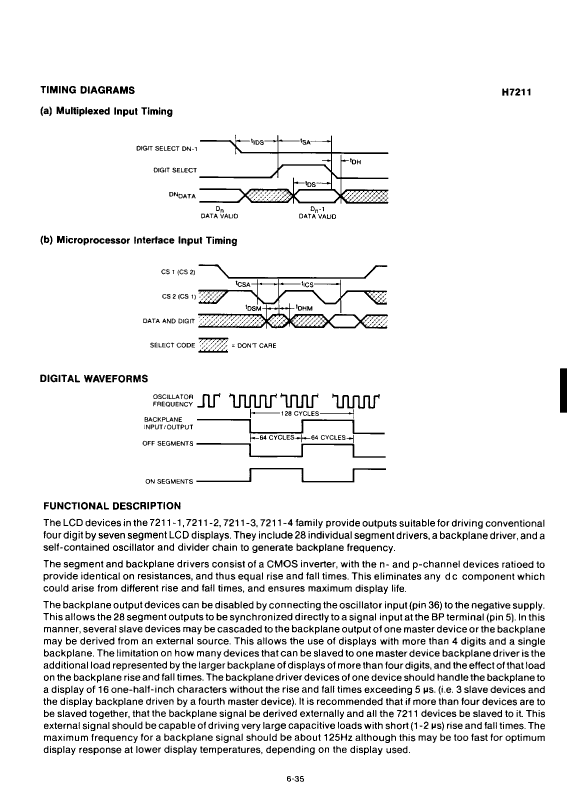

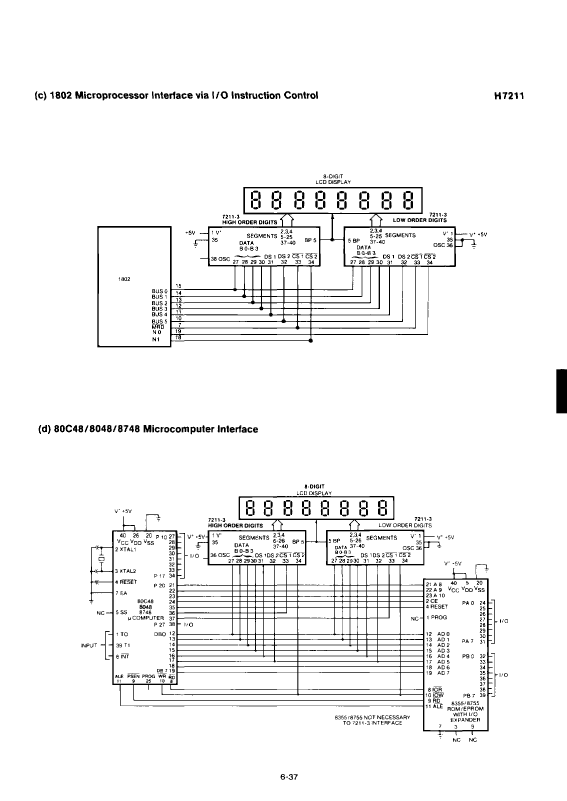

HB7211-1-C-H-000 Overview

Liquid Crystal Driver, 28-Segment, CMOS

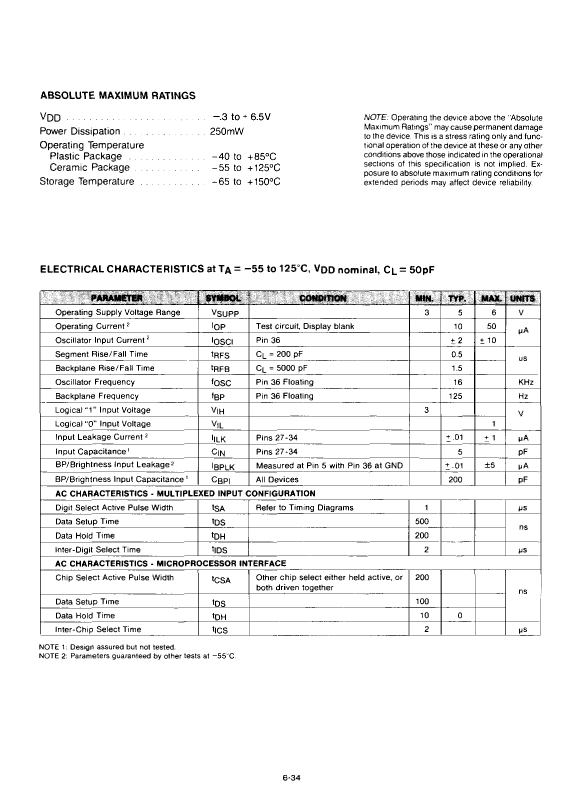

Parameter Name	Attribute value
Maker	Hughes Aircraft
package instruction	DIE,
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
data entry mode	PARALLEL
display mode	SEGMENT
Input properties	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	X-XUUC-N40
Multiplex display function	NO
Number of digits/characters	4-DIGIT
Number of functions	1
Number of segments	28
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	TOTEM-POLE
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum slew rate	0.05 mA
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
Base Number Matches	1
