801-44-006-10-013000 datasheet, PDF

Datasheet> All Categories > The connector> 801-44-006-10-013000

801-44-006-10-013000: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector; File Size83KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

801-44-006-10-013000 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

801-44-006-10-013000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LOW PROFILE
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (100) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	801-44-006-10-013000
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

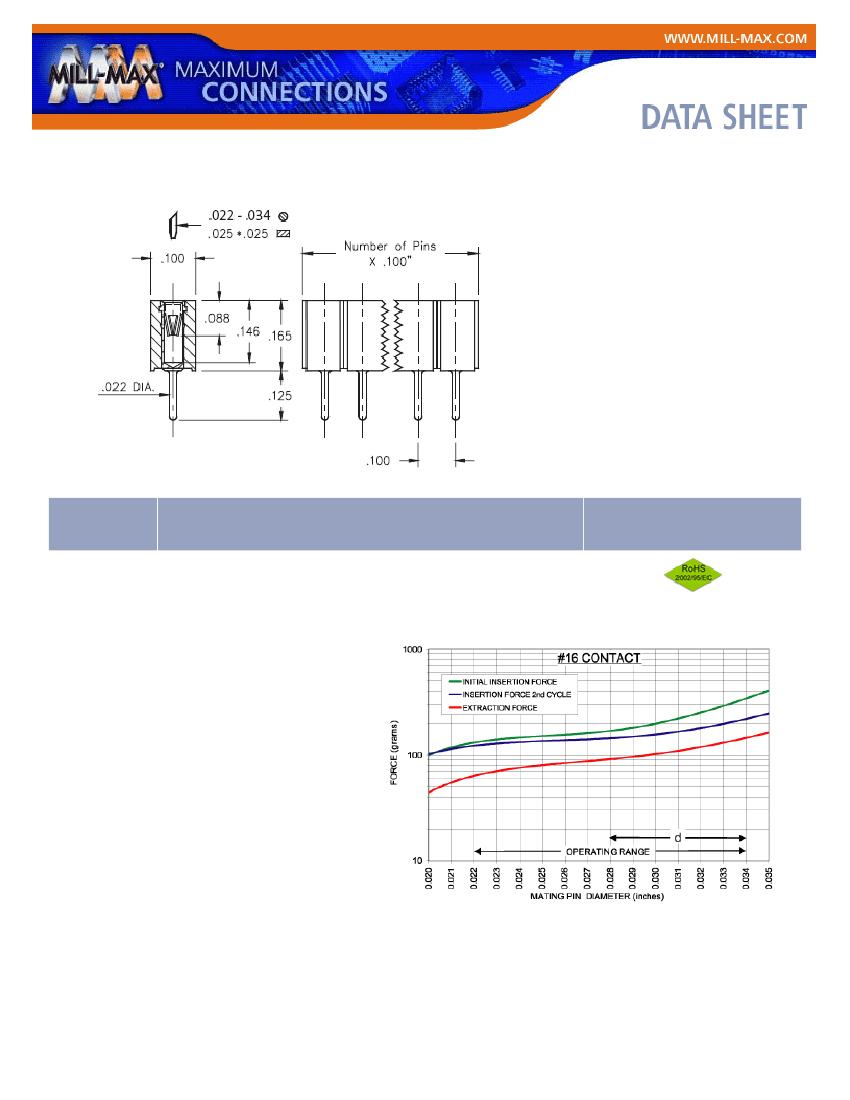

Product Number: 801-44-006-10-013000

Description:

Interconnect Socket

.100 Grid; Low Profile Socket

Low Profile

Single Row

Through Hole

Accepts .015-.025" Leads

Plating Code:

Shell Plating:

200 " Tin (matte finish) over 100 "

Nickel

Inner Contact Plating:

100 " Tin (matte finish) over 50 "

Nickel

Pins

Mill-Max

Part

Number

801-44-006-10-013000

RoHS

Compliant

CONTACT:

Contact Used: #16, Low Force 6 Finger Contact

Current Rating =

4.5 Amps

BERYLLIUM COPPER ALLOY

172 (UNS C17200) per

ASTM B 194

Properties of BERYLLIUM COPPER:

Chemical composition: Cu 98.1%, Be 1.9%

Temper as stamped: TD01

Properties after heat treatment (TH01):

Hardness: 36-43 Rockwell C

Mechanical Life: 100 Cycles Min.

Density: .298 lbs/in3

Electrical Conductivity: 22% IACS*

Resistance: 10 miliohms Max

Operating Temperature: -55°C/+125°C

Melting point: 980°C/865°C (liquidus/solidus)

Stress Relaxation†: 96% of stress remains after 1,000 hours @ 100 ºC ; 70% of stress remains after 1,000 hours @ 200

ºC

*International Annealed Copper Standard, i.e. as a % of pure copper.

†Since BeCu loses its spring properties over time at high temperatures; it is rated for continuous use up to 150°C. For

applications up to 300°C, Mill-Max offers many contacts in Beryllium Nickel. Contact Tech Support for more info.

Mill-Max Mfg. Corp. Datasheet – Last Modified 1/19/2008

Page 1 of 2
