832-AG11D-LF datasheet, PDF - EEWORLD Datasheet

832-AG11D-LF: DescriptionDIP SOCKET,32 CONTACTS,0.1 TERM PITCH,0.6 ROW SPACING,PC TAIL TERMINAL; Categorysocket; File Size220KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

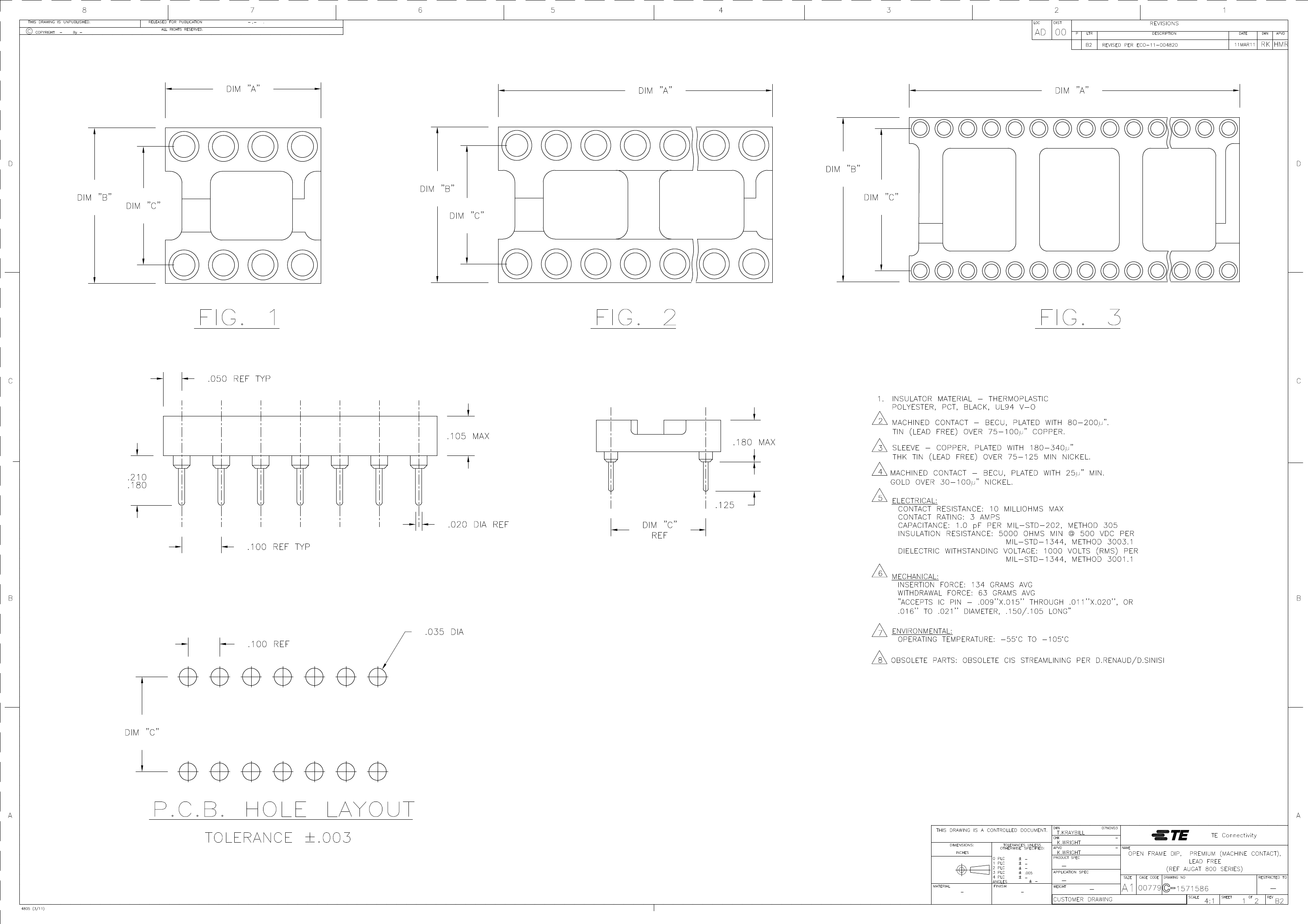

832-AG11D-LF Overview

DIP SOCKET,32 CONTACTS,0.1 TERM PITCH,0.6 ROW SPACING,PC TAIL TERMINAL

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.7 inch
subject depth	0.18 inch
body length	1.6 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	BE-CU
Contact style	MACHINE SCREW
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP32
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	8
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	32
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

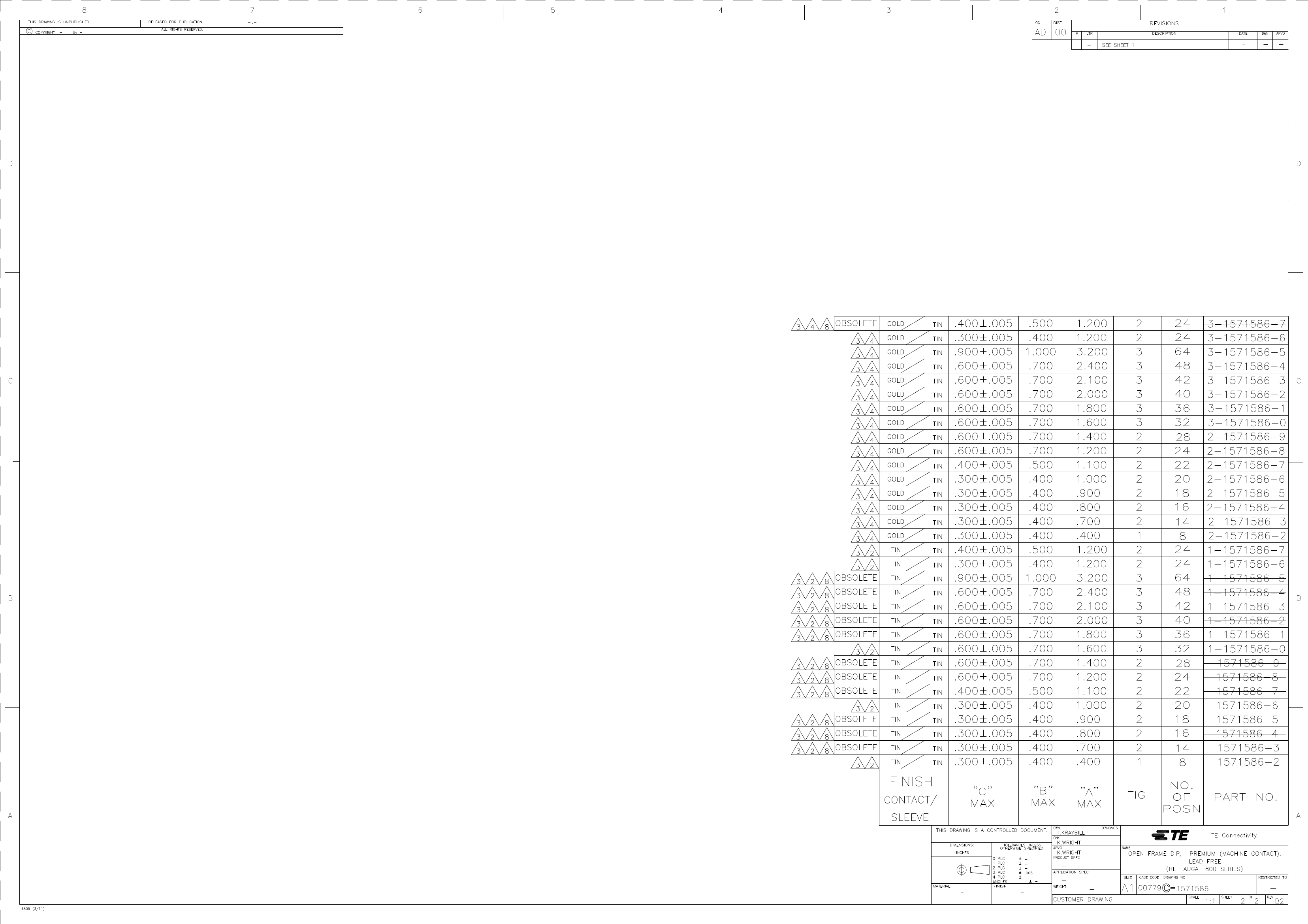

	832-AG11D-LF	818-AG11D-LF	816-AG11D-LF
Description	DIP SOCKET,32 CONTACTS,0.1 TERM PITCH,0.6 ROW SPACING,PC TAIL TERMINAL	DIP SOCKET,18 CONTACTS,0.1 TERM PITCH,0.3 ROW SPACING,PC TAIL TERMINAL	DIP SOCKET,16 CONTACTS,0.1 TERM PITCH,0.3 ROW SPACING,PC TAIL TERMINAL
Is it Rohs certified?	conform to	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99
body width	0.7 inch	0.4 inch	0.4 inch
subject depth	0.18 inch	0.18 inch	0.18 inch
body length	1.6 inch	0.9 inch	0.8 inch
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact material	BE-CU	BE-CU	BE-CU
Contact style	MACHINE SCREW	MACHINE SCREW	MACHINE SCREW
current rating	3 A	3 A	3 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP32	DIP18	DIP16
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	8	8	8
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	32	18	16
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.6 mm	0.3 mm	0.3 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1
