32C260-CG datasheet, PDF - EEWORLD Datasheet

32C260-CG: DescriptionFixed Disk Controller, 1.875MBps, ST506; ST412; ST412HP; ESDI Compatible, CMOS, PQFP100; CategoryMicrocontrollers and processors; File Size192KB，6 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

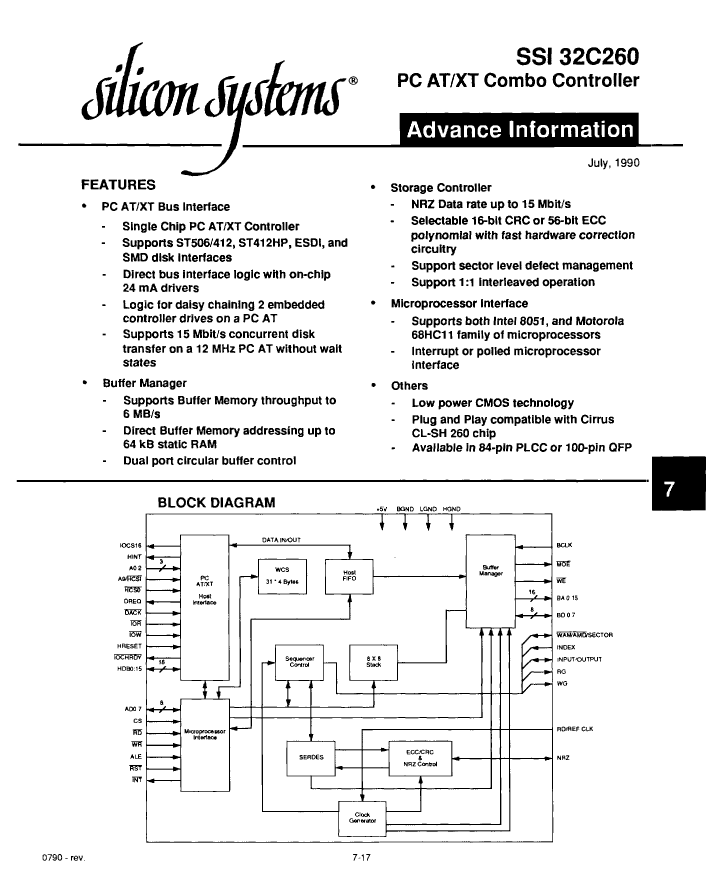

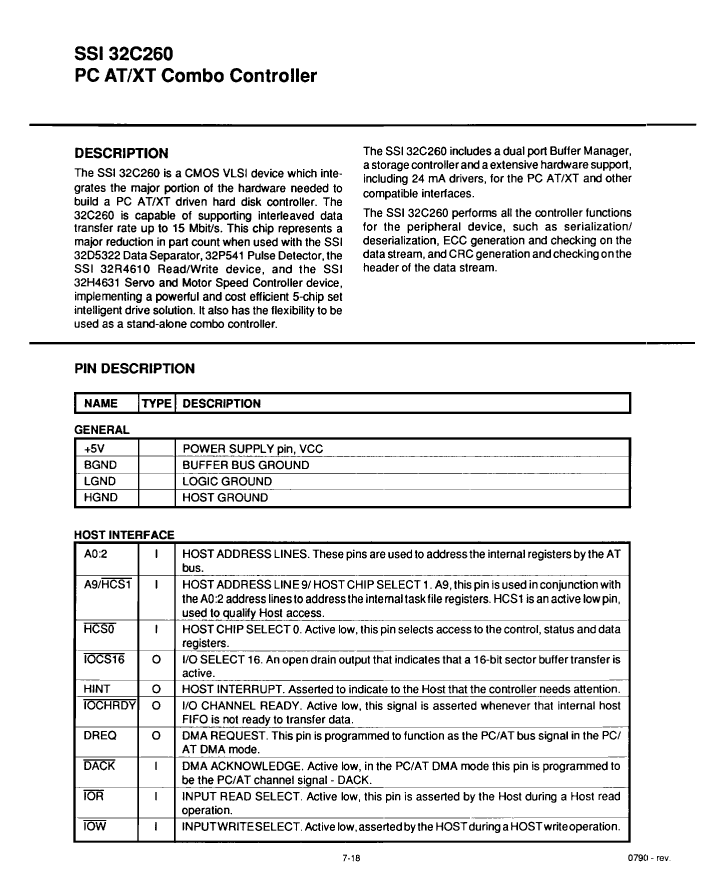

32C260-CG Overview

Fixed Disk Controller, 1.875MBps, ST506; ST412; ST412HP; ESDI Compatible, CMOS, PQFP100

Parameter Name	Attribute value
Maker	Silicon Systems Inc.
package instruction	QFP,
Reach Compliance Code	unknown
Is Samacsys	N
maximum clock frequency	12 MHz
Maximum data transfer rate	1.875 MBps

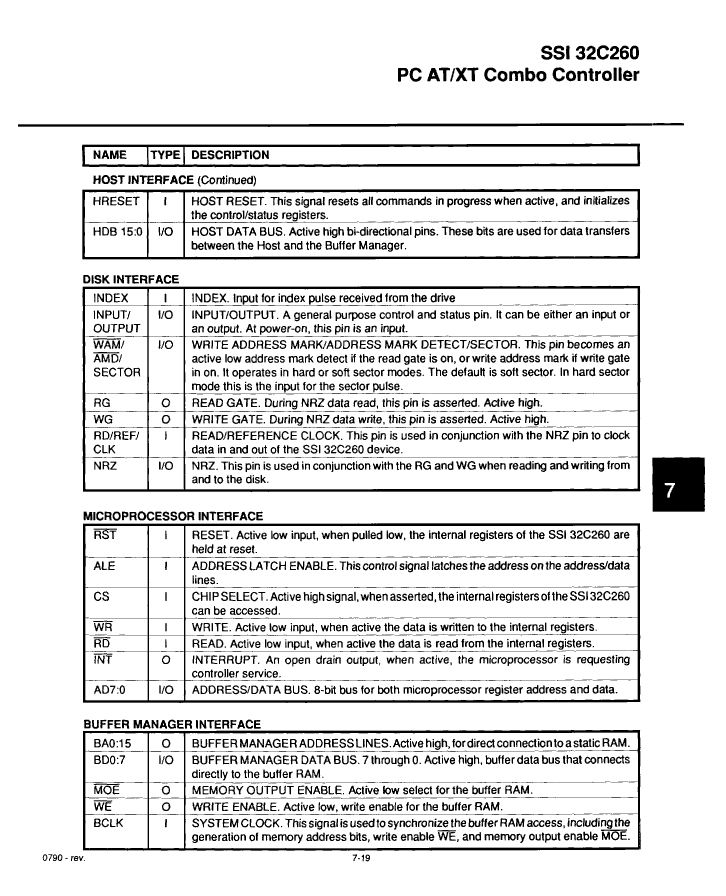

Drive interface standards	ST506; ST412; ST412HP; ESDI
External data bus width	16
Maximum host data transfer rate	15 MBps
Host interface standard	PC-AT; PC-XT

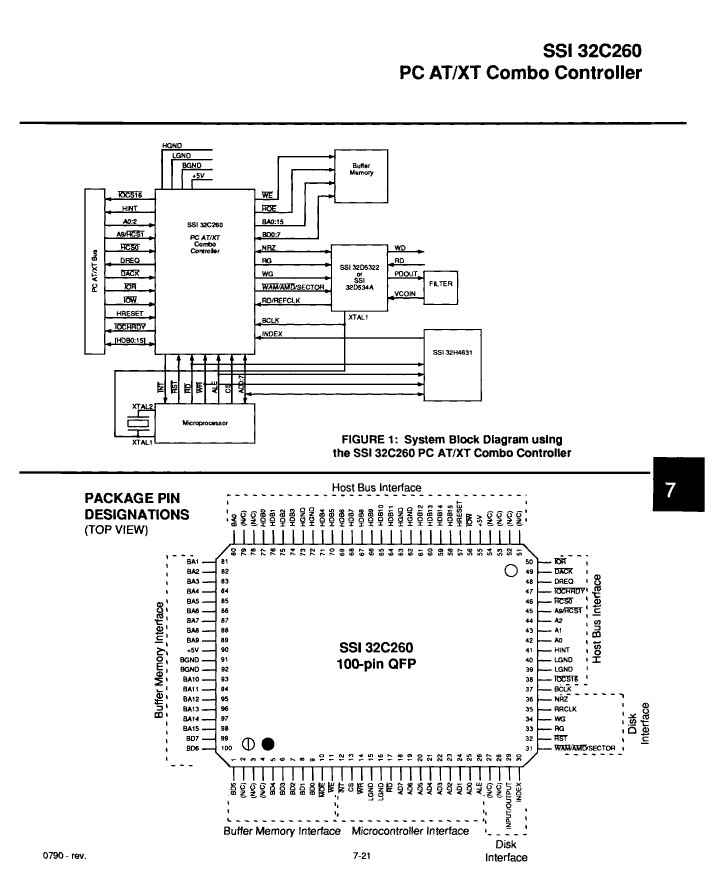

JESD-30 code	R-PQFP-G100
Number of terminals	100
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified

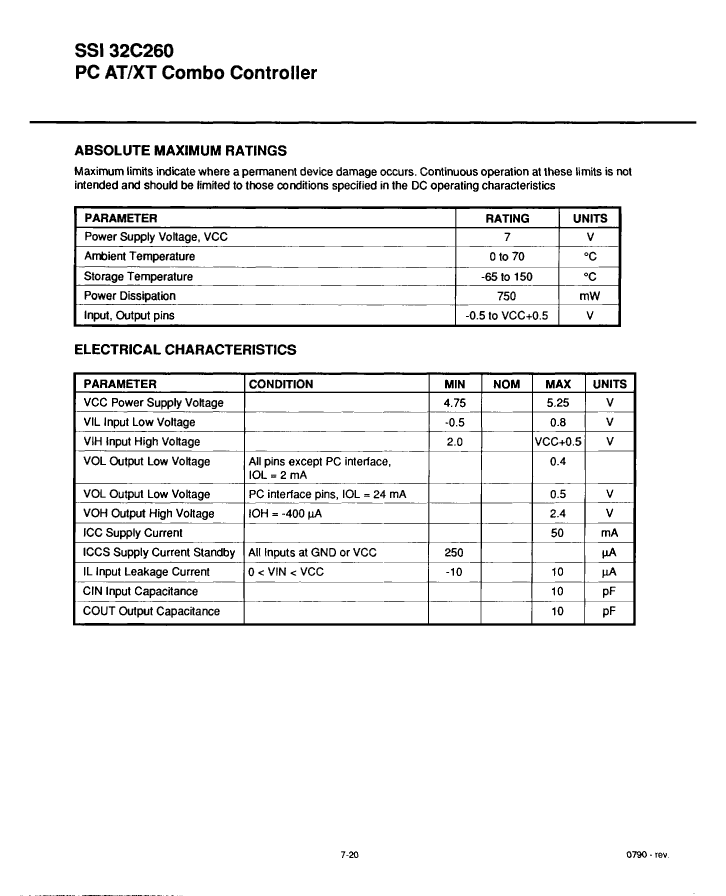

Maximum slew rate	50 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SECONDARY STORAGE CONTROLLER, FIXED DISK
Base Number Matches	1

	32C260-CG	32C260-CH
Description	Fixed Disk Controller, 1.875MBps, ST506; ST412; ST412HP; ESDI Compatible, CMOS, PQFP100	Fixed Disk Controller, 1.875MBps, ST506; ST412; ST412HP; ESDI Compatible, CMOS, PQCC84
Maker	Silicon Systems Inc.	Silicon Systems Inc.
Reach Compliance Code	unknown	unknown
maximum clock frequency	12 MHz	12 MHz
Maximum data transfer rate	1.875 MBps	1.875 MBps
Drive interface standards	ST506; ST412; ST412HP; ESDI	ST506; ST412; ST412HP; ESDI
External data bus width	16	16
Maximum host data transfer rate	15 MBps	15 MBps
Host interface standard	PC-AT; PC-XT	PC-AT; PC-XT
JESD-30 code	R-PQFP-G100	S-PQCC-J84
Number of terminals	100	84
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER
Certification status	Not Qualified	Not Qualified
Maximum slew rate	50 mA	50 mA
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	J BEND
Terminal location	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	SECONDARY STORAGE CONTROLLER, FIXED DISK	SECONDARY STORAGE CONTROLLER, FIXED DISK
