3755A datasheet, PDF - EEWORLD Datasheet

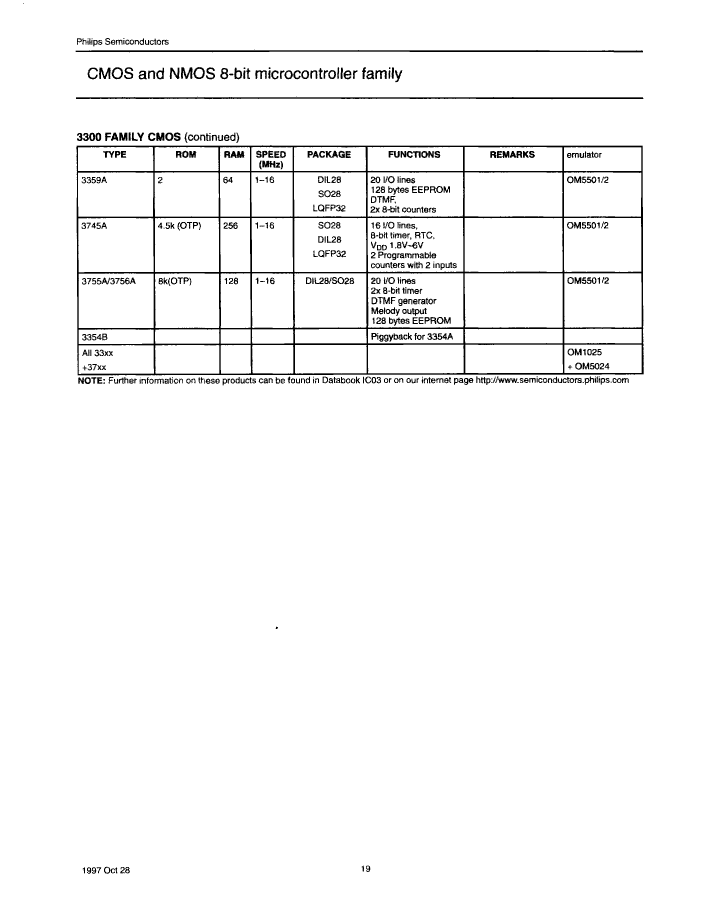

3755A: DescriptionIC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PDIP28, PLASTIC, SOT-117-1, DIP-28, Microcontroller; CategoryMicrocontrollers and processors; File Size52KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

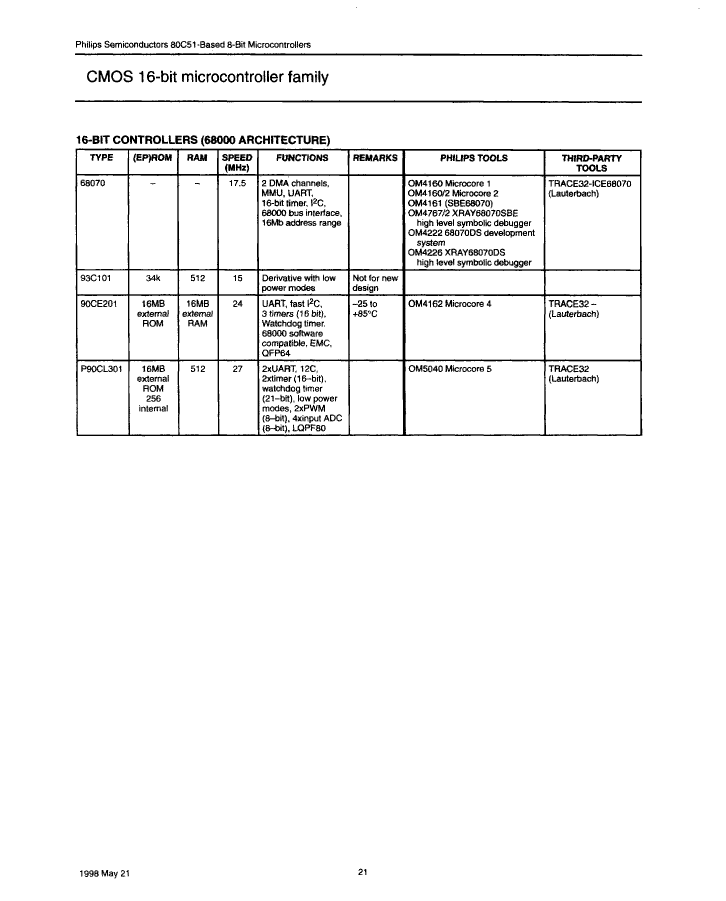

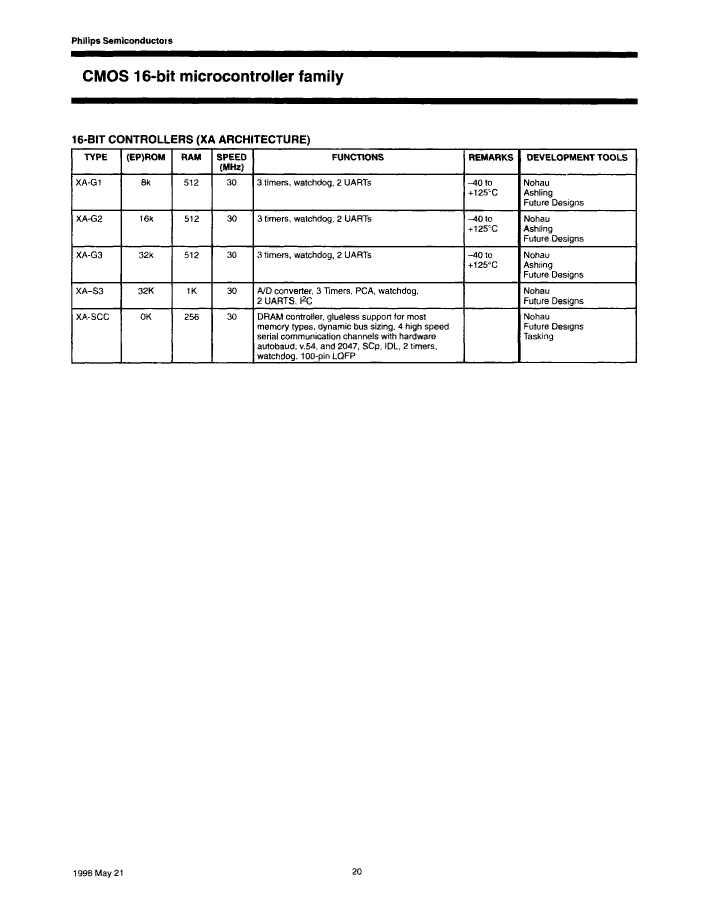

3755A Overview

IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PDIP28, PLASTIC, SOT-117-1, DIP-28, Microcontroller

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
Is Samacsys	N
Other features	128 BYTES EEPROM
bit size	8
maximum clock frequency	16 MHz
JESD-30 code	R-PDIP-T28
length	35.5 mm
Number of I/O lines	20
Number of terminals	28
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	5.1 mm
speed	16 MHz
surface mount	NO
technology	CMOS
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	3755A	3756A
Description	IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PDIP28, PLASTIC, SOT-117-1, DIP-28, Microcontroller	IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PDSO28, SO-28, Microcontroller
Maker	NXP	NXP
Parts packaging code	DIP	SOIC
package instruction	DIP,	SOP,
Contacts	28	28
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Other features	128 BYTES EEPROM	128 BYTES EEPROM
bit size	8	8
maximum clock frequency	16 MHz	16 MHz
JESD-30 code	R-PDIP-T28	R-PDSO-G28
length	35.5 mm	17.9 mm
Number of I/O lines	20	20
Number of terminals	28	28
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
ROM programmability	OTPROM	OTPROM
Maximum seat height	5.1 mm	2.65 mm
speed	16 MHz	16 MHz
surface mount	NO	YES
technology	CMOS	CMOS
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	15.24 mm	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1
