47CMDP4R1M6QT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > switch> Become warped plate switch> 47CMDP4R1M6QT

Preview

47CMDP4R1M6QT: DescriptionRocker Switch, DPDT, Momentary, 3A, 28VDC, Solder Terminal, Rocker Actuator, Through Hole-right Angle, ROHS COMPLIANT; Categoryswitch Become warped plate switch; File Size137KB，3 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

47CMDP4R1M6QT Overview

Rocker Switch, DPDT, Momentary, 3A, 28VDC, Solder Terminal, Rocker Actuator, Through Hole-right Angle, ROHS COMPLIANT

47CMDP4R1M6QT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Actuator type	ROCKER
body width	8.13 mm
body height	7.62 mm
Body length or diameter	9.09 mm
Contact (AC) maximum rated R load	3A@125VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	ROCKER SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

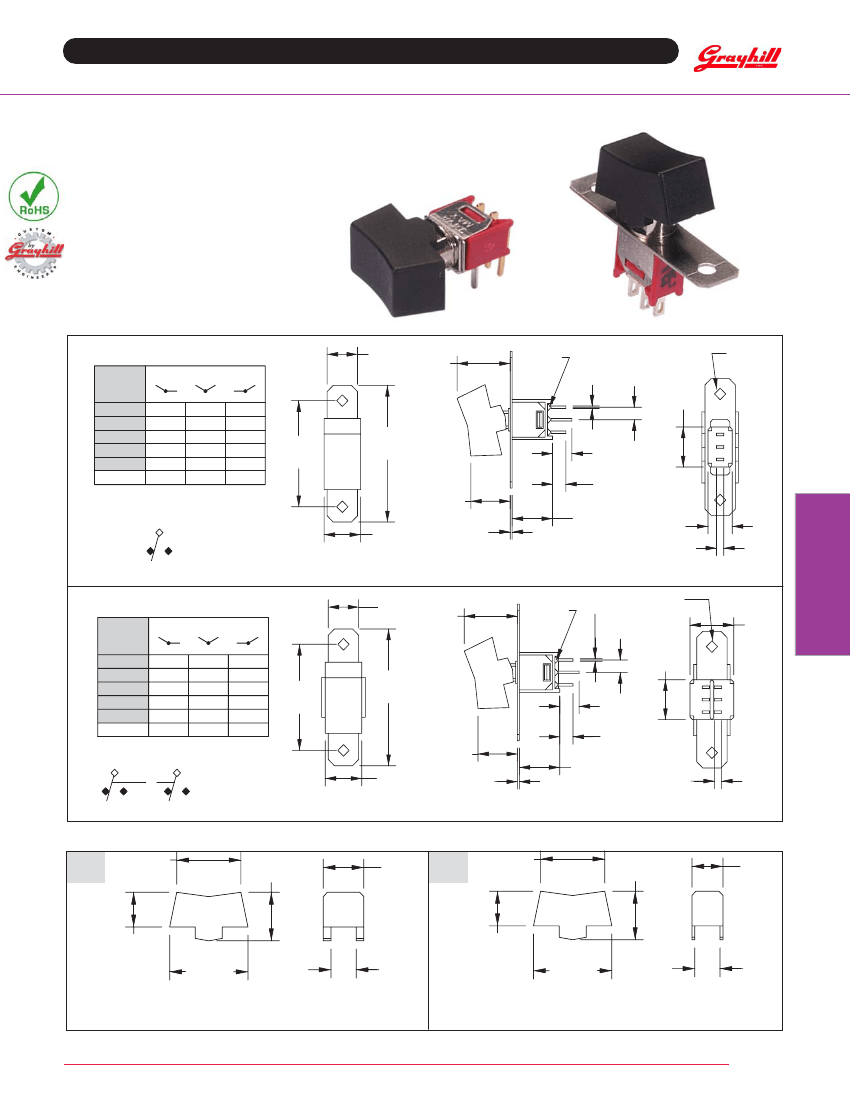

Series 47C: Sub-Miniature Rocker Switches

SERIES 47C

Sub-Miniature Rocker Switches

FEATURES

• Save Space and Weight

• SPDT and DPDT Circuitry

• Choice of Actuators and

Terminations

• UL Recognized

DIP Switches

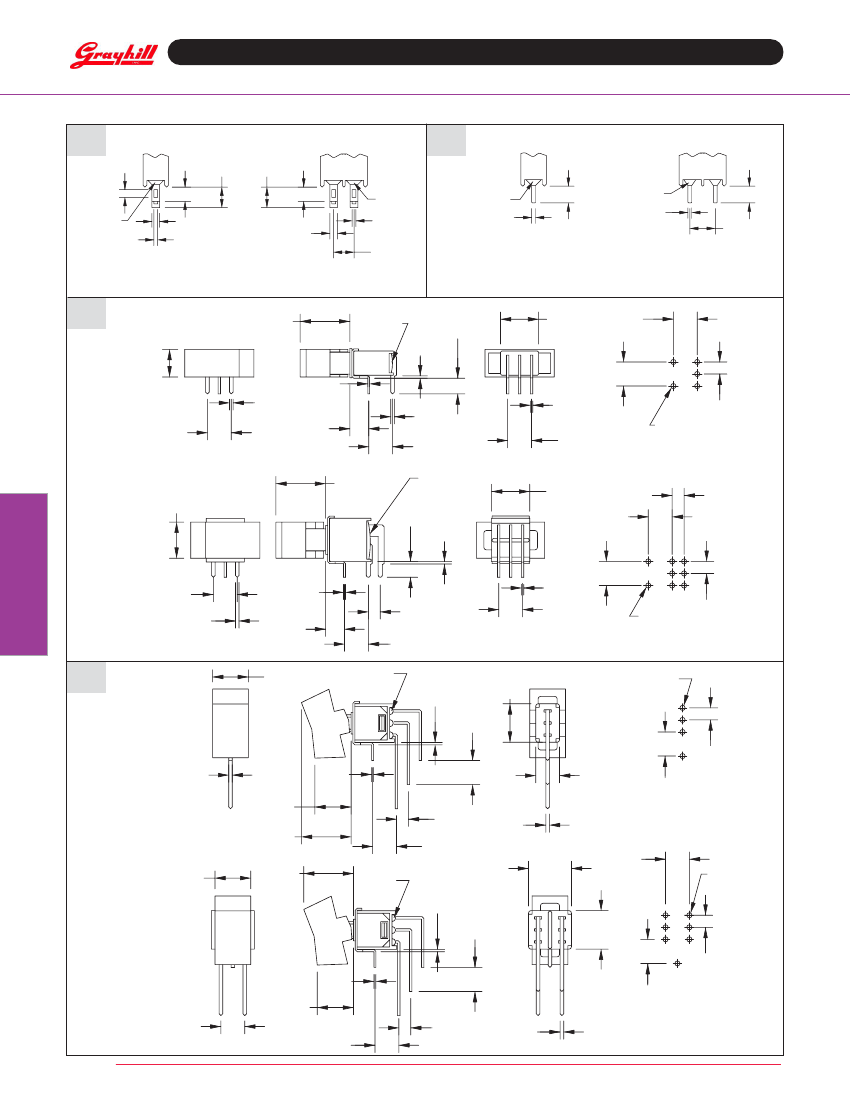

MODELS

SPDT

In inches (and millimeters)

MODEL

NO.

MSP1

MSP2

MSP3

MSP4

MSP5

TERM. COMM.

SWITCH POSITION

.250

(6.35)

.437

(11.10)

EPOXY

SEAL

3

2

1

.020

(0.51)

.100

(2.54)

Ø.093

(Ø2.36)

.320

(8.13)

3

ON

(ON)

ON

2-3

NONE

OFF

OPEN

ON

(ON)

ON

(ON)

2-1

.850

(21.59)

1.095

(27.81)

.160

(4.06)

.324

(8.23)

.110

(2.79)

2

1

()=MOMENTARY

02COMM.

Rocker and Paddle Switches

1

3

SCHEMATIC

.300

(7.62)

.016

(0.41)

.332

(8.43)

.200

(5.08)

.060

(1.52)

DPDT

MODEL

NO.

MDP1

MDP2

MDP3

MDP4

MDP5

TERM. COMM.

SWITCH POSITION

.250

(6.35)

.437

(11.10)

EPOXY

SEAL

3

2

.020

(0.51)

.100

(2.54)

Ø.093

(Ø2.36)

.360

(9.14)

.320

(8.13)

6

3

2

1

ON

(ON)

ON

2-3,5-6

NONE

ON

NONE

(ON)

OFF

ON

OFF

(ON)

OFF

(ON)

OPEN 2-1,5-4

()=MOMENTARY

.850

(21.59)

1.095

(27.81)

1

.160

(4.06)

.324

(8.23)

.016

(0.41)

.110

(2.79)

.060

(1.52)

5

4

1

3 4

6

SCHEMATIC

.300

(7.62)

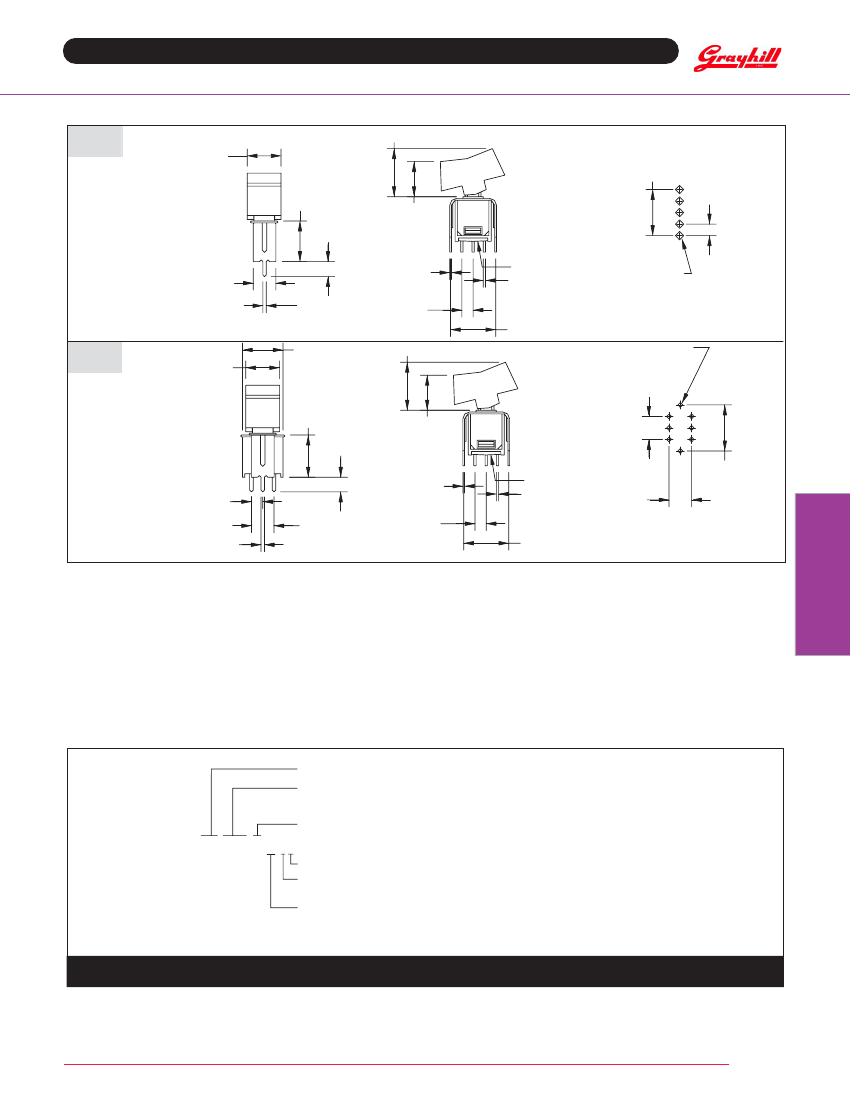

ACTUATOR OPTIONS

R1

.475

(12.07)

In inches (and millimeters)

.350

(8.87)

.300

(7.62)

R2

.475

(12.07)

.350

(8.87)

.230

(7.62)

.250

(6.35)

.580

(14.73)

STD. ALL MODELS EXCEPT SPDT

WITH M6 TERMINATIONS

.250

(6.35)

.187

(4.75)

.580

(14.73)

STD. ON SPDT MODELS

WITH M6 TERMINATIONS

.187

(4.75)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

Rocker

15

Slide DIP Switches

02COMM.

05COMM.

.332

(8.43)
