32C9600-CGT datasheet, PDF - EEWORLD Datasheet

32C9600-CGT: DescriptionFixed Disk Controller, 20MBps, IDE Compatible, CMOS, PQFP128; CategoryMicrocontrollers and processors; File Size632KB，22 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

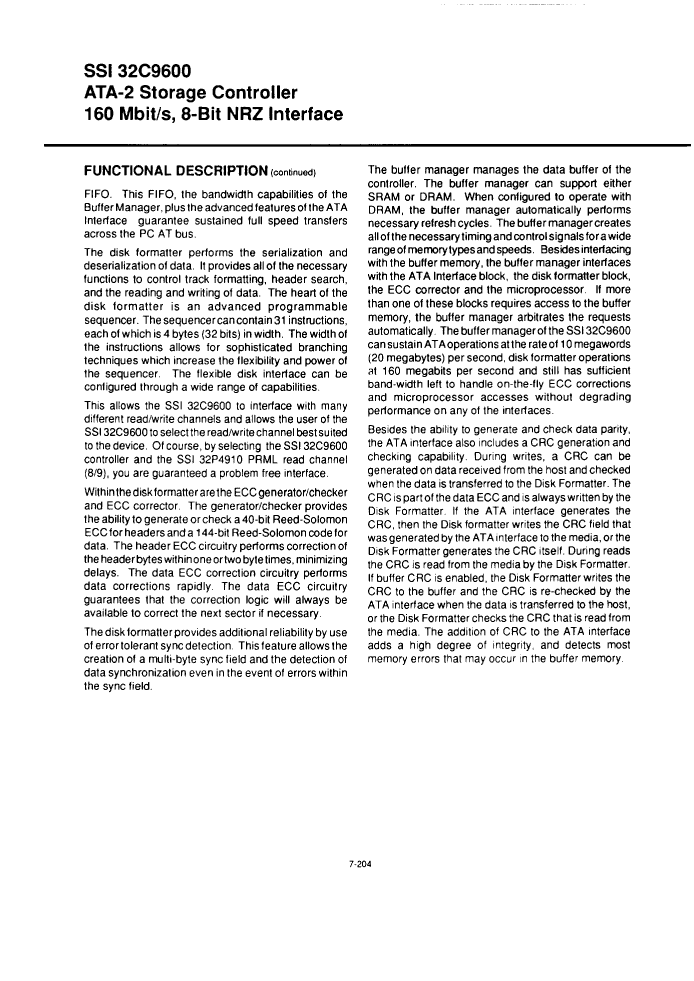

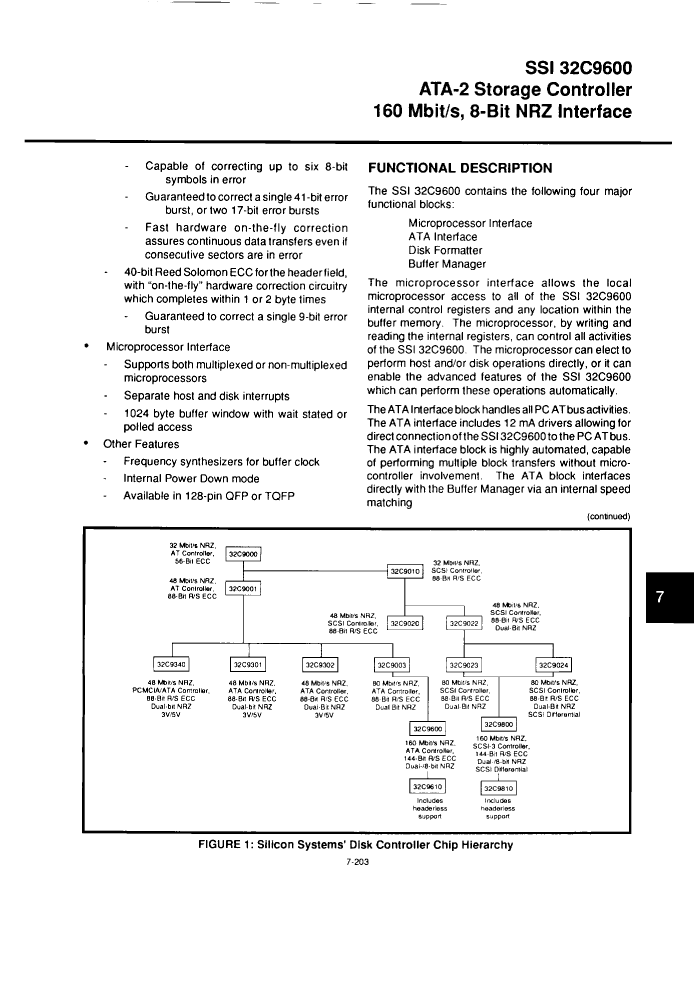

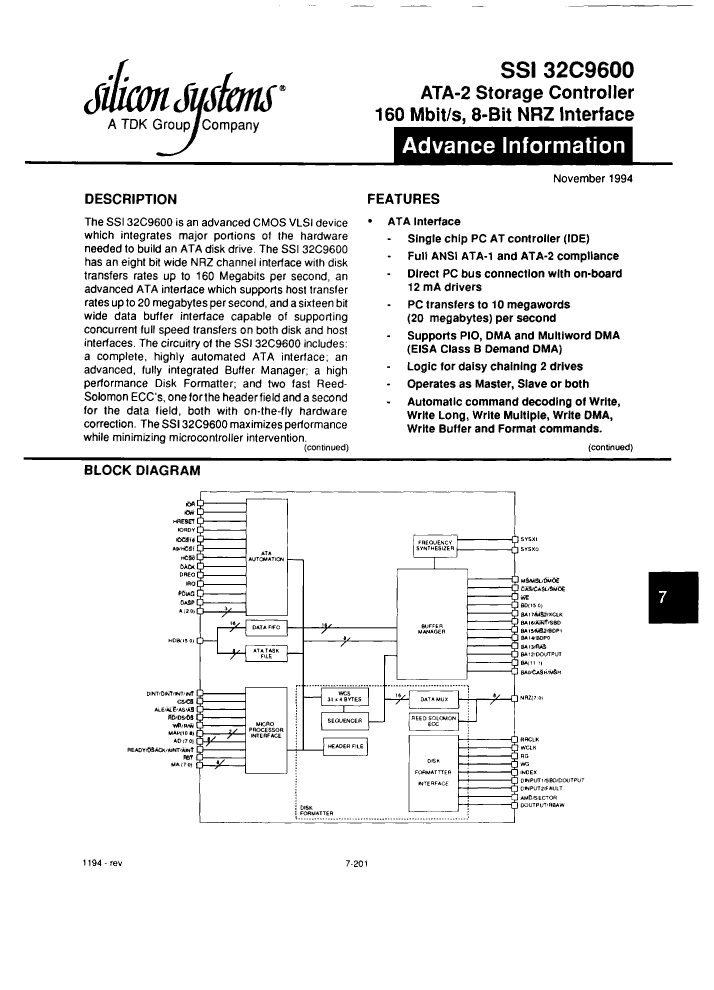

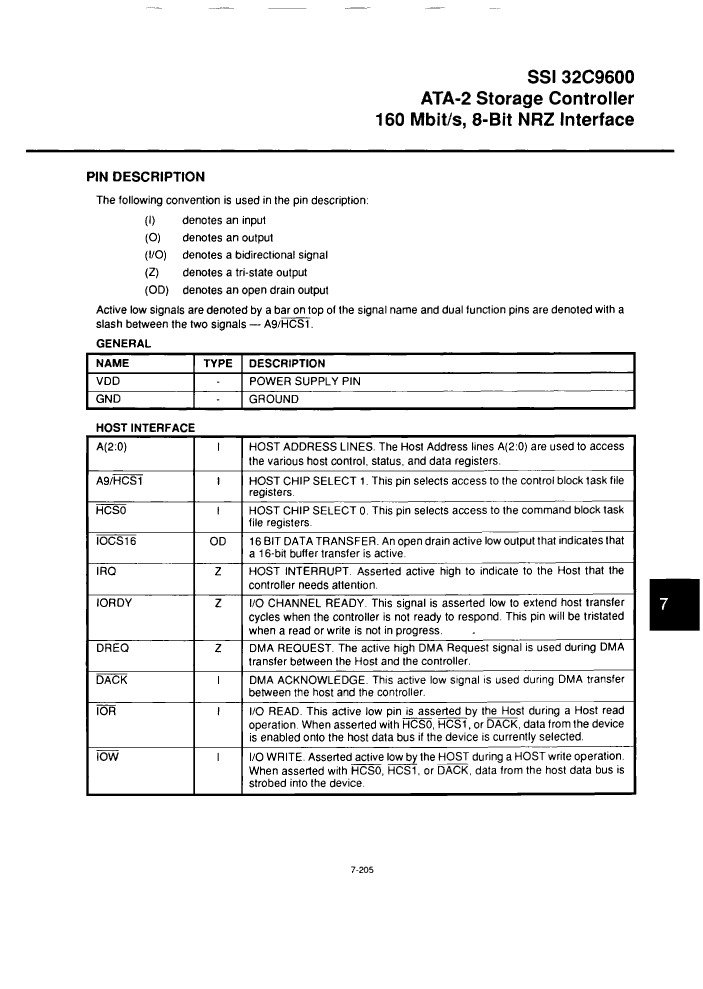

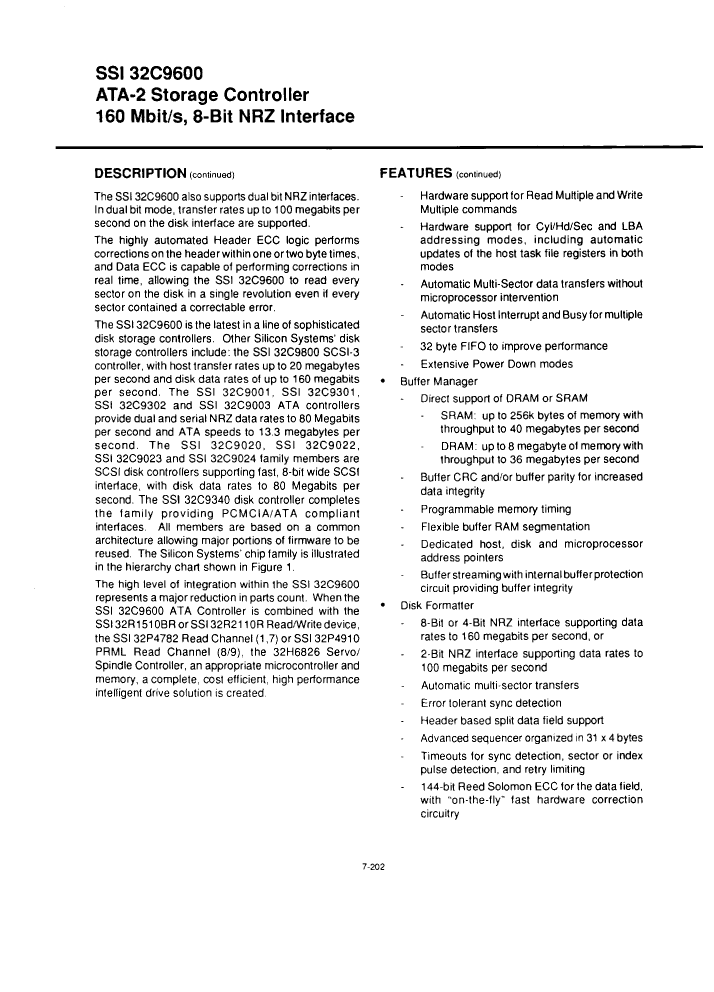

32C9600-CGT Overview

Fixed Disk Controller, 20MBps, IDE Compatible, CMOS, PQFP128

Parameter Name	Attribute value
Maker	Silicon Systems Inc.
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Maximum data transfer rate	20 MBps
Drive interface standards	IDE
External data bus width	16
Maximum host data transfer rate	20 MBps
Host interface standard	ATA-1; ATA-2; PC-AT
JESD-30 code	R-PQFP-G128
Number of terminals	128
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum slew rate	100 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SECONDARY STORAGE CONTROLLER, FIXED DISK
Base Number Matches	1

	32C9600-CGT	32C9600-CG
Description	Fixed Disk Controller, 20MBps, IDE Compatible, CMOS, PQFP128	Fixed Disk Controller, 20MBps, IDE Compatible, CMOS, PQFP128
Maker	Silicon Systems Inc.	Silicon Systems Inc.
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Maximum data transfer rate	20 MBps	20 MBps
Drive interface standards	IDE	IDE
External data bus width	16	16
Maximum host data transfer rate	20 MBps	20 MBps
Host interface standard	ATA-1; ATA-2; PC-AT	ATA-1; ATA-2; PC-AT
JESD-30 code	R-PQFP-G128	R-PQFP-G128
Number of terminals	128	128
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified
Maximum slew rate	100 mA	100 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal location	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	SECONDARY STORAGE CONTROLLER, FIXED DISK	SECONDARY STORAGE CONTROLLER, FIXED DISK
Base Number Matches	1	1
