VSC7388

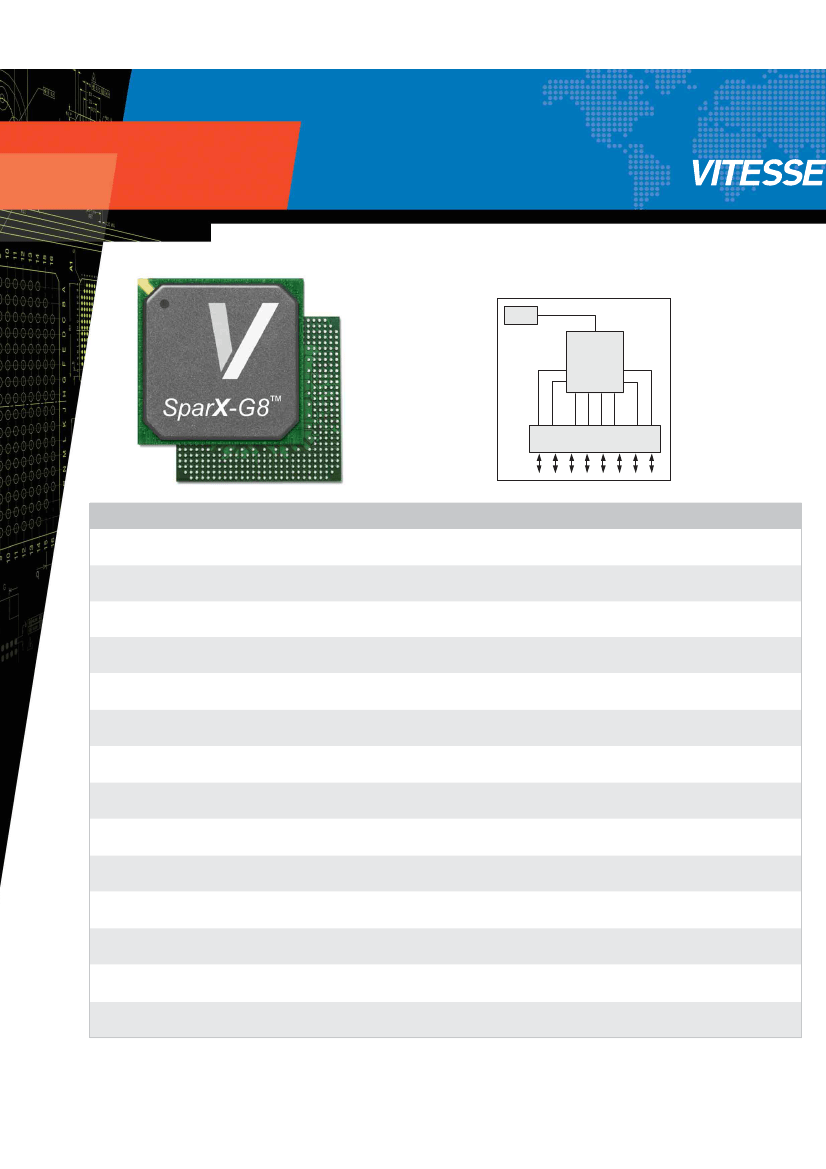

SparX-G8™ – 8-port Integrated Gigabit Ethernet Switch SoC with Copper PHYs
8-PORT UNMANAGED SMB SWITCH:
Serial EEPROM Interface
EEPROM
VSC7388
SparX-G8
TM
MagJacks with Integrated Magnetics
F E AT U R E S :
8 Gigabit Ethernet Ports with Nonblocking Wire-speed Performance
8 Tri-speed (10/100/1000 Mbps) Copper Transceivers (IEEE 802.3ab™
Compliant) with 2 Optional Multiplexed Tri-speed (RGMII/GMII) Interfaces
144 KB On-chip Frame Buffer
Selection Between On-chip 8051 CPU or Off-chip 8-bit CPU for Fully
Managed Applications
DSCP Remarking for Both IPv4 and IPv6 Frames
Jumbo Frame Support in all Three Speeds (10/100/1000 Mbps)
Programmable Classifier for QoS, Including IEEE Std 802.1p™ and
DSCP for IPv4 and IPv6, with 4 Classes of Service
8K MAC Addresses and 4K VLANs (IEEE Std 802.1Q™)
Flexible Link Aggregation Compliant to IEEE Std 802.3ad™
Full Duplex Flow Control (IEEE Std 802.3X™) and Half Duplex Back
Pressure, Symmetric and Asymmetric
Multicast and Broadcast Storm Control as well as Flooding Control
Multiple Protocol Support: IEEE Std 802.1D™, IEEE Std 802.1w™, IEEE
Std 802.1s™ and IEEE Std 802.1X™
Integrated Oscillator Circuit
Vitesse VeriPHY™ Cable Diagnostics and SimpliPHY™ Magnetics
Technology
BENEFITS:
Ensures Maximum Data Throughput in Highly Loaded Networks
Reduces the Need for any PHY Components Thereby Significantly
Reducing Overall Systems Cost
Eliminates the Need for External Buffer Memory While Maintaining
High Peak Load Performance
Enables Advanced Switch Management Using Run-time Protocols, in
Addition to Low Cost Unmanaged and Web Managed Operation
Enables LAN Edge Products to Generate Standard Priority which can be
used in the Core Network
Connects Effortlessly to Networks, Hosts, and Controllers that Utilize up
to 9.6K Sized Jumbo Frames
Optimizes Network Performance to Support any Digital Stream, from
Internet Browsing to VoIP and Video
Stores a Large Amount of Stations at Wire Speed in the On-chip MAC
Table, Ensuring Optimal Network Performance
Provides High Bandwidth Uplinking Abilities
Ensures Loss-less Data Transmission while Supporting Existing Legacy
Ethernet Equipment
Eliminates Unwanted Flooding of Ports and Thereby Increases Overall
Network Performance
Supports Complex Network Topologies with Fast Failure Recovery and
Access Control
Simplifies Design and Reduces Overall System Cost
Enables Real Time Cable Diagnostics and Low Cost Magnetics with
Only 4 or 8 Cores per port
A P P L I C AT I O N S :
8-port Unmanaged Gigabit Ethernet SMB/SOHO Switch
8-port Web Managed Gigabit Ethernet SMB/SOHO Switch
PB-VSC7388-005
VSC7388
SparX-G8™ – 8-port Integrated Gigabit Ethernet Switch SoC with Copper PHYs
GENERAL DESCRIPTION:
VSC7388 SparX-G8™ is the most highly integrated,
single-chip Gigabit Ethernet switch with 8 Integrated
GbE Copper PHY ports. As part of Vitesse’sSparX™
Family of switches, SparX-G8 delivers high performance
with easy migration paths, and comprehensive System
Solutions that enable ultra-short time-to-market and
market leading system cost.
Controlling networks operated by the Vitesse switches is simple;
advanced classification with IPv4 and IPv6 support, along with
port DSCP remarking and 802.1X authentication support, provide
flexible QoS operation. This is backed up by Layer 2-4 link
aggregation and VLAN support, enabling managed switches to be
deployed.
With its unique low power dissipation the VSC7388 enables fan less
operation and thereby provides for higher system reliability and
lower noise, both to the benefit of the user.
Designing with Vitesse SparX Family Of Switches means designing
with the complete Vitesse Solution:
Vitesse provides a comprehensive, web managed switch software
system for the on-chip 8051 CPU. This is in addition to the
unmanaged and smart managed software systems for 8051, which
are also included. For homegrown software development,
Vitesse's full platform and OS independent switch API are supplied.
Accompanying the software systems are the Vitesse Switch
Reference Systems. These are production-ready hardware
designs that also serve as evaluation platforms.
The Vitesse Solution is supplied with a comprehensive collateral
package, including software source code, full documentation, and
an in-depth qualification report for easy pre-evaluation.
A Vitesse Switch Family Member
SparX-G8 is a part of the Vitesse SparX™ Family Of
Unmanaged or Web-managed Switches and takes the family
into a new generation of integration. With its 8 tri-speed
Gigabit Ethernet copper ports, it is specifically targeted at
SMB and SOHO unmanaged applications, and with its on-chip
8051 and Parallel CPU interface it enables Web-Managed and
managed switch applications.
Being a member of the switch family provides a number of
unique advantages when designing with the chip, including
nearly 100% software compatibility between members. Thus,
software written for SparX-G8 can easily be used with other
switch configurations in the family, and vice-versa.
Additionally, building a product family is easy when designing
with Vitesse switches. Upgrading designs to higher port
counts, or migrating to other configurations or future
technology is achievable with minimum effort and time.
The Vitesse SparX™ Family Of Switches
SparX-G8, as part of the Vitesse SparX Family Of Switches,
shares the unique traits of the family.

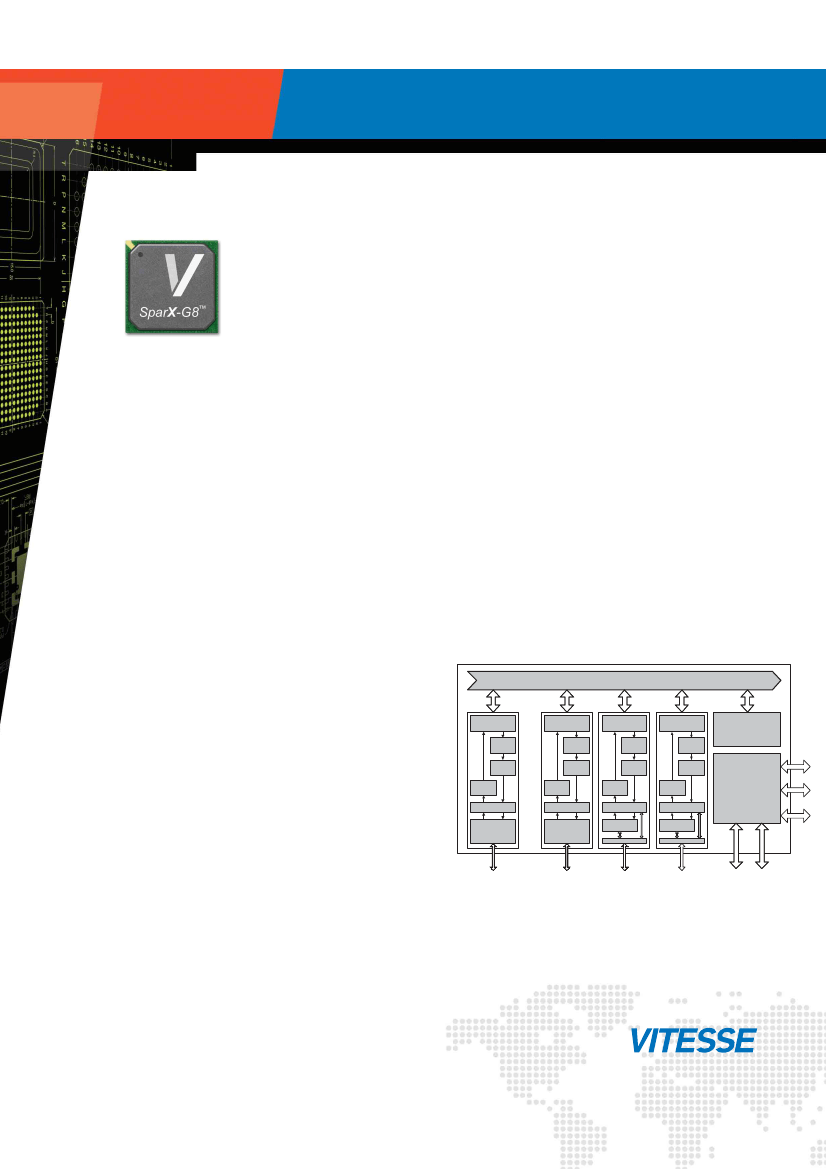

BLOCK DIAGRAM:
Frame Bus
Port block
Port block
Port block
The highly integrated switches require no external memory,
and the integration of copper PHY as well as internal
oscillator circuit simplifies PCB layout to reduce time and
cost. Further trimming down system cost is the industry's
lowest power, fully integrated, Switch-plus-Copper PHY
technology.
The switches provide for high performance designs with their
non-blocking, wire-speed performance, which includes wire-
speed MAC address learning.
Designing both unmanaged and web-managed solutions is
straightforward. The chips offer both internal 8051 and serial
and parallel CPU interfaces, and support a host of
management protocols such as GxRP, SNMP, and three
flavors of Spanning Tree: Standard STP, Multiple STP, and
Rapid STP.
Shared RX and
TX FIFO
Sche-
duler
Re-
writer
Cate-
gorizer
Tri-speed MAC
Tri-speed
Copper PHY
Shared RX and
TX FIFO
Sche-
duler
Shared RX and
TX FIFO
Sche-
duler
Re-
writer
Cate-
gorizer
Tri-speed MAC
Tri-speed
Copper PHY
Multiplexer
Port block
Shared RX and
TX FIFO
Sche-
duler
Re-
writer
Cate-
gorizer
Tri-speed MAC
Tri-speed
Copper PHY
Multiplexer
Analyzer/Arbiter
...
Re-
writer
Cate-
gorizer
Tri-speed MAC
Tri-speed
Copper PHY
RS232
8051 CPU (iCPU)
RS232 I/F
Serial I/F
Parallel I/F
MII Management I/F
Control/Status
Registers
MIIM
GPIO
0
6 Copper Interfaces
5
6
2 Copper or
(R)GMII Interfaces
7
SI
PI or
iCPU
RAM/Flash
S P E C I F I C AT I O N S :
25 MHz LVTTL Reference Clock
1.2 V Core Power Supply
3.3 V Interface Power Supply
BGA Package
For more information on Vitesse Products visit the Vitesse web site
at www.vitesse.com or contact Vitesse Sales at (800) VITESSE
or sales@vitesse.com
