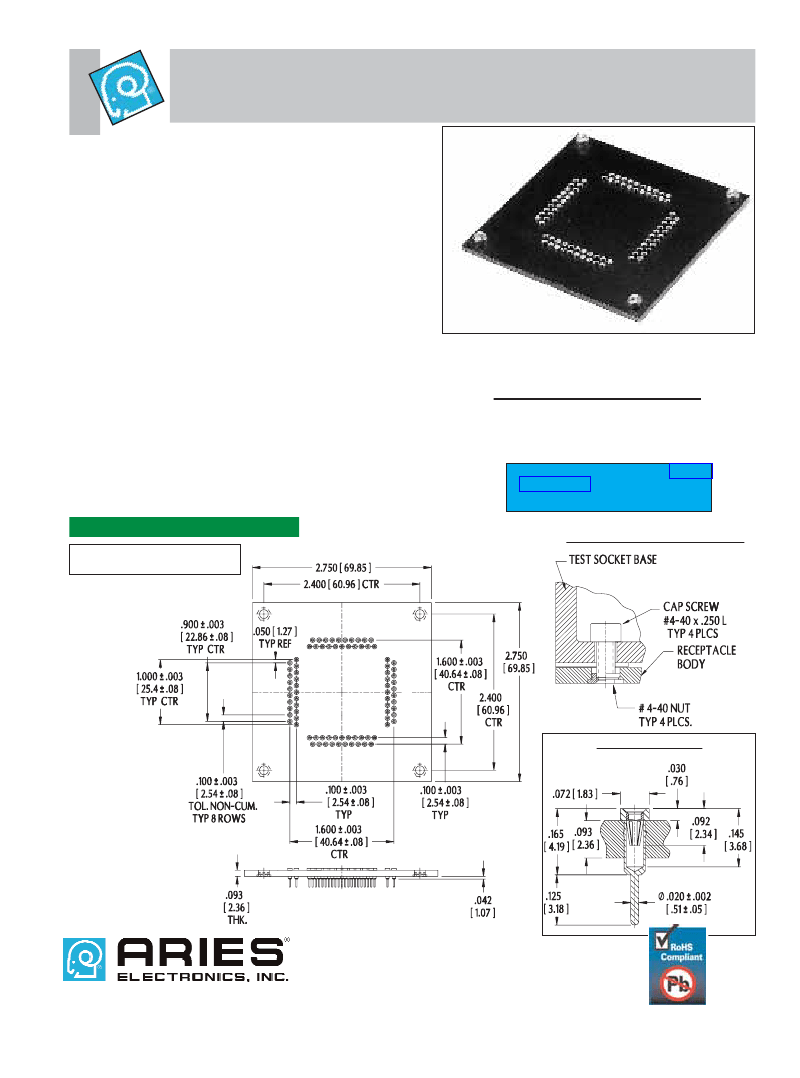

Series 637 Universal PLCC
ZIF Test Socket Receptacle
Features:
• 84 pin socket receptacle for mounting Aries’ Series 537 Universal
PLCC ZIF Test Sockets. Consult Data Sheet Nos. 10008 thru 10011
for additional test socket
information.
• Mounting hardware included.
Specifications:
• Body is black, .093 [2.36] thk. FR-406 or IS410 per IPC4101A/26 with
1 ounce min. Copper traces.
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-00.
• Pin body plating is either 200μ [5.08μm] min. 93/7 Tin/Lead per ASTM
B545 or 200μ [5.08μm] min. Tin per ASTM B545 Type 1 over 100μ
[2.54μm] min. Nickel per SAE-AMS-QQ-N-290.
• 6-fingered collet contact is Beryllium Copper Alloy per UNS C17200
ASTM-B194-01.
• Contact plating is 10μ [.25μm] min. Gold per MIL-G-45204 over 50μ
[1.27μm] min. Nickel per SAE-AMS-QQ-N-290.
• Hardware is Stainless Steel.
• Contact current rating=3 Amps.
• Accepts leads .015-.025 [.38-.64] in diameter, .100-.145 [2.54-3.68]
long.
• Insertion Force=67 grams/pin; Withdrawal Force=30 grams/pin;
Normal Force=45 grams/pin; based on a .018 [.46] dia. test lead.
• Operating temperature=-85°F to 257°F [-65°C to 125°C].
Mounting Considerations:
• Suggested PCB hole size=.030 ± .002 [.76 ± .05].
• See test socket mounting suggestions below.
ALL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Note: Aries specializes in custom design and production. In addition to
the standard products shown on this page, special materials, platings,
sizes, and configurations can be furnished, depending on quantities.
Aries reserves the right to change product specifications without notice.
ORDERING INFORMATION
Specify Part No. 84-637-10 (Tin Version)
or 84-637-10TL (Tin/Lead Version)
when ordering
Consult Data Sheet Nos. 10008
thru 10011 for additional test
socket information.
MOUNTING SUGGESTIONS
All tolerances ± .005 [.13]
unless otherwise specified
CONTACT DETAIL
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL:(908) 996-6841
FAX:(908) 996-3891
abc
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
10013
REV.D
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
