525AVFREQ-OUT1-V3 datasheet, PDF

Datasheet> All Categories > oscillator> 525AVFREQ-OUT1-V3

525AVFREQ-OUT1-V3: DescriptionSine Output Oscillator, 10MHz Min, 120MHz Max; Categoryoscillator; File Size118KB，2 Pages; ManufacturerCTS

Download Datasheet Parametric Compare View All

525AVFREQ-OUT1-V3 Overview

Sine Output Oscillator, 10MHz Min, 120MHz Max

525AVFREQ-OUT1-V3 Parametric

Parameter Name	Attribute value
Maker	CTS
Reach Compliance Code	compliant
Is Samacsys	N
Ageing	1 PPM/YEAR
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	YES
frequency stability	2.5%
Manufacturer's serial number	525
Installation features	SURFACE MOUNT
Maximum operating frequency	120 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	1 V
physical size	11.4mm x 9.6mm x 4mm
Nominal supply voltage	3.7 V
surface mount	YES
Base Number Matches	1

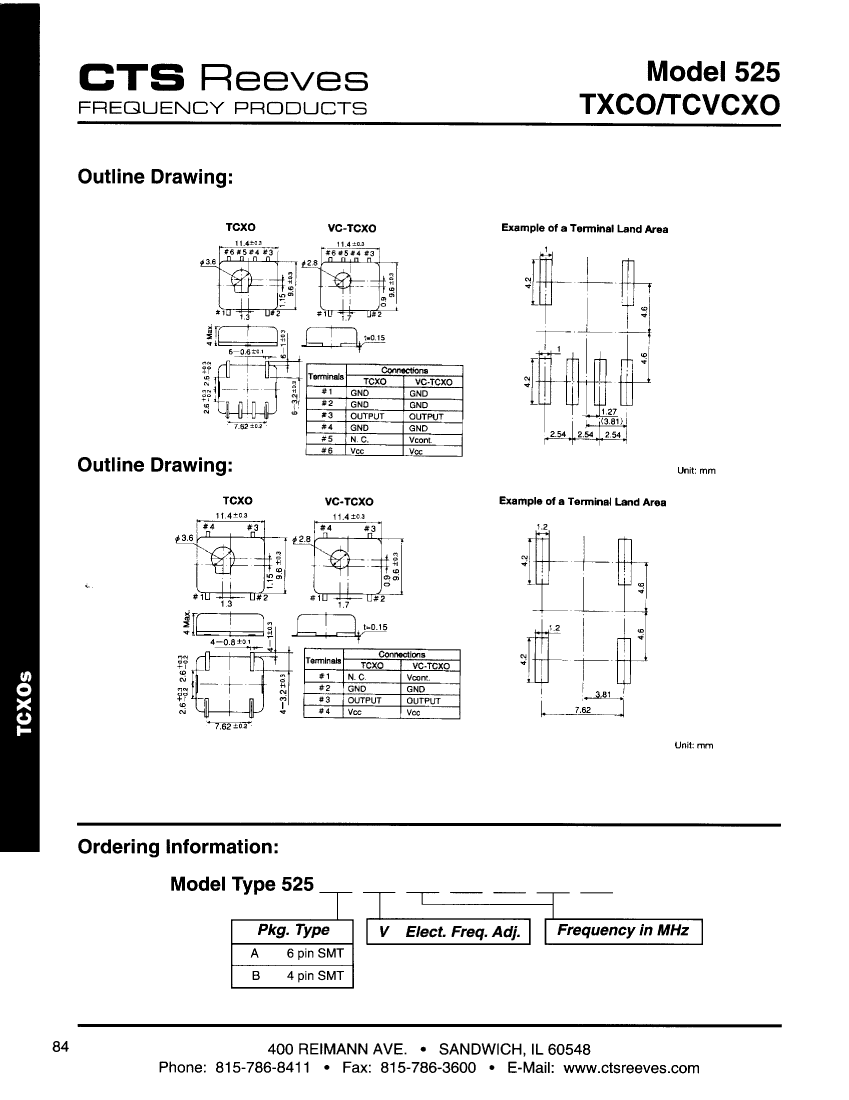

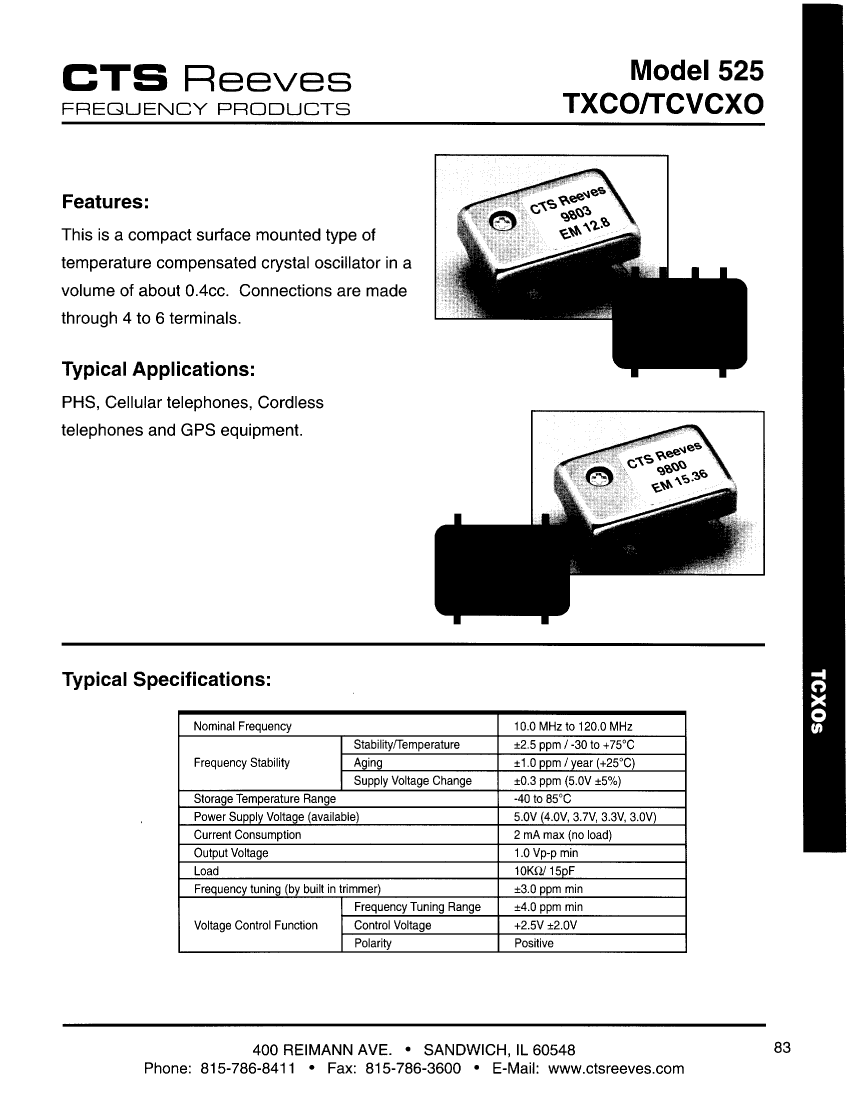

Preview

Download Datasheet

View All

525AVFREQ-OUT1-V3 Related Products

	525AVFREQ-OUT1-V3	525AVFREQ-OUT1-V2	525AVFREQ-OUT1-V1	525BVFREQ-OUT1-V1	525AVFREQ-OUT1-V5	525BVFREQ-OUT1-V5	525BVFREQ-OUT1-V4	525AVFREQ-OUT1-V4	525BVFREQ-OUT1-V2	525BVFREQ-OUT1-V3
Description	Sine Output Oscillator, 10MHz Min, 120MHz Max	Sine Output Oscillator, 10MHz Min, 120MHz Max	Sine Output Oscillator, 10MHz Min, 120MHz Max	Sine Output Oscillator, 10MHz Min, 120MHz Max	Sine Output Oscillator, 10MHz Min, 120MHz Max	Sine Output Oscillator, 10MHz Min, 120MHz Max	Sine Output Oscillator, 10MHz Min, 120MHz Max	Sine Output Oscillator, 10MHz Min, 120MHz Max	Sine Output Oscillator, 10MHz Min, 120MHz Max	Sine Output Oscillator, 10MHz Min, 120MHz Max
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Maximum control voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
Frequency Adjustment - Mechanical	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
frequency stability	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%	2.5%
Manufacturer's serial number	525	525	525	525	525	525	525	525	525	525
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Oscillator type	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE	SINE
Output impedance	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω
Output level	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V
physical size	11.4mm x 9.6mm x 4mm	11.4mm x 9.6mm x 4mm	11.4mm x 9.6mm x 4mm	11.4mm x 9.6mm x 4mm	11.4mm x 9.6mm x 4mm	11.4mm x 9.6mm x 4mm	11.4mm x 9.6mm x 4mm	11.4mm x 9.6mm x 4mm	11.4mm x 9.6mm x 4mm	11.4mm x 9.6mm x 4mm
Nominal supply voltage	3.7 V	4 V	5 V	5 V	3 V	3 V	3.3 V	3.3 V	4 V	3.7 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maker	CTS	CTS	CTS	CTS	-	CTS	CTS	CTS	CTS	CTS
Base Number Matches	1	1	1	1	1	1	-	-	-	-
