1N1602AE3

Description
Zener Diode, 6.8V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN
CategoryDiscrete semiconductor    diode
File Size95KB,1 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric View All

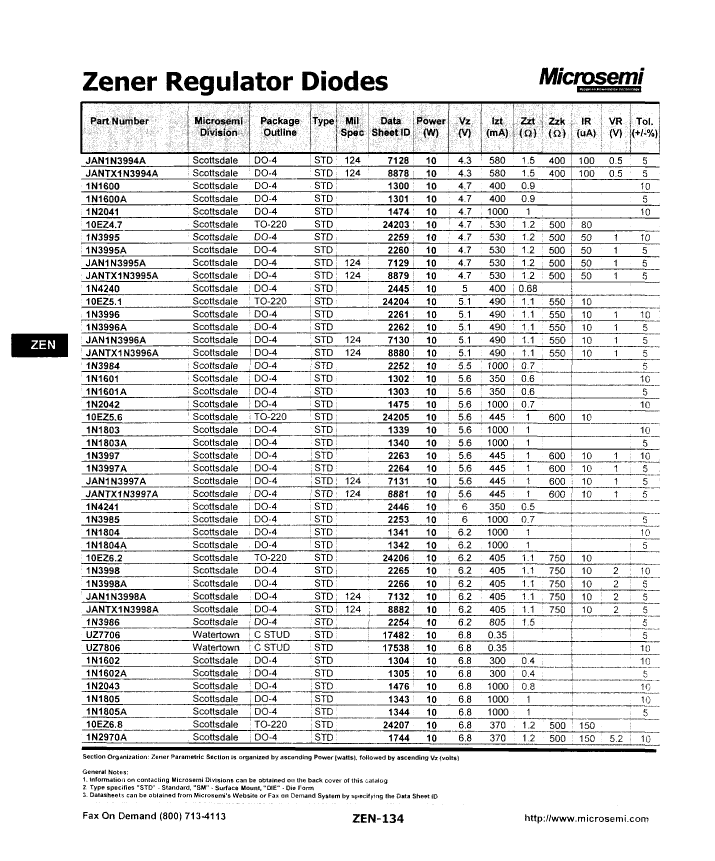

1N1602AE3 Overview

Zener Diode, 6.8V V(Z), 5%, 10W, Silicon, Unidirectional, DO-4, DO-4, 1 PIN

1N1602AE3 Parametric

Parameter NameAttribute value
package instructionO-MUPM-D1
Reach Compliance Codecompli
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JEDEC-95 codeDO-4
JESD-30 codeO-MUPM-D1
Number of components1
Number of terminals1
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
polarityUNIDIRECTIONAL
Maximum power dissipation10 W
Nominal reference voltage6.8 V
surface mountNO
technologyZENER
Terminal formSOLDER LUG
Terminal locationUPPER
Maximum voltage tolerance5%
Working test current300 mA
Base Number Matches1
