8414-15-06-1: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector; File Size80KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8414-15-06-1 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

8414-15-06-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.1 inch
subject depth	0.118 inch
body length	0.616 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8414
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

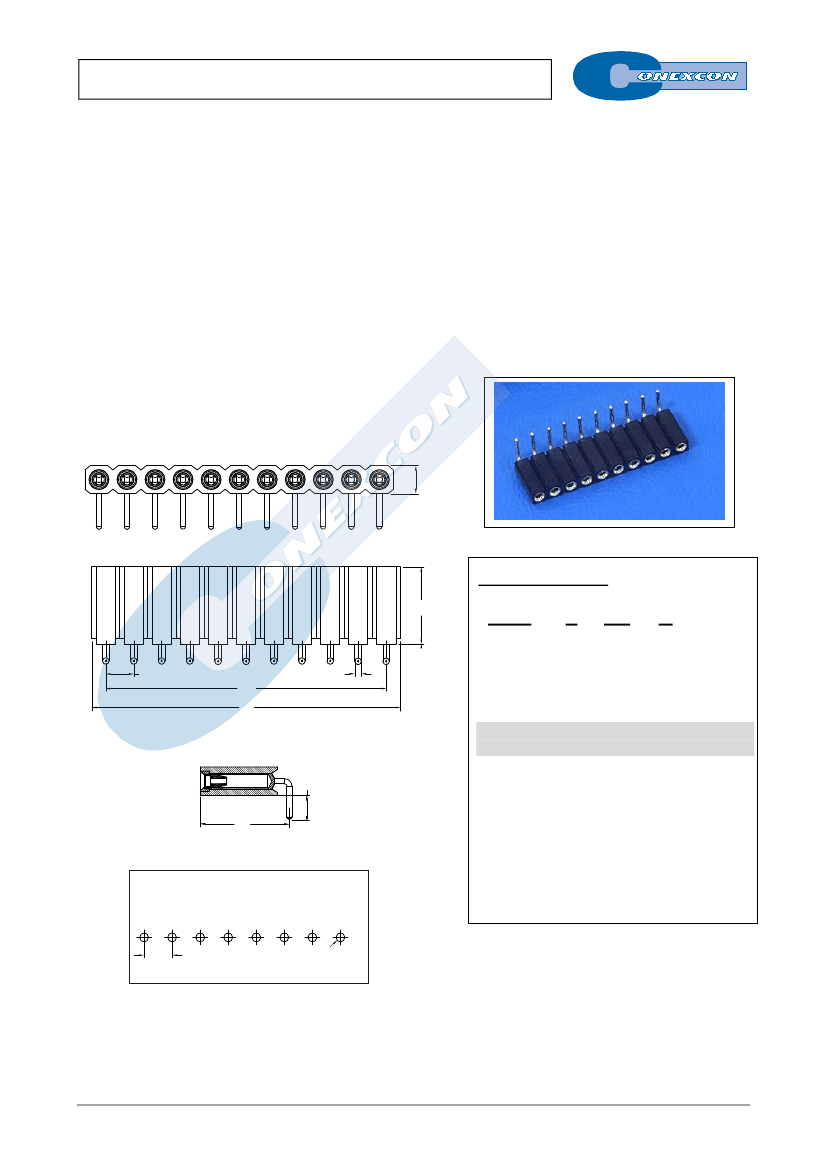

SINGLE ROW RIGHT ANGLE SOCKET

8414 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits



Mates with 0.64 square pin headers 2.54 mm 2556

series and with 0.76 mm round pin header 8418 series



Accept round pin 0.70 to 0.90 mm and sq.pin 0.64 mm



Different plating options and dimensions

Materials



Voltage rating: < 250V

Current rating: < 3A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Clip 6 fingers): Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Insertion force per pin: < 0.20 Kgf (round pin 0.43 mm)



Withdrawal force per pin: > 0.03 Kgf (round pin 0.43 mm)



Durability: 500 Cycles

Dimension Information

1

2

3

2.54±0.15

Ordering Information:

H

8414 -

1

T-

2

XX-

3

C

2.54±0.10

A

B

ø0.60

1. Connector Series

2. (T) Contact Plating



T =

13.

Selec. gold flash over 30-50µ" Ni overall

3.20±0.25

Recommended Finish



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

L



Available in 2 through 40 circuits

4. (C) Connector dimensions

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)



C=1. Dim. H=7.00 mm. L=3.00 mm.



C=2. Dim. H=4.20 mm. L=3.20 mm.

2.54

00

1.

ø

Dimensions:

(In mm.)

A

= 2.54 x (XX*-1)

B

= 2.54 x (XX*)+0.40

* XX

(Number of circuits)

A-XX
