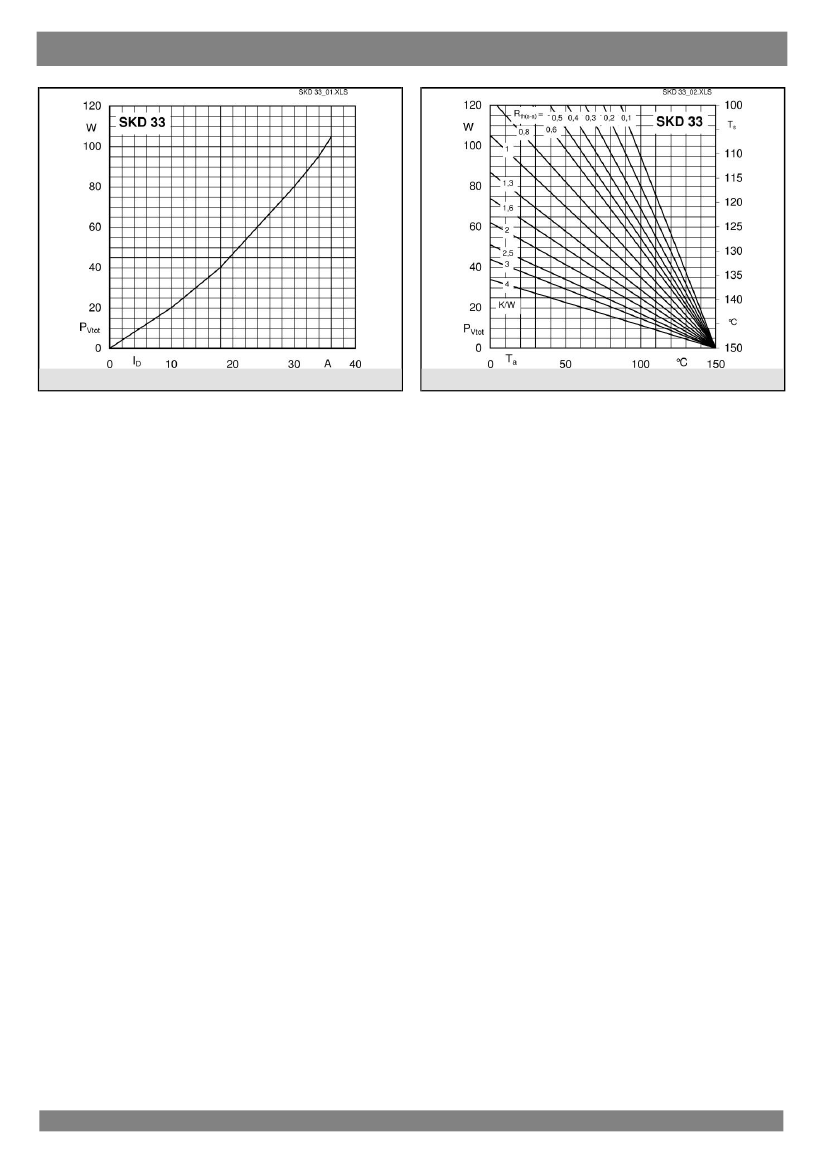

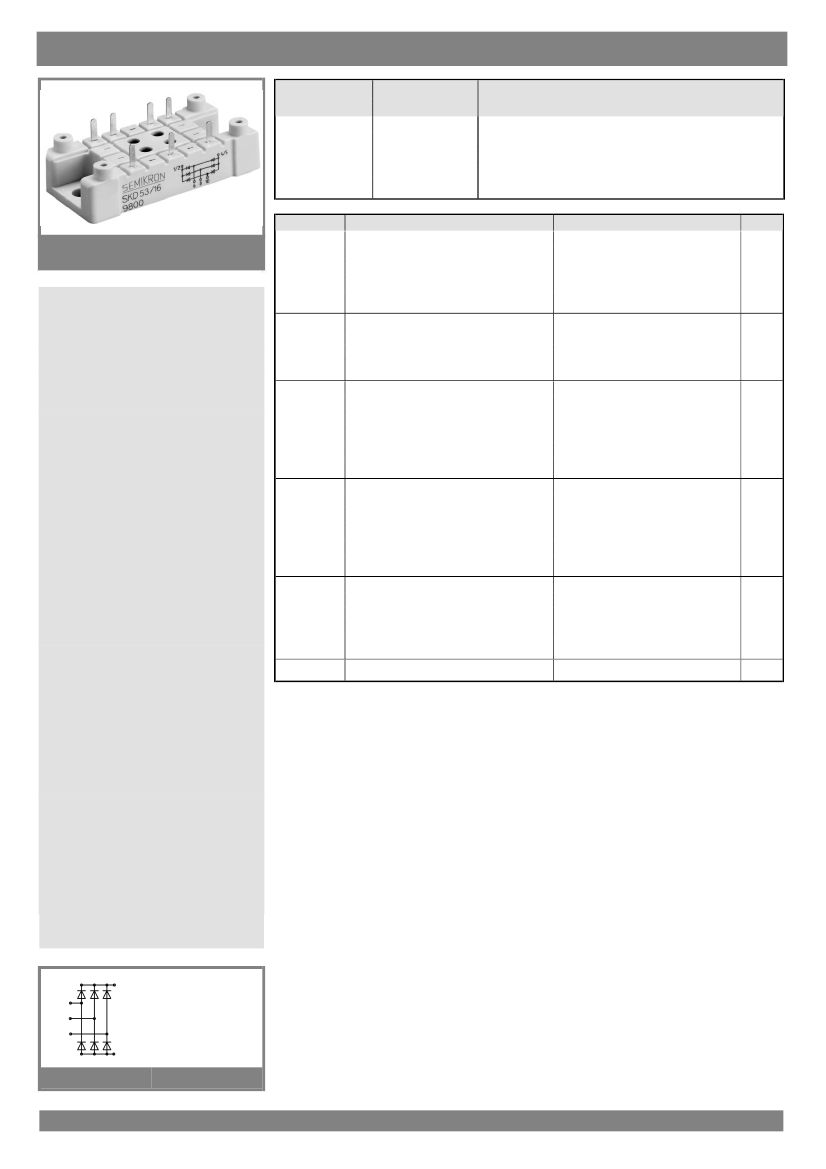

Power Bridge Rectifiers

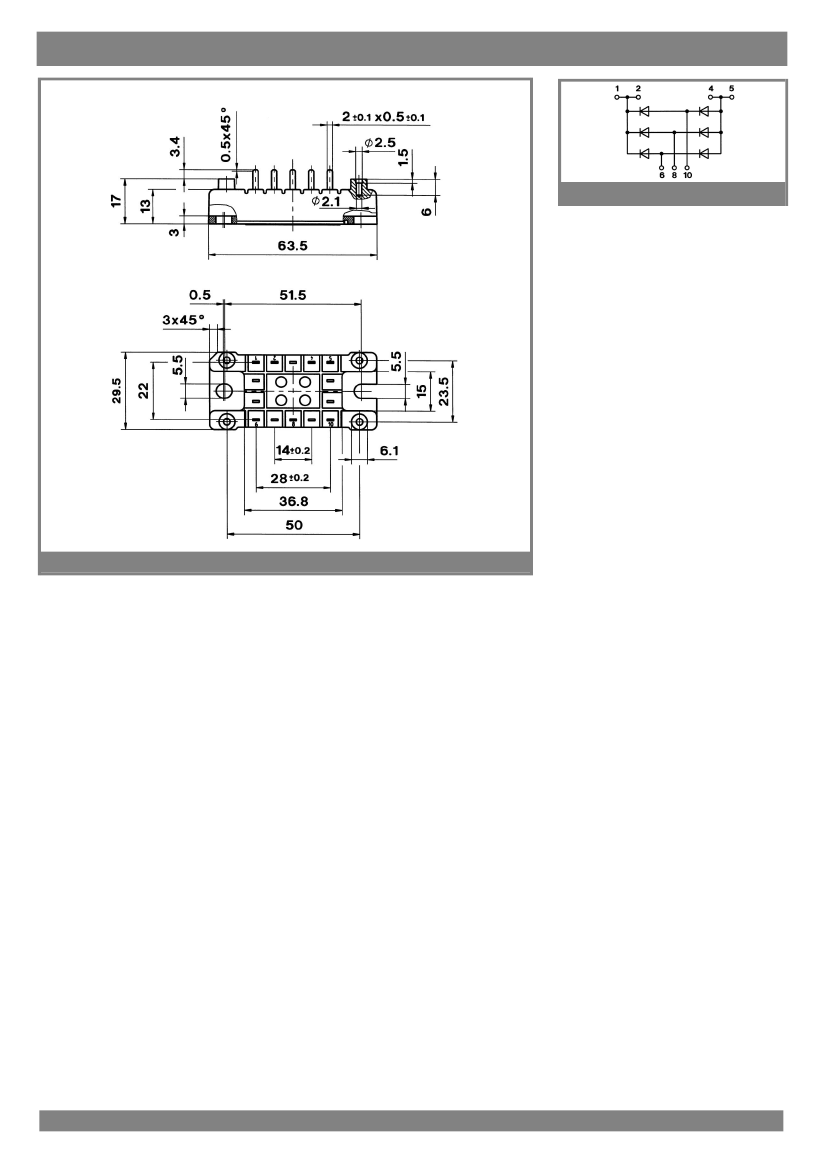

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | SEMIKRON |
| Objectid | 1490612618 |
| package instruction | R-XUFM-X7 |
| Contacts | 7 |
| Manufacturer packaging code | CASE G 55 |
| Reach Compliance Code | compli |
| compound_id | 6232930 |
| Shell connection | ISOLATED |
| Configuration | BRIDGE, 6 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.6 V |
| JESD-30 code | R-XUFM-X7 |
| JESD-609 code | e2 |
| Maximum non-repetitive peak forward current | 240 A |
| Number of components | 6 |
| Phase | 3 |
| Number of terminals | 7 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 50 A |
| Package body material | UNSPECIFIED |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V |
| surface mount | NO |
| Terminal surface | Tin/Silver (Sn/Ag) |
| Terminal form | UNSPECIFIED |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| SKD33/08 | SKD33 | SKD33/04 | SKD33/12 | SKD33/16 | SKD33/18 | |
|---|---|---|---|---|---|---|
| Description | Power Bridge Rectifiers | Power Bridge Rectifiers | Power Bridge Rectifiers | Power Bridge Rectifiers | Power Bridge Rectifiers | Power Bridge Rectifiers |
| Is it lead-free? | Lead free | - | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | - | conform to | conform to | conform to | conform to |
| Maker | SEMIKRON | - | SEMIKRON | SEMIKRON | SEMIKRON | SEMIKRON |
| package instruction | R-XUFM-X7 | - | R-XUFM-X7 | R-XUFM-X7 | R-XUFM-X7 | R-XUFM-X7 |
| Contacts | 7 | - | 7 | 7 | 7 | 7 |
| Manufacturer packaging code | CASE G 55 | - | CASE G 55 | CASE G 55 | CASE G 55 | CASE G 55 |
| Reach Compliance Code | compli | - | compli | compli | compli | compli |
| Shell connection | ISOLATED | - | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | BRIDGE, 6 ELEMENTS | - | BRIDGE, 6 ELEMENTS | BRIDGE, 6 ELEMENTS | BRIDGE, 6 ELEMENTS | BRIDGE, 6 ELEMENTS |
| Diode component materials | SILICON | - | SILICON | SILICON | SILICON | SILICON |
| Diode type | BRIDGE RECTIFIER DIODE | - | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE | BRIDGE RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.6 V | - | 1.6 V | 1.6 V | 1.6 V | 1.6 V |
| JESD-30 code | R-XUFM-X7 | - | R-XUFM-X7 | R-XUFM-X7 | R-XUFM-X7 | R-XUFM-X7 |
| JESD-609 code | e2 | - | e2 | e2 | e2 | e2 |
| Maximum non-repetitive peak forward current | 240 A | - | 240 A | 240 A | 240 A | 240 A |
| Number of components | 6 | - | 6 | 6 | 6 | 6 |
| Phase | 3 | - | 3 | 3 | 3 | 3 |
| Number of terminals | 7 | - | 7 | 7 | 7 | 7 |
| Maximum operating temperature | 150 °C | - | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -40 °C | - | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output current | 50 A | - | 50 A | 50 A | 50 A | 50 A |
| Package body material | UNSPECIFIED | - | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Package shape | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | - | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V | - | 400 V | 1200 V | 1600 V | 1800 V |
| surface mount | NO | - | NO | NO | NO | NO |
| Terminal surface | Tin/Silver (Sn/Ag) | - | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Terminal form | UNSPECIFIED | - | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Terminal location | UPPER | - | UPPER | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
