SM5828C datasheet, PDF - EEWORLD Datasheet

SM5828C: DescriptionShift Register, 8-Bit, CMOS, CDIP28,; Categorylogic Shift register; File Size394KB，7 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

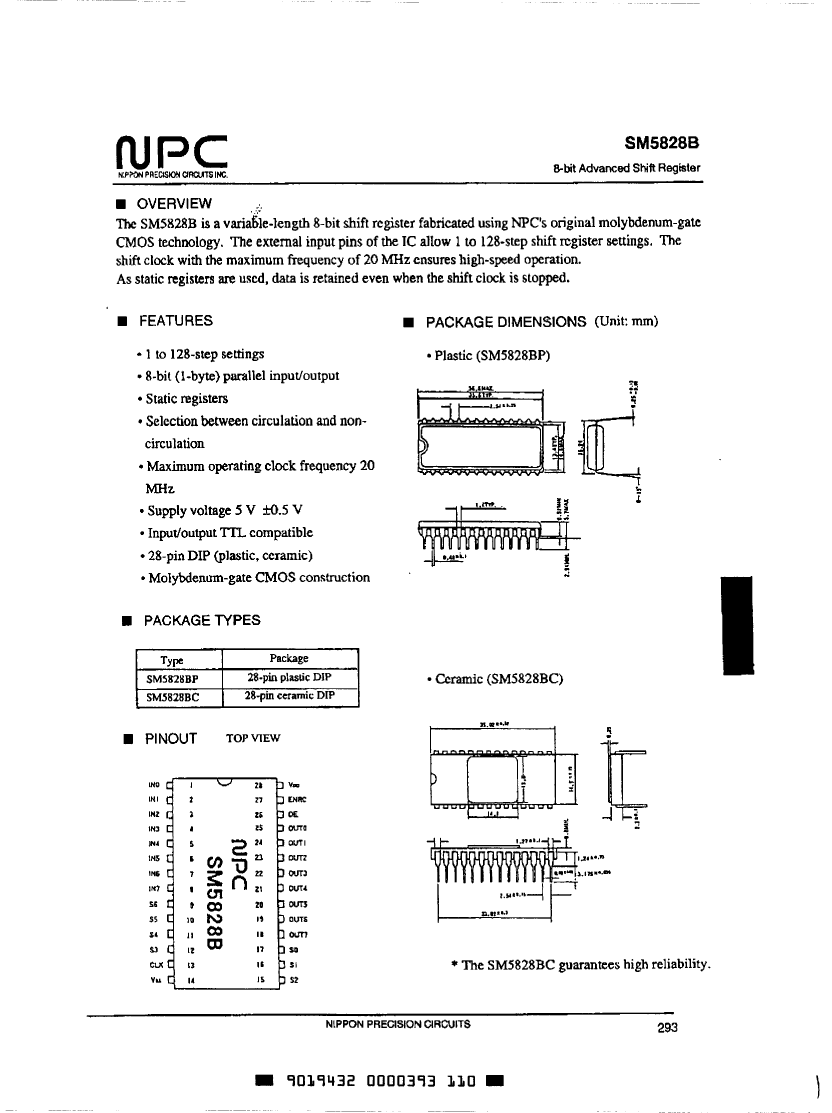

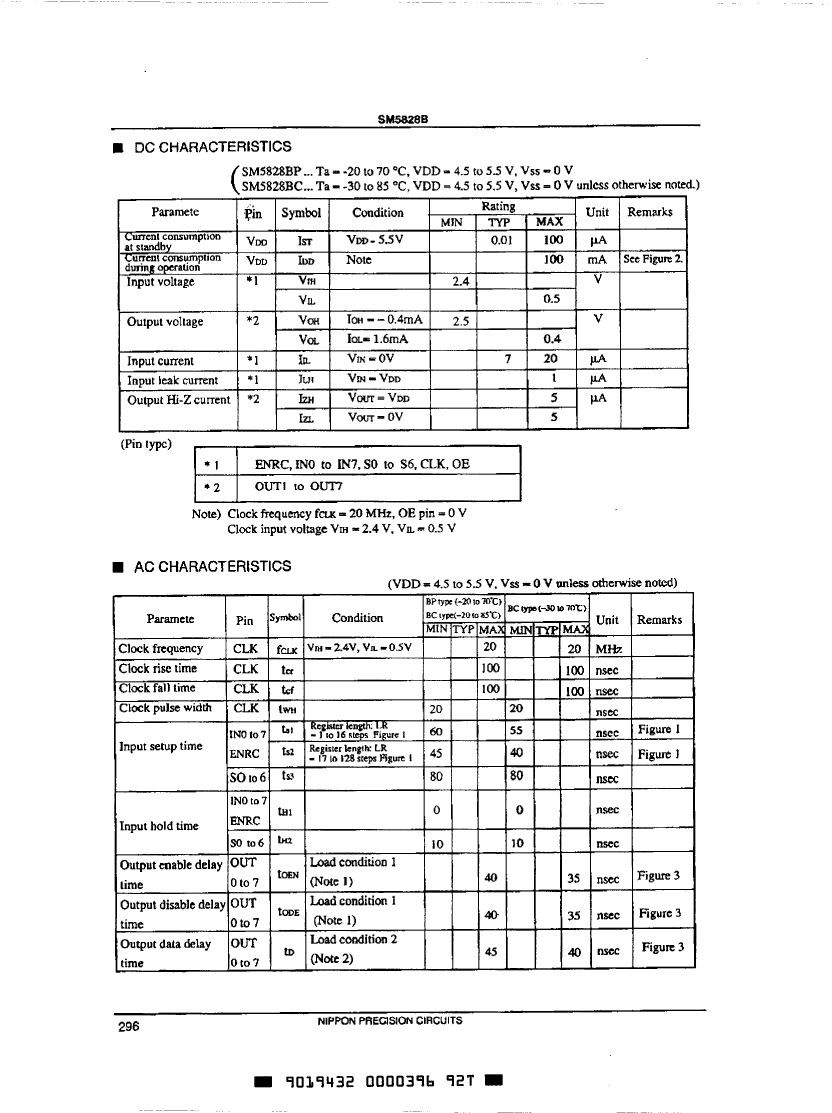

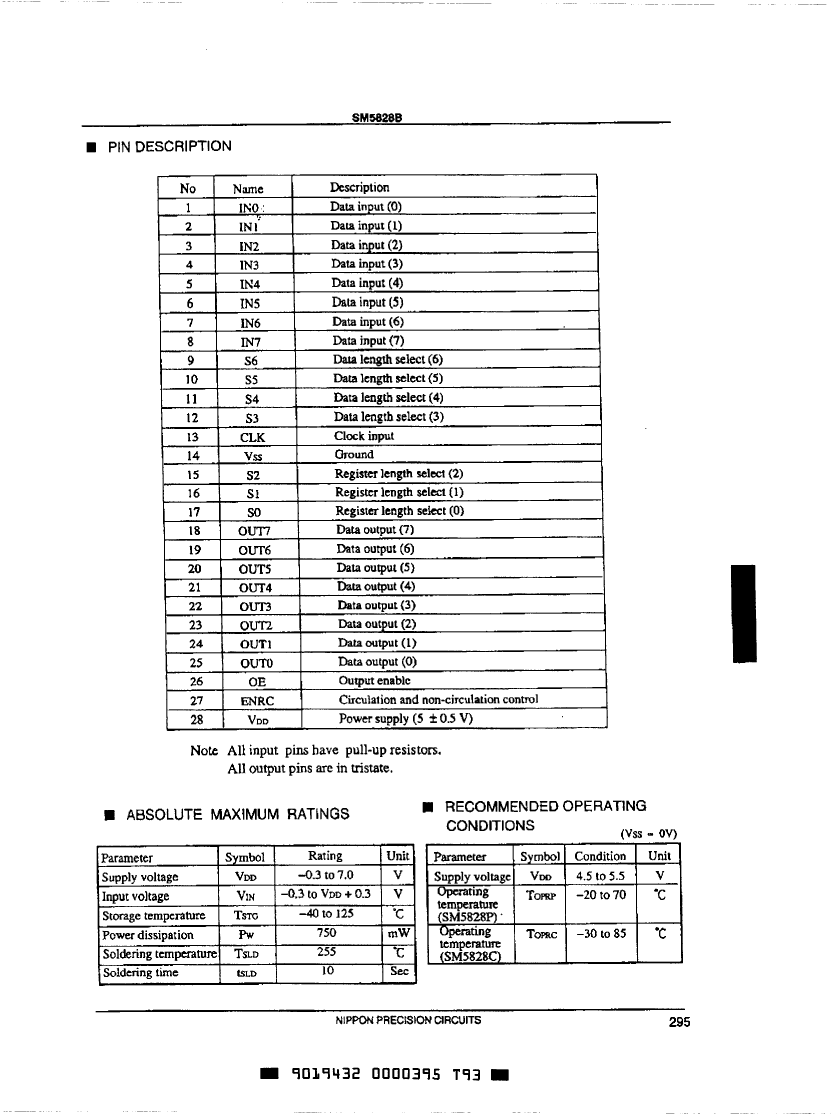

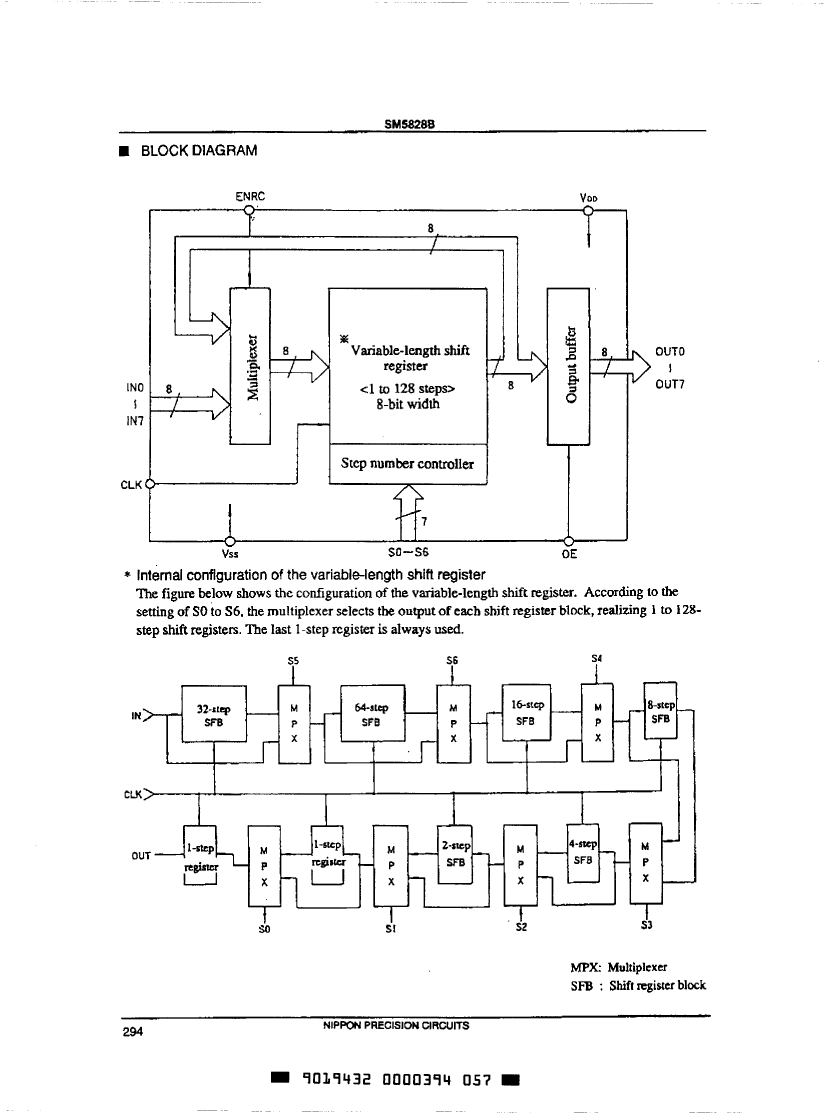

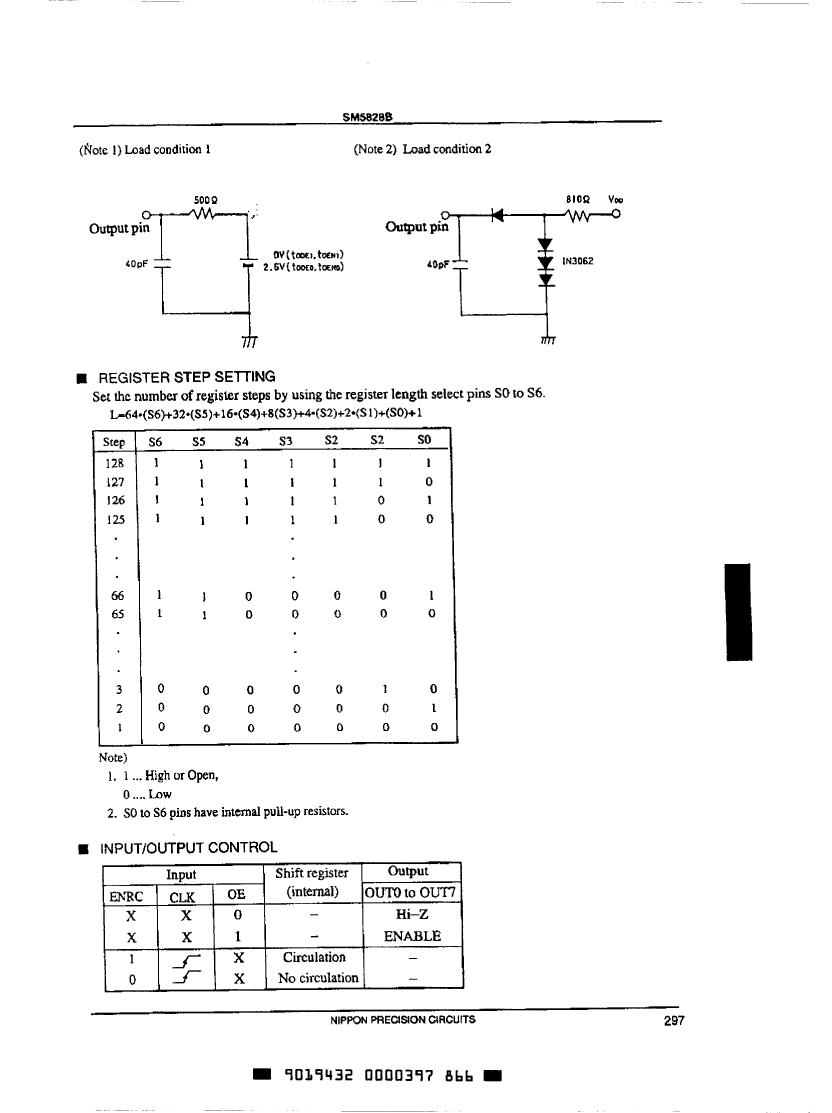

SM5828C Overview

Shift Register, 8-Bit, CMOS, CDIP28,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Seiko Epson Corporation
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-XDIP-T28
Maximum Frequency@Nom-Sup	20000000 Hz
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	SM5828C
Description	Shift Register, 8-Bit, CMOS, CDIP28,
Is it Rohs certified?	incompatible
Maker	Seiko Epson Corporation
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-XDIP-T28
Maximum Frequency@Nom-Sup	20000000 Hz
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
