Datasheet> All Categories > terminals> 8248320000

Preview

8248320000: DescriptionModular Terminal Block, 4mm2; Categoryterminals; File Size51KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

8248320000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8248320000	-	-	View	Buy Now

8248320000 Overview

Modular Terminal Block, 4mm2

8248320000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Is Samacsys	N
Fastening method	SCREW
Manufacturer's serial number	8248320000
Installation type	DIN RAIL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	4 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

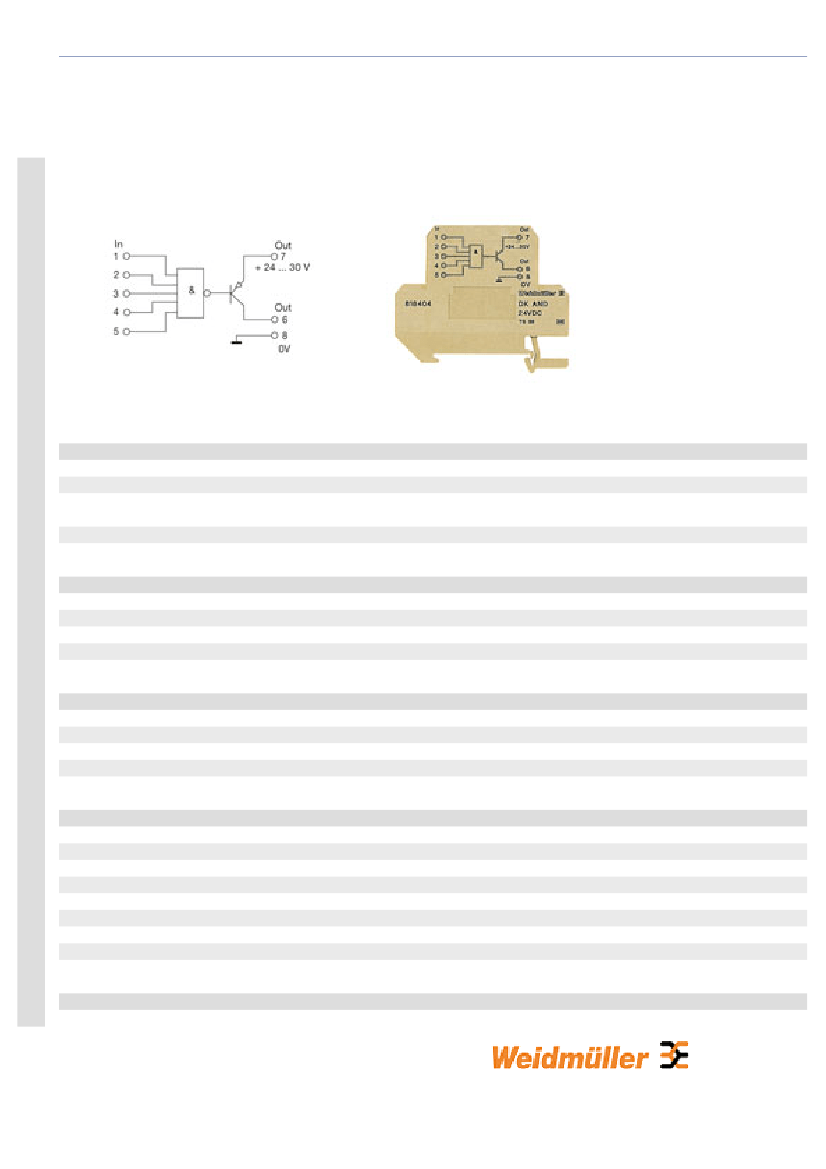

Product catalogue | Functional Electronics | Analogue signal conditioning | Preprocessing logic

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Input current

Max. voltage

Rated input level

Pulse duration

Number of inputs

Output

Output current

Load resistance, current

Output level

Switching thresholds

Number of outputs

General data

Function

Input/Output

Galvanic isolation

Type of connection

Mounting rail

Current consumption

Voltage supply

Ambient temperature (operational)

Storage temperature

Insulation coordination

Insulation voltage input or output/rail

8248320000

DK NAND 35 24VDC

Function component, Max. 20 mA , Screw

connection

4008190406707

5 pc(s).

Approx. 1.5 mA per input (24 V)

30 V DC

24 V DC= High, 0 V = Low

≥ 50 µs

5

Max. 20 mA

≤ 600 Ω

PNP, Ub-0.1.8 V

High <15 V, low < 9 V

1

NAND

Logic module

Without isolation

Screw connection

TS 35 + TS 32

< 5 mA

24...30 V DC

0 °C...+50 °C

-40 °C...+60 °C

4 kV

-1-
