9108-6-106-01 datasheet, PDF - EEWORLD Datasheet

9108-6-106-01: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Receptacle; CategoryThe connector; File Size173KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9108-6-106-01 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Receptacle

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	WITH STANDOFF
body width	0.201 inch
subject depth	0.465 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	9100
Plug contact pitch	0.1 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	.556 N
Base Number Matches	1

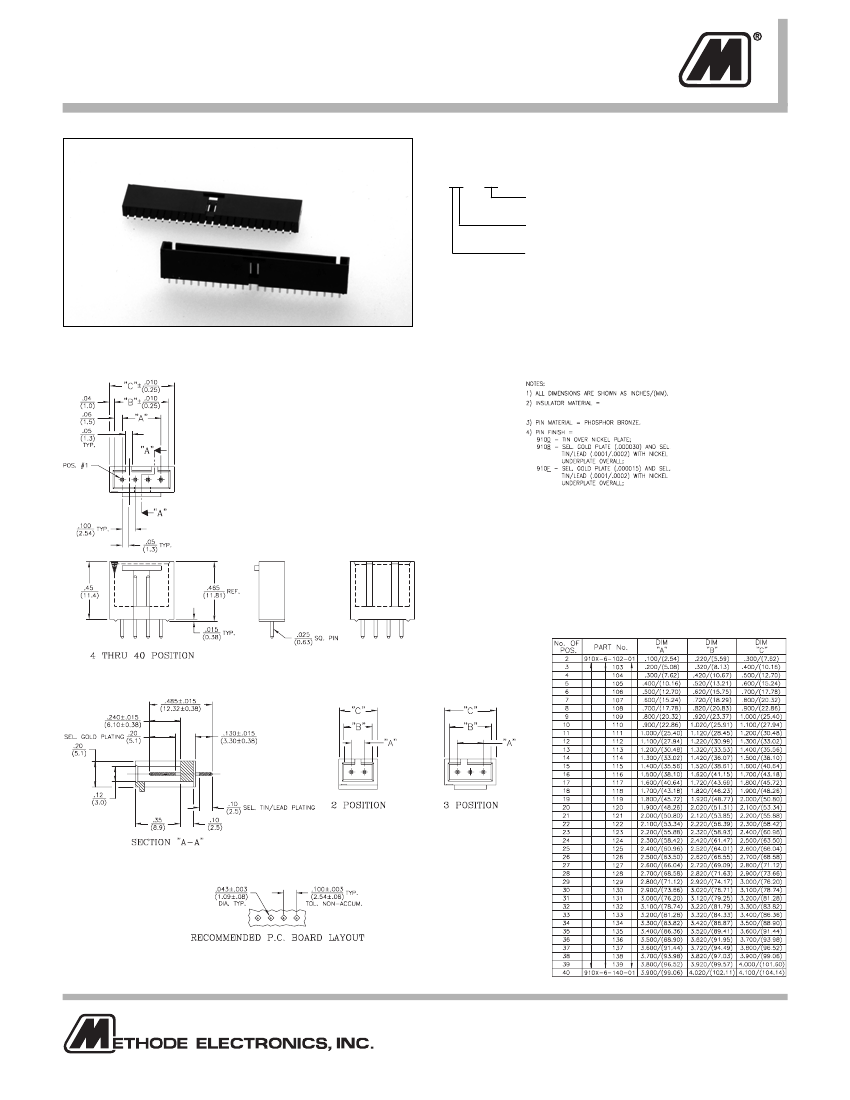

.100” (2.54mm) Single Row,

Through Hole, Vertical Shrouded Header

9100 SERIES

(“POST/BOXE”)

PART NUMBER LEGEND

91XX-6-1XX-01

NUMBER OF POSITIONS

(SEE TABLE )

PIN PLATING

(SEE NOTE 4)

INSULATOR MATERIAL

(SEE NOTE 2)

MATING CONNECTORS: 9300 SERIES RECEPTACLES

910X - POLYESTER (PBT); 30% GLASS FILLED; UL 94V-0

911X - POLYESTER (PCT); 30% GLASS FILLED; UL 94V-0;

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
