8301502QA datasheet, PDF - EEWORLD Datasheet

8301502QA: DescriptionSerial I/O Controller, 2 Channel(s), 0.06103515625MBps, NMOS, CDIP40; CategoryMicrocontrollers and processors; File Size475KB，19 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

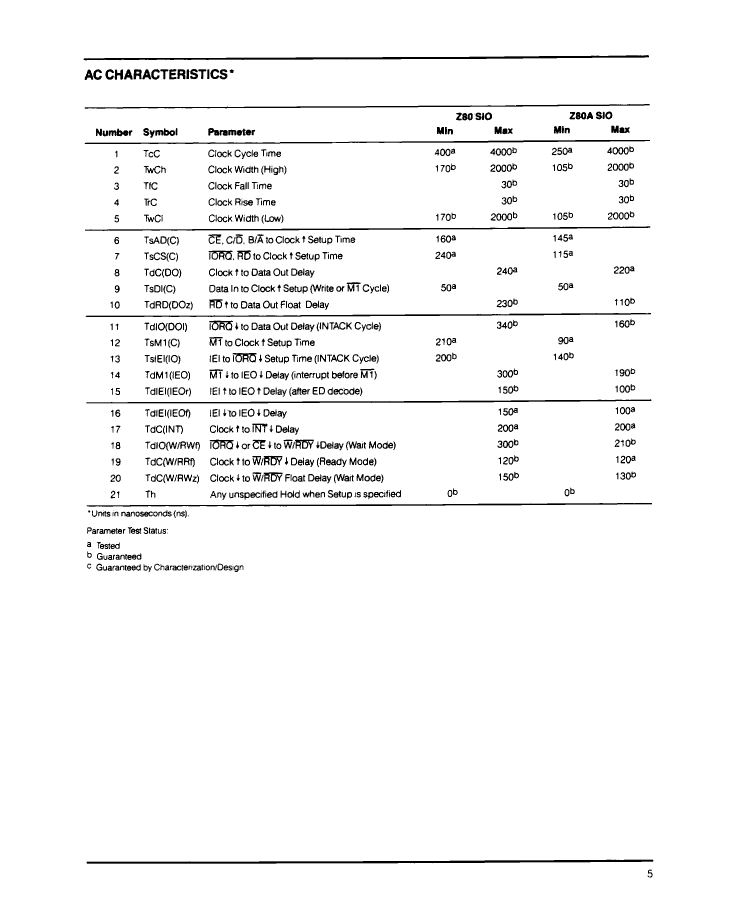

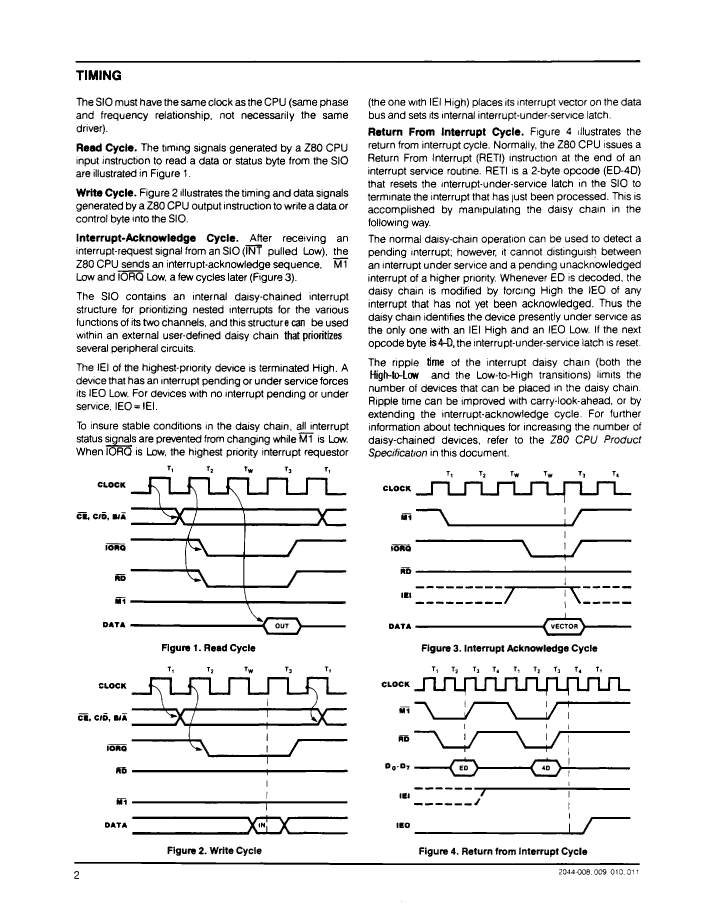

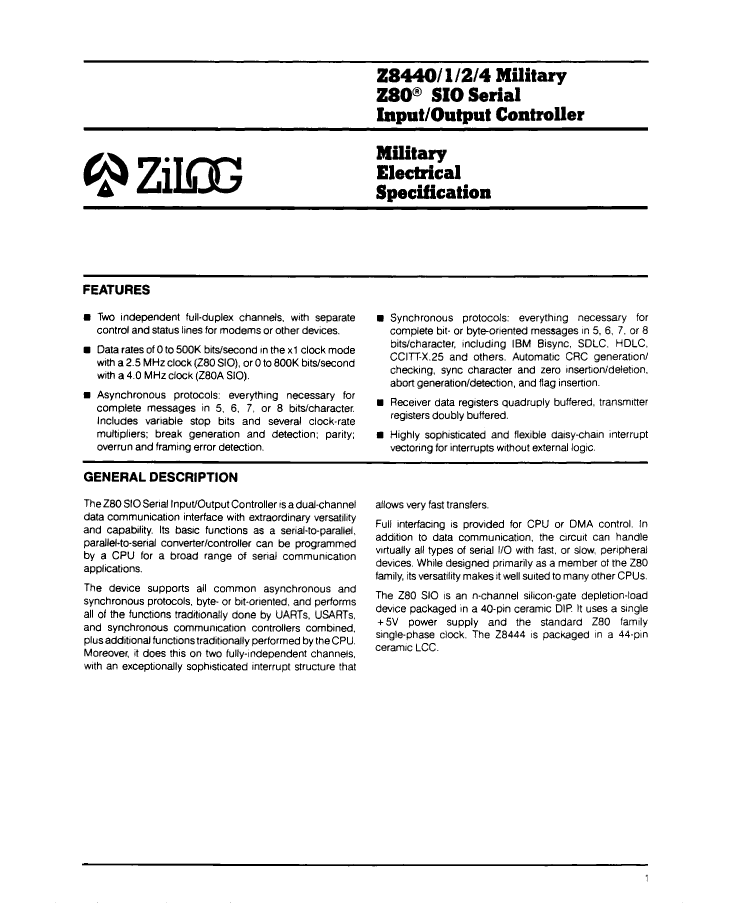

8301502QA Overview

Serial I/O Controller, 2 Channel(s), 0.06103515625MBps, NMOS, CDIP40

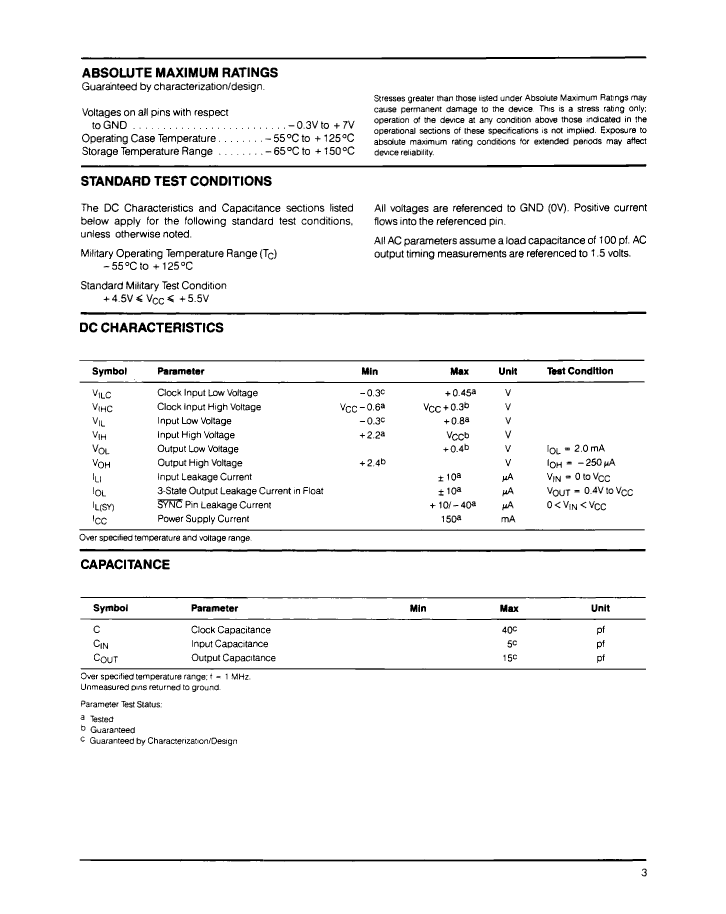

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
Is Samacsys	N
Address bus width	1
boundary scan	NO
Bus compatibility	Z80
maximum clock frequency	2.5 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.06103515625 MBps
External data bus width	8
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
low power mode	NO
Number of serial I/Os	2
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1
