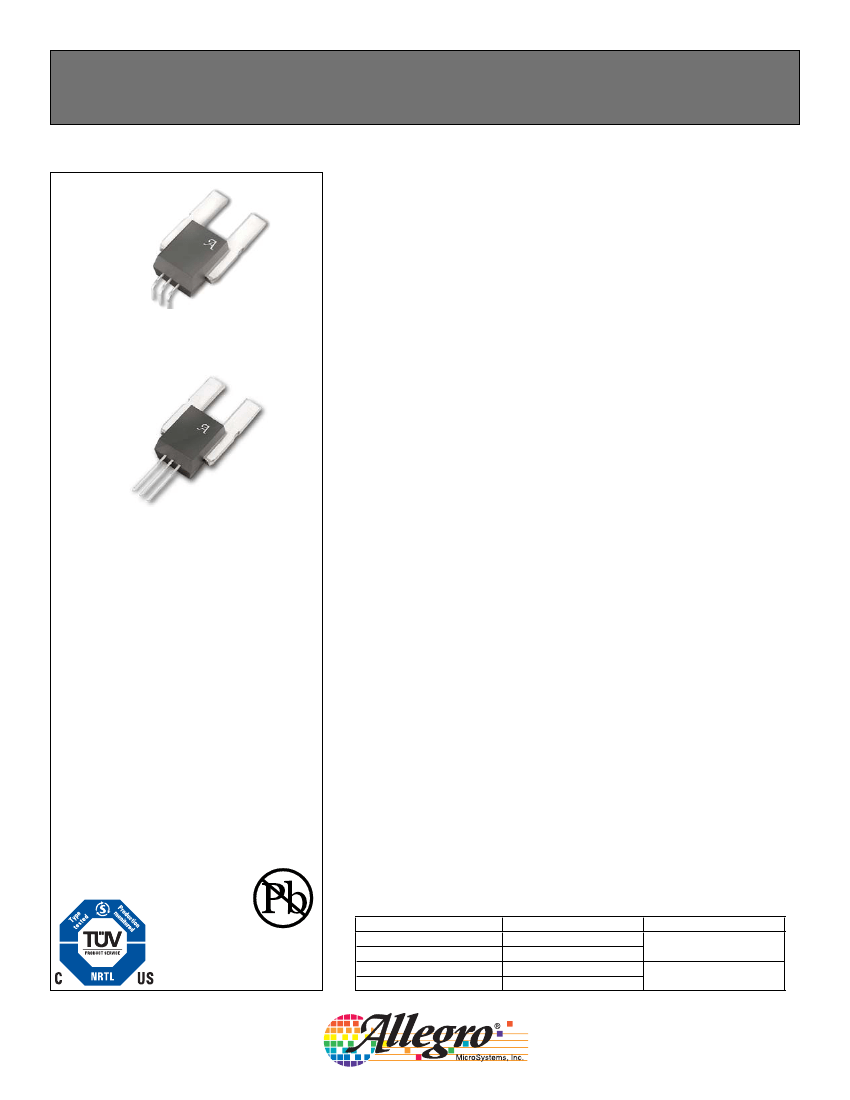

Current Sensor: ACS755xCB-150

The Allegro ACS75x family of current sensors provides economical and

precise solutions for current sensing in industrial, automotive, commercial, and

communications systems. The device package allows for easy implementation by

the customer. Typical applications include load detection and management, power

supplies, and overcurrent fault protection.

The device consists of a precision, low-offset linear Hall sensor circuit with a

copper conduction path located near the die. Applied current

ﬂ

owing through

this copper conduction path generates a magnetic

ﬁ

eld which is sensed by the

integrated Hall IC and converted into a proportional voltage. Device accuracy

is optimized through the close proximity of the magnetic signal to the Hall

transducer. A precise, proportional voltage is provided by the low-offset, chopper-

stabilized BiCMOS Hall IC, which is programmed for accuracy at the factory.

The output of the device will be valid when the current

ﬂ

ows from pin 4 to pin 5.

The internal resistance of this conductive path is typically 100

μΩ,

providing

low power loss. The thickness of the copper conductor allows survival of the

device at up to 5× overcurrent conditions. The terminals of the conductive path

are electrically isolated from the sensor leads (pins 1 through 3). This allows the

ACS75x family of sensors to be used in applications requiring electrical isolation

without the use of opto-isolators or other costly isolation techniques.

The device is fully calibrated prior to shipment from the factory. The ACS75x

family is lead-free. All leads are coated with 100% matte tin, and there is no lead

inside the package. The heavy gauge leadframe is made of oxygen-free copper.

Package CB-PSF

Package CB-PSS

Pin 1: VCC

Pin 2: GND

Pin 3: VOUT

Terminal 4: IP+

Terminal 5: IP–

Features and Beneﬁts

•

Monolithic Hall IC for high reliability

Single +5 V supply

3 kV

RMS

isolation voltage between terminals 4/5 and pins 1/2/3

35 kHz bandwidth

Automotive temperature range

End-of-line factory-trimmed for gain and offset

Ultra-low power loss: 100

μΩ

internal conductor resistance

Ratiometric output from supply voltage

Extremely stable output offset voltage

Small package size, with easy mounting capability

Output proportional to ac and dc currents

ABSOLUTE MAXIMUM RATINGS

Supply Voltage, V

..........................................

16 V

Reverse Supply Voltage, V

RCC

........................ –16

Output Voltage, V

OUT

........................................

16 V

Reverse Output Voltage, V

ROUT

...................... –0.1

Output Current Source, I

OUT(Source)

.................

3 mA

Output Current Sink, I

OUT(Sink)

.......................10

Operating Temperature,

Ambient, T

, K range.....................

–40 to 125ºC

Ambient, T

, S range .......................

–20 to 85ºC

Maximum Junction, T

J(max)

.............................

165°C

Maximum Storage Temperature, T

....

–65 to 170°C

Applications

• Automotive systems

• Industrial systems

• Power conversion

• Battery monitors

Use the following complete part numbers when ordering:

Part Number

TÜV America

Certiﬁcate Number:

U8V 04 11 54214 001

ACS755KCB-150-PSF

ACS755KCB-150-PSS

ACS755SCB-150-PSF

ACS755SCB-150-PSS

Package

Formed signal pins

Straight signal pins

Formed signal pins

Straight signal pins

Ambient

–40 to 125°C

–20 to 85°C

ACS755150-DS, Rev. 2

115 Northeast Cutoff, Box 15036

Worcester, Massachusetts 01615-0036 (508) 853-5000
