3100-8-102-04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3100-8-102-04

3100-8-102-04: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, White Insulator, Receptacle; CategoryThe connector; File Size1MB，9 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric Compare View All

3100-8-102-04 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, White Insulator, Receptacle

3100-8-102-04 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	UL 94V-2 HOUSING
body width	0.345 inch
subject depth	0.365 inch
body length	0.302 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	8.896 N
Insulation resistance	500000000000 Ω
Insulator color	WHITE
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	3100
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	HOUSING SIDE
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.172 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1

Preview

Download Datasheet

View All

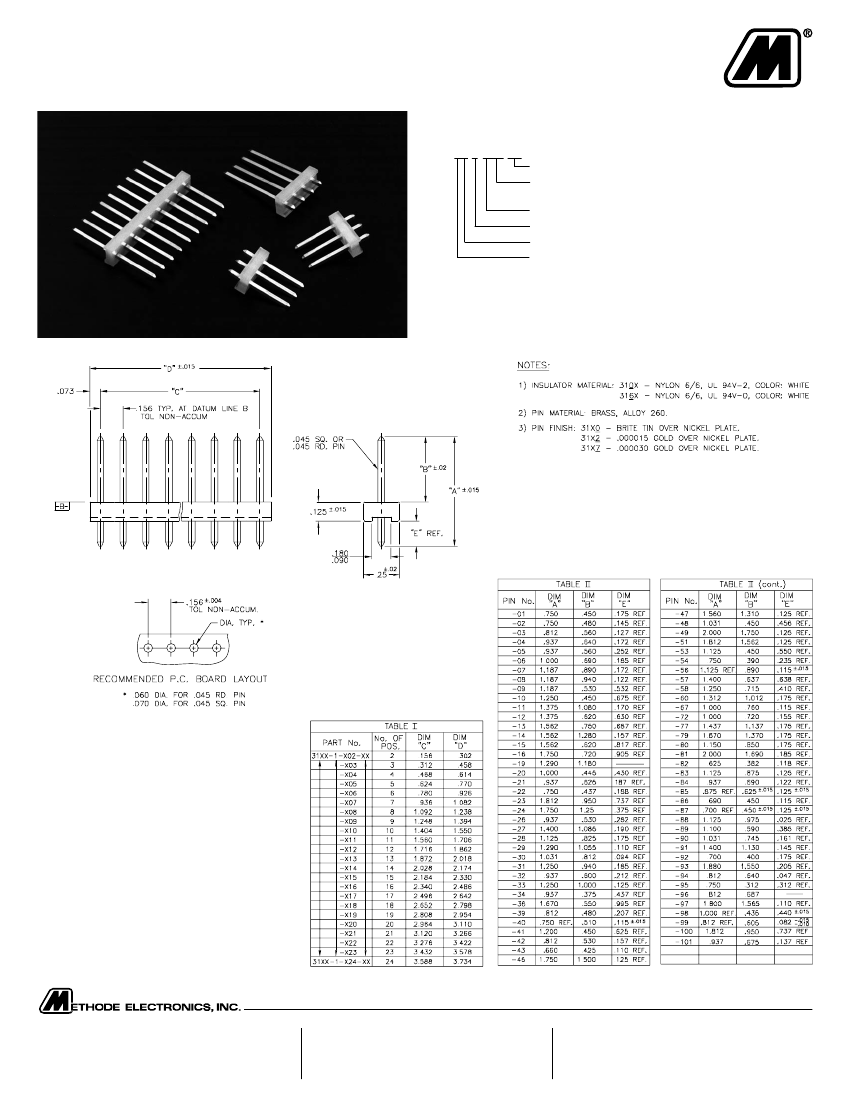

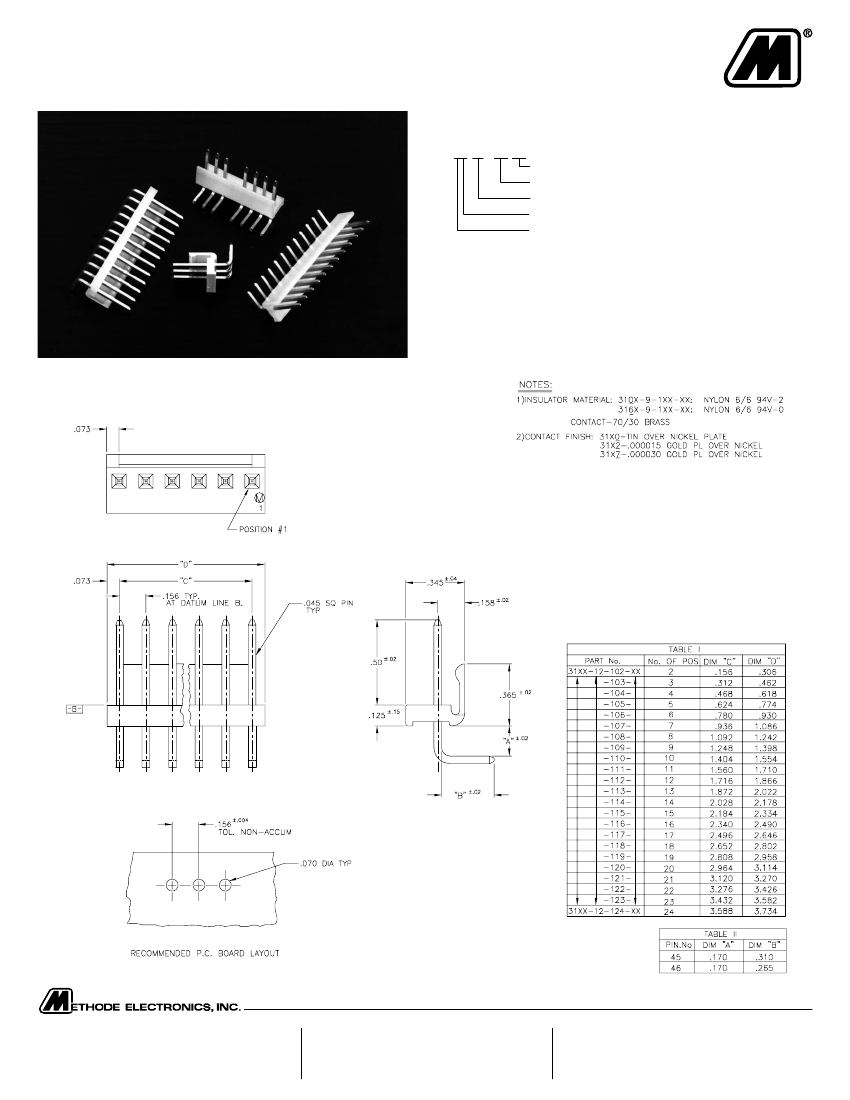

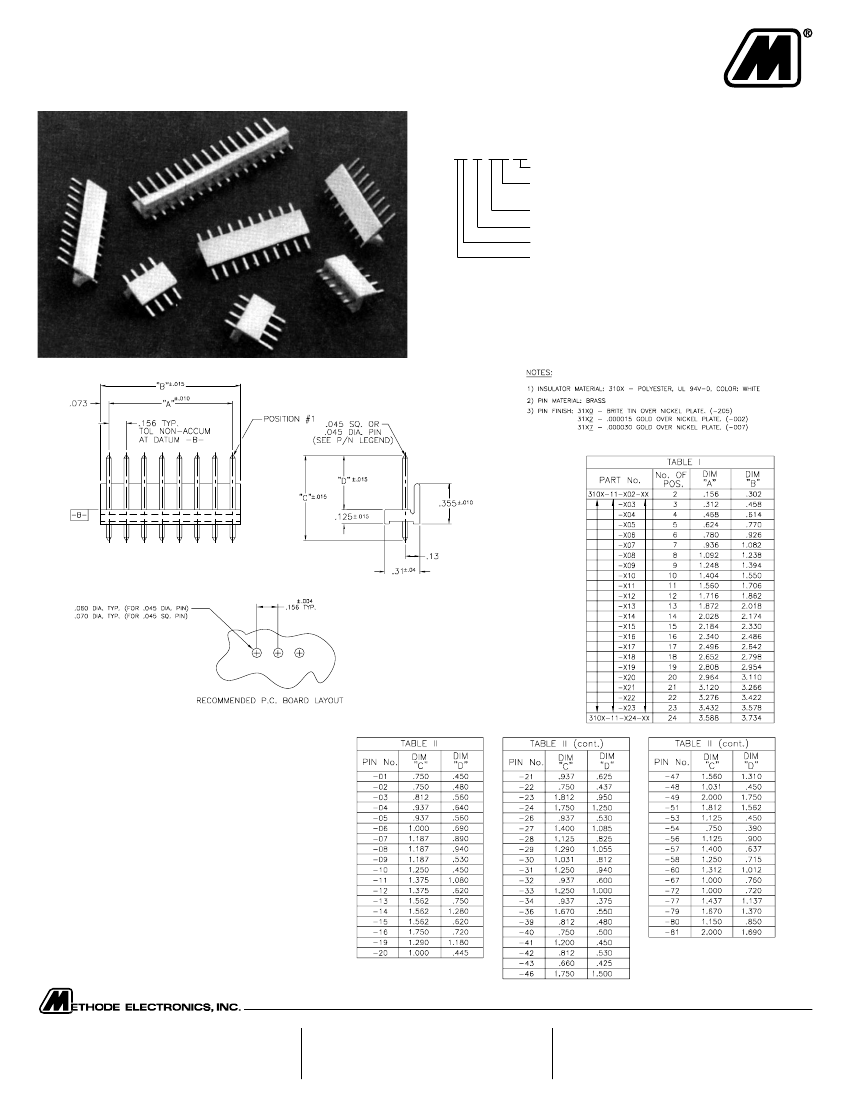

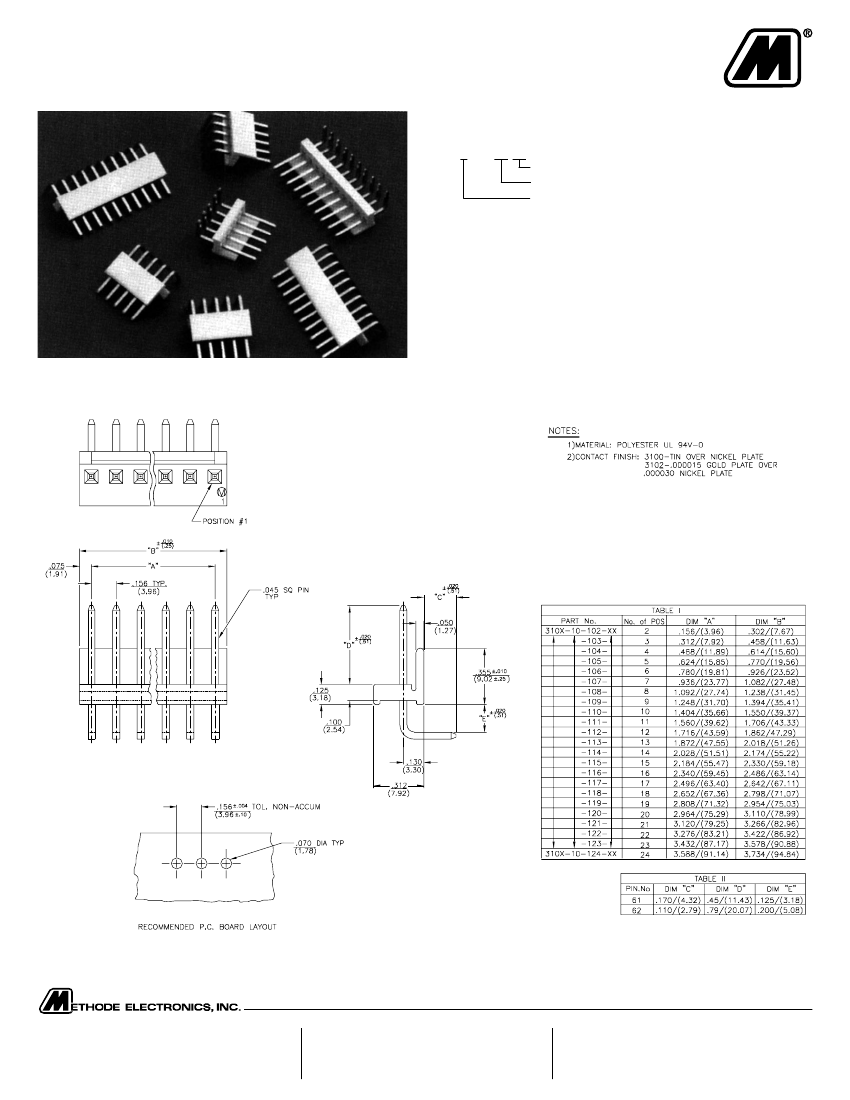

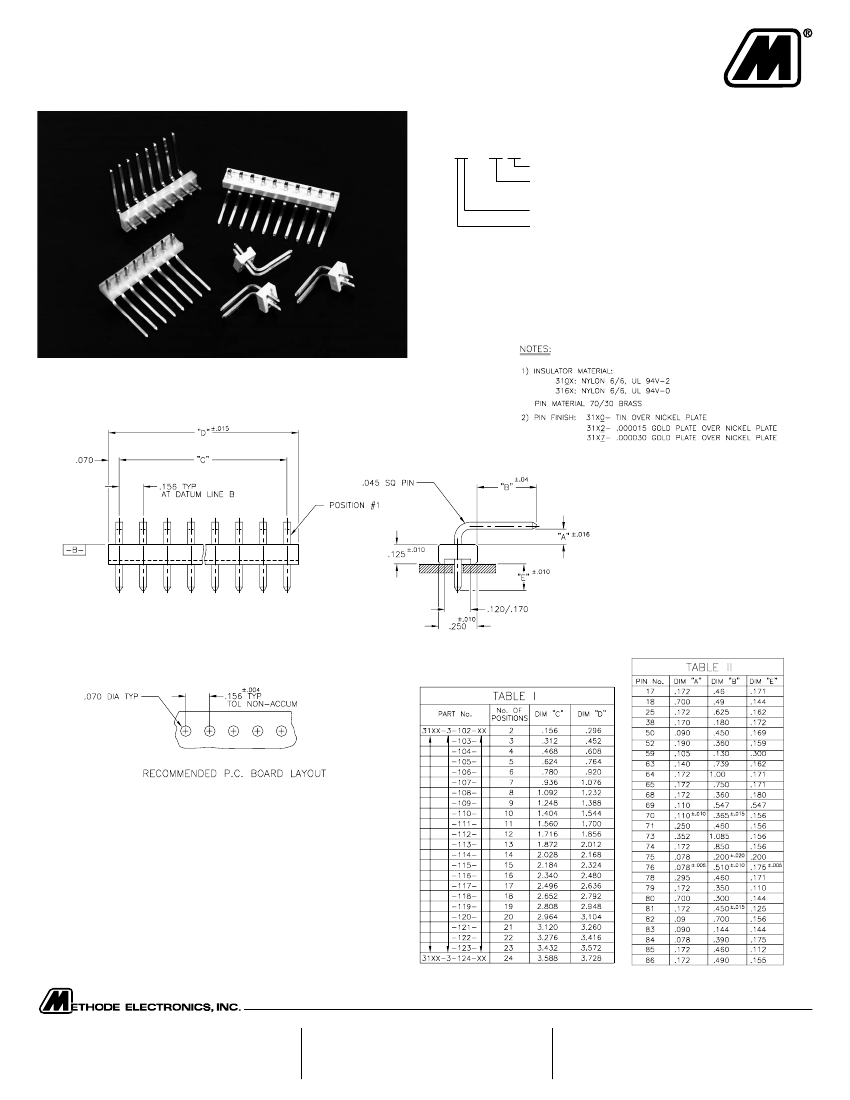

.156" (3.96mm) Single Row

Through Hole, Vertical Headers

3100 SERIES

(“TERMACON”)

PART NUMBER LEGEND

31XX-1-XXX-XX

PIN NUMBER, DIMS “A” & “B”

(SEE TABLE II)

NUMBER OF PINS

(SEE TABLE I)

PIN STYLE: “1” IS .045 SQ., “2” IS .045 RD.

INSULATOR TYPE

(STRAIGHT)

PIN PLATING

(SEE NOTE 3)

INSULATOR MATERIAL

(SEE NOTE 1)

MATING CONNECTORS: 3000 SERIES AND 3300 SERIES CRIMP

OR IDC STYLE CONNECTORS

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
