STd8010
Flexible MPEG audio/video codec
with DVD and DVB receiver capability
DATA BRIEF
DESCRIPTION
STMicroelectronics has developed an audio/video
full-duplex Codec for low-cost combo devices.
The STd8010, equipped with open and scalable
architectures, brings audio/video encoding for
DVD or HDD recording, state-of-the art DVD
player and recorder features, STB, networking
and PVR.
TV watch and record, time shift, DV movie transfer
to disc, MPEG4 decoding and encoding, DVD
audio are many functions supported by this
device.
The STd8010 offers manufacturers of STB, DVD
recorder, PVR and convergence products a cost-
effective solution with an unrivalled set of features,
and flexibility.
Package (35x35 mm² PBGA)
xxxx

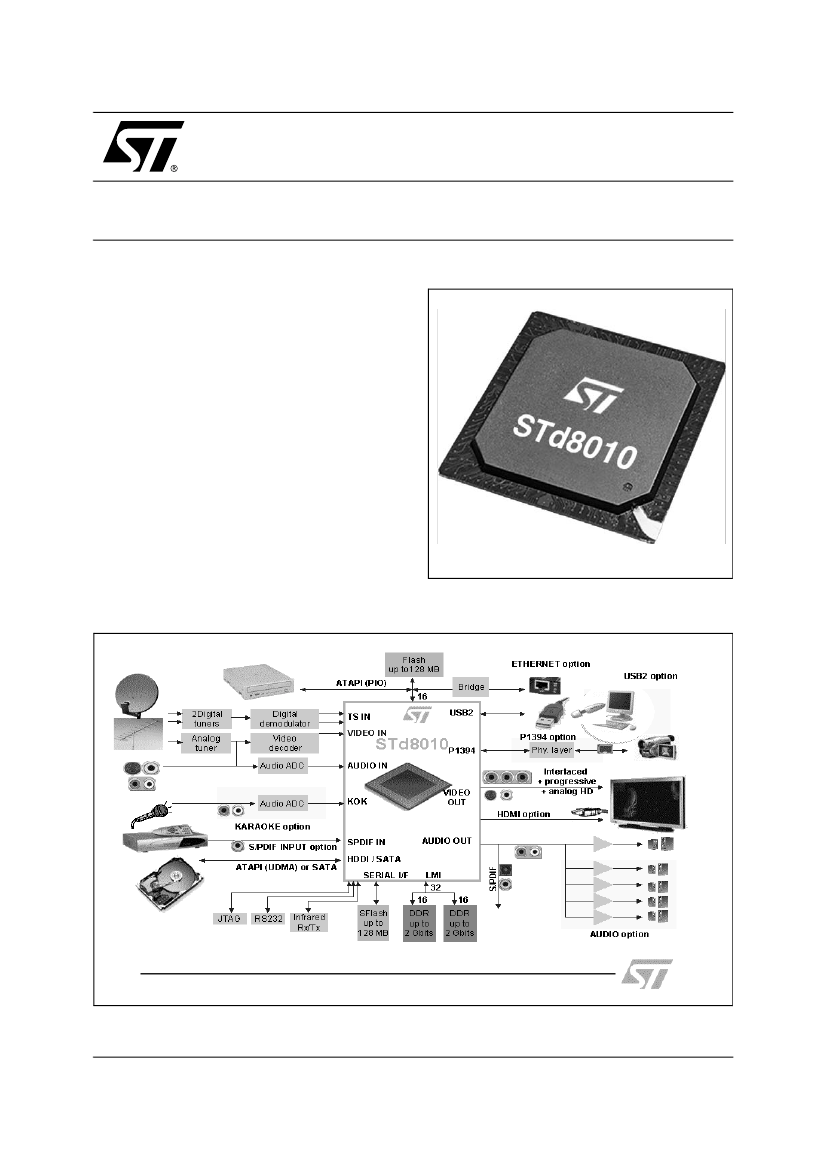

Figure 1. STd8010 application diagram
Rev. 1
December 2005
1/3
STD8010
FEATURES
■
Host processor
– ST231 processor at 400 MHz, with TLB
support for Linux and OS21 operating
systems
– 3 processing cores providing up to 4.5 GOPs
of processing power
■
■
– Virtualizer: ST OmniSurround
™
– 4 x 2-channel PCM outputs,
– IEC60958-IEC61937 digital output
DVD sub-picture decoder high performance
picture composition
– Multi plane: background, still picture, video,
sub-picture, graphics, PIP, cursor
– 2D graphics accelerator
– Adaptive anti-flicker
■
Video encoder
– Based on the ST231 processor 400 MHz
– Real time MPEG2 MP at ML encode
– Real time DivX encode
– Pre-processing for superior image quality
– Constant and variable bit-rate encoding
– D1 interface input: 720x480 (576) at 30 fps
(25 fps)
Multi-format video outputs
– CVBS, Y/C, RGB and YUV outputs with
10-bit DAC at 54 MHz
– PAL/NTSC/SECAM encoder
– HD analog output and simultaneous
interlaced/progressive outputs
– HD digital output through HDMI
– Macrovision 7.1 and 1.0 (525p)
■
Audio encoding
– Based on the ST231 processor at 400 MHz
– Dolby
®
stereo, MPEG1 layer 2, MP3
■
Memory interfaces
– Unified DDR memory up to 166 MHz
– Generic host interface supporting flash
memory, ATAPI interface (PIO modes),
SRAM like devices, SDRAM
■
Digital video decoder
– DV to MPEG2 format conversion
– Glueless interface to P1394 Phy
■
Video decoder
– Dual TS input, one TS output
– DVB-CSA decryption for DVB-T services and
move to “integrated encryption/decryption”
– MPEG2 MP at ML, MPEG4 SP at ML
– Zoom in/out, advanced trick modes
■
■
Disc drive interface
– Front-end interface for DVD player loader
– ATA/ATAPI-5 UDMA-66 interface
Integrated encryption/decryption
– CSS/CPPM/CPRM decryption
– CPRM/VCPS encryption
■
Audio decoding
– Based on the ST231 processor at 400 MHz
– 5.1 Dolby
®
Digital/MPEG multichannel/MP3/
WMA/DTS/MLP and AAC decoding
■
Integrated peripherals
– 40 GPIOs, 4 PWMs, SSC, I²C, 3 UARTs, IR-
Ir, USB 2.0, SATA.
PART NUMBERING
Table 1. Order codes
Part Number
STd8010AWB
Description
Flexible MPEG audio/video codec with DVD and DVB receiver capability
2/3
STD8010
REVISION HISTORY
Table 2. Revision history
Date
December-2005
Revision
1
First issue
Description of changes
