WPCN384U Legacy-Reduced SuperI/O with Two Serial Ports, Parallel Port and GPIOs for Notebook and Docking Applications
Product Brief
December 2006
Revision 1.0
WPCN384U
Legacy-Reduced SuperI/O with Two Serial Ports, Parallel
Port and GPIOs for Notebook and Docking Applications
General Description
The WPCN384U, a member of the Winbond LPC SuperI/O
family, is targeted for a wide range of notebook and docking
applications. The WPCN384U is PC2001 and ACPI compli-
ant, and features two Serial Ports, Parallel Port and General-
Purpose Input/Output (GPIO) support for a total of 21 ports.
The WPCN384U is an optimized solution for notebook
systems requiring no FIR Port, and for LPC-based docking
stations implementing an on-board SuperI/O.
Outstanding Features
■
■
■
Pin and software compatible with the Winbond 87384
Two Serial Ports
LPC bus interface, based on Intel’s
LPC Interface
Specification
Revision 1.1, August 2002 (supports
CLKRUN and LPCPD signals)
PC2001 and ACPI Revision 3.0 compliant
IEEE 1284 Parallel Port
21 GPIO ports, including 14 with IRQ assertion capa-
bility
Two testability modes (XOR Tree and TRI-STATE
®
device pins).
5V tolerant and back-drive protected pins (except LPC
bus pins)
64-pin TQFP package
■
■
■
■
■
■

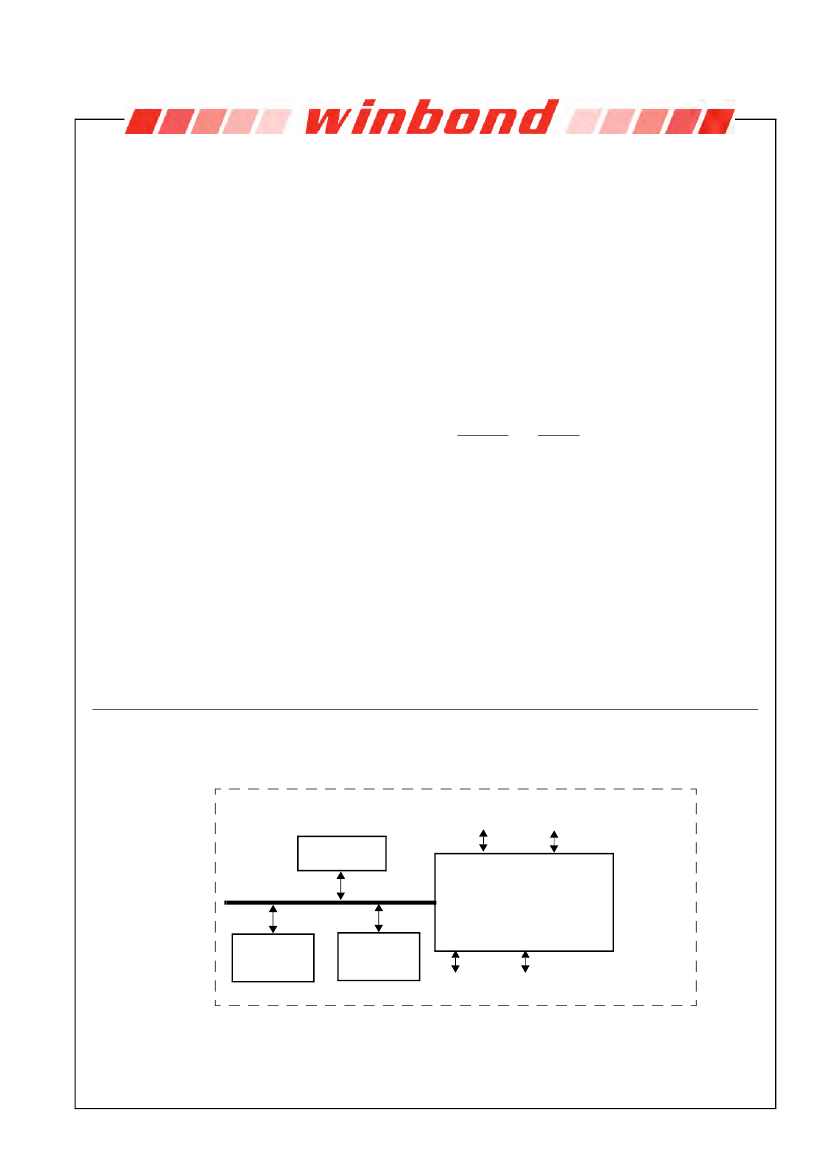

System Block Diagram
I/O
Ports
South Bridge
LPC Bus
Parallel
Port
Interface
Portable
Platform
WPCN384U
EC
(WPC876xL)
Serial
Interface
Serial
Interface
TPM
(WPCT200)
© 2006 Winbond Electronics Corporation
www.winbond.com
WPCN384U
Features
■
Two Serial Ports (SP1 and SP2)
—
Software compatible with the 16550A and the 16450
—
Shadow register support for write-only bit monitoring
—
UART data rates up to 1.5 Mbaud
IEEE 1284-Compliant Parallel Port
—
ECP, with Level 2 (14 mA sink and source output
buffers)
—
Software or hardware control
—
Enhanced Parallel Port (EPP) compatible with EPP
1.7 and EPP 1.9
—
Supports EPP as mode 4 of the Extended Control
Register (ECR)
—
Selection of internal pull-up or pull-down resistor for
Paper End (PE) pin
—
Supports a demand DMA mode mechanism and a
DMA fairness mechanism for improved bus utilization
—
Protection circuit that prevents damage to the
parallel port when a printer connected to it is pow-
ered up or is operated at high voltages (in both
cases, even if the WPCN384U is in power-down
state)
21 General-Purpose I/O (GPIO) Ports
—
Supports IRQ assertion
—
Programmable drive type for each output pin (open-
drain, push-pull or output disable)
—
Programmable option for internal pull-up resistor on
each input pin
—
Output lock option
—
Input debounce mechanism
■
■
LPC System Interface
—
8-bit I/O cycles
—
LPCPD and CLKRUN support
—
Implements PCI mobile design guide recommenda-
tion (PCI
Mobile Design Guide 1.1, Dec. 18, 1998)
PC2001 and ACPI 3.0 Compliant
—
PnP Configuration Register structure
—
Flexible resource allocation for all logical devices
❏
Relocatable base address
❏
❏
■
15 IRQ routing options
Optional 8-bit DMA channels (where applicable)
selected from four possible DMA channels
■
Clock Sources
—
14.318 MHz or 48 MHz clock input
—
LPC clock, 0 or 30 MHz to 33 MHz
Strap Configuration
—
Base Address (BADDR) strap to determine the base
address of the Index-Data register pair
—
Strap Inputs to select testability mode
Power Supply
—
3.3V supply operation
—
All pins are 5V tolerant, except LPC bus pins
—
All pins are back-drive protected, except LPC bus pins
Testability
—
XOR Tree
—
TRI-STATE device pins
■
■
■
■
Internal Block Diagram
14.31818 MHz
LPC Interface
Parallel Port Interface
IEEE 1284
Parallel Port
Bus
Interface
Clock
Generator
48 MHz
GPIO Ports
Serial Port
Serial Port
Ports
I/O
Serial
Interface
Serial
Interface
www.winbond.com
2
Revision 1.0
WPCN384U Legacy-Reduced SuperI/O with Two Serial Ports, Parallel Port and GPIOs for Notebook and Docking Applications

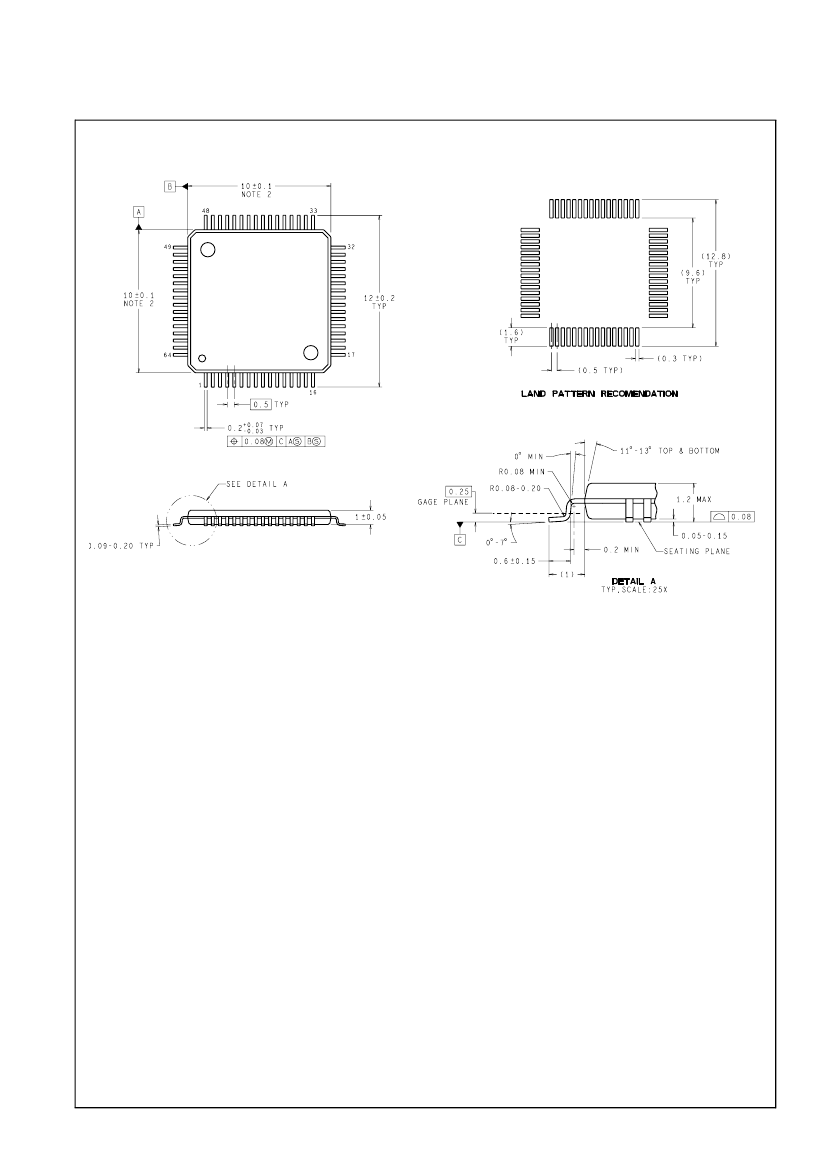

Physical Dimensions
All dimensions are in millimeters
64-Pin Thin Quad Flatpack (TQFP)
Order Number WPCN384U_0MG
(Replace “_” with chip revision: A, B, and so on)
