BY133_06 Overview

1 A, 1300 V, SILICON, SIGNAL DIODE, DO-41

BY 133...BY 135

Axial lead diode

Standard silicon rectifier

diodes

BY 133...BY 135

Forward Current: 1 A

Reverse Voltage: 150 to 1300 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

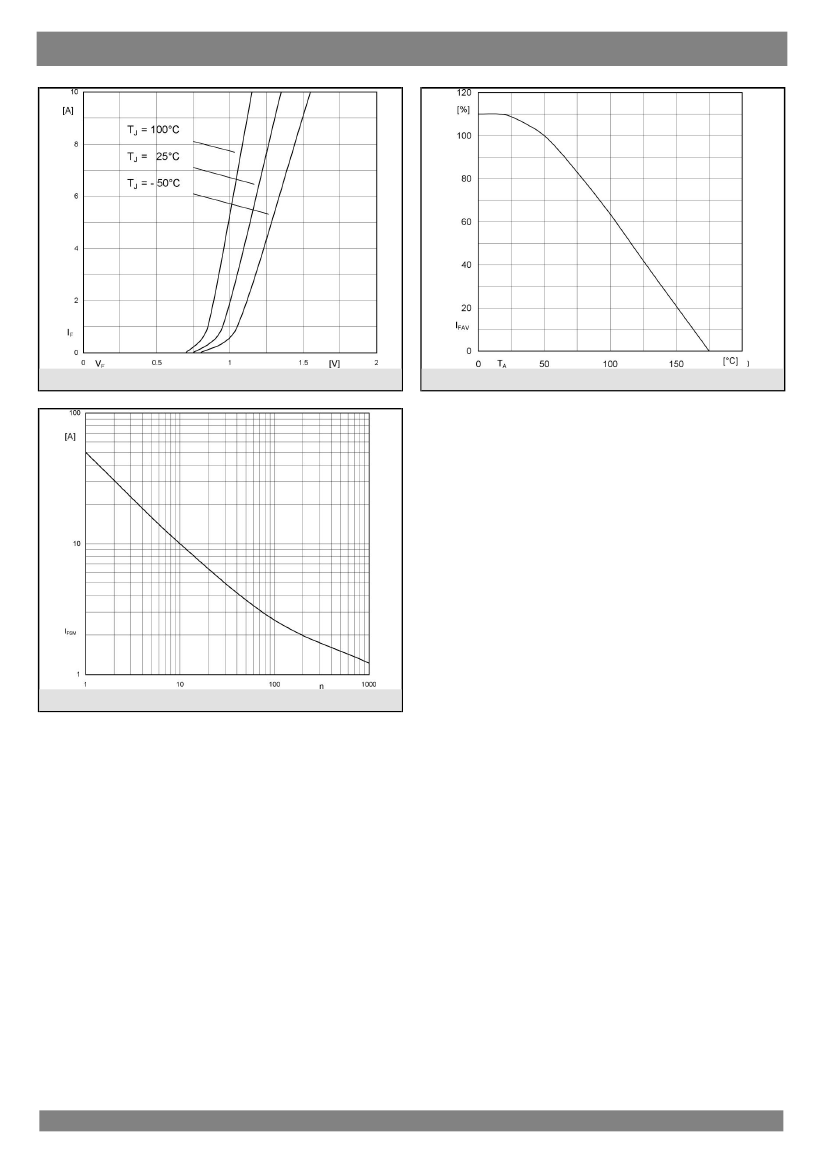

Characteristics

Symbol Conditions

Values

Units

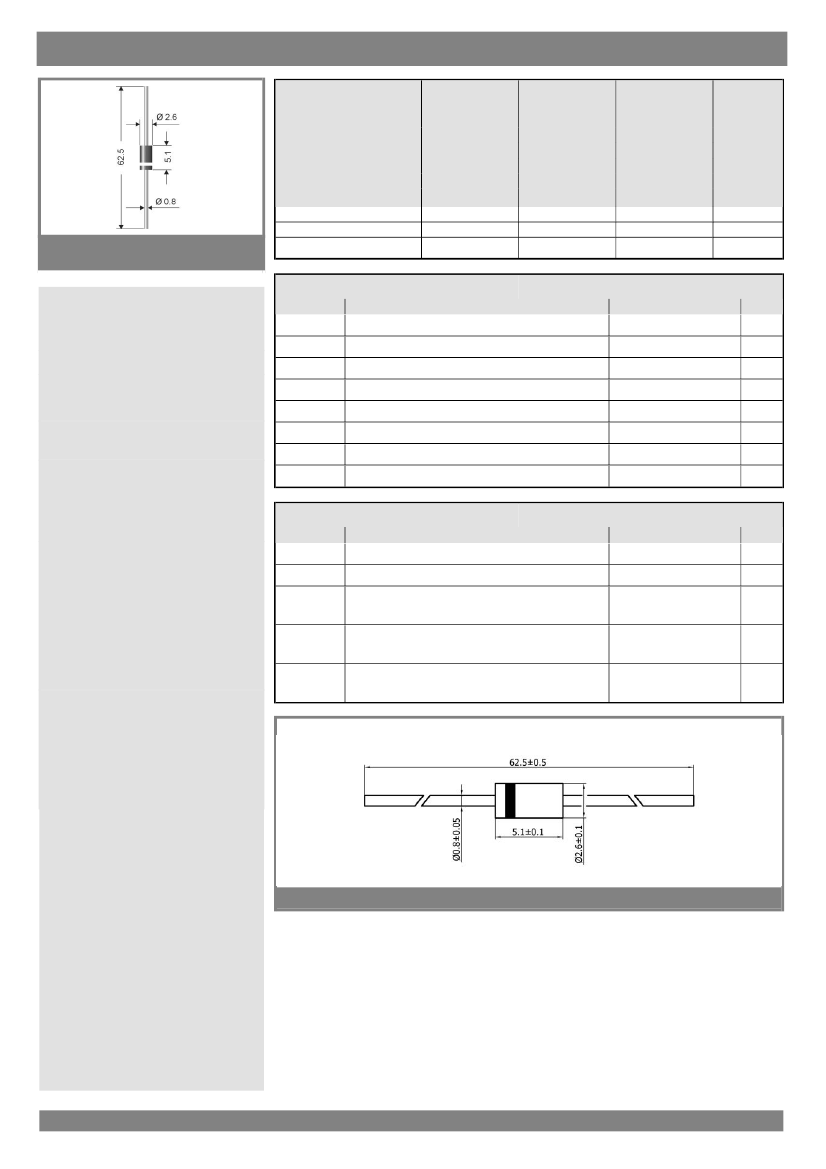

Mechanical Data

Dimensions in mm

10-04-2006 SCT

	BY133_06	BY133	BY134	BY135
Description	1 A, 1300 V, SILICON, SIGNAL DIODE, DO-41	1 A, 1300 V, SILICON, SIGNAL DIODE, DO-41	1 A, 1300 V, SILICON, SIGNAL DIODE, DO-41	1 A, 1300 V, SILICON, SIGNAL DIODE, DO-41
Is it Rohs certified?	-	conform to	conform to	conform to
Maker	-	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	-	DO-41	DO-41	DO-41
package instruction	-	O-PALF-W2	PLASTIC, DO-41, 2 PIN	PLASTIC, DO-41, 2 PIN
Contacts	-	2	2	2
Reach Compliance Code	-	unknow	unknow	unknow
ECCN code	-	EAR99	EAR99	EAR99
Shell connection	-	ISOLATED	ISOLATED	ISOLATED
Configuration	-	SINGLE	SINGLE	SINGLE
Diode component materials	-	SILICON	SILICON	SILICON
Diode type	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	-	DO-204AL	DO-204AL	DO-204AL
JESD-30 code	-	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	-	e3/e4	e2	e2
Number of components	-	1	1	1
Number of terminals	-	2	2	2
Maximum output current	-	1 A	1 A	1 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	ROUND	ROUND	ROUND
Package form	-	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	1300 V	600 V	150 V
surface mount	-	NO	NO	NO
Terminal surface	-	TIN/SILVER	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	-	WIRE	WIRE	WIRE
Terminal location	-	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
