74HC4352DB-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The signal circuit> 74HC4352DB-T

74HC4352DB-T: DescriptionIC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch; CategoryThe signal circuit; File Size294KB，14 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HC4352DB-T Overview

IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch

74HC4352DB-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SOP,
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G20
Nominal Negative Supply Voltage (Vsup)
Number of channels	4
Number of functions	1
Number of terminals	20
Nominal off-state isolation	50 dB
On-state resistance matching specifications	8 Ω
Maximum on-state resistance (Ron)	160 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Nominal supply voltage (Vsup)	6 V
surface mount	YES
Maximum disconnect time	34 ns
Maximum connection time	55 ns
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

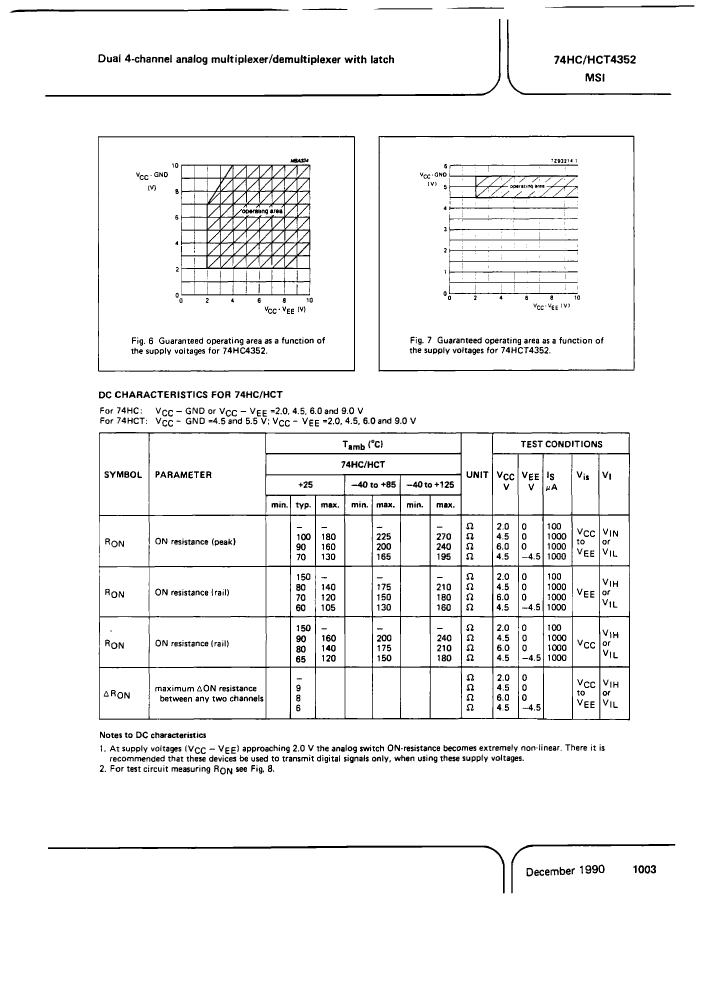

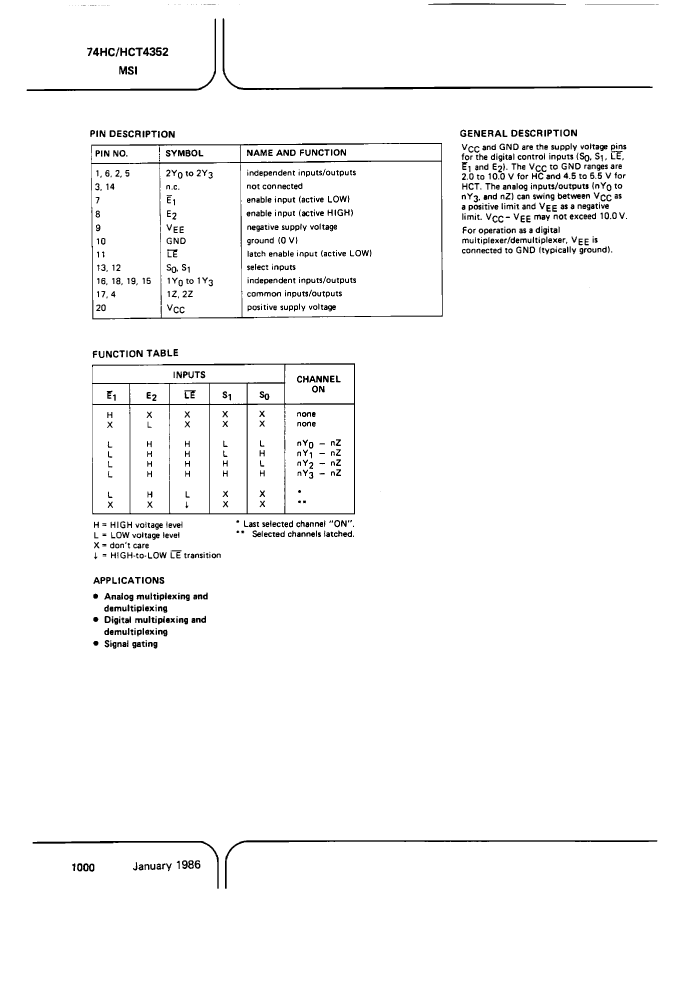

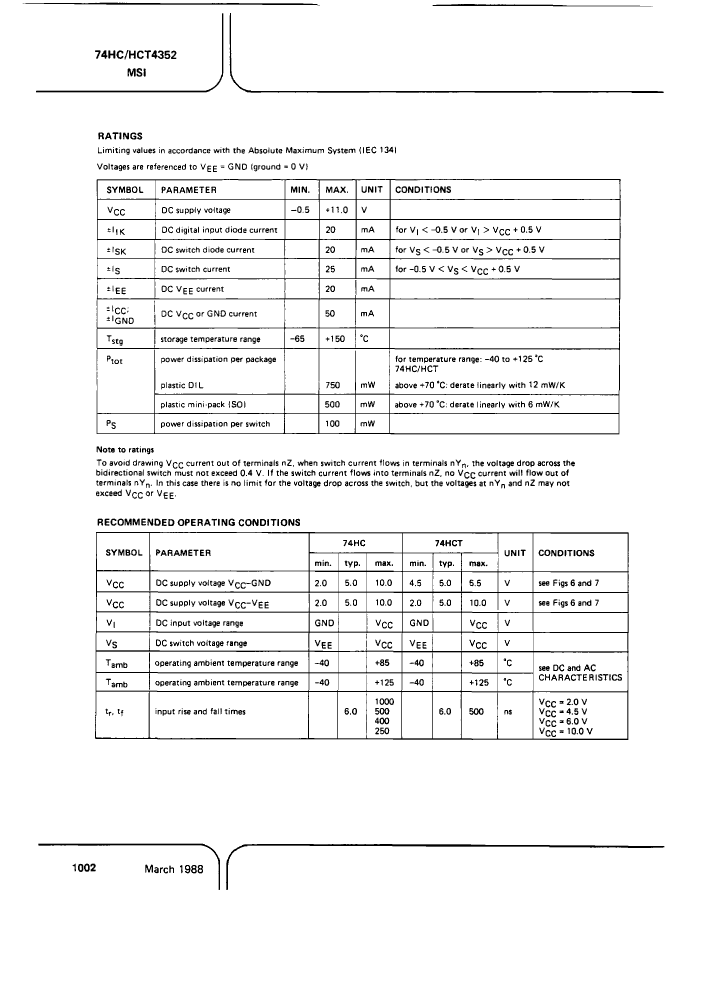

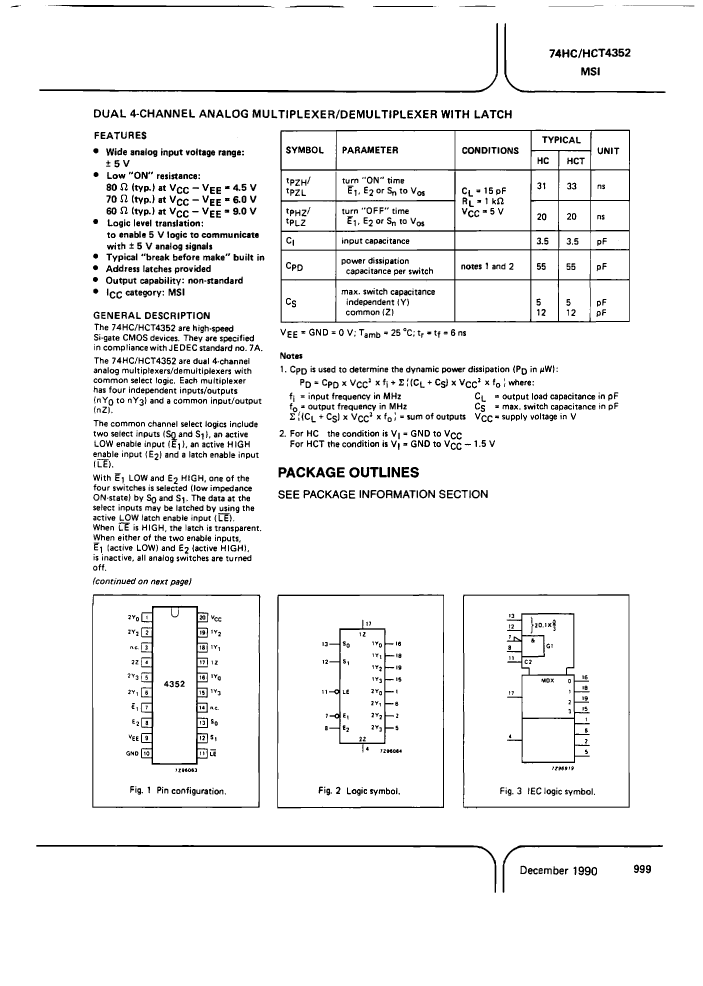

Preview

Download Datasheet

View All

74HC4352DB-T Related Products

	74HC4352DB-T	74HCT4352DB-T	74HCT4352DB	74HC4352PW-T	74HCT4352PW-T	74HC4352PW	74HCT4352PW	74HC4352DB
Description	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, Multiplexer or Switch
package instruction	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
Number of channels	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20
Nominal off-state isolation	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB
On-state resistance matching specifications	8 Ω	9 Ω	9 Ω	8 Ω	9 Ω	8 Ω	9 Ω	8 Ω
Maximum on-state resistance (Ron)	160 Ω	180 Ω	180 Ω	160 Ω	180 Ω	160 Ω	180 Ω	160 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	6 V	4.5 V	4.5 V	6 V	4.5 V	6 V	4.5 V	6 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Maximum disconnect time	34 ns	43 ns	43 ns	34 ns	43 ns	34 ns	43 ns	34 ns
Maximum connection time	55 ns	65 ns	65 ns	55 ns	65 ns	55 ns	65 ns	55 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	NXP	-	-	NXP	NXP	NXP	NXP	NXP
Base Number Matches	1	1	1	1	1	-	-	-
