67CPSOX-1: DescriptionOn-Delay Relay, DPDT, Momentary, 0.092A (Coil), 12VDC (Coil), 1100mW (Coil), 5A (Contact), 28VDC (Contact), 0.1s Adj Min, 30s Adj Max, DC Input, AC/DC Output, Panel Mount; Categoryrelay; File Size54KB，2 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric Compare View All

67CPSOX-1 Overview

On-Delay Relay, DPDT, Momentary, 0.092A (Coil), 12VDC (Coil), 1100mW (Coil), 5A (Contact), 28VDC (Contact), 0.1s Adj Min, 30s Adj Max, DC Input, AC/DC Output, Panel Mount

67CPSOX-1 Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	SWITCH FUNCTION 4PDT ALSO AVALIBLE
Maximum adjustable time delay	30 s
Minimum adjustable time delay	0.1 s
body width	18.1 mm
body height	30.9 mm
Body length or diameter	34.4 mm
Maximum coil current (DC)	0.092 A
Coil operating voltage (DC)	9.6 V
Coil power	1100 mW
Coil resistance	130.43 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@120VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	67CPSOX
Installation features	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	34.4mm X 18.1mm X 30.9mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	ON-DELAY RELAY
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

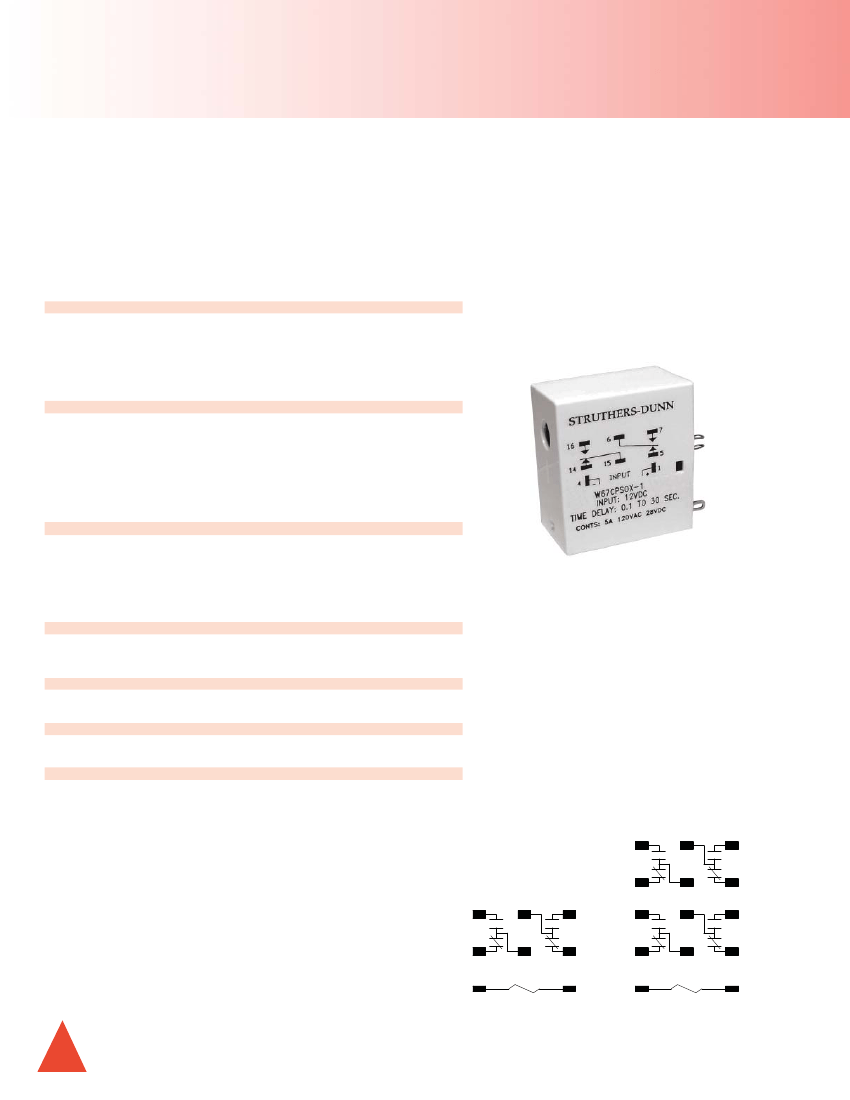

67TD Series - Miniature Time Delay Relays

DPDT, 4PDT, 5 Amp

When small size is a requirement 67 series relays ﬁt where others won’t. The miniature ice cube

timers are capable of handling up to 5 amps. Typical conﬁguration is DPDT on delay. Four pole

versions are available. Time adjustments are through a recessed potentiometer. No exposed

adjustment knob to bump.

GENERAL SPECIFICATIONS (@ 25° C)

Timing:

Functions Available

Time Range

Timing Adjustment

Timing Repeatability

(Constant voltage and temperature)

Reset Time maximum

Input Pulse Length minimum

Contacts:

Contact Conﬁguration

Contact Material

Contact Rating

120 / 240VAC Resistive

28VDC Resistive

Motor 120VAC

Motor 240VAC

Minimum Contct Load

Contact Resistance, Initial

Coil:

Coils Available

Nominal Coil Power

Input Voltage Tolorance -AC

Input Voltage Tolorance -DC

Transient Protection

Reverse Polarity Protection

Duty

Dielectric Strength:

Across Open Contacts

Between Mutally Insulated Points

Insulation Resistance

Temperature:

Operating

Storage

Life Expectancy:

Electrical (full load operations)

Mechanical (no load operations)

Miscellaneous:

Mounting Position

Mating Socket

Accessories

Enclosure

Weight

On-delay

Up to 450 seconds

Recessed potentiometer

150mS

N/A

DPDT, 4PDT

Silver Alloy

5 Amp @ 120VAC

5 Amp

1/3Hp

1/2Hp

500mW

100 milliohms max @ 6VDC, 1A

1.1W

N/A

80% to 110% of nominal

Yes

Continuous

500Vrms

1500Vrms

1,000 Mohms min @ 500VDC

-20 to 70°C (-4 to 158°F)

-40 to 105°C (-40 to 221°F)

100,000

10,000,000

Any

2 Pole = SK-REC22-PW

4 Pole = SK-REC28-PW

Hold down clip included w/ socket

Clear Polycarbonate

1.4oz (40 grams)

67TD Wire Diagram

DPDT

4PDT

7/5

www.struthers-dunn.com

(843)

346-4427
