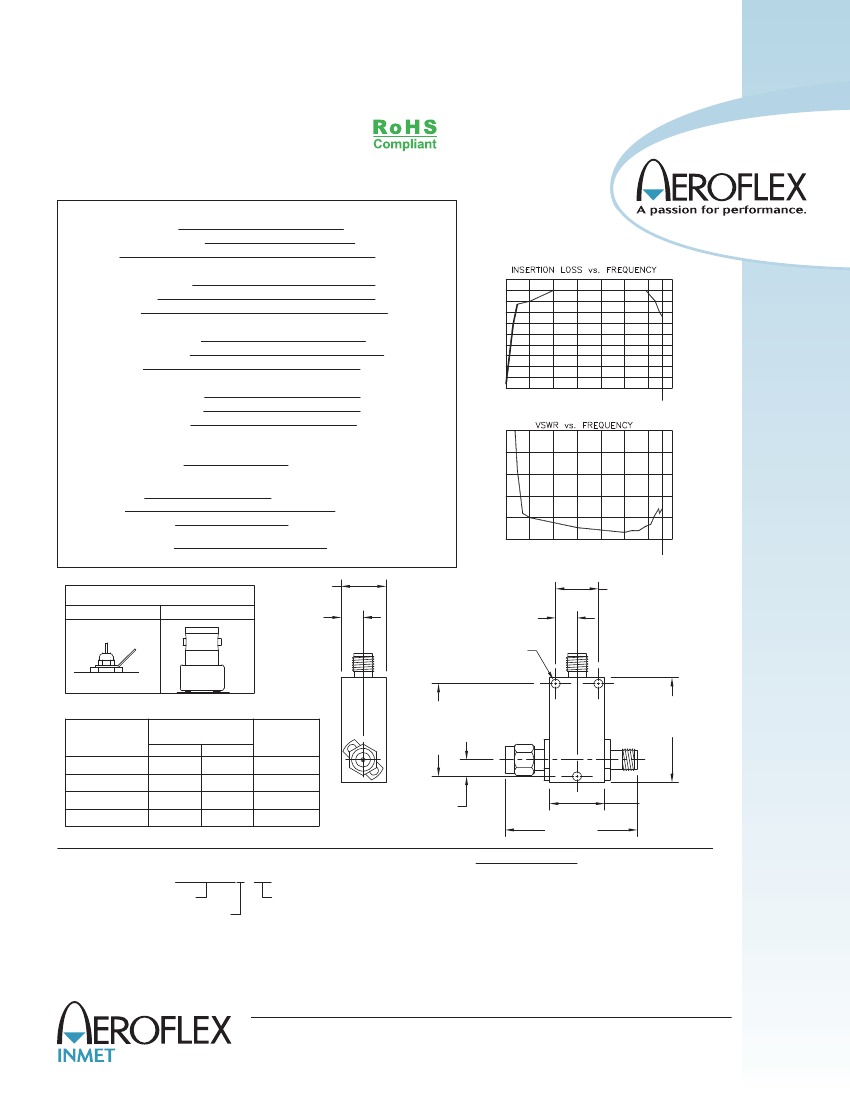

BIAS TEES
2.9mm, up to 40 GHz, 25 Volts
SPECIFICATIONS:
Models: 8810KMFX-YY, 8810KFFX-YY, 8810KMMX-YY, 8810FMX-YY
Electrical:
Frequency Range
Standard Freq. Values
VSWR
Insertion Loss
50 kHz - 18 GHz
18 - 40 GHz
Impedance
Isolation (RF to Bias Port)
250 kHz - 26.5 GHz
100 kHz - 40 GHz
DC Voltage
DC Current
Model 8810KXXX-26
Model 8810KXXX-40
Rise Time (10-90%)
50 kHz - 40 GHz
26.5 & 40 GHz
1.80:1 Max.
1.5dB Max.
3.0dB Max.
50 Ohms
50dB Typical
30dB Typ.
25 VDC Max.
750 mA Max.
150 mA Max.
< 9 pS Typical
Passivated Stainless Steel
Gold Plated Beryllium Copper
Gold Plated Brass
Passivated Stainless Steel
Nickel Plated Brass
.515±.030
[13.08±0.76]
.25 [6.35]
.244
[6.20]
3X Ø.102 [Ø2.59]
THRU
VSWR
2.50
2.00
1.50
1.00
.00001 .0001
.001
.01
Typical performance from 50 kHz - 40 GHz
0
-1.0
-2.0
-3.0
-4.0
-5.0
.00001 .0001
.001
.01
Insertion Loss (dB)
.1
FREQ (GHz)
1
10
100
40
3.50
3.00
Mechanical:
2.9mm Connectors
Mates with SMA, 3.5mm and K* Series Connectors
as well as SMK IAW MIL-STD-348)
Conductors
Housing
SMA Connectors
Mates with MIL-STD-348
2.00
1.50
1.00
100
40
BNC Connectors
Mates with MIL-STD-348
* K is a Trademark of Anritsu Corp.
.1
FREQ (GHz)
1
10
DC Input Connector Options
Solder Post, X=1
BNC Female, X=3
.489 [12.42]
Centered
DC Input
(SMA Female Conn.)
Option X = 2
Connector
Configuration Port
AC + DC
AC
Male
Female
8810KMFX-YY
Model
Numbers
Overall
Length
Max.
1.63 [41.40]
1.060
[26.92]
Cent.
AC + DC
Port
1.20
[30.48]
AC Port
8810KFFX-YY
8810KMMX-YY
8810KFMX-YY
Female
Male
Female
Female 1.60 [40.64]
Male 1.75 [44.45]
Male
1.63 [41.40]
.19 [4.83]
Overall
Length
.63 [16.00]
HOW TO ORDER:
Model Number:
8810KZZX-YY
Base Number
DC Connector Type
1 = Solder Post
2 = SMA Female Conn.
3 = BNC Female Conn.
Freq. Range
26 = 50 kHz - 26.5 GHz
40 = 50 kHz = 40 GHz
Ordering Examples:
Model Number:
8810KFF2-26
50 kHz - 26.5 GHz, 2.9mm Fem/Fem
25 Volts, 750mA Max.
SMA Female DC Connector Type
Model Number:
8810KMF1-40
50 kHz - 40 GHz, 2.9mm Male/Fem
25 Volts, 150mA Max.
Solder Post DC Connector Type
8810K: REV H
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design specifications are subject to change without notice.
Contact factory for technical specifications before purchasing or use.
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet • inmetsales@aeroflex.com
