BD6230F

Description
BRUSH DC MOTOR CONTROLLER, 0.5 A, PDSO8
CategoryOther integrated circuit (IC)    The signal circuit
File Size234KB,3 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

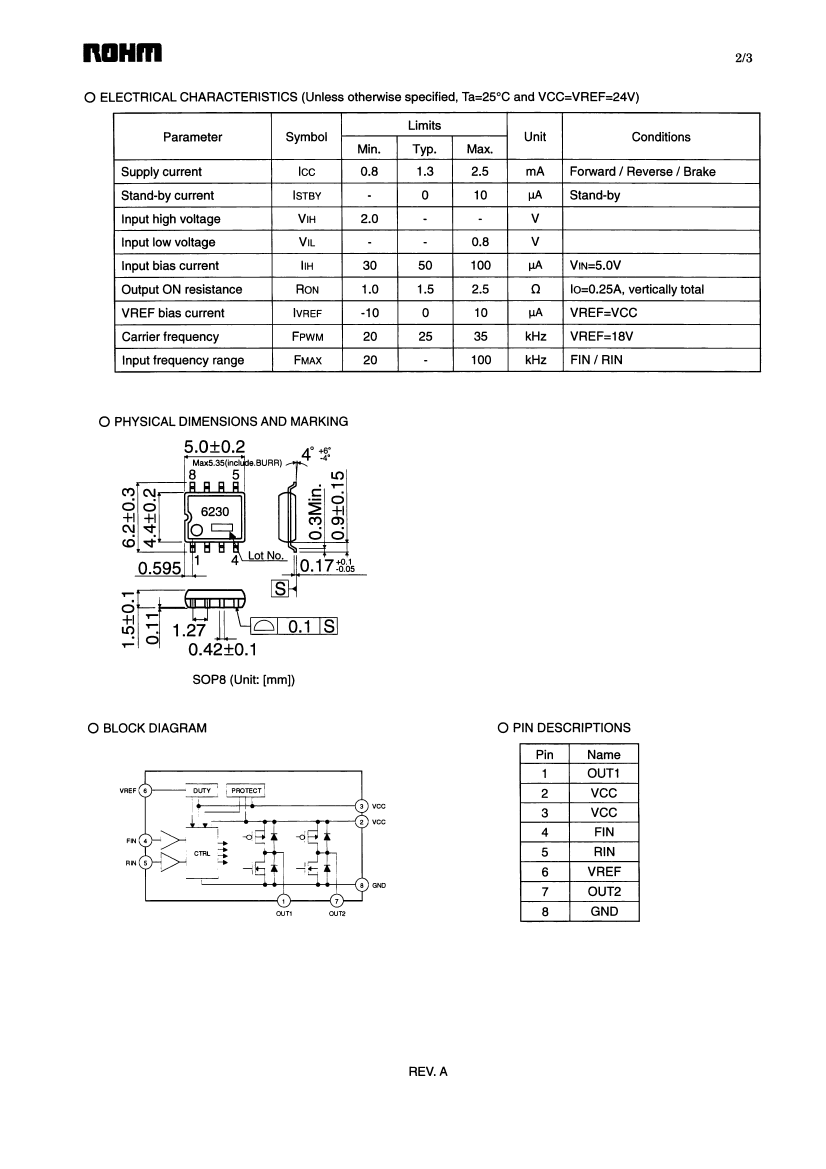

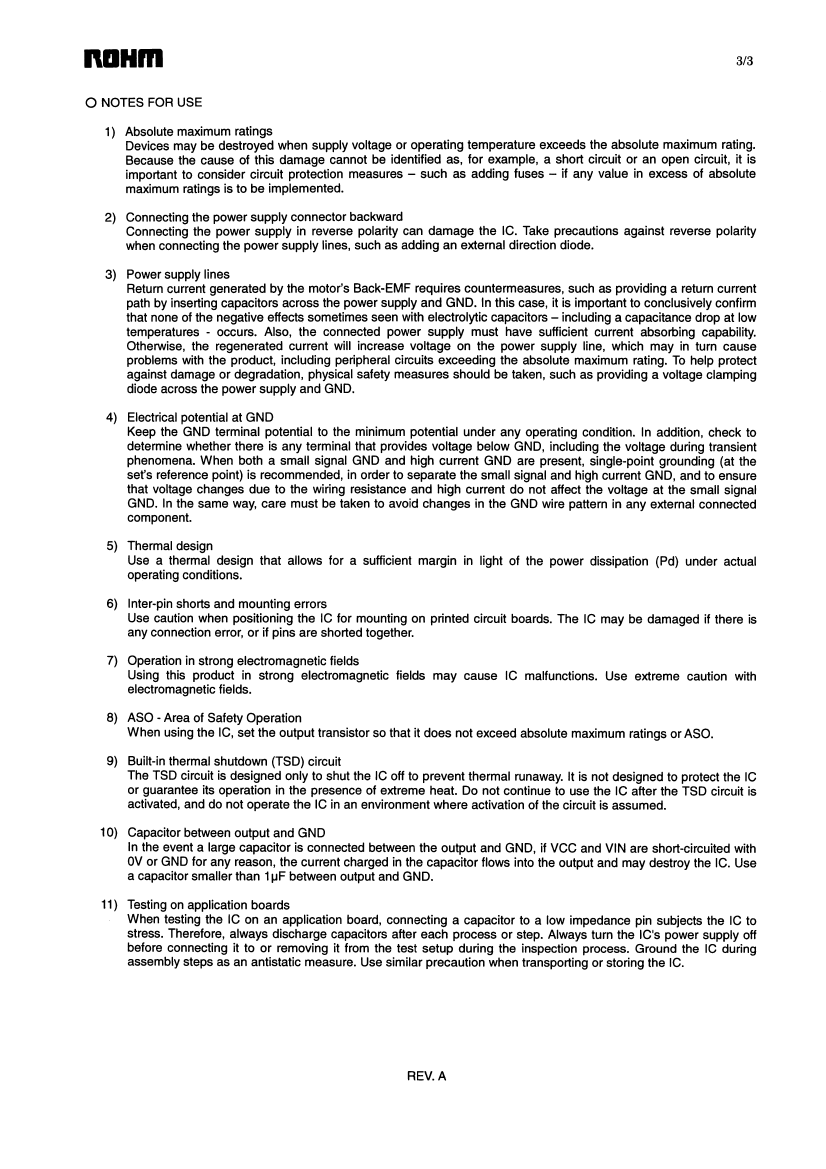

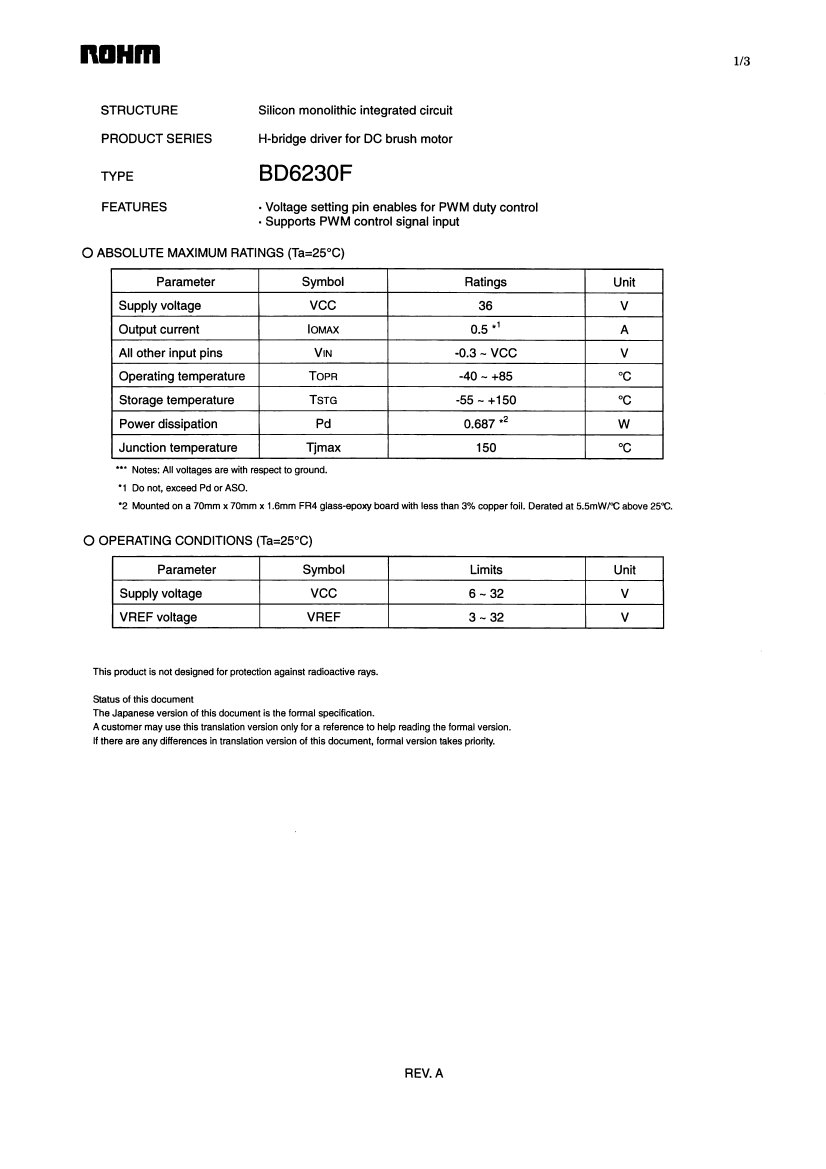

BD6230F Overview

BRUSH DC MOTOR CONTROLLER, 0.5 A, PDSO8

BD6230F Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerROHM Semiconductor
Parts packaging codeSOIC
package instructionSOP-8
Contacts8
Reach Compliance Codecompliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesBRUSH DC MOTOR CONTROLLER
JESD-30 codeR-PDSO-G8
JESD-609 codee3
length5 mm
Humidity sensitivity level1
Number of functions1
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum output current0.5 A
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP8,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
power supply24 V
Certification statusNot Qualified
Maximum supply current (Isup)2.5 mA
Maximum supply voltage (Vsup)32 V
Minimum supply voltage (Vsup)6 V
Nominal supply voltage (Vsup)24 V
surface mountYES
Temperature levelINDUSTRIAL
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature10
width4.4 mm
Base Number Matches1
