BD6232HFP datasheet, PDF - EEWORLD Datasheet

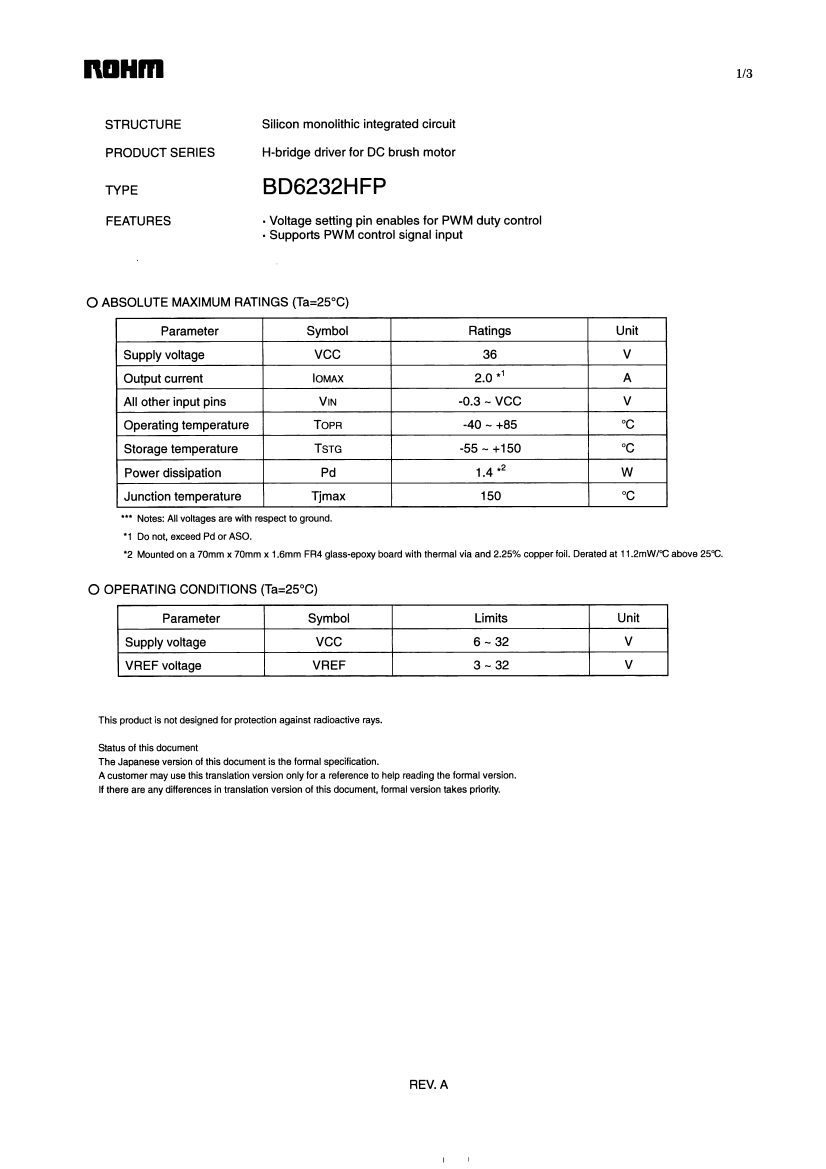

BD6232HFP: DescriptionH-bridge driver for DC brush motor; CategoryOther integrated circuit (IC) The signal circuit; File Size236KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

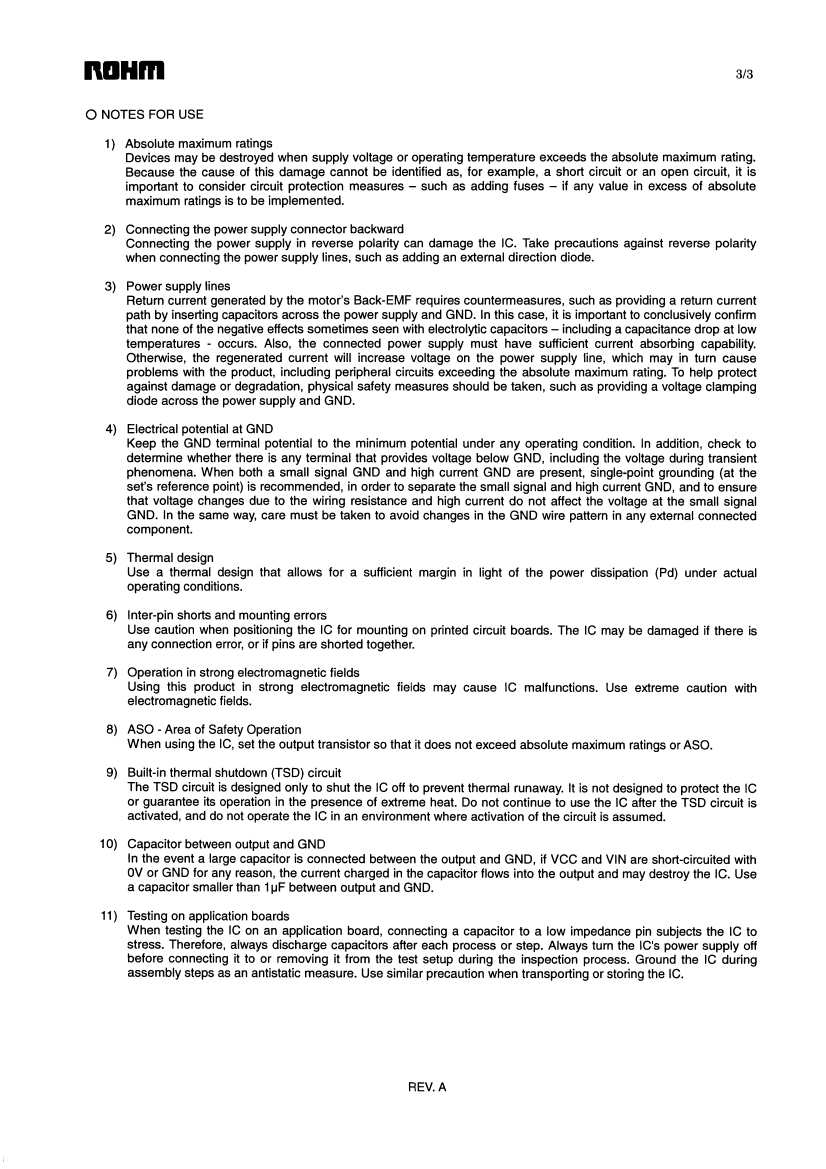

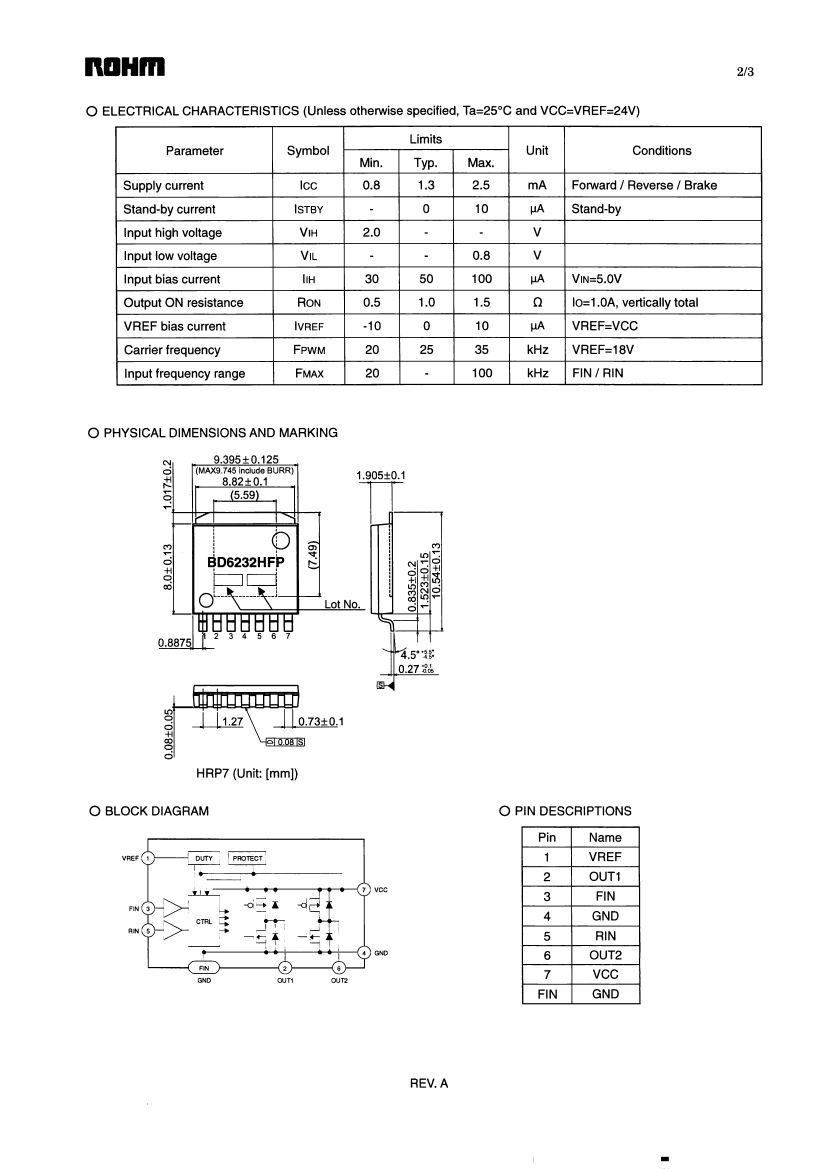

BD6232HFP Overview

H-bridge driver for DC brush motor

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	MODULE
package instruction	, SMSIP7H,.4,50TB
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PSSO-G8
JESD-609 code	e2
length	9.395 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SMSIP7H,.4,50TB
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	24 V
Certification status	Not Qualified
Maximum seat height	2.005 mm
Maximum supply current (Isup)	2.5 mA
Maximum supply voltage (Vsup)	32 V
Minimum supply voltage (Vsup)	6 V
Nominal supply voltage (Vsup)	24 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
width	8 mm
Base Number Matches	1
