SN74AS161N

Description
Binary Counter, AS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, ROHS COMPLIANT, PLASTIC, DIP-16
Categorylogic
File Size624KB,14 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric View All

SN74AS161N Online Shopping

Suppliers Part Number Price MOQ In stock
SN74AS161N - - View Buy Now

SN74AS161N Overview

Binary Counter, AS Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, TTL, PDIP16, ROHS COMPLIANT, PLASTIC, DIP-16

SN74AS161N Parametric

Parameter NameAttribute value
MakerRochester Electronics
package instructionROHS COMPLIANT, PLASTIC, DIP-16
Reach Compliance Codeunknown
Is SamacsysN
Other featuresTCO OUTPUT
Counting directionUP
seriesAS
JESD-30 codeR-PDIP-T16
JESD-609 codee4
length19.305 mm
Load/preset inputYES
Logic integrated circuit typeBINARY COUNTER
Operating modeSYNCHRONOUS
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
propagation delay (tpd)13 ns
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceNICKEL PALLADIUM GOLD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE
width7.62 mm
minfmax75 MHz
Base Number Matches1
REI Datasheet
SN54ALS161B, ‘ALS162B, ‘ALS163B, ‘AS161, ‘AS163
SN74ALS161B, ‘ALS163B, ‘AS161, ‘AS163
Synchronous 4-Bit Decade and Binary Counters

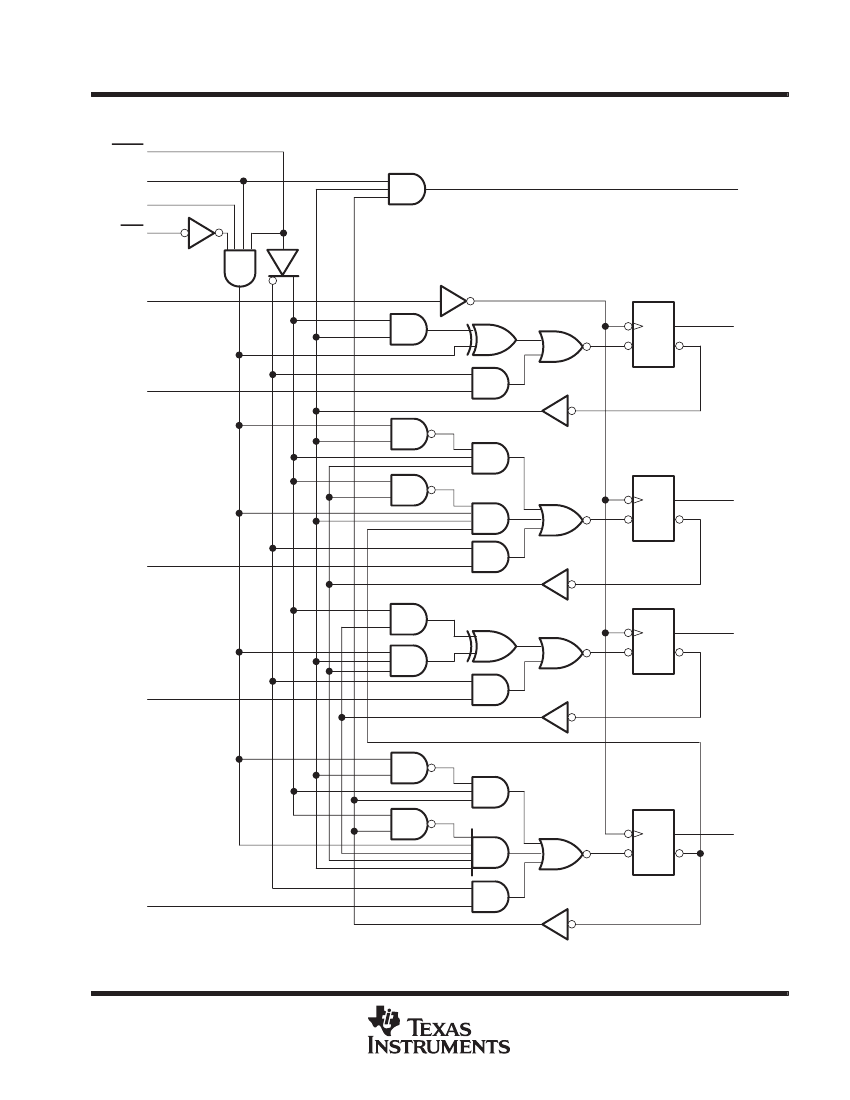

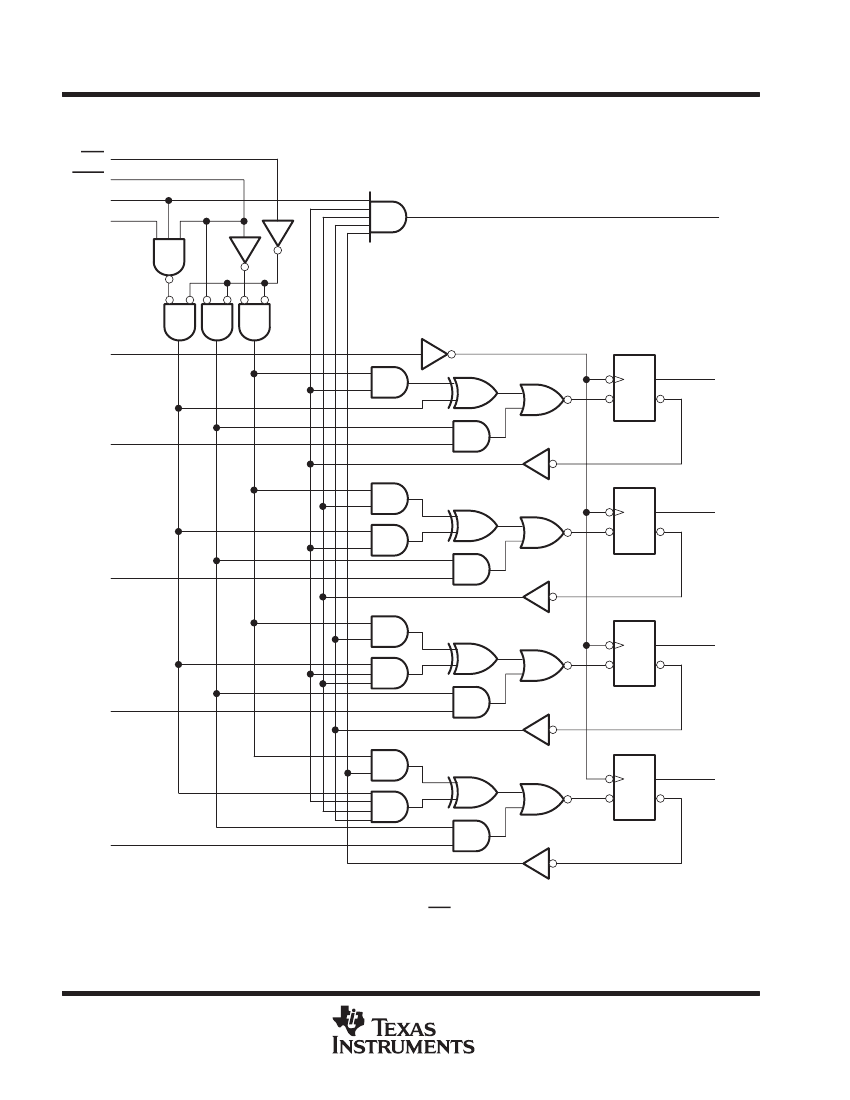

These synchronous, presettable, 4-bit decade and binary counters feature an internal carry look-
ahead circuitry for application in high-speed counting designs. The SN54ALS162B is a 4-bit
decade counter. The ‘ALS161B, ‘ALS163B, ‘AS161, and ‘AS163 devices are 4-bit binary counters.
Synchronous operation is provided by having all flip-flops clocked simultaneously so that the outputs
change coincidentally with each other when instructed by the count-enable (ENP, ENT) inputs and
internal gating. This mode of operation eliminates the output counting spikes normally associated
with asynchronous (ripple-clock) counters. A buffered clock (CLK) input triggers the four flip-flops on
the rising (positive-going) edge of the clock input waveform.
Rochester Electronics
Manufactured Components
Rochester branded components are
manufactured using either die/wafers
purchased from the original suppliers
or Rochester wafers recreated from the
original IP. All recreations are done with
the approval of the OCM.
Parts are tested using original factory
test programs or Rochester developed
test solutions to guarantee product
meets or exceeds the OCM data sheet.
Quality Overview
ISO-9001
• AS9120 certification
• Qualified Manufacturers List (QML) MIL-PRF-38535
• Class Q Military
Class V Space Level
• Qualified Suppliers List of Distributors (QSLD)
• Rochester is a critical supplier to DLA and
meets all industry and DLA standards.
Rochester Electronics, LLC is committed to supplying
products that satisfy customer expectations for
quality and are equal to those originally supplied by
industry manufacturers.
The original manufacturer’s datasheet accompanying this document reflects the performance
and specifications of the Rochester manufactured version of this device. Rochester Electronics
guarantees the performance of its semiconductor products to the original OEM specifications.
‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be
based on product characterization, design, simulation, or sample testing.
© 2013 Rochester Electronics, LLC. All Rights Reserved 10252013
To learn more, please visit
www.rocelec.com
