54ACTQ241FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 54ACTQ241FMQB

54ACTQ241FMQB: DescriptionBus Driver, 2-Func, 4-Bit, True Output, CMOS, CDFP20,; Categorylogic; File Size487KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54ACTQ241FMQB Overview

Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CDFP20,

54ACTQ241FMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL20,.3
Reach Compliance Code	unknown
Is Samacsys	N
Control type	ENABLE LOW/HIGH
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
method of packing	TUBE
power supply	5 V
Prop。Delay @ Nom-Sup	8 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

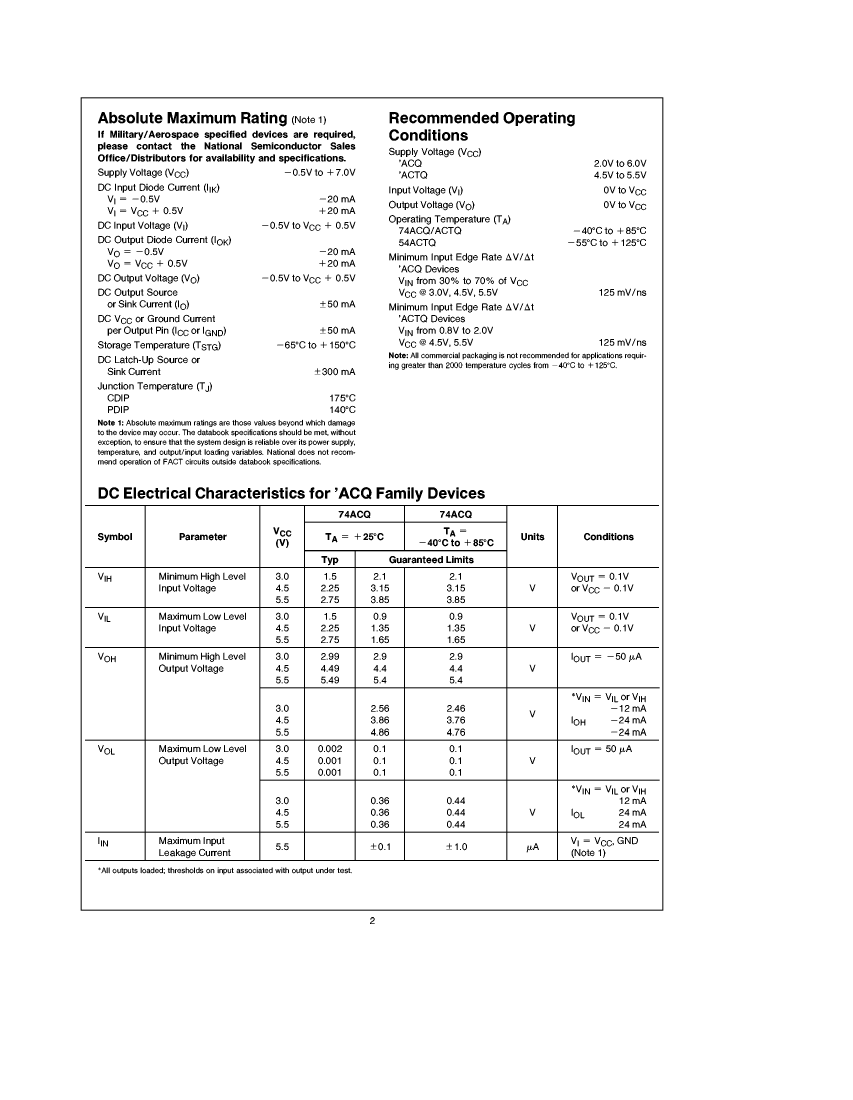

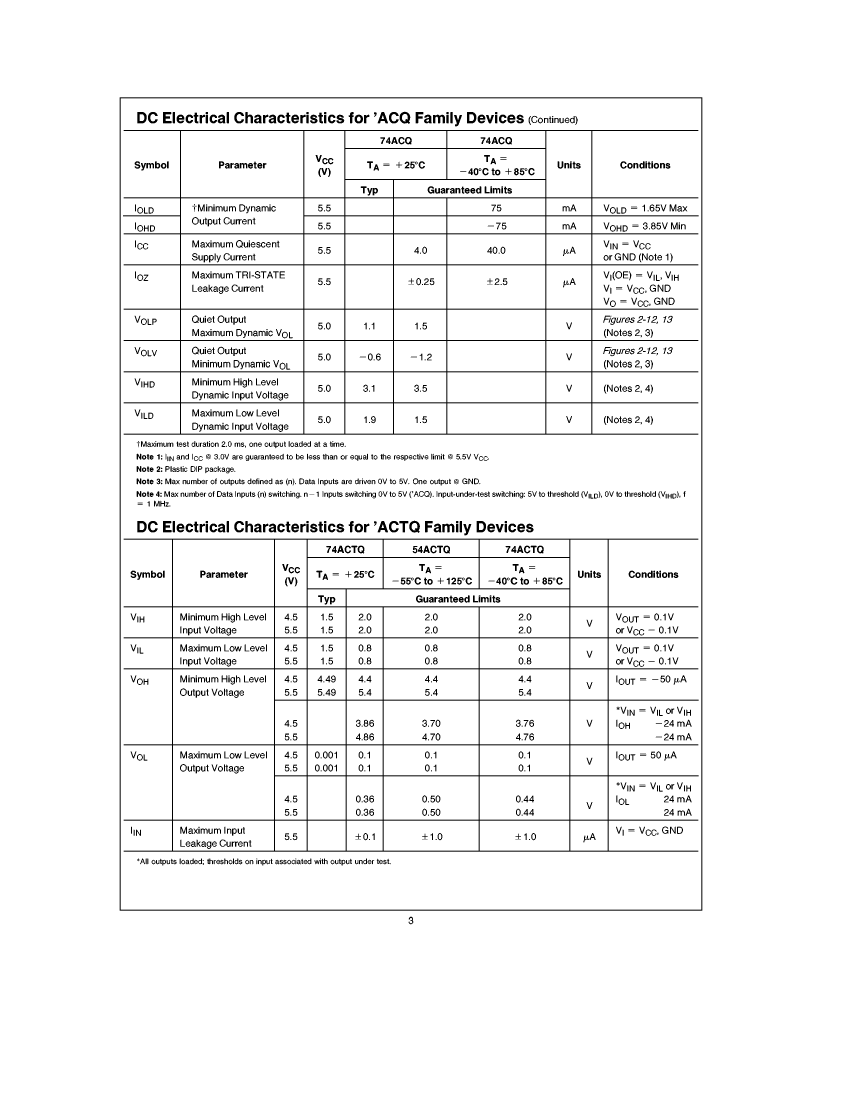

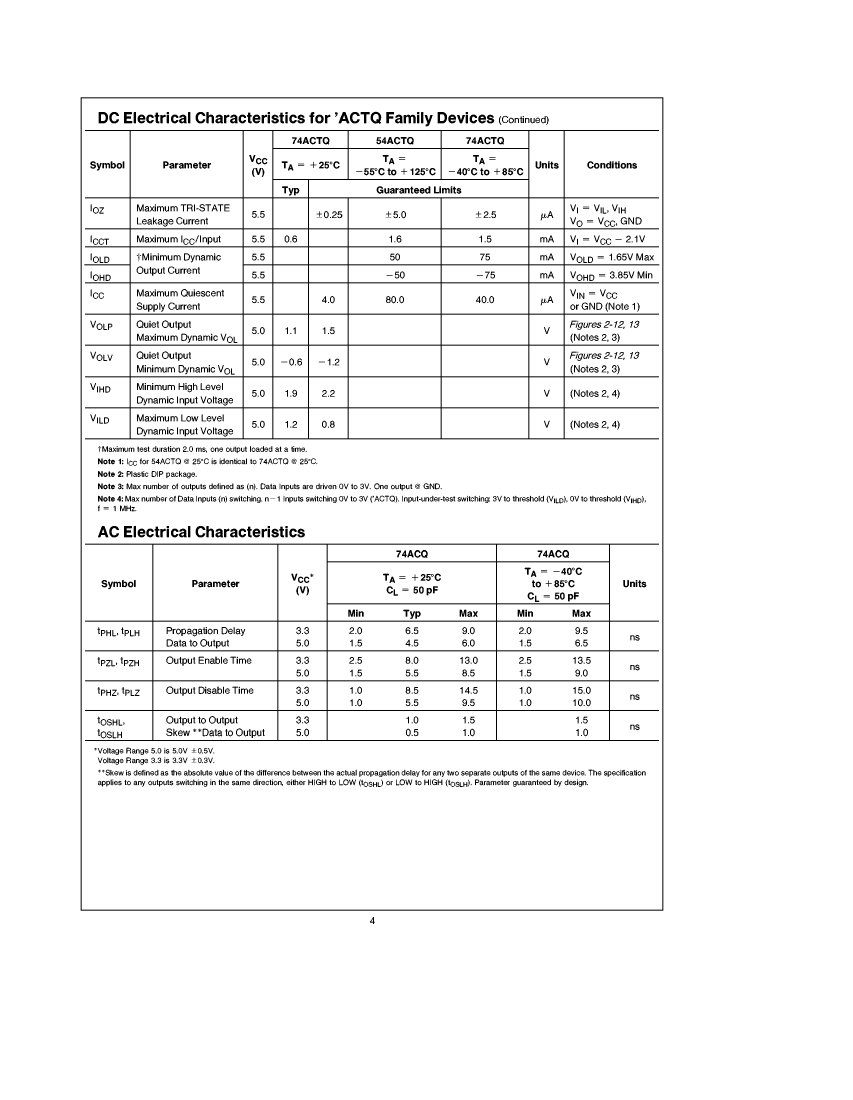

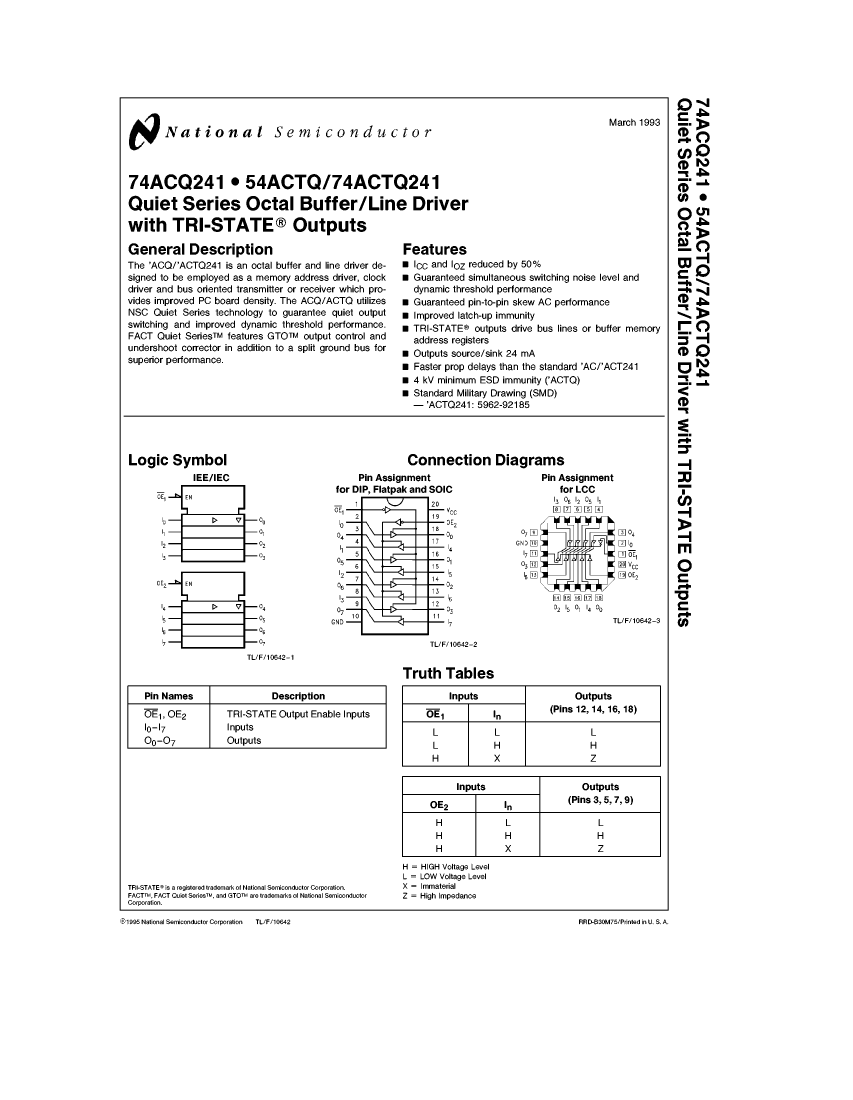

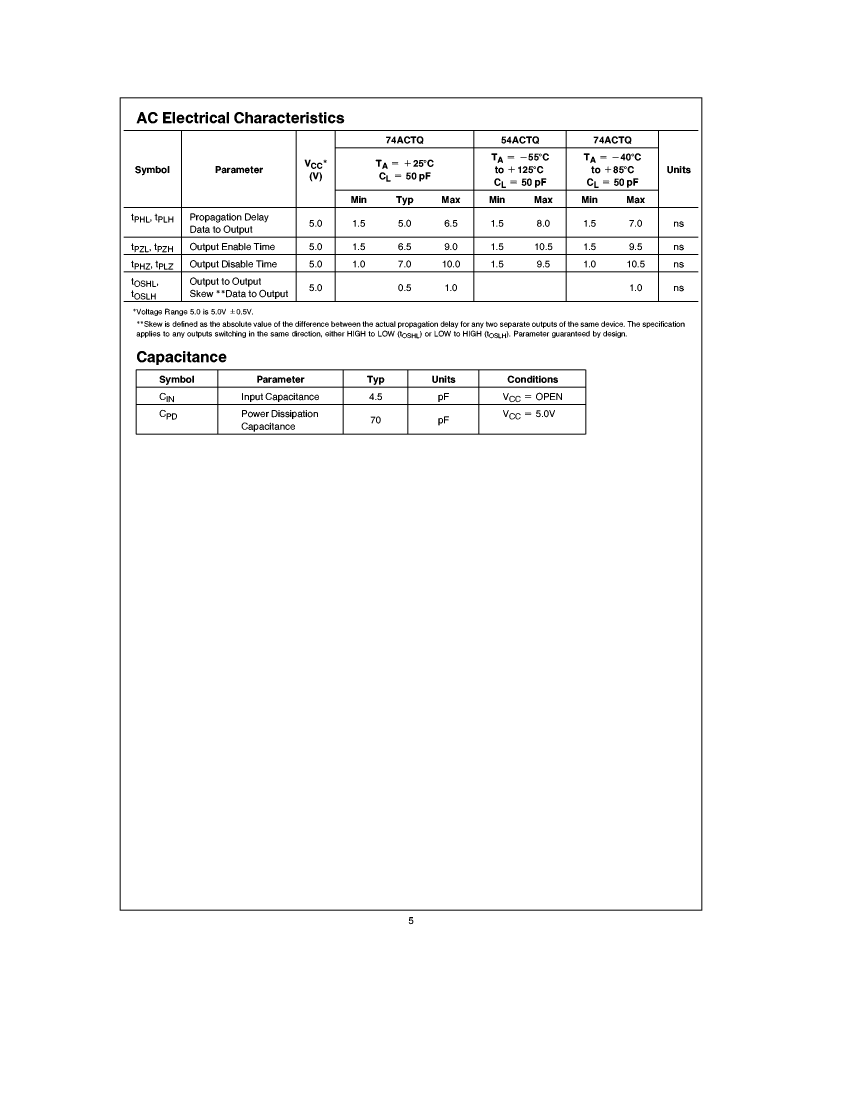

Preview

Download Datasheet

View All

54ACTQ241FMQB Related Products

	54ACTQ241FMQB	54ACTQ241DMQB	54ACTQ241LMQB	74ACTQ241PC	74ACTQ241PCQR	74ACQ241PCQR	74ACQ241SCQR
Description	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CDFP20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CDIP20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDIP20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDIP20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDIP20,	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, PDSO20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DFP, FL20,.3	DIP, DIP20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	SOP, SOP20,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Control type	ENABLE LOW/HIGH	ENABLE LOW/HIGH	ENABLE LOW/HIGH	ENABLE LOW/HIGH	ENABLE LOW/HIGH	ENABLE LOW/HIGH	ENABLE LOW/HIGH
JESD-30 code	R-XDFP-F20	R-XDIP-T20	S-XQCC-N20	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A	0.012 A	0.012 A
Number of digits	4	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DIP	QCCN	DIP	DIP	DIP	SOP
Encapsulate equivalent code	FL20,.3	DIP20,.3	LCC20,.35SQ	DIP20,.3	DIP20,.3	DIP20,.3	SOP20,.4
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	3.3/5 V	3.3/5 V
Prop。Delay @ Nom-Sup	8 ns	8 ns	8 ns	7 ns	7 ns	9.5 ns	9.5 ns
surface mount	YES	NO	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
Maker	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	-	-
Base Number Matches	1	1	1	1	1	1	-
