74FCT240FCQR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74FCT240FCQR

74FCT240FCQR: DescriptionBus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, CDFP20, CERAMIC, FP-20; Categorylogic; File Size231KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

74FCT240FCQR Overview

Bus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, CDFP20, CERAMIC, FP-20

74FCT240FCQR Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DFP,
Reach Compliance Code	unknown
Is Samacsys	N
series	FCT
JESD-30 code	R-GDFP-F20
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	8 ns
Maximum seat height	2.286 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.731 mm
Base Number Matches	1

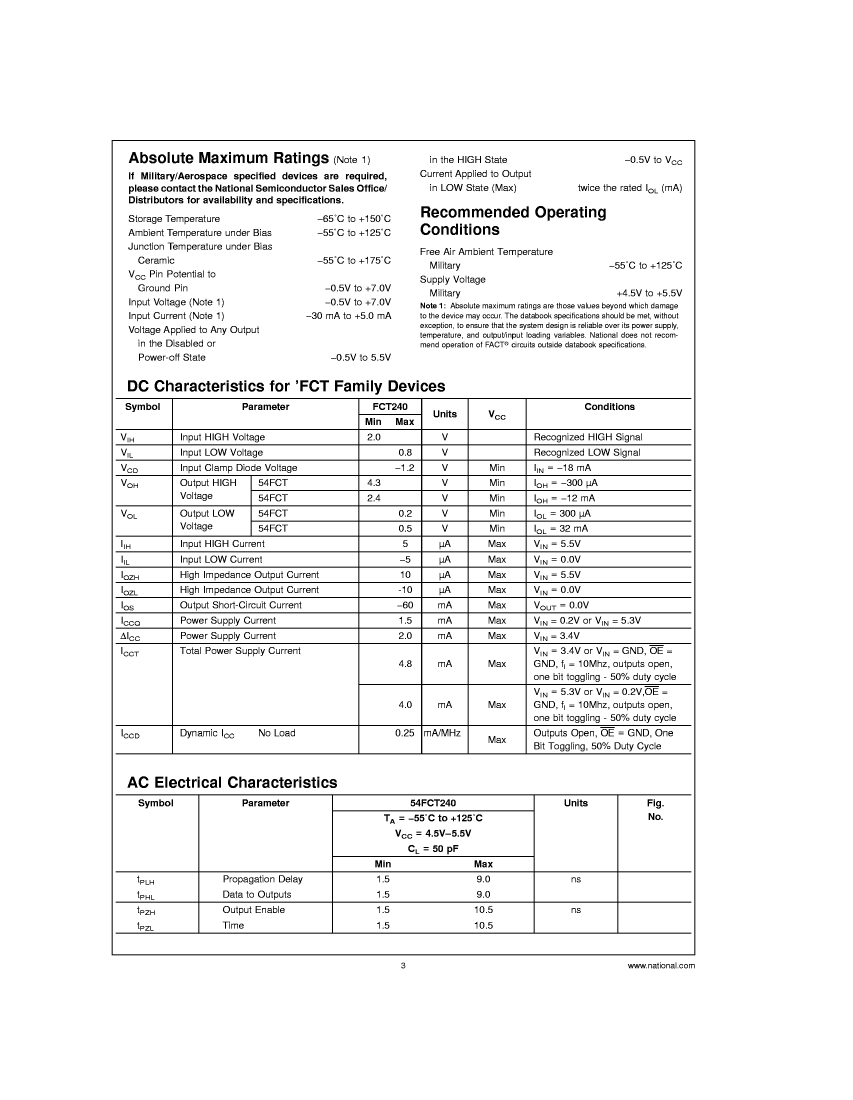

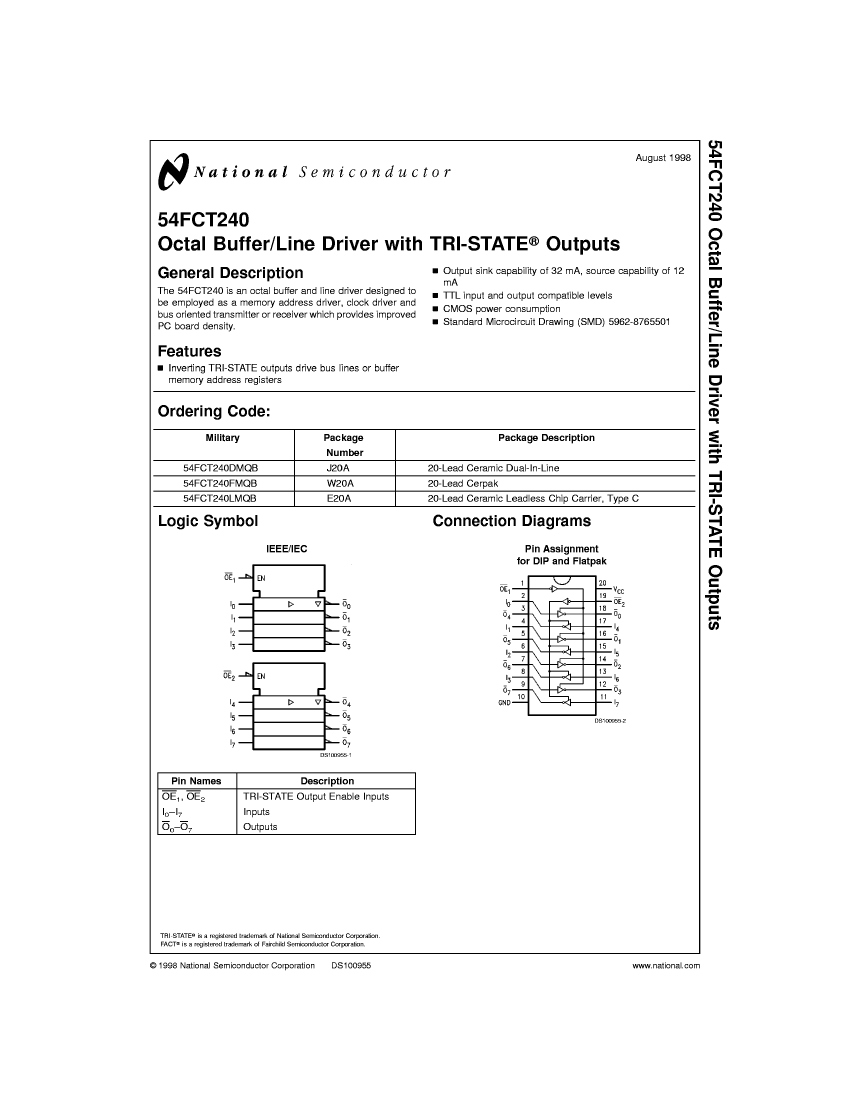

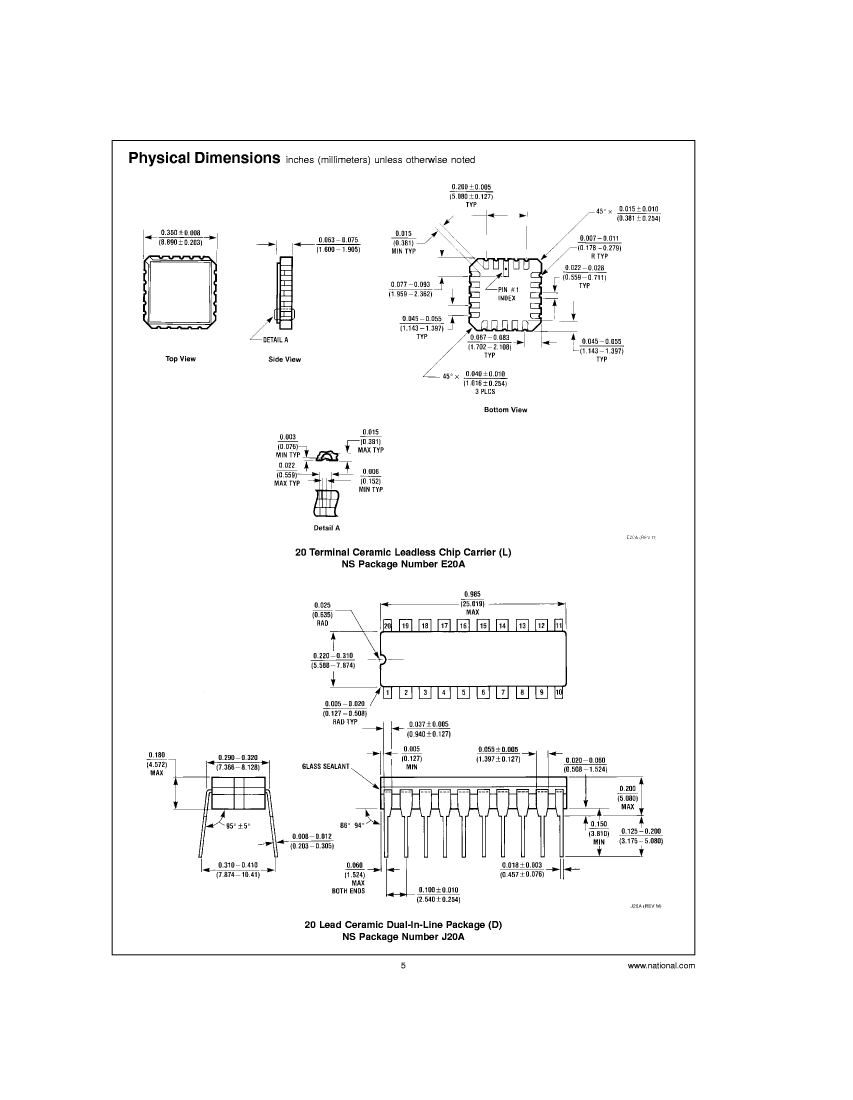

Preview

Download Datasheet

View All

74FCT240FCQR Related Products

	74FCT240FCQR	74FCT240LC	74FCT240LCQR	74FCT240ALC	74FCT240ALCQR
Description	Bus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, CDFP20, CERAMIC, FP-20	Bus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20	Bus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20	Bus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20	Bus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DFP,	QCCN,	QCCN,	QCCN,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
series	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDFP-F20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4
Number of functions	2	2	2	2	2
Number of ports	2	2	2	2	2
Number of terminals	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	QCCN	QCCN	QCCN
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
propagation delay (tpd)	8 ns	8 ns	8 ns	4.8 ns	4.8 ns
Maximum seat height	2.286 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	FLAT	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	QUAD	QUAD	QUAD
width	6.731 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm
Base Number Matches	1	1	1	1	1
length	-	8.89 mm	8.89 mm	8.89 mm	8.89 mm
