TPD2005F
TOSHIBA Intelligent Power Device
Silicon Monolithic Power MOS Integrated Circuit
TPD2005F
Low-Side Power Switch Array (8 Channels) for Motors, Solenoids, and Lamp Drivers
The TPD2005F is an 8-channel high-side switch array for vertical power
MOS FET output. A monolithic power IC, it can directly drive a power
load from a CMOS or TTL logic circuit (such as an MPU). It offers
overcurrent and overtemperature protection functions.
Features
A high-side switch array incorporating an N-channel power MOS FET
(1.2
Ωmax.)
and an 8-channel charge pump
Can directly drive a power load from a microprocessor.
Built-in protection against thermal shutdown protection and
overcurrent protection
8-channel access enables space-saving design
High operating voltage
Low on resistance
Low operating current
: 40 V
: 1.2
Ωmax.
(@V
DD
= 12 V, I
O
= 0.5 A (per channel))
: 5 mA max. (@V
DD
= 40 V, V
IN
= 0 V)
Weight: 0.29g (typ.)
Supports parallel operation.
Supplied in an SSOP-24 package (300 mil) in embossed taping.
Pin Assignment
(top view)
V
DD
1
GND 2
IN1 3
IN2 4
IN3 5
IN4 6
IN5 7
IN6 8
IN7 9
IN8 10
GND 11
V
DD
12
24 N.C.
23 N.C.
22 OUT1
21 OUT2
20 OUT3
19 OUT4
18 OUT5
17 OUT6
16 OUT7
15 OUT8
14 N.C.
13 N.C.
Marking
Lot No.
A dot indicates
lead (Pb)-free package or
lead (Pb)-free finish.
TPD2005F
Part No. (or abbreviation code)
Note: Due to its MOS structure, this product is sensitive to static electricity.
1
2006-10-31
TPD2005F

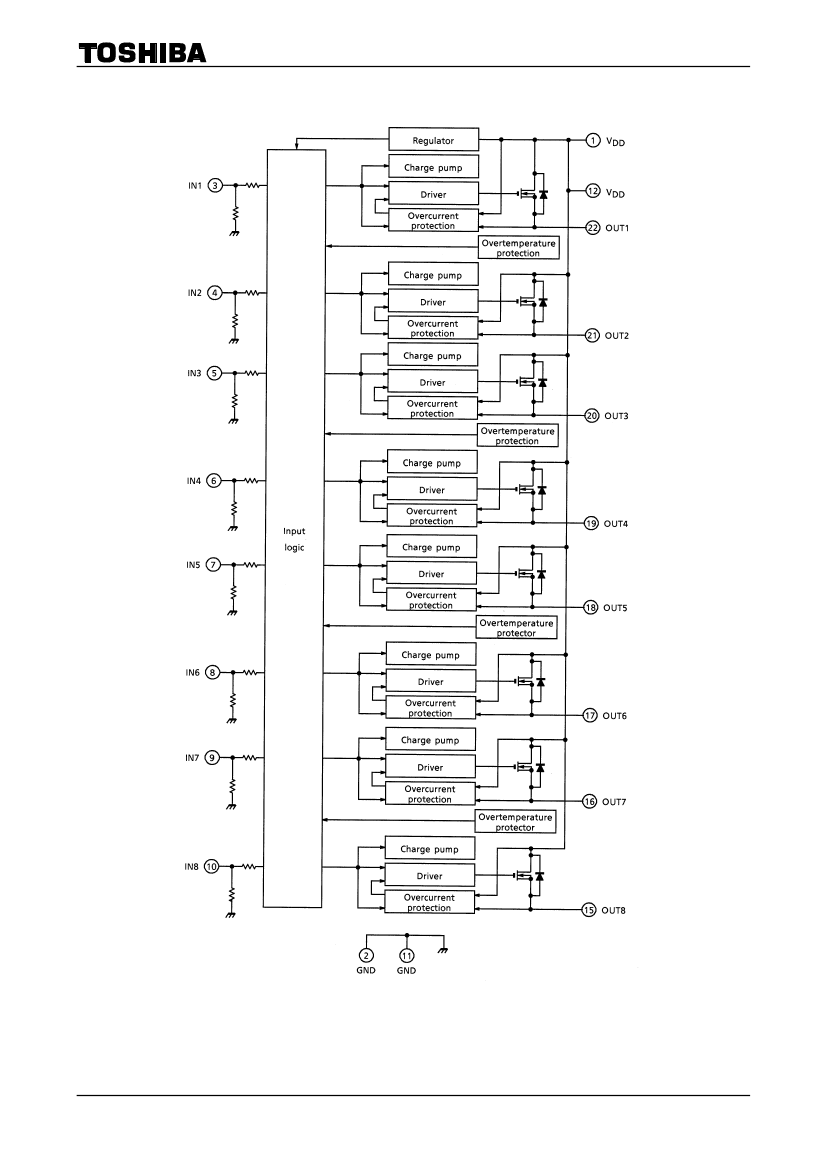

Block Diagram
2
2006-10-31
TPD2005F
Pin Description
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Symbol
V
DD
GND
IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
GND
V
DD
N.C.
N.C.
OUT8
OUT7
OUT6
OUT5
OUT4
OUT3
OUT2
OUT1
N.C.
N.C.
Output pin for channel 8
Output pin for channel 7
Output pin for channel 6
Output pin for channel 5
Output pin for channel 4
Output pin for channel 3
Output pin for channel 2
Output pin for channel 1
―
―
Description
Power supply pin; in common with the pin No.12 internally.
GND pin; in common with the pin No.11 internally.
Control input pin for channel 1 and built-in pull-down resistor (100 kΩ typ.)
Control input pin for channel 2 and built-in pull-down resistor (100 kΩ typ.)
Control input pin for channel 3 and built-in pull-down resistor (100 kΩ typ.)
Control input pin for channel 4 and built-in pull-down resistor (100 kΩ typ.)
Control input pin for channel 5 and built-in pull-down resistor (100 kΩ typ.)
Control input pin for channel 6 and built-in pull-down resistor (100 kΩ typ.)
Control input pin for channel 7 and built-in pull-down resistor (100 kΩ typ.)
Control input pin for channel 8 and built-in pull-down resistor (100 kΩ typ.)
GND pin; in common with the pin No.2 internally.
Power supply pin; in common with the pin No.1 internally.
―
―
Timing Chart
Note:
The overheating detector circuits feature hysteresis. After overheating is detected, normal operation is
restored only when the junction temperature falls by the hysteresis amount (10°C typ.) in relation to the
overheating detection temperature.
3
2006-10-31
TPD2005F
Truth Table
Input Signal
L
H
L
H
L
H
Output Signal
L
H
L
Internally limited
L
L
State
Normal
Overcurrent
Overtemperature
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Supply voltage
Input voltage
Drain-source voltage
Output current
Power dissipation
(operating all channels, ta = 25°C)
Single pulse avalanche energy
Operating temperature
Junction temperature
Storage temperature
Symbol
V
DD
V
IN
V
DS
I
O
P
T
E
AS
T
opr
T
j
T
stg
Rating
45
−
0.5 ~ 7
60
Internally
limited
0.8
1.2 (Note)
10
−
40 ~ 85
150
−
55 ~ 150
Unit
V
V
V
A
W
mJ
°C
°C
°C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
Thermal Characteristics
Characteristic
Thermal resistance junction to ambient
(Operating all channels, Ta = 25°C)
Symbol
ΣR
th (j-a)
Rating
156.3
104.2 (Note)
Unit
°C / W
Note:
60 mm × 60 mm × 1.6 mm when a device is mounted on a glass epoxy PCB (DC).
4
2006-10-31
TPD2005F
Electrical Characteristics
(Unless otherwise specified, V
DD
= 8 ~ 40V, T
j
= 25°C)
Characteristic
Operating supply voltage
Supply current
Input voltage
“L” level
“H” level
Symbol
V
DD
I
DD
V
IL
V
IH
I
IL
I
IH
R
DS (ON)
I
OL
I
S
T
SD
ΔT
SD
t
ON
t
OFF
Test
Cir-
cuit
―
―
―
―
―
―
―
―
―
―
―
1
V
DD
= 24 V, V
IN
= 0 V
V
DD
= 24 V, V
IN
= 5V
V
DD
= 12 V, I
O
= 0.5 A
V
DD
= 40 V, V
IN
= 0 V
―
―
―
V
DD
= 12 V, R
L
= 24Ω
Test Condition
―
V
DD
= 40 V, V
IN
= 0 V
Min
8
―
―
3.5
−10
―
―
―
1
―
―
―
―
Typ.
―
―
―
―
―
50
0.9
―
―
160
10
11
4
Max
40
5
1.5
―
10
200
1.2
100
3
―
―
200
50
Unit
V
mA
V
Input current
On resistance
Output leakage current
Overcurrent protection
Thermal shutdown
μA
Ω
μA
A
°C
Switching time
μs
Description of Protector Circuit
(1) Overtemperature Protection
There are four built-in overheating detector circuits, one each for channels 1 and 2; channels 3 and 4;
channels 5 and 6; and channels 7 and 8, respectively. The circuit logic is such that, when any of the four
detectors detects overheating, the circuit turns off the output of both its channels(for example, both
channels 1 and 2).
The overheating detector circuits feature hysteresis. After overheating is detected, normal operation is
restored only when the junction temperature falls by the hysteresis amount (10°C typ.) in relation to the
overheating detection temperature.
(2) Overcurrent Protection
When overcurrent is detected, the overcurrent limiter function limits the output current. Normal operation
is restored when the load current drops below the overcurrent detection value.
Test Circuit
Switching Time
5
2006-10-31
