74F353FCQR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74F353FCQR

74F353FCQR: DescriptionMultiplexer, 2-Func, 4 Line Input, TTL, CDFP16,; Categorylogic; File Size128KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74F353FCQR Overview

Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16,

74F353FCQR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	compliant
Is Samacsys	N
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
Humidity sensitivity level	2A
Number of functions	2
Number of entries	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

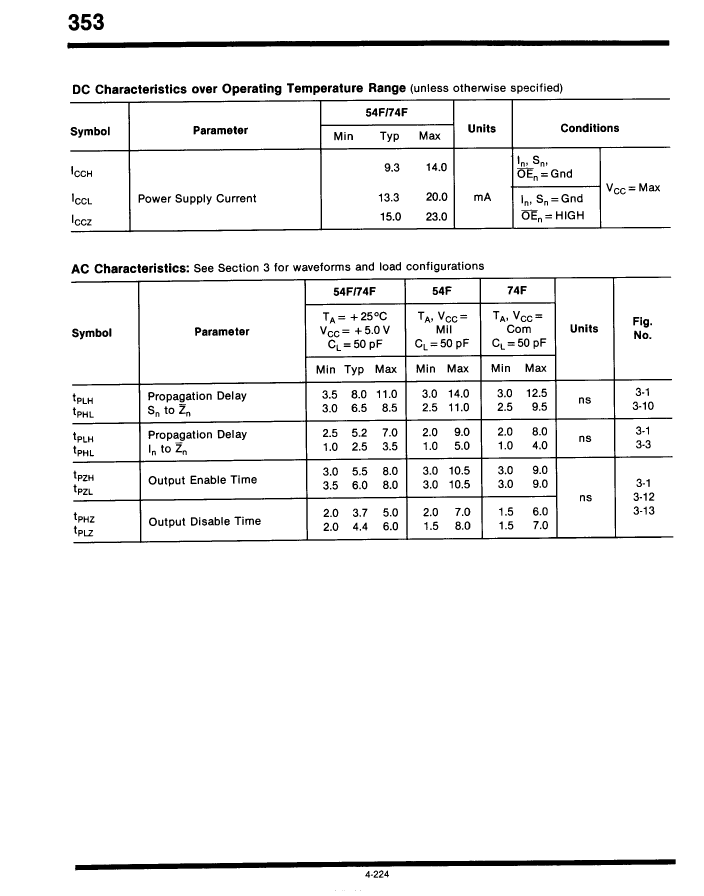

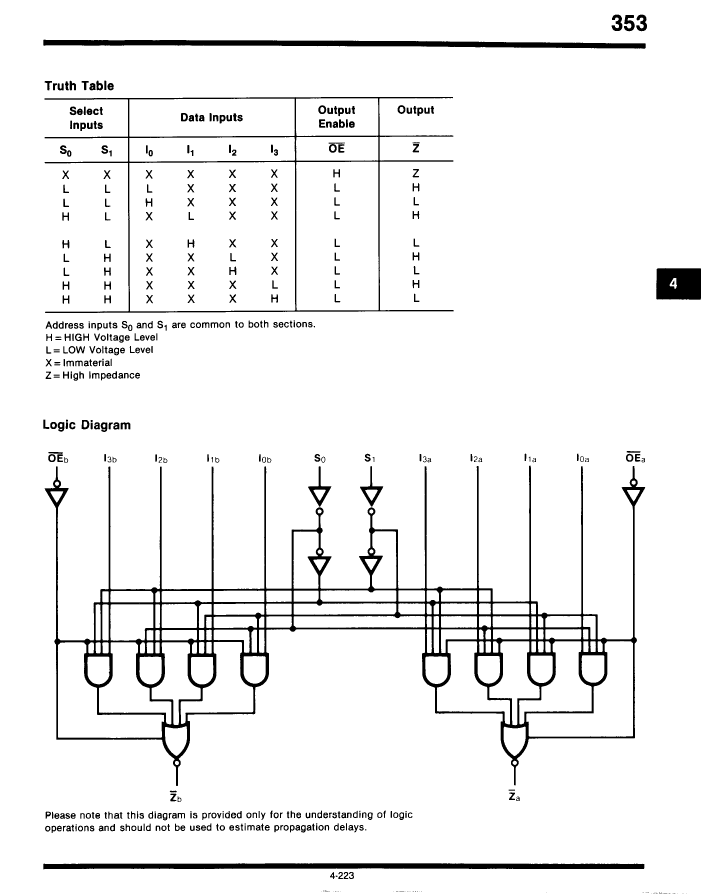

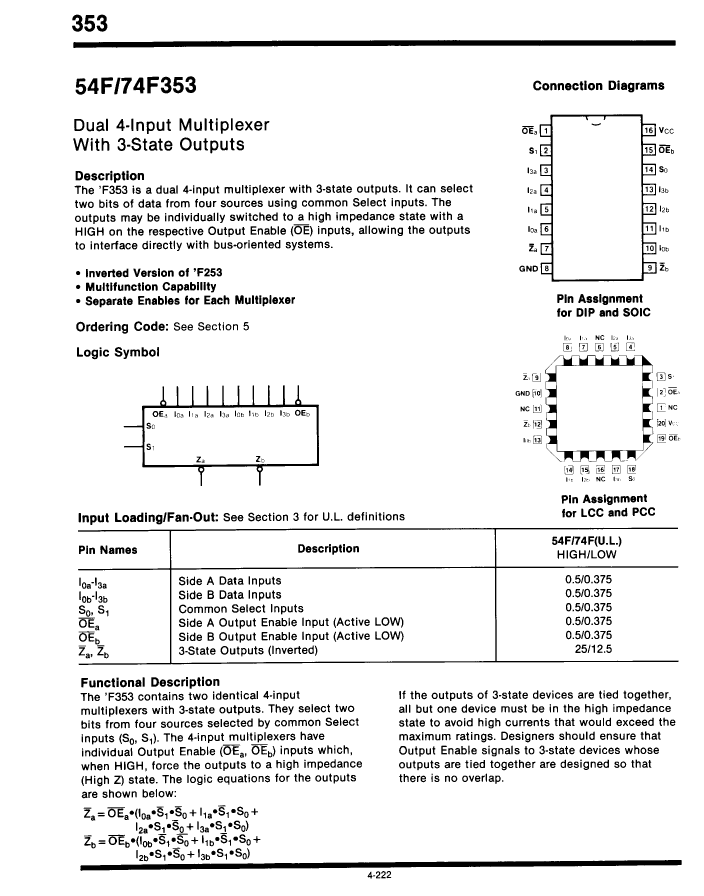

Preview

Download Datasheet

View All

74F353FCQR Related Products

	74F353FCQR	54F353FM	74F353DCQM	74F353FC	74F353FCQM	74F353PCQM
Description	Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16,	Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16,	Multiplexer, 2-Func, 4 Line Input, TTL, CDIP16,	Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16,	Multiplexer, 2-Func, 4 Line Input, TTL, CDFP16,	Multiplexer, 2-Func, 4 Line Input, TTL, PDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-XDFP-F16	R-XDFP-F16	R-XDIP-T16	R-XDFP-F16	R-XDFP-F16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	2	2	2	2	2	2
Number of entries	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	125 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DFP	DFP	DIP	DFP	DFP	DIP
Encapsulate equivalent code	FL16,.3	FL16,.3	DIP16,.3	FL16,.3	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	FLATPACK	FLATPACK	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead
Humidity sensitivity level	2A	-	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	250	-	250	250	250	250
Maximum time at peak reflow temperature	30	-	30	30	30	30
Base Number Matches	1	1	1	1	1	-
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
