54LS00J03 datasheet, PDF - EEWORLD Datasheet

54LS00J03: DescriptionNAND Gate, TTL, CDIP14,; Categorylogic; File Size121KB，2 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric View All

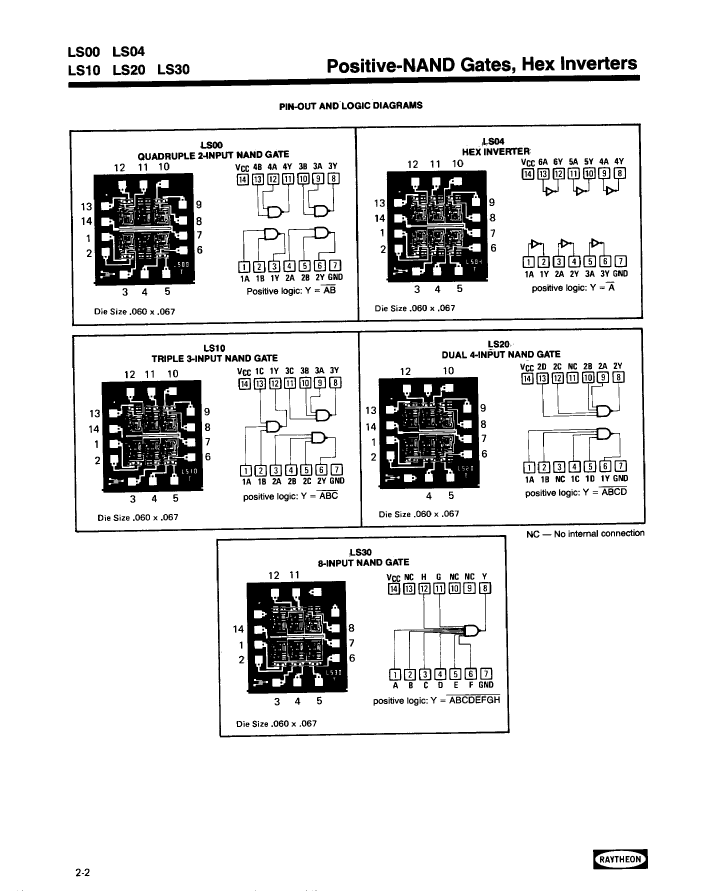

54LS00J03 Overview

NAND Gate, TTL, CDIP14,

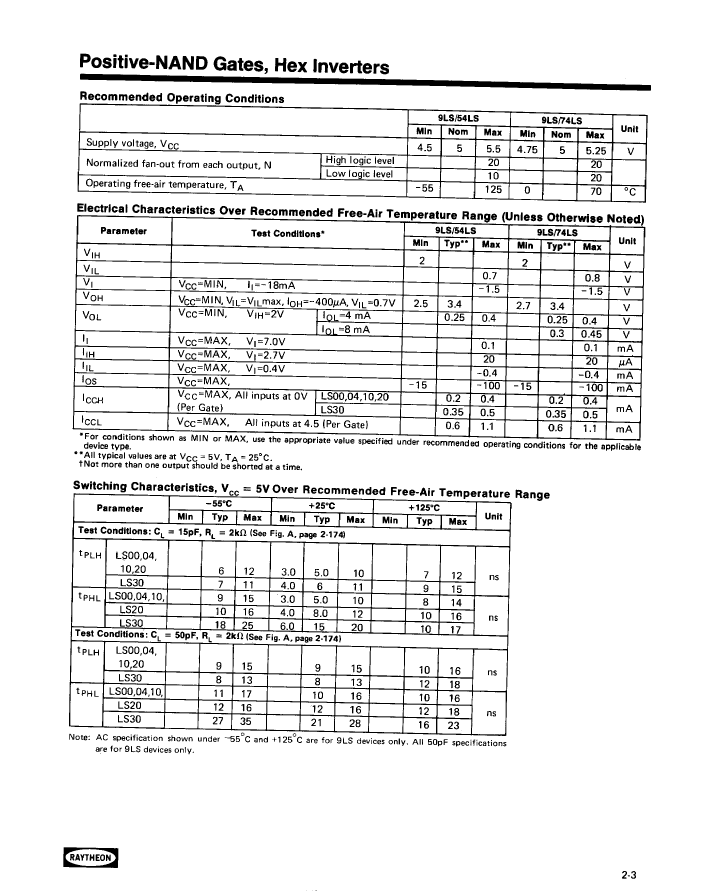

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Raytheon Company
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	NAND GATE
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
