54LS155FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 54LS155FMQB

54LS155FMQB: DescriptionDecoder/Driver, LS Series, True Output, TTL, CDFP16, CERAMIC, FP-16; Categorylogic; File Size198KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS155FMQB Overview

Decoder/Driver, LS Series, True Output, TTL, CDFP16, CERAMIC, FP-16

54LS155FMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DFP
package instruction	CERAMIC, FP-16
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
series	LS
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.6645 mm
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.004 A
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Maximum supply current (ICC)	10 mA
Prop。Delay @ Nom-Sup	35 ns
propagation delay (tpd)	35 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
width	6.604 mm
Base Number Matches	1

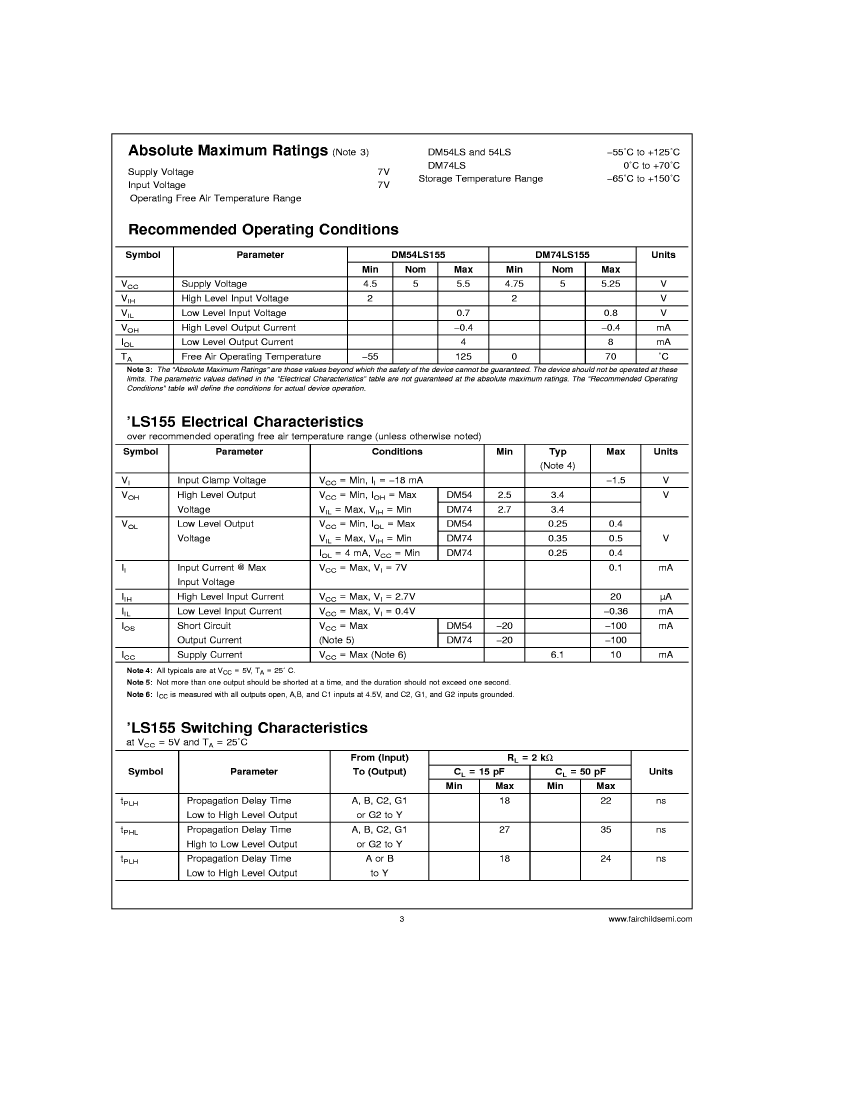

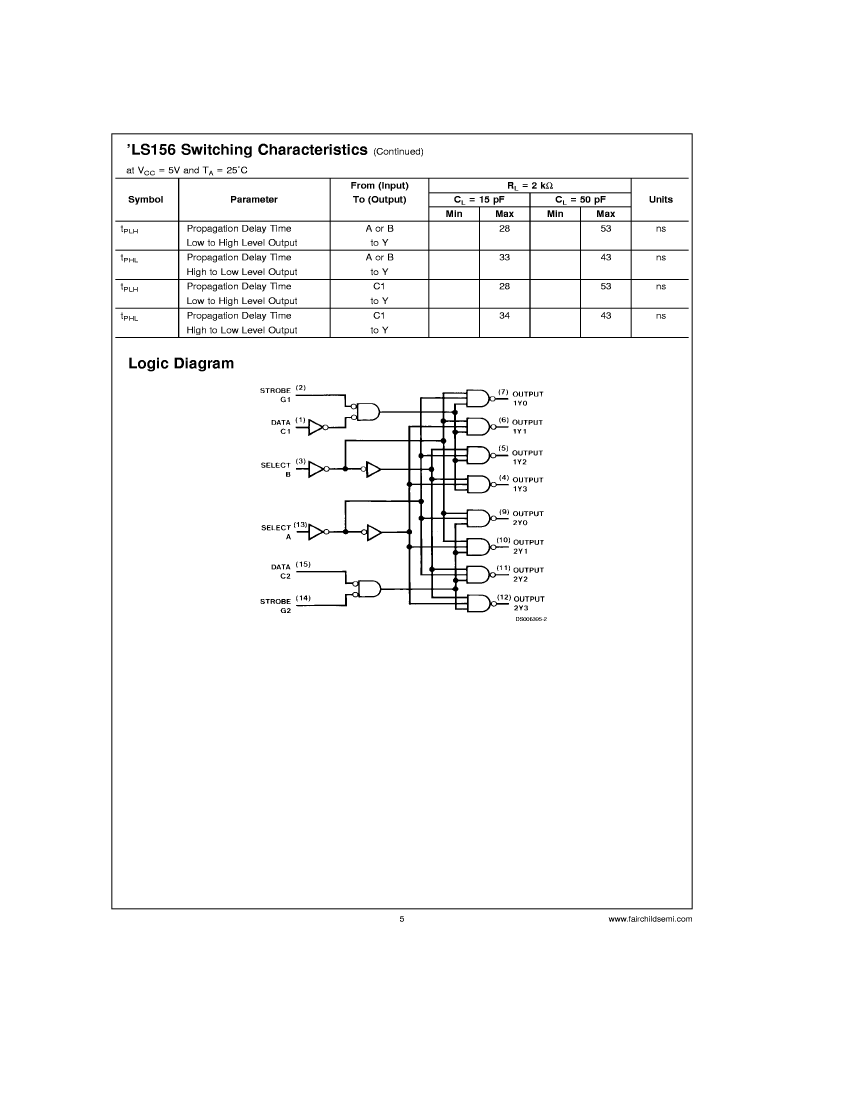

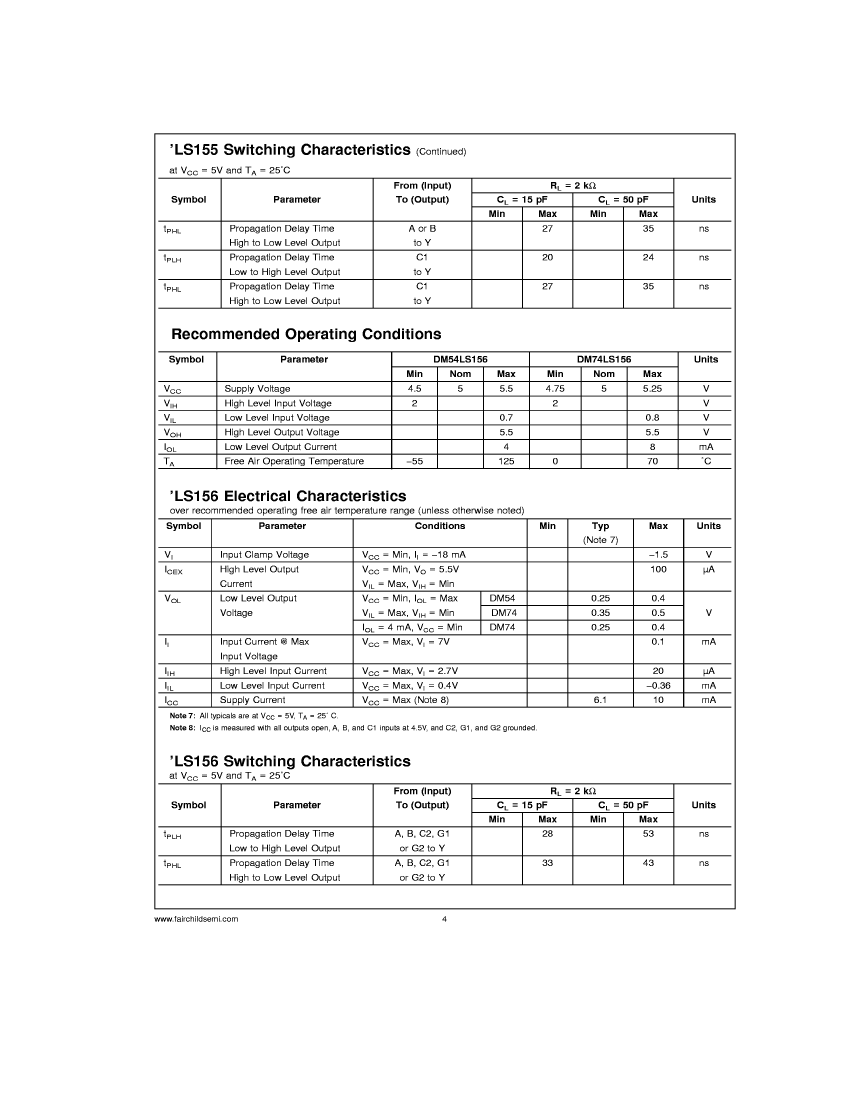

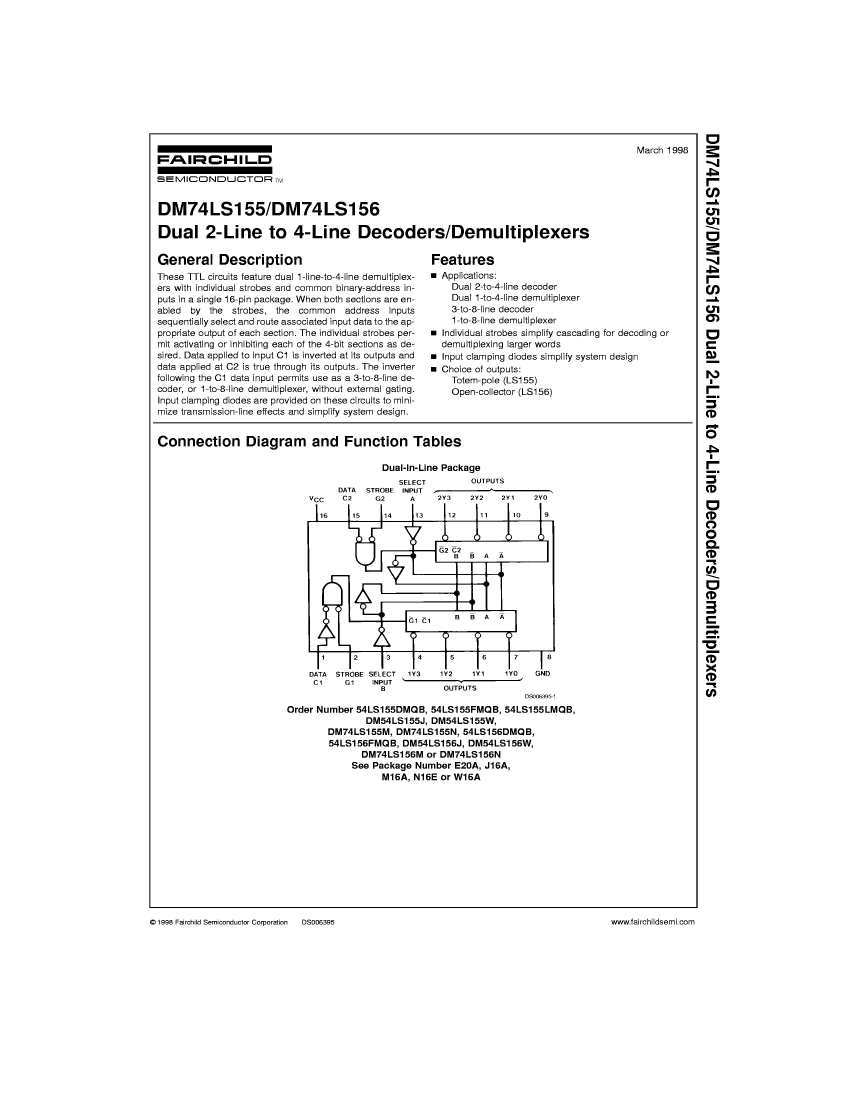

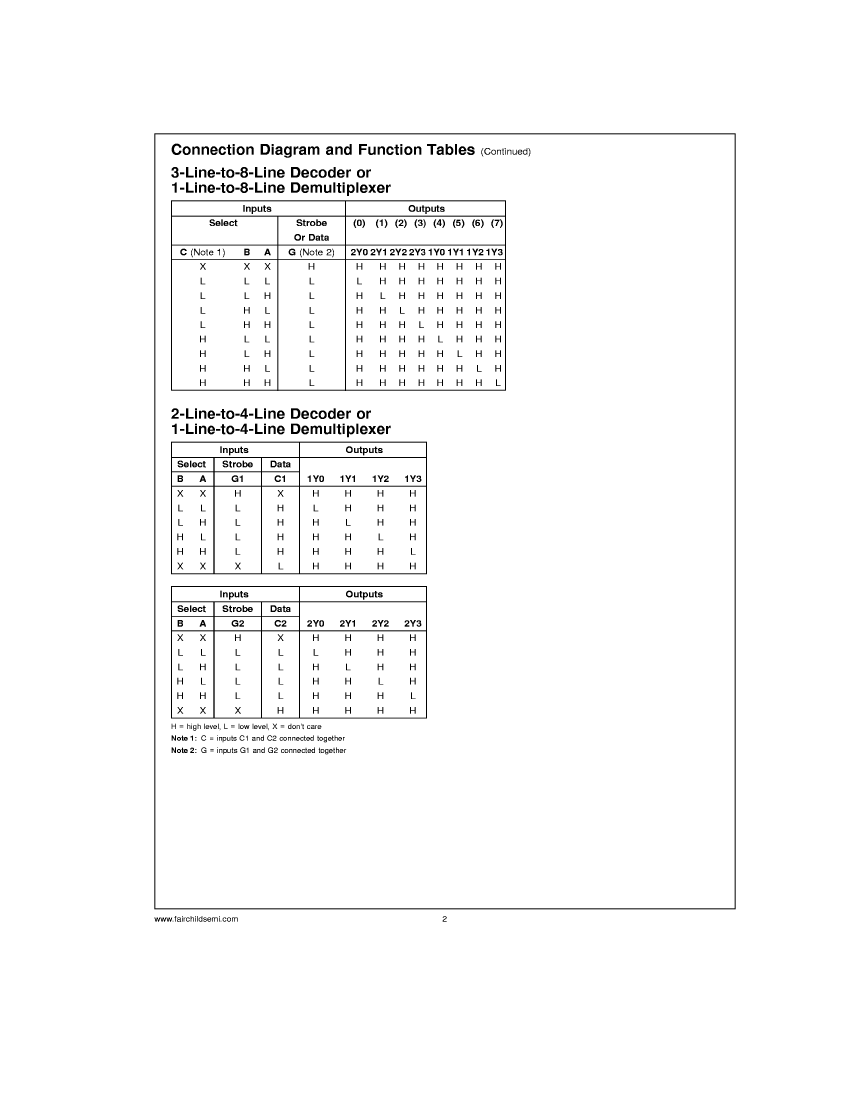

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54LS155FMQB Related Products

	54LS155FMQB	54LS156FMQB	54LS155LMQB	54LS156DMQB	54LS155DMQB	DM54LS156J	DM54LS156W	DM54LS155J	DM54LS155W
Description	Decoder/Driver, LS Series, True Output, TTL, CDFP16, CERAMIC, FP-16	Decoder/Driver, LS Series, True Output, TTL, CDFP16, CERAMIC, FP-16	Decoder/Driver, LS Series, True Output, TTL, CQCC20, CERAMIC, LCC-20	Decoder/Driver, LS Series, True Output, TTL, CDIP16, CERAMIC, DIP-16	Decoder/Driver, LS Series, True Output, TTL, CDIP16, CERAMIC, DIP-16	Decoder/Driver, LS Series, True Output, TTL, CDIP16, CERAMIC, DIP-16	Decoder/Driver, LS Series, True Output, TTL, CDFP16, CERAMIC, FP-16	Decoder/Driver, LS Series, True Output, TTL, CDIP16, CERAMIC, DIP-16	Decoder/Driver, LS Series, True Output, TTL, CDFP16, CERAMIC, FP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DFP	DFP	QLCC	DIP	DIP	DIP	DFP	DIP	DFP
package instruction	CERAMIC, FP-16	DFP, FL16,.3	CERAMIC, LCC-20	DIP, DIP16,.3	CERAMIC, DIP-16	CERAMIC, DIP-16	DFP, FL16,.3	DIP, DIP16,.3	CERAMIC, FP-16
Contacts	16	16	20	16	16	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	compliant	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F16	R-GDFP-F16	S-CQCC-N20	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16	R-GDFP-F16	R-GDIP-T16	R-GDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	9.6645 mm	9.6645 mm	8.89 mm	19.43 mm	19.43 mm	19.43 mm	9.6645 mm	19.43 mm	9.6645 mm
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of functions	2	2	2	2	2	2	2	2	2
Number of terminals	16	16	20	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	QCCN	DIP	DIP	DIP	DFP	DIP	DFP
Encapsulate equivalent code	FL16,.3	FL16,.3	LCC20,.35SQ	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3	DIP16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Prop。Delay @ Nom-Sup	35 ns	53 ns	35 ns	53 ns	35 ns	53 ns	53 ns	35 ns	35 ns
propagation delay (tpd)	35 ns	53 ns	35 ns	53 ns	35 ns	53 ns	53 ns	35 ns	35 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.032 mm	2.032 mm	1.905 mm	5.08 mm	5.08 mm	5.08 mm	2.032 mm	5.08 mm	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	FLAT	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	6.604 mm	6.604 mm	8.89 mm	7.62 mm	7.62 mm	7.62 mm	6.604 mm	7.62 mm	6.604 mm
Maker	Fairchild	-	Fairchild	-	Fairchild	Fairchild	-	-	Fairchild
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	-	-	-	-
Base Number Matches	1	1	1	1	1	1	1	1	-
