5404FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 5404FMQB

5404FMQB: DescriptionInverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic; File Size110KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

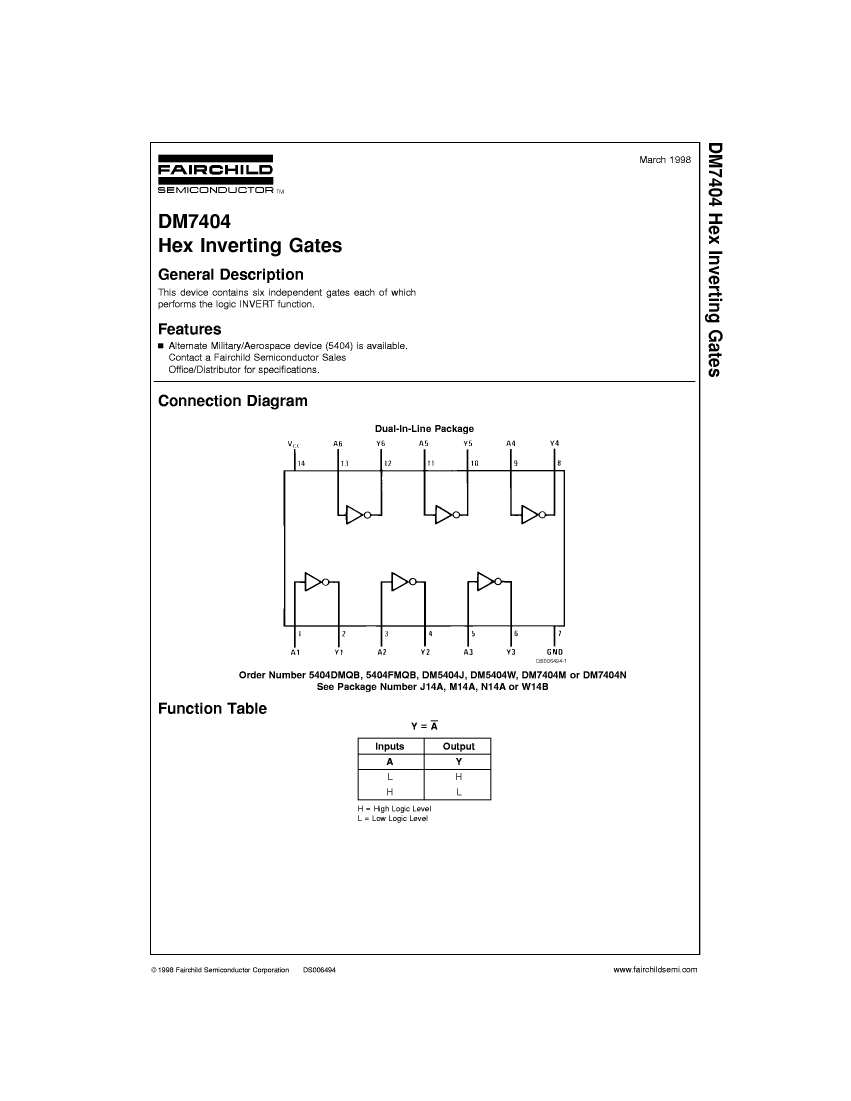

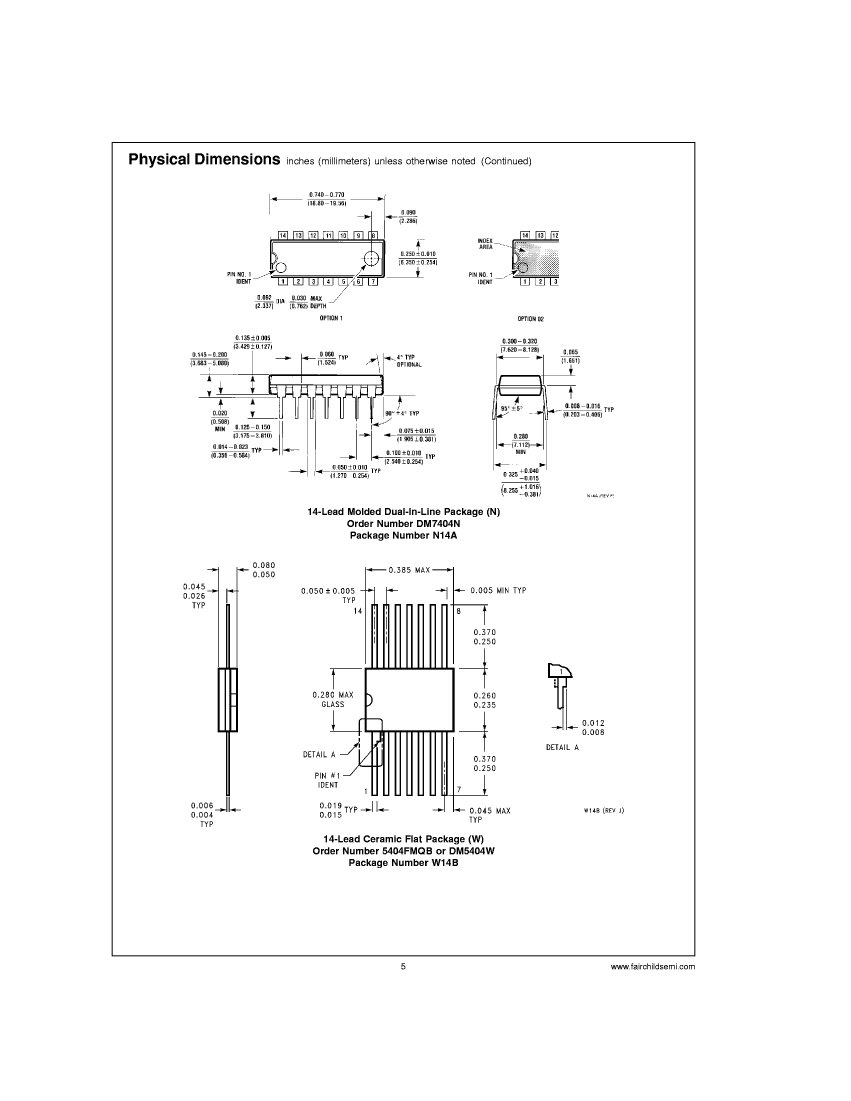

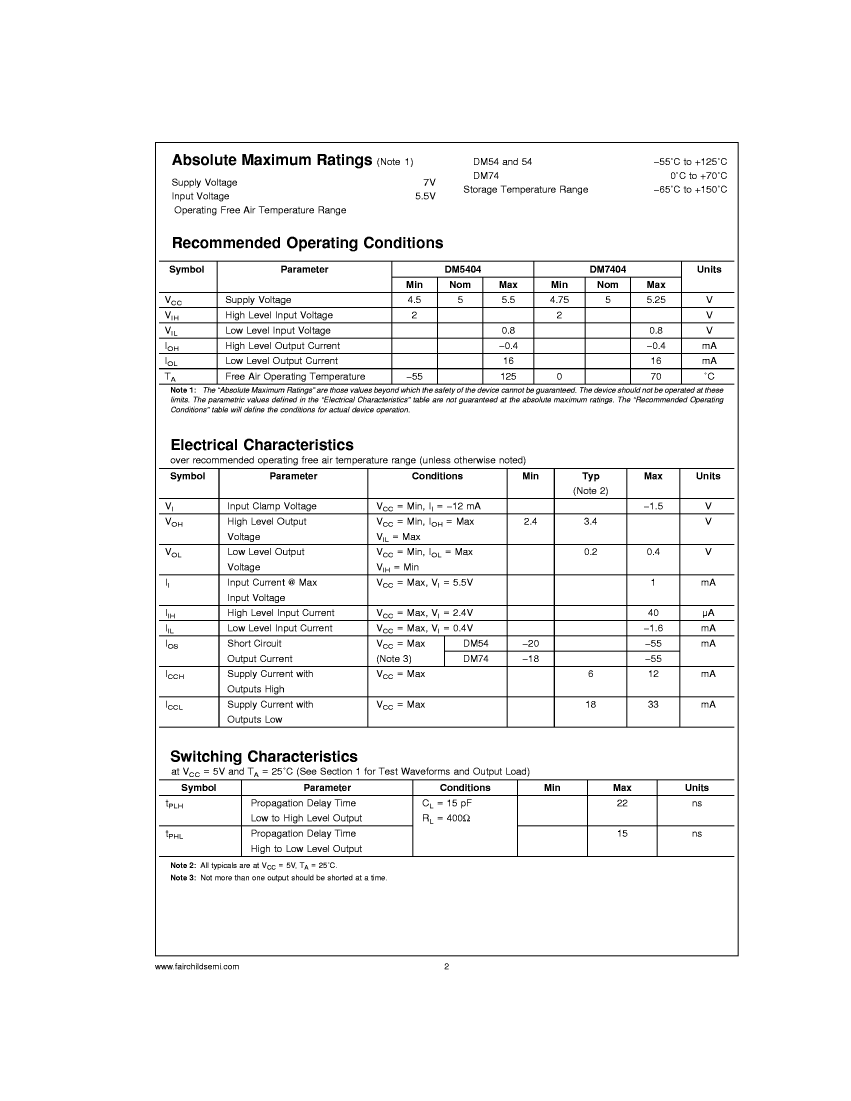

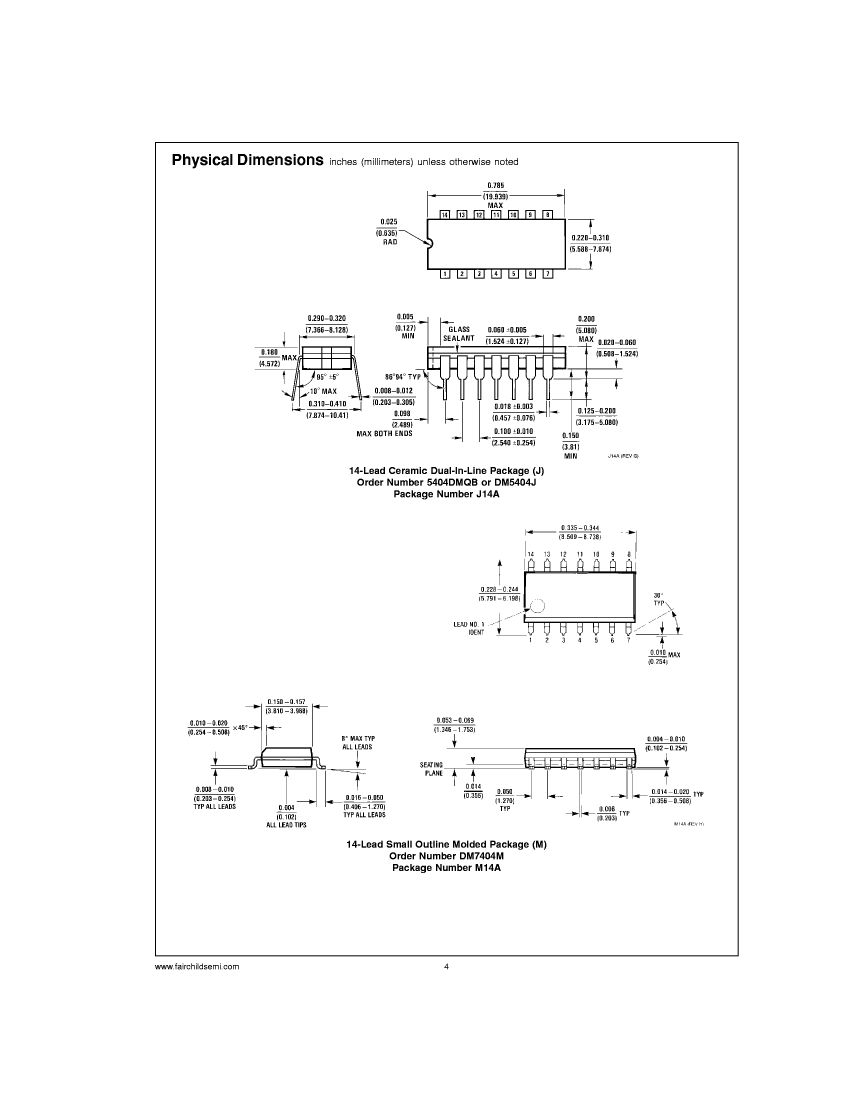

5404FMQB Overview

Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14

5404FMQB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DFP
package instruction	CERAMIC, FP-14
Contacts	14
Reach Compliance Code	unknown
Is Samacsys	N
series	TTL/H/L
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.016 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	33 mA
Prop。Delay @ Nom-Sup	22 ns
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	MIL-STD-883 Class B
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.2865 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5404FMQB Related Products

	5404FMQB	5404DMQB	DM5404W	DM5404J
Description	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	DFP	DIP	DFP	DIP
package instruction	CERAMIC, FP-14	CERAMIC, DIP-14	CERAMIC, FP-14	DIP, DIP14,.3
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
series	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L
JESD-30 code	R-GDFP-F14	R-GDIP-T14	R-GDFP-F14	R-GDIP-T14
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.016 A	0.016 A	0.016 A	0.016 A
Number of functions	6	6	6	6
Number of entries	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP	DFP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	33 mA	33 mA	33 mA	33 mA
Prop。Delay @ Nom-Sup	22 ns	22 ns	22 ns	22 ns
propagation delay (tpd)	15 ns	15 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO
Maximum seat height	2.032 mm	5.08 mm	2.032 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.2865 mm	7.62 mm	6.2865 mm	7.62 mm
Base Number Matches	1	1	1	-
