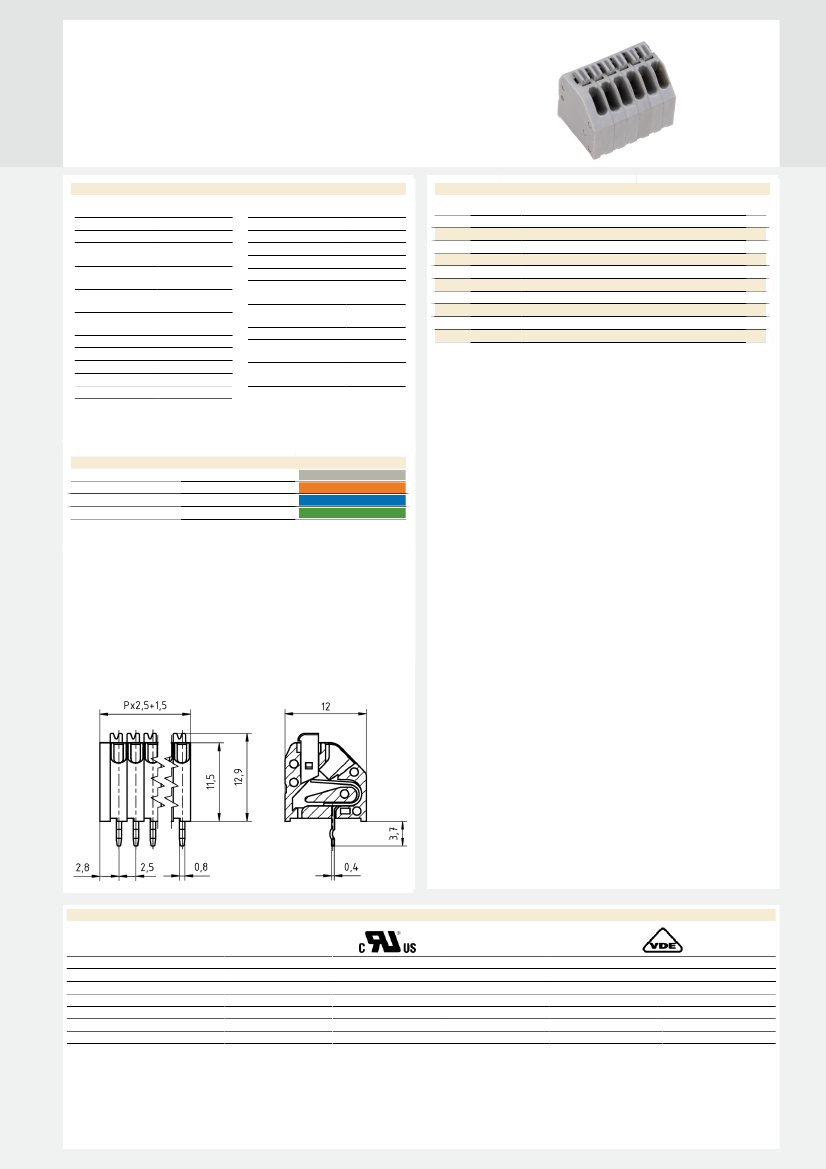

Push-In |
Spacing 2.5 mm
AK4191/..KD-2.5-PEBBLE GREY
1- to n-poles
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.14 mm²
0.75 mm²
0.14 mm²
0.75 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing 2.5 mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
Width (mm)
6.50
9.00
11.50
14.00
16.50
19.00
21.50
24.00
26.50
29.00
31.50
Article Designation
AK4191/2KD-2.5-PEBBLE GREY
AK4191/3KD-2.5-PEBBLE GREY
AK4191/4KD-2.5-PEBBLE GREY
AK4191/5KD-2.5-PEBBLE GREY
AK4191/6KD-2.5-PEBBLE GREY
AK4191/7KD-2.5-PEBBLE GREY
AK4191/8KD-2.5-PEBBLE GREY
AK4191/9KD-2.5-PEBBLE GREY
AK4191/10KD-2.5-PEBBLE GREY
AK4191/11KD-2.5-PEBBLE GREY
AK4191/12KD-2.5-PEBBLE GREY
Article Number
54191020001F
54191030001F
54191040001F
54191050001E
54191060001E
54191070001E
54191080001D
54191090001D
54191100001D
54191110001D
54191120001D
PU
200
200
200
100
100
100
50
50
50
50
50
Stranded with Ferrule 0.14 mm²
min
Stranded with Ferrule 0.34 mm²
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Contact Pin
Bronze
9.0 mm
1.2 mm
Colours
PEBBLE GREY
ORANGE
BLUE
LIGHT GREEN
RAL7032
RAL2011
RAL5015
similar RAL 6018
RAL7032
RAL2011
RAL5015
similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Ratings
Usegroup
Rated Voltage
Rated Current
Rated Wire Size
solid
stranded
Test Voltage
B
150 V
2A
AWG 26-20
AWG 26-20
1.3 kV
C
-
-
-
-
-
D
150 V
2A
AWG 26-20
AWG 26-20
1.3 kV
min
0.2 mm²
0.2 mm²
130 V
2A
max
0.75 mm²
0.75 mm²
1.25 kV
