781014C4498 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 781014C4498

781014C4498: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector; File Size4MB，3 Pages; ManufacturerKings Electronics

Download Datasheet Parametric Compare View All

781014C4498 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal

781014C4498 Parametric

Parameter Name	Attribute value
Maker	Kings Electronics
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARD: MIL-C-83503
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	78
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

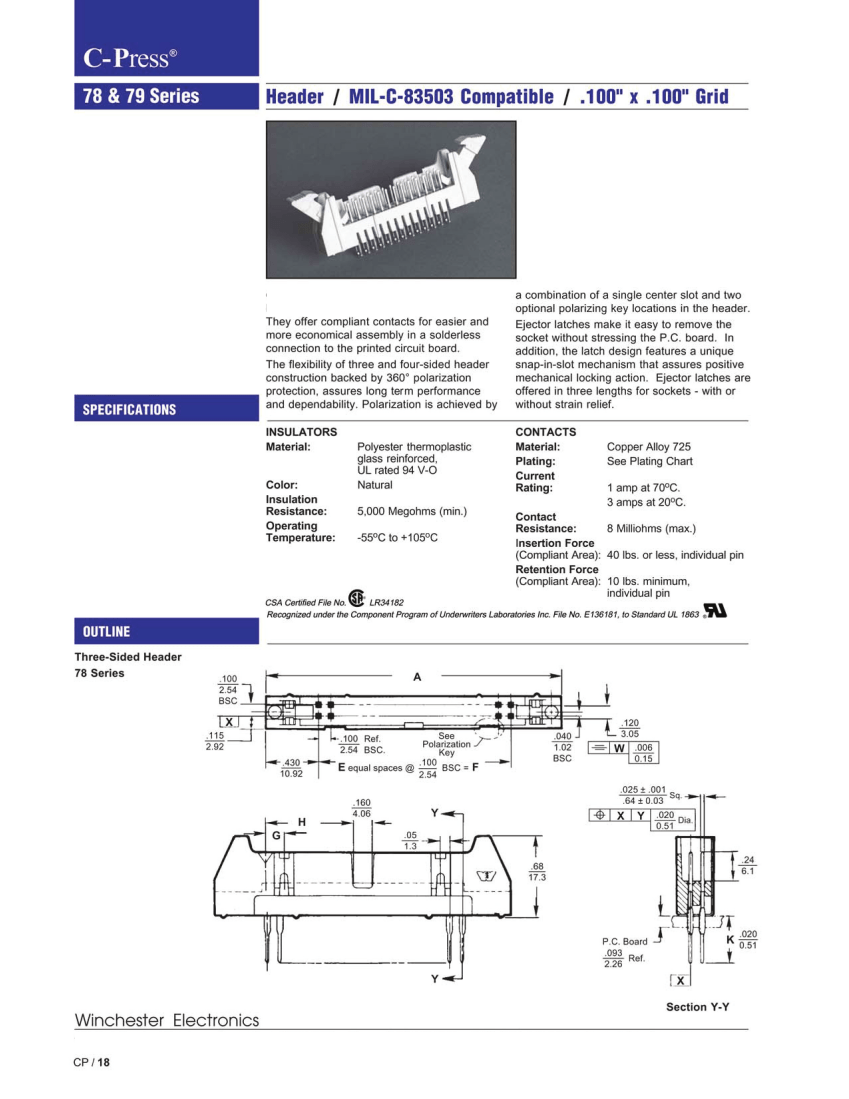

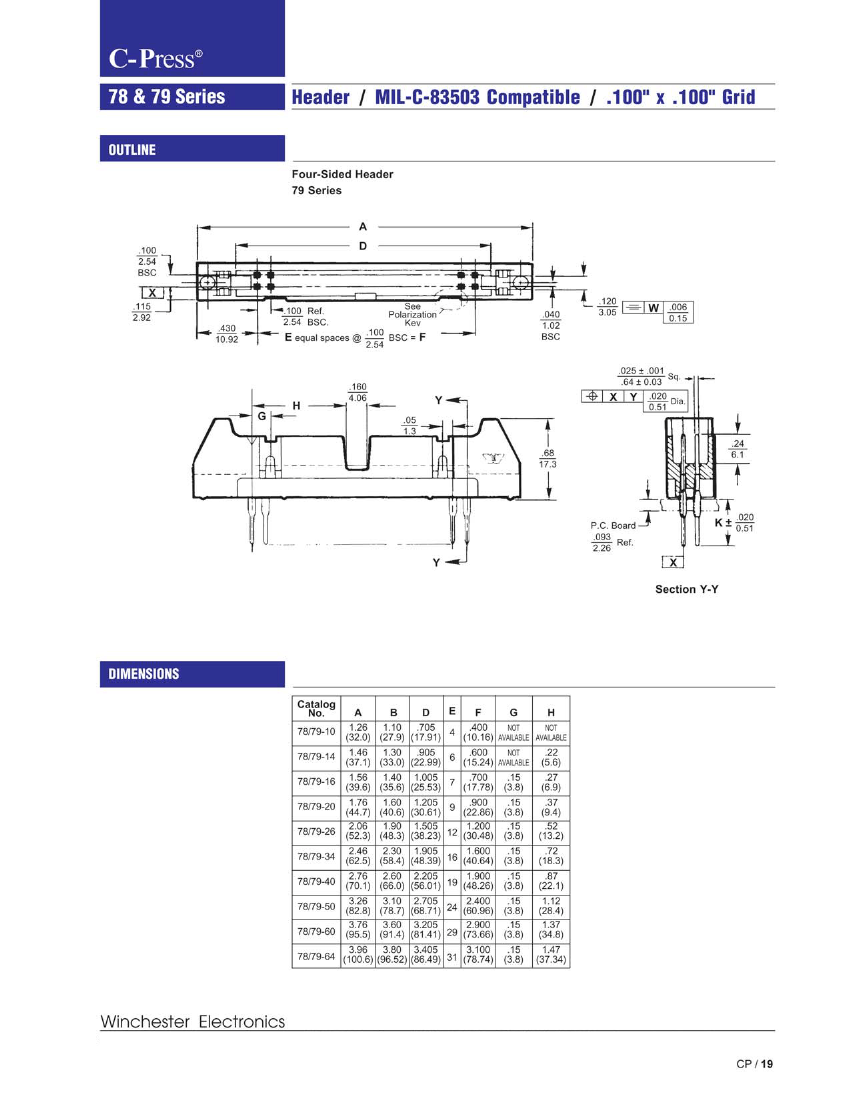

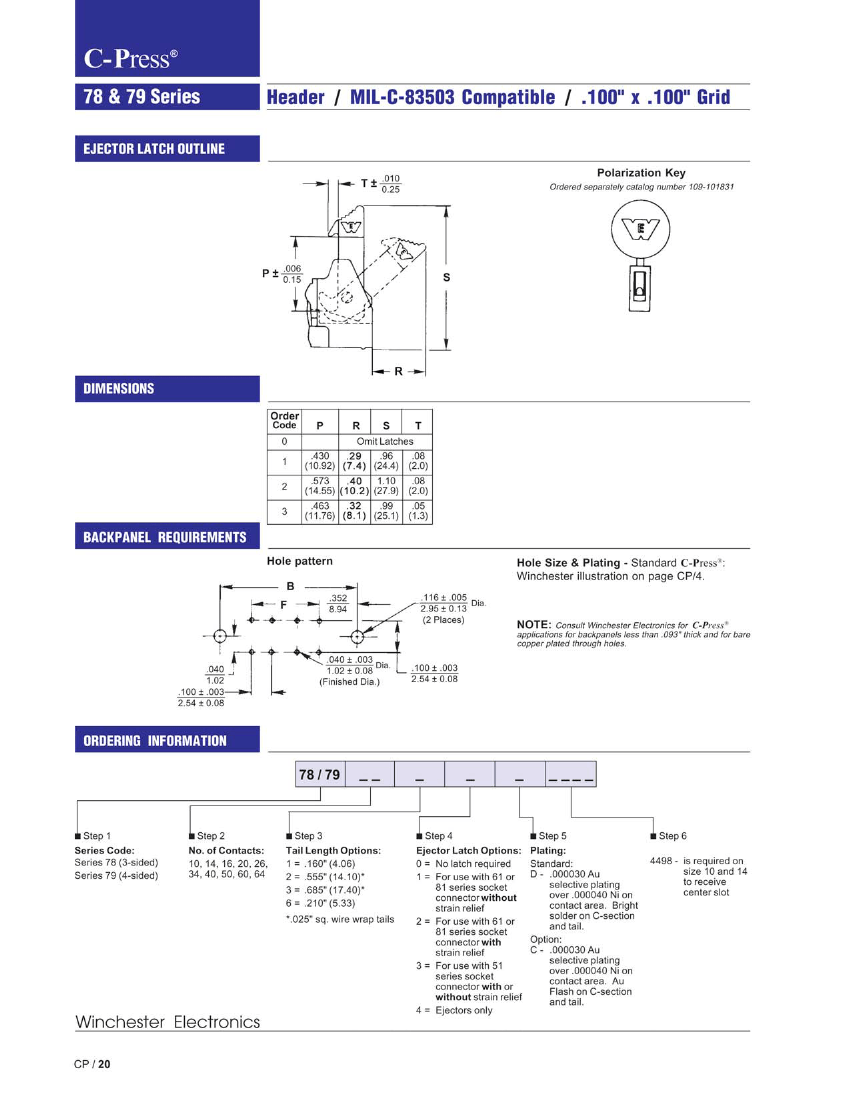

C-Press

Series 78/79 Header Connectors are

MIL-C-83503 compatible.

62 Barnes Industrial Road North, Wallingford, CT 06492

Phone: (203) 741-5400

Fax: (203) 741-5500

www.winchesterelectronics.com

781014C4498 Related Products

	781014C4498	781010C4498	781010D4498	781014D4498	781020C4498	781020D4498	781024C4498	781024D4498	781030C4498
Description	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal
Maker	Kings Electronics	Kings Electronics	Kings Electronics	Kings Electronics	Kings Electronics	Kings Electronics	Kings Electronics	Kings Electronics	Kings Electronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N	N	N	N	N	N
Other features	STANDARD: MIL-C-83503	STANDARD: MIL-C-83503	STANDARD: MIL-C-83503	STANDARD: MIL-C-83503	STANDARD: MIL-C-83503	STANDARD: MIL-C-83503	STANDARD: MIL-C-83503	STANDARD: MIL-C-83503	STANDARD: MIL-C-83503
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD FLASH	GOLD FLASH	TIN LEAD	TIN LEAD	GOLD FLASH	TIN LEAD	GOLD FLASH	TIN LEAD	GOLD FLASH
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e0	e0	e4	e0	e4	e0	e4
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	78	78	78	78	78	78	78	78	78
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	10	10	10	10	10	10	10	10	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1
