5962R0052402VHA: Description5962R0052402VHA amplifier basic information: 5962R0052402VHA is a COMPARATOR. The commonly used packaging method is DFP, 5962R0052402VHA amplifier core information: The minimum operating temperature of the 5962R0052402VHA is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.15 µA When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. 5962R0052402VHA takes only 200 ns to respond. The nominal supply voltage of 5962R0052402VHA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962R0052402VHA is 4000 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962R0052402VHA is: 6.3 mm. Related dimensions of 5962R0052402VHA: 5962R0052402VHA has 10 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 10 5962R0052402VHA amplifier additional information: Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDFP-F10. The corresponding JESD-609 code is: e0. The packaging code of 5962R0052402VHA is: DFP. The materials used in the 5962R0052402VHA package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR. The 5962R0052402VHA package pin format is: FLATPACK. Its terminal form is: FLAT. The maximum height of the seat surface is 2.032 mm.; CategoryAmplifier circuit The comparator; File Size1MB，35 Pages; ManufacturerDefense Supply Center Columbus; Alternative parts：5962R0052402VHA

Download Datasheet Parametric View All

5962R0052402VHA Overview

5962R0052402VHA amplifier basic information:

5962R0052402VHA is a COMPARATOR. The commonly used packaging method is DFP,

5962R0052402VHA amplifier core information:

The minimum operating temperature of the 5962R0052402VHA is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.15 µA

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. 5962R0052402VHA takes only 200 ns to respond.

The nominal supply voltage of 5962R0052402VHA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962R0052402VHA is 4000 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962R0052402VHA is: 6.3 mm.

Related dimensions of 5962R0052402VHA:

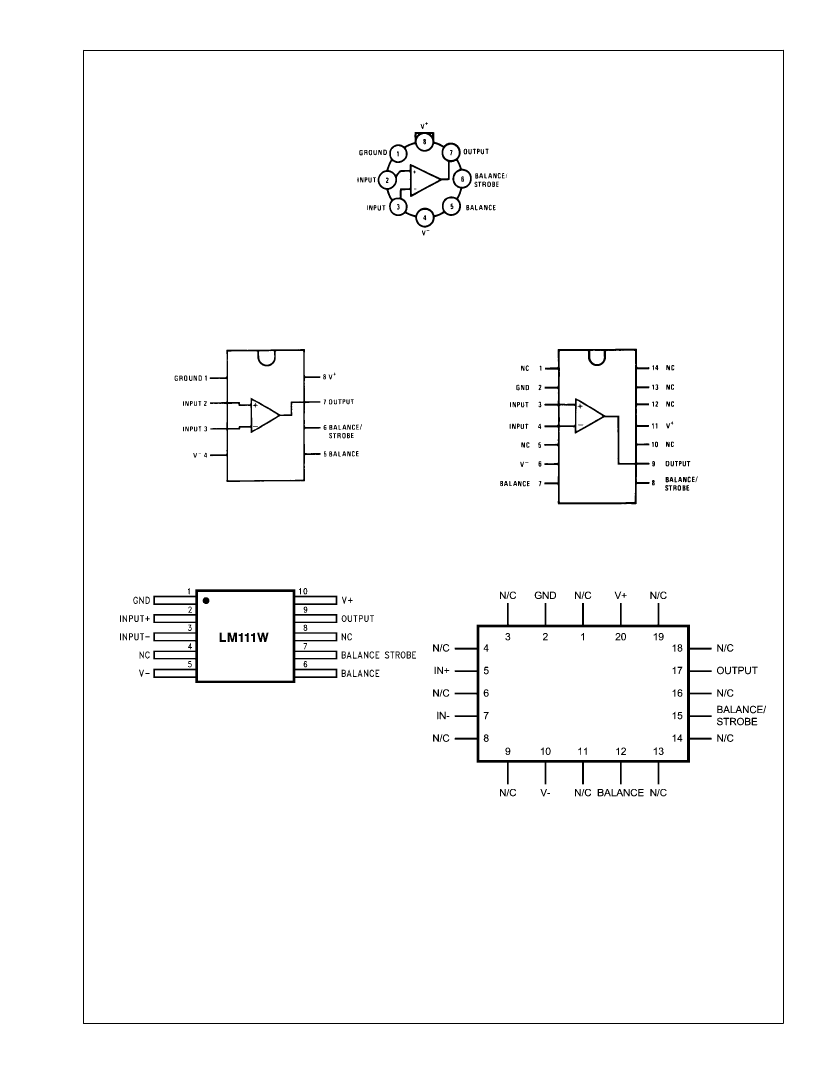

5962R0052402VHA has 10 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 10

5962R0052402VHA amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDFP-F10. The corresponding JESD-609 code is: e0. The packaging code of 5962R0052402VHA is: DFP. The materials used in the 5962R0052402VHA package are mostly CERAMIC and GLASS-SEALED.

The package shape is RECTANGULAR. The 5962R0052402VHA package pin format is: FLATPACK. Its terminal form is: FLAT. The maximum height of the seat surface is 2.032 mm.

5962R0052402VHA Parametric

Parameter Name	Attribute value
Maker	Defense Supply Center Columbus
Parts packaging code	DFP
package instruction	DFP,
Contacts	10
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.15 µA
Maximum input offset voltage	4000 µV
JESD-30 code	R-GDFP-F10
JESD-609 code	e0
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output type	OPEN-COLLECTOR
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Qualified
Nominal response time	200 ns
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.032 mm
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	50k Rad(Si) V
width	6.3 mm
Base Number Matches	1

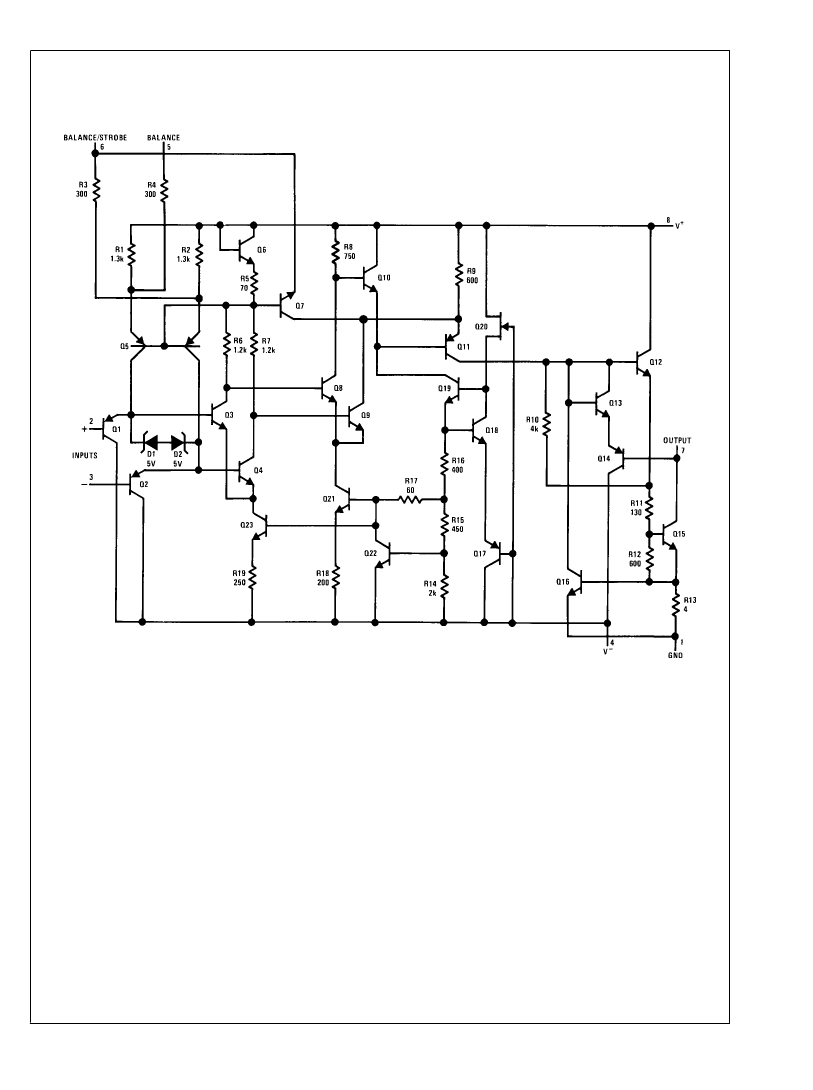

Preview

Download Datasheet

View All

National Semiconductor is now part of

Texas Instruments.

http://www.ti.com/

for the latest technical

information and details on our current products and services.
