2SC3123
TOSHIBA Transistor Silicon NPN Epitaxial Planar Type
2SC3123
TV VHF Mixer Applications
•
•
High conversion gain: G
ce
= 23dB (typ.)
Low reverse transfer capacitance: C
re
= 0.4 pF (typ.)
Unit: mm

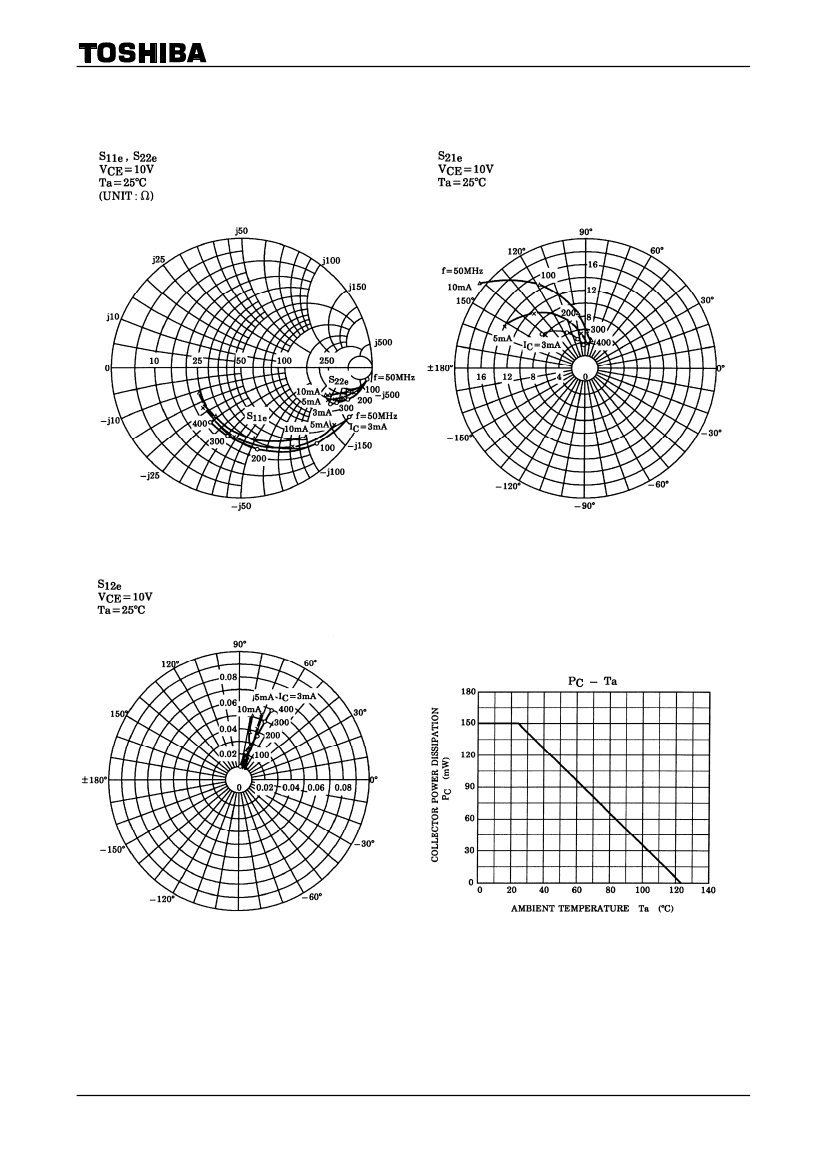

Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
30
20
3
50
25
150
125
−55~125
Unit
V
V
V
mA
mA
mW
°C
°C
JEDEC
―
Note: Using continuously under heavy loads (e.g. the application of high
JEITA
SC-59
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
TOSHIBA
2-3F1A
reliability significantly even if the operating conditions (i.e.
Weight: 0.012 g (typ.)
operating temperature/current/voltage, etc.) are within the
absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).

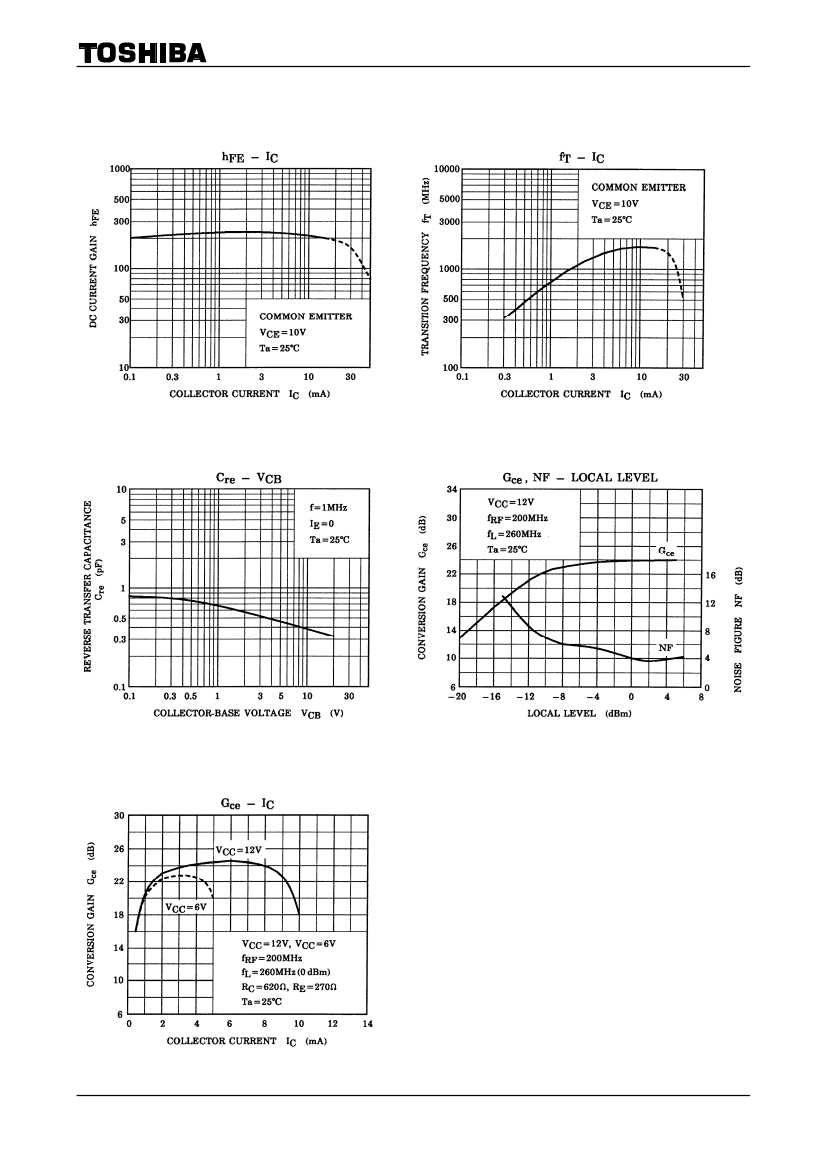

Electrical Characteristics
(Ta
=
25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
Collector-emitter breakdown voltage
DC current gain
Reverse transfer capacitance
Transition frequency
Conversion gain
Noise figure
Symbol
I
CBO
I
EBO
V
(BR) CEO
h
FE
C
re
f
T
G
ce
NF
Test Condition
V
CB
=
25 V, I
E
=
0
V
EB
=
3 V, I
C
=
0
I
C
=
1 mA, I
B
=
0
V
CE
=
10 V, I
C
=
5 mA
V
CB
=
10 V, I
E
=
0, f
=
1 MHz
V
CE
=
10 V, I
C
=
5 mA
V

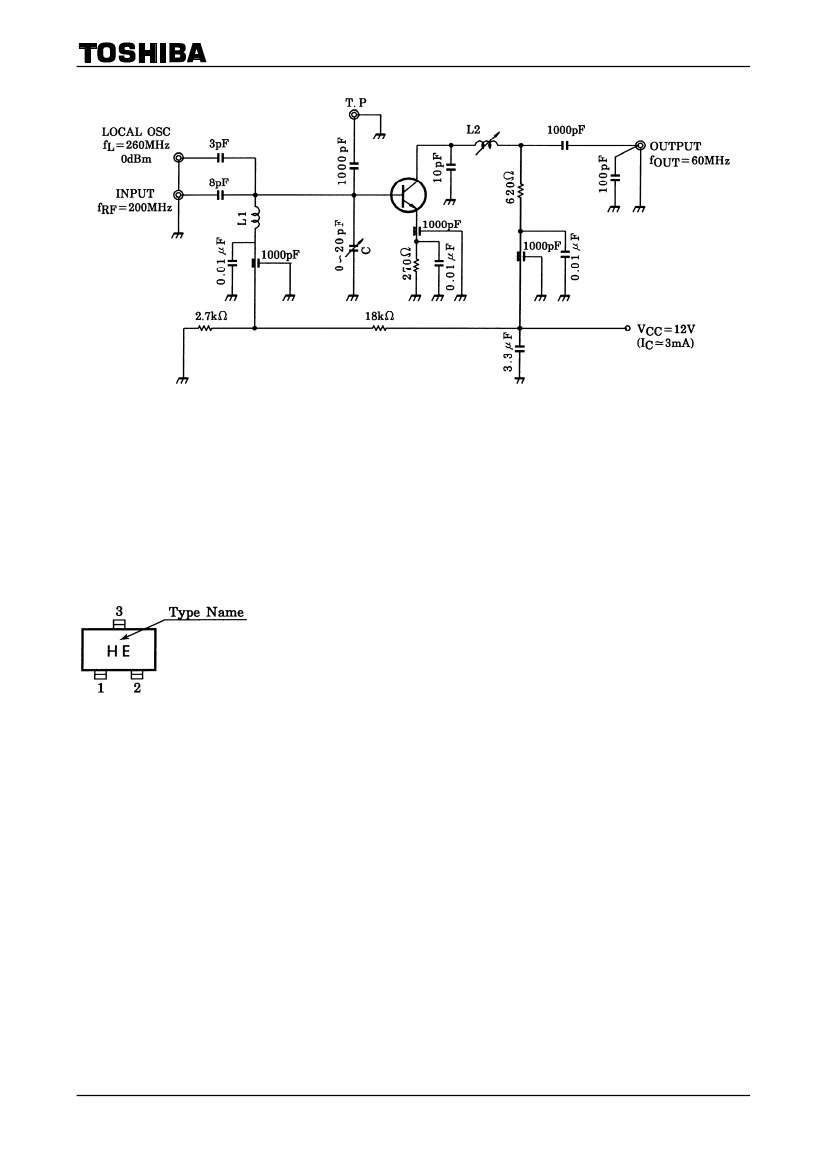

CC
=
12 V, f
=
200 MHz
f
L
=
260 MHz
Min
⎯
⎯
20
40
⎯
900
20
⎯
Typ.
⎯
⎯
⎯
150
0.4
1400
23
3.8
Max
100
1000
⎯
300
0.5
⎯
⎯
5.5
pF
MHz
dB
dB
Unit
nA
nA
V
1
2007-11-01
2SC3123
