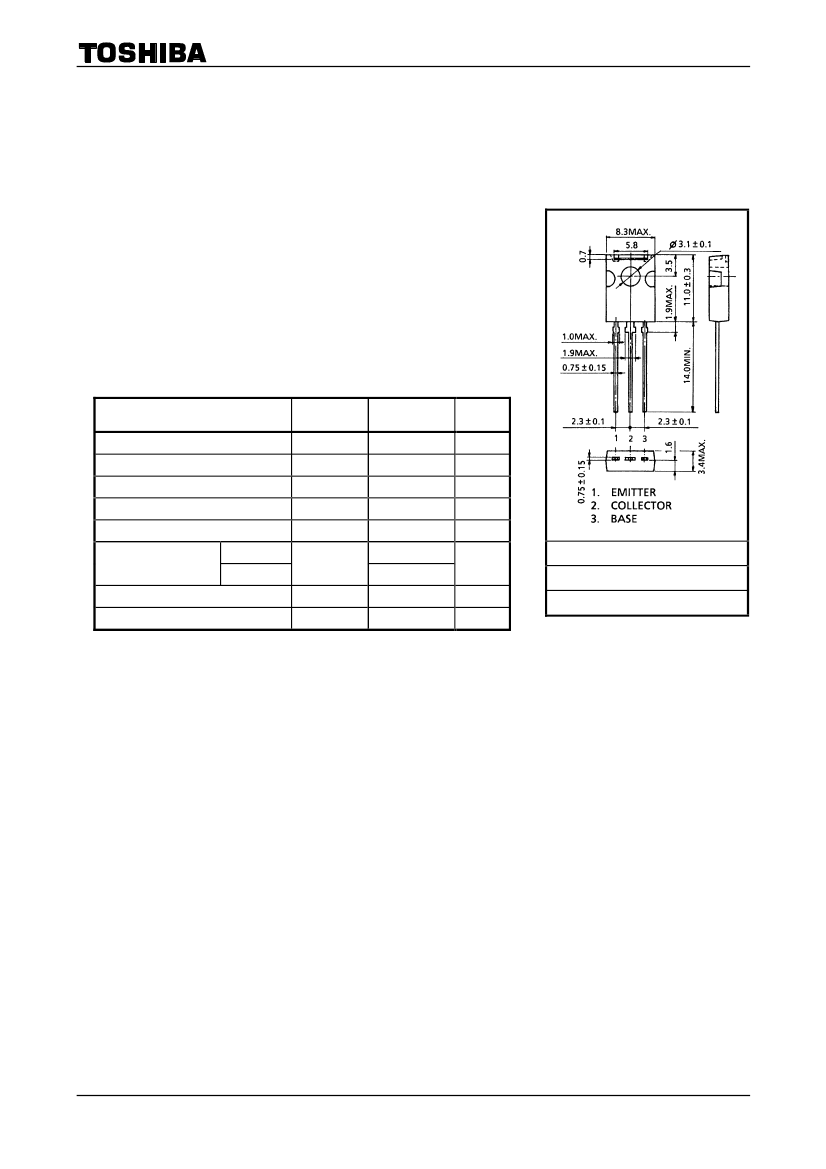

2SC3621
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT Process)
2SC3621
Color TV Vertitcal Deflection Output Applications
Color TV Class-B Sound Output Applications
Unit: mm
•
•
•
Large collector current and collector power dissipation capability
Recommended for vertical deflection output and sound output
applications for line-operated TVs.
Complementary to 2SA1408.
Absolute Maximum Ratings
(Tc = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power
dissipation
Junction temperature
Storage temperature range
Ta = 25°C
Tc = 25°C
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
150
150
6
1.5
1.0
1.5
10
150
−55
to 150
Unit
V
V
V
A
A
W
°C
°C
JEDEC
JEITA
TOSHIBA
―
―
2-8H1A
Weight: 0.82 g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
1
2006-11-09
2SC3621
Electrical Characteristics
(Tc = 25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
Collector-emitter breakdown voltage
DC current gain
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
Symbol
I
CBO
I
EBO
V
(BR) CEO
h
FE
(Note)
V
CE (sat)
V
BE
f
T
C
ob
Test Condition
V
CB
= 150 V, I
E
= 0
V
EB
= 6 V, I
C
= 0
I
C
= 10 mA, I
B
= 0
V
CE
= 5 V, I
C
= 200 mA
I
C
= 500 mA, I
B
= 50 mA
V
CE
= 5 V, I
C
= 5 mA
V
CE
= 5 V, I
C
= 200 mA
V
CB
= 10 V, I
E
= 0, f = 1 MHz
Min
―
―
150
100
―
0.5
20
―
Typ.
―
―
―
―
―
―
100
13
Max
1.0
1.0
―
320
1.5
0.8
―
20
V
V
MHz
pF
Unit
μA
μA
V
Note: h
FE
classification O: 100 to 200, Y: 160 to 320
Marking
Lot No.
Characteristics indicator
C3621
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
Part No. (or abbreviation code)
2
2006-11-09

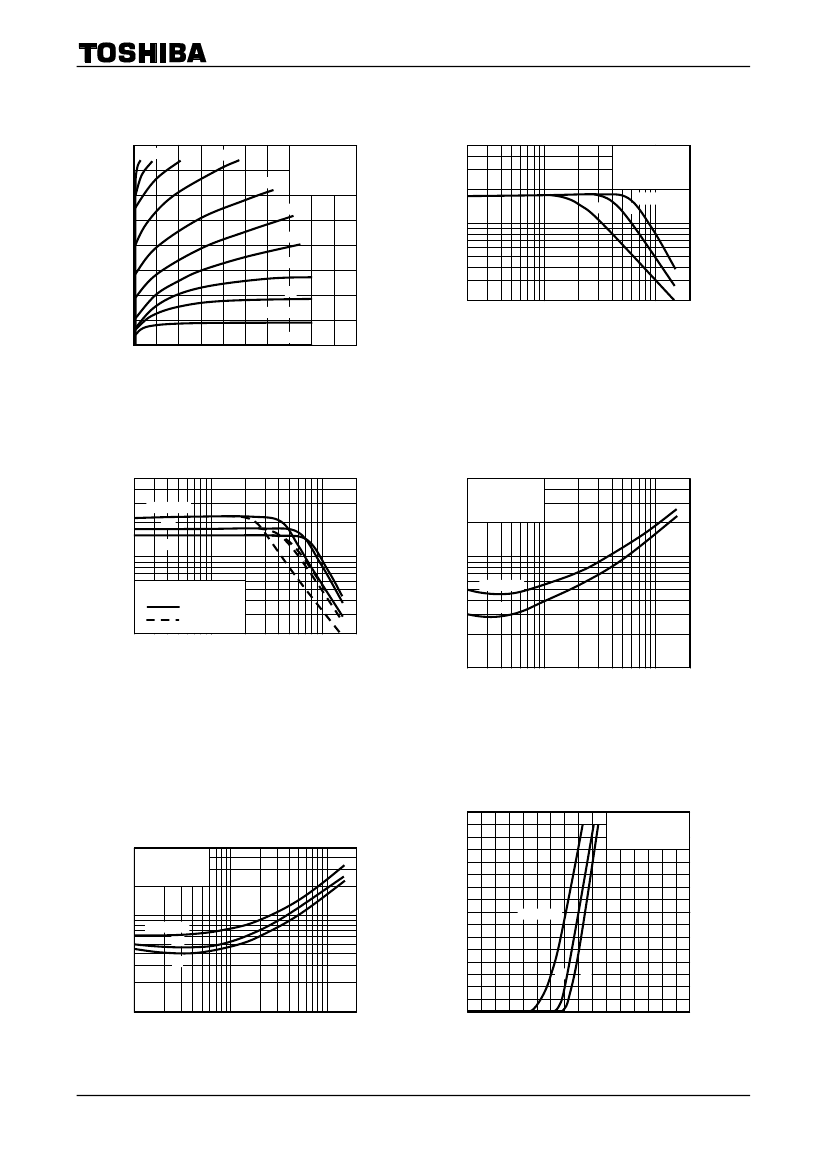

2SC3621
