ERNI ATCA
Zone 1 Power Connector acc. to PICMG 3.0
ERNI is anxious to support customers extensively and is gradu-
ally completing the product range for interconnect platforms.
This also includes the ATCA ( Advanced Telecom Computing
Architecture) standard. This standard (also known as PICMG
3.0) is one of the latest standards addressing future telecommu-
nication needs. ERNI can supply both power and signal con-
nectors.

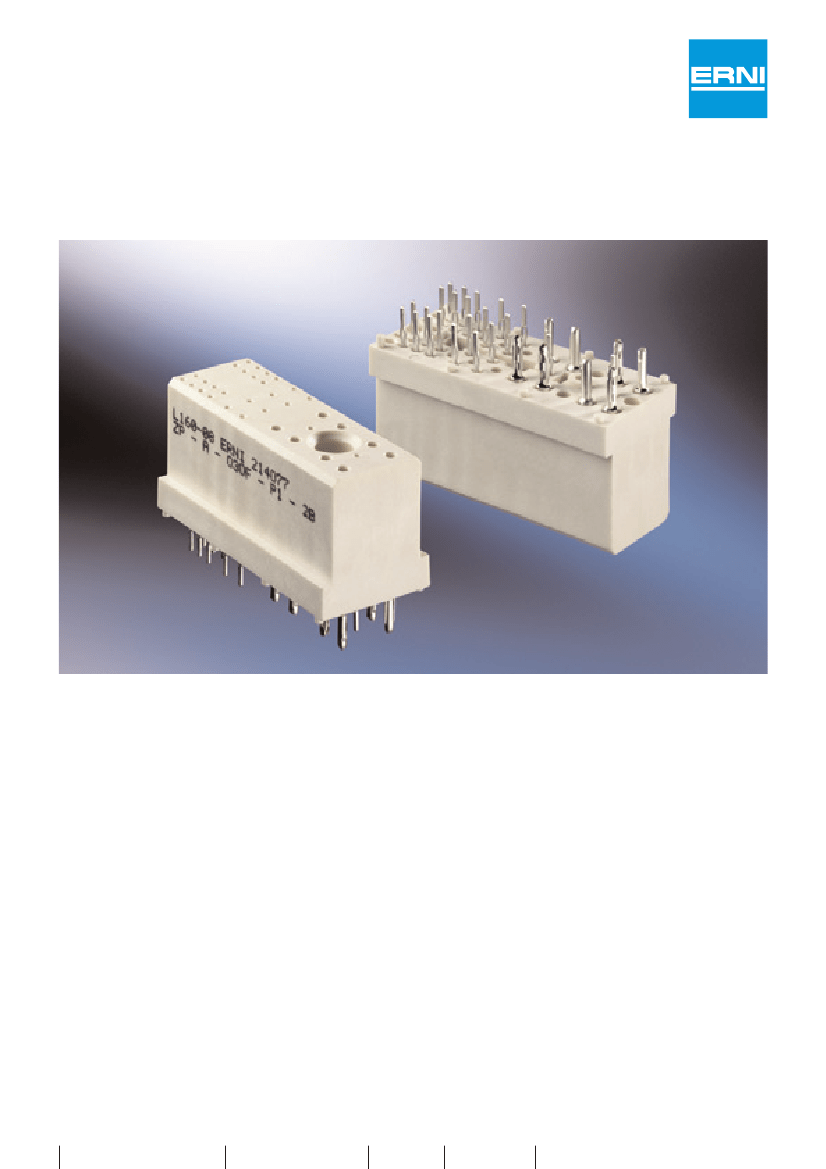

According to PICMG 3.0 the AdvancedTCA Power Connector is
qualified for use in Zone 1. The connector consists of 8 size 16
contacts along with 22 size 22 contacts. The insulation body
has an integrated guiding feature. The contact terminals provide
compliant pressfit zones for easy assembly to the PCB. The reli-
ability of the pressfit technology has been proven many times in
long term field experiences. The pressfit zones are flat-rock
compatible, there is no need for special press-in tools. The
excellent design fully avoids any risk of damaging the connector
during the press-in process.
The use of high conductivity copper alloy allows high current
carrying capability. The power contacts are capable of carrying
16A and each signal contact is capable of carrying 2A. The
female contacts’ „lead in“ design combined with cavity protec-
tion prevent the contacts from being damaged.
Contacts which were plated subsequently do not have any bare
ends and therefore are suitable for long term usage in critical
environments. A mounting screw (customer supplied) may be
used, but is not necessarily required. The connector meets all
PICMG 3.0 performance requirements and is fully intermateable
with alternative connectors which were designed according to
the same standard.
Features
• In accordance with the PICMG 3.0 standard
• Gold over nickel plating in contact area, tin plating on pcb
terminals.
• Controlled plating thickness at female mating point
• RoHS compliant
• Stamped female contacts with high conductive material for
highest current carrying capacity
• Improved normal contact force and relaxation compared to
machined contacts
• Reliable and proven pressfit zone
• Standard flat rock press-in tools
• No additional pcb retention hardware required
• Female contacts fully protected through proven lead-in
design
• Positions 1, 2, 3 and 4 are not loaded
• For specific applications partial contact loading is possible
PICMG 3.0 Partnumber:
ERNI Partnumber:
ZP-A-030F-P1-2B
214077
1
www.erni.com
Catalog E XXXXXX
11/06
Edition 1
Electrical And Mechanical Characteristics
Technical data
Temperature range
Current rating
Clearance and creepage
distance
-55/125°C
Pos. 5-24, 27, 32
Pos. 25, 26, 28-31, 33, 34
Pos.
Pos.
Pos.
Pos.
Pos.
Pos.
Pos.
5-16
17-24
25-26
27-34
13-16 to 17-20
21-24 to 25, 26
25, 26 to 27-29
2A
16 A
min.
min.
min.
min.
min.
min.
min.
0.7
2.5
5.5
1.4
3.0
4.0
2.0
mm
mm
mm
mm
mm
mm
mm
Voltage rating
Dielectric strength
Has to be determined according to client-specific using case
(degree of environmental pollution) according to IEC 60664.
Pos. 1-16
Pos. 17-24
Pos. 25-34
< 20 mΩ
> 10
4
MΩ
1000 V
rms
2000 V
rms
2000 V
rms
Contact resistance
Insulation resistance
Materials
Housing:
Plastic material (symbol)
CTI value
UL flame rating
UL file (plastic material)
Contact and mating area
Base Material
Plating
Termination area
Base Material
Plating
Environment compatibility
Recycling
PA 46 GF 30
CTI 225
UL 94 V-0
E47960
Cu alloy
0.8 µm Au over 2-3 µm Ni
Cu alloy
0.5-2 µm Sn matt over 2-3 µm Ni
no flame-retardent additives, no toxic additives allow easy recycling
2
www.erni.com
Catalog E XXXXXX
11/06
Edition 1

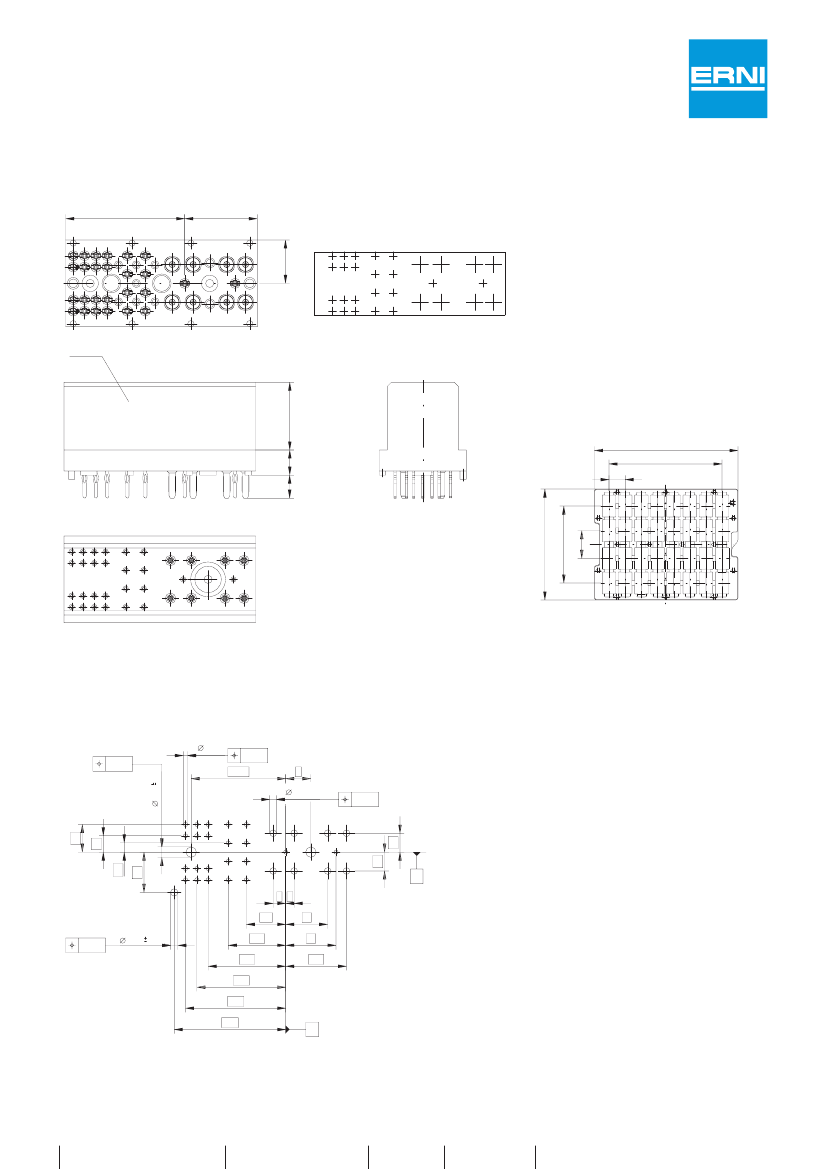

Dimensional Drawing
28,6 max.
17,5 max.
Bestückungsplan / contact assembly
10,45 max.
Datum
+0,1
XXXXXX ERNI 214077
ZP - A - 030F - P1 - 2B
16,1
Verpackt in Tray
Verpackungseinheit: 32 St.
tray packaging
packaging unit 32 pcs
342,5
+0,2
-0,1
269,5
38,5
( 5,5 ) 6
264,5
183,5
PCB Layout
2x
0.05
(22x)
0,05
1)
1
-0,06
+0,09
0.05
22,55
(8x)
alle Löcher
6
2)
+0,09
1,6
-0,06
Schichtaufbau im metallisierten Loch ø 1 siehe Zeichnung 164062 Nr. 6 oder 114124
Schichtaufbau im metallisierten Loch ø 1,6 siehe Zeichnung 164062 Nr. 10 oder 114407
diameter of drilled hole ø 1,6 see drawing 164062 no. 10 or 114407
0.05
alle Löcher
1)
ø 1,0
ø 1,0
+0.09
-0,06
Durchmesser des metallisierten Loches
+0.09
-0,06
diameter of finished plated-through hole
+0.09
-0.06
+0.09
-0.06
5
13
17
21
25
28
30
33
2)
ø 1,6
ø 1,6
Durchmesser des metallisierten Loches
diameter of finished plated-through hole
32
26
8
16
20
24
29
31
34
B
Fehlende Angaben siehe PICMG 3.0 / missing information see PICMG 3.0
3 2
9,4
1,75
0,05
10
12
14,5
13,7
18,5
21,2
23,9
26,6
0.05
A
3
www.erni.com
Catalog E XXXXXX
11/06
Edition 1
Printed in Germany · Subject to modification without prior notice.
diameter of drilled hole ø 1 see drawing 164062 no. 6 or 114124
6,6
2x
2,5
3,9
2,2
9,6
4,5
4,5
66,5
