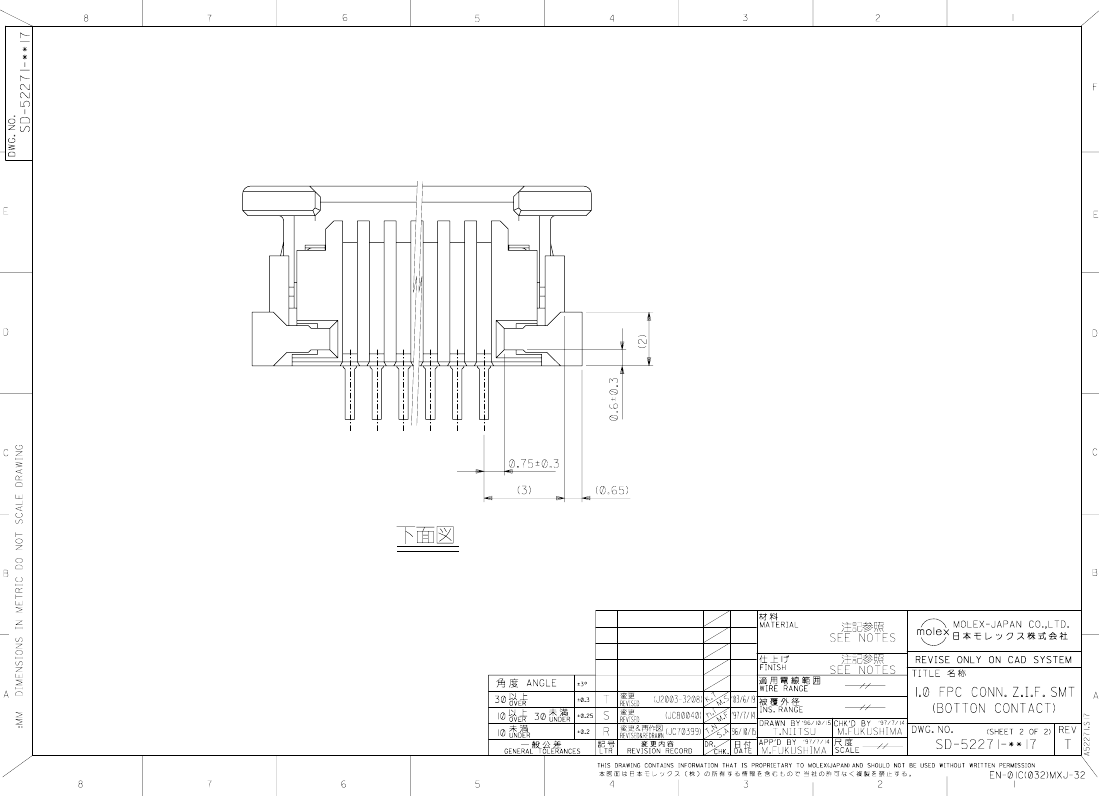

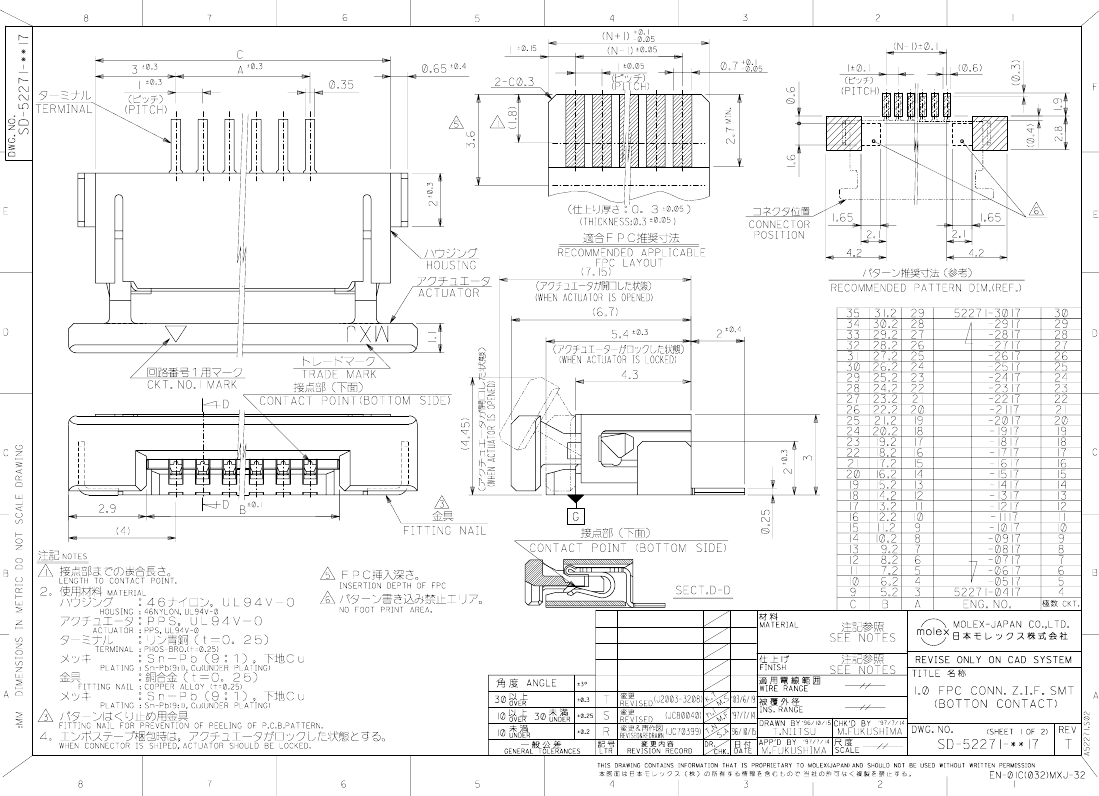

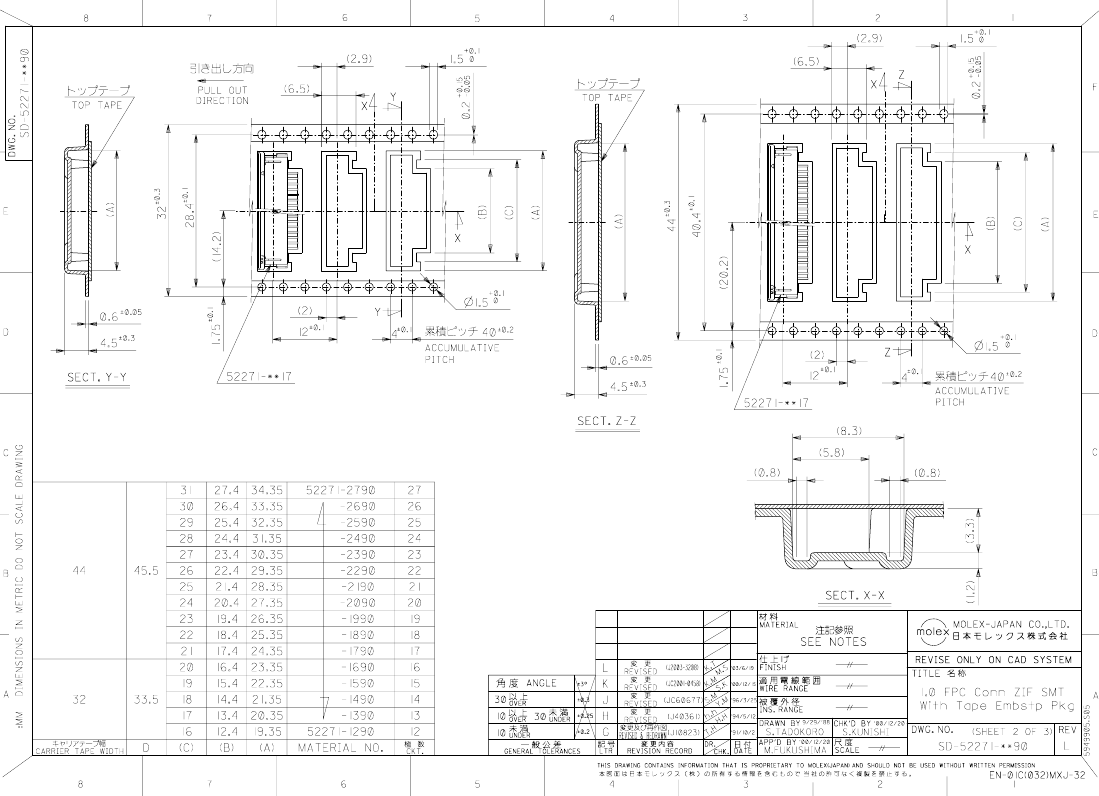

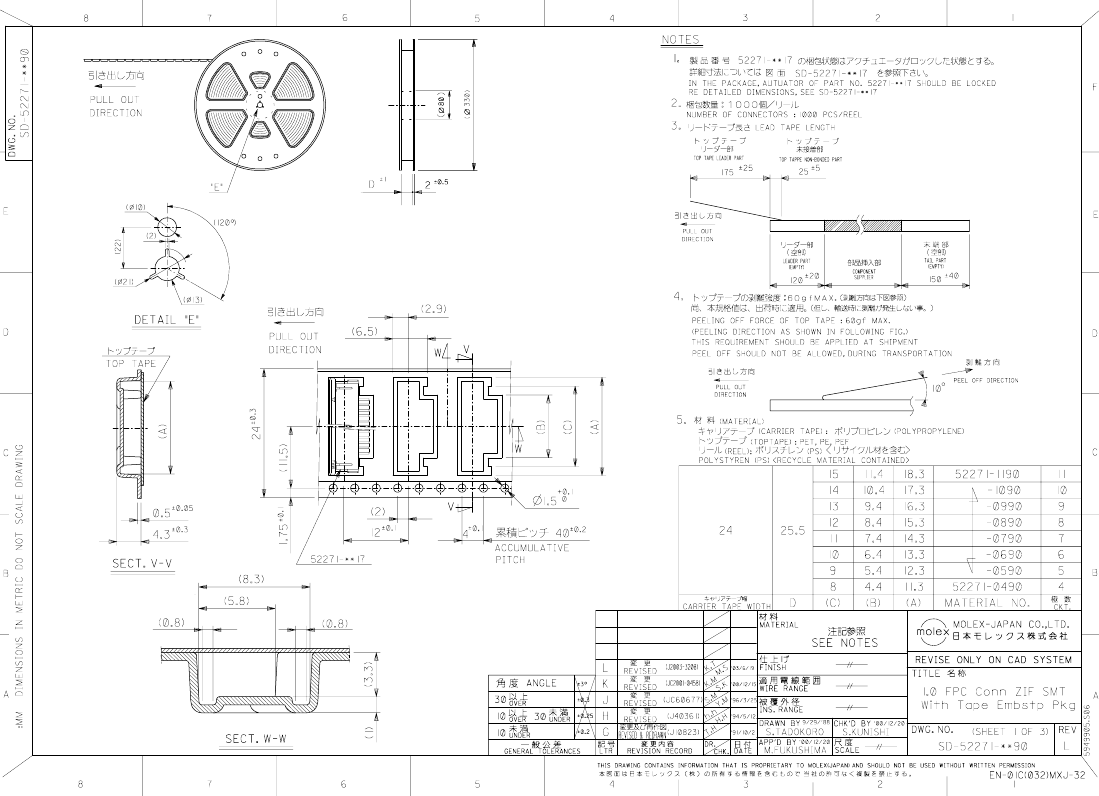

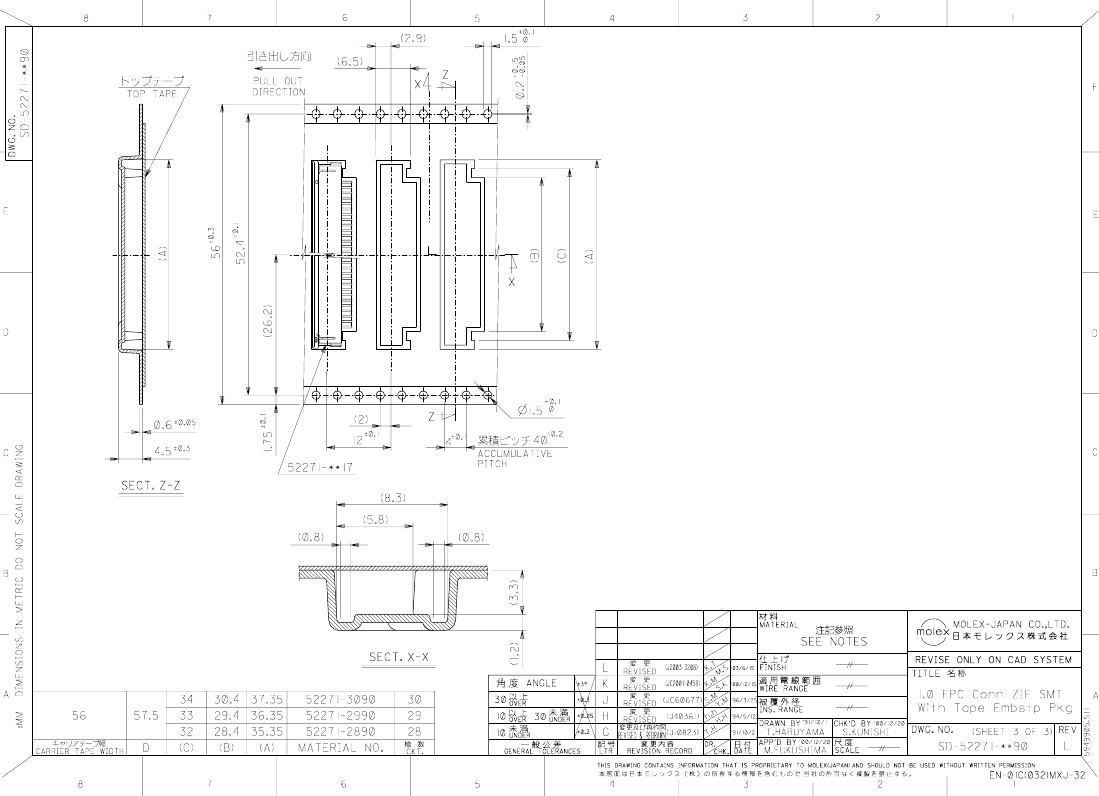

Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | ZIF, BOTTOM CONTACT STYLE |
| Board mount options | FITTING NAIL |
| body width | 0.118 inch |
| subject depth | 0.169 inch |
| body length | 1.311 inch |
| Connector type | FFC/FPC CONNECTOR |
| Contact to complete cooperation | SN-PB ON CU |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 30 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | ZIF N |
| Insulation resistance | 100000000 Ω |
| insulator material | NYLON |
| MIL compliance | NO |
| Plug contact pitch | 0.039 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -20 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 27 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | ZIF N |
| Base Number Matches | 1 |
