74HCT9014DB-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74HCT9014DB-T

74HCT9014DB-T: DescriptionIC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate; Categorylogic; File Size95KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

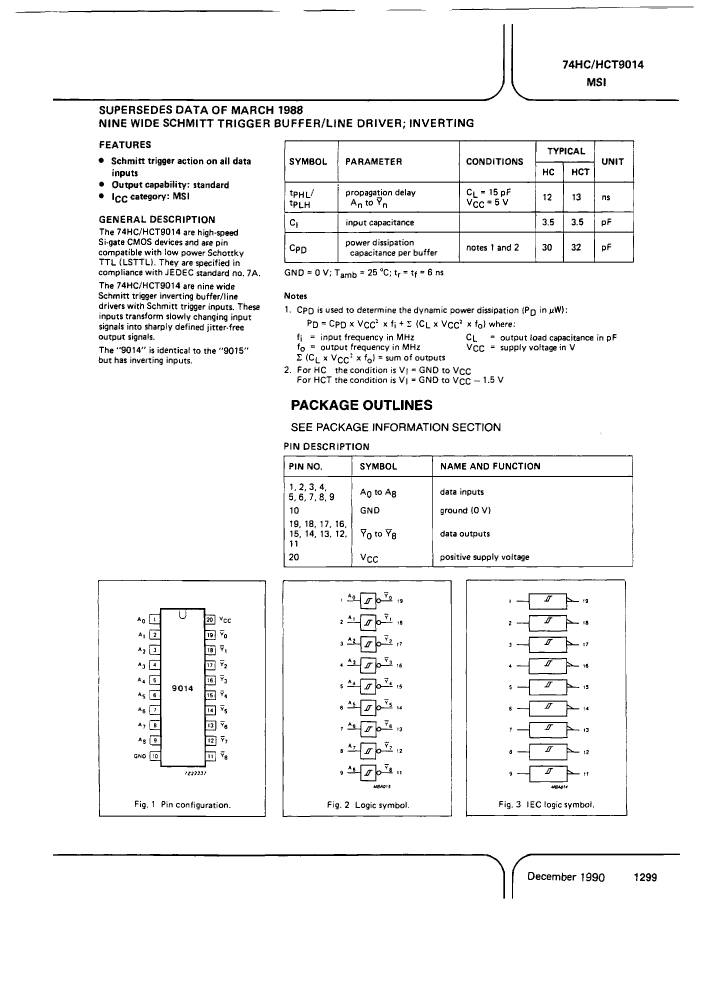

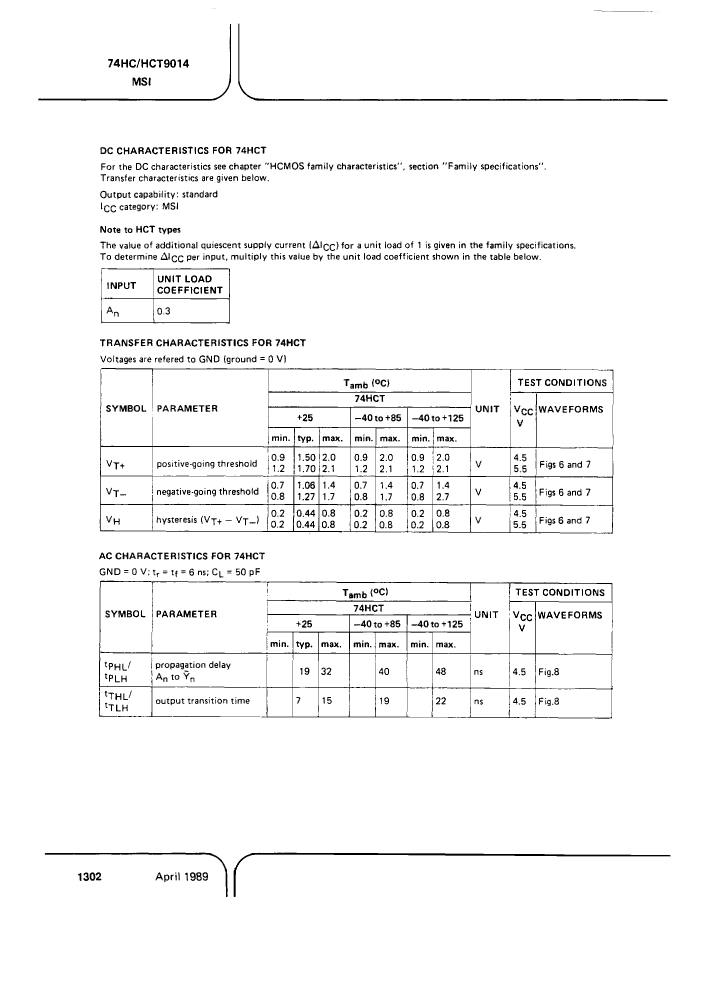

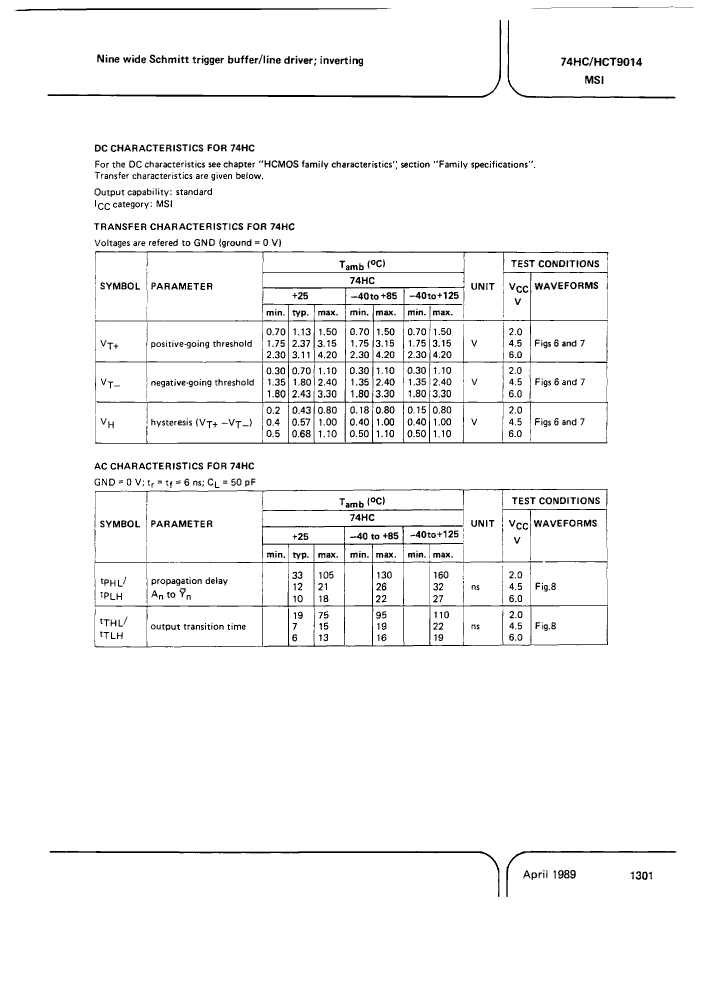

74HCT9014DB-T Overview

IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate

74HCT9014DB-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SSOP,
Reach Compliance Code	unknown
Is Samacsys	N
series	HCT
JESD-30 code	R-PDSO-G20
length	7.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	9
Number of entries	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	48 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

74HCT9014DB-T Related Products

	74HCT9014DB-T	74HC9014PW	74HC9014PW-T	74HC9014NB	74HCT9014NB	74HCT9014PW-T	74HCT9014PW	74HCT9014DB	74HC9014DB-T	74HC9014DB
Description	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HC/UH SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HC/UH SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HC/UH SERIES, 9 1-INPUT INVERT GATE, PDIP20, Gate	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDIP20, Gate	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HCT SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HC/UH SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate	IC HC/UH SERIES, 9 1-INPUT INVERT GATE, PDSO20, Gate
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	SSOP,	TSSOP,	TSSOP,	DIP,	DIP,	TSSOP,	TSSOP,	SSOP,	SSOP,	SSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	HCT	HC/UH	HC/UH	HC/UH	HCT	HCT	HCT	HCT	HC/UH	HC/UH
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20	R-PDIP-T20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	7.2 mm	6.5 mm	6.5 mm	26.73 mm	26.73 mm	6.5 mm	6.5 mm	7.2 mm	7.2 mm	7.2 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	9	9	9	9	9	9	9	9	9	9
Number of entries	1	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	TSSOP	DIP	DIP	TSSOP	TSSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	IN-LINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	48 ns	32 ns	32 ns	32 ns	48 ns	48 ns	48 ns	48 ns	32 ns	32 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	1.1 mm	1.1 mm	4.2 mm	4.2 mm	1.1 mm	1.1 mm	2 mm	2 mm	2 mm
Maximum supply voltage (Vsup)	5.5 V	6 V	6 V	6 V	5.5 V	5.5 V	5.5 V	5.5 V	6 V	6 V
Minimum supply voltage (Vsup)	4.5 V	2 V	2 V	2 V	4.5 V	4.5 V	4.5 V	4.5 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	2.54 mm	2.54 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	5.3 mm	4.4 mm	4.4 mm	7.62 mm	7.62 mm	4.4 mm	4.4 mm	5.3 mm	5.3 mm	5.3 mm
Base Number Matches	1	1	1	1	1	1	1	1	-	-
