5GWJ2C48C,U5GWJ2C48C
TOSHIBA SCHOTTKY BARRIER RECTIFIER STACK SCHOTTKY BARRIER TYPE
5GWJ2C48C, U5GWJ2C48C
SWITCHING MODE POWER SUPPLY APPLICATON
CONVERTER & CHOPPER APPLICATION
Repetitive Peak Reverse Voltage
Average Output Rectified Current
: V
RRM
= 40 V
: I
O
= 5 A
Low Switching Losses and Output Noise

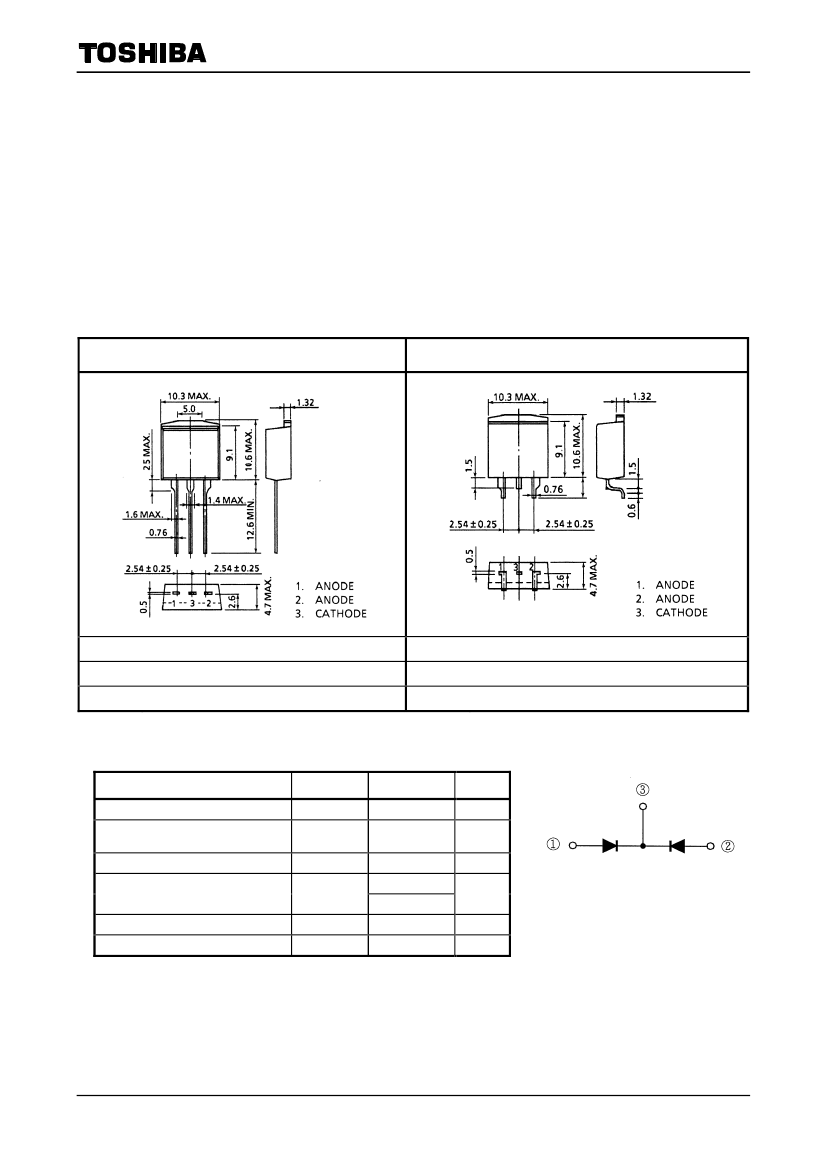

Unit: mm
5GWJ2C48C
U5GWJ2C48C
JEDEC
JEITA
TOSHIBA
―
―
12-10D1A
JEDEC
JEITA
TOSHIBA
3±0.2
―
―
12-10D2A
ABSOLUTE MAXIMUM RATINGS
(Ta = 25°C)
CHARACTERISTIC
Repetitive Peak Reverse Voltage
Repetitive Peak Reverse Surge
Voltage
(Note 1)
Average
Output Rectified Current
SYMBOL
V
RRM
V
RRSM
IO
I
FSM
T
j
T
stg
RATING
40
48
5
50 (50Hz)
55 (60Hz)
−40~125
−40~150
UNIT
V
V
A
A
°C
°C
POLARITY
Peak One Cycle Surge Forward
Current (Sin Wave)
Junction Temperature
Storage Temperature Range
Note 1: Pulse Width (t
w
)
≤500ns,
duty (t
w
/ T)
≤1
/ 25
Note 2: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly
even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute
maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
1
2006-11-10
5GWJ2C48C,U5GWJ2C48C
ELECTRICAL CHARACTERISTICS
(Ta = 25°C)
CHARACTERISTIC
Peak Forward Voltage
Repetitive Peak Reverse Current
Junction Capacitance
Thermal Resistance
SYMBOL
V
FM
I
RRM
C
j
R
th (j-c)
TEST CONDITION
I
FM
=2.5A
V
RRM
=Rated
V
R
=10V, f=1.0MHz
Total DC, Junction to Case
TYP.
―
―
100
―
MAX.
0.55
3.5
―
3.0
UNIT
V
mA
pF
°C / W
V
FM
, I
RRM
, C
j
: A value applied to one cell.
MARKING
Abbreviation Code
5GWJ2C
Part No.
5GWJ2C48C
U5GWJ2C48C
5GWJ2C
Part No. (or abbreviation code)
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
5GWJ2C
Characteristics
indicator
Handling Precaution
Schottky barrier diodes have reverse current characteristics compared to other diodes.
There is a possibility SBD may cause thermal runaway when it is used under high temperature or high voltage.
Please take forward and reverse loss into consideration during design.
The absolute maximum ratings denote the absolute maximum ratings, which are rated values and must not be
exceeded during operation, even for an instant. The following are the general derating methods that we recommend
when you design a circuit with a device.
V
RRM
:
Use this rating with reference to the above. V
RRM
has a temperature coefficient of 0.1%/°C. Take
this temperature coefficient into account designing a device at low temperature.
We recommend that the worst case current be no greater than 80% of the absolute maximum rating
of I
O
and T
j
be below 100°C. When using this device, take the margin into consideration by using an
allowable Tamax-I
O
curve.
This rating specifies the non-repetitive peak current. This is only applied for an abnormal operation,
which seldom occurs during the lifespan of the device.
Derate this rating when using a device in order to ensure high reliability. We recommend that the
device be used at a T
j
of below 100°C.
I
O
:
I
FSM
:
T
j
:

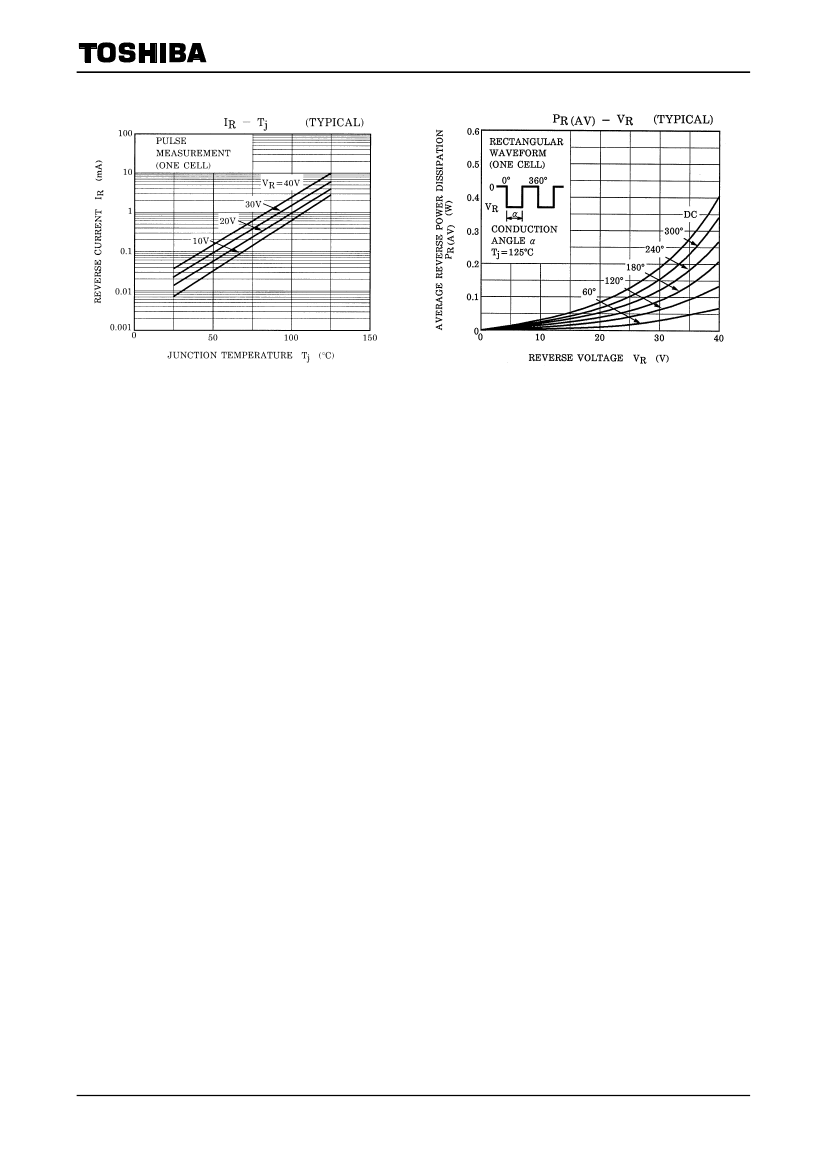

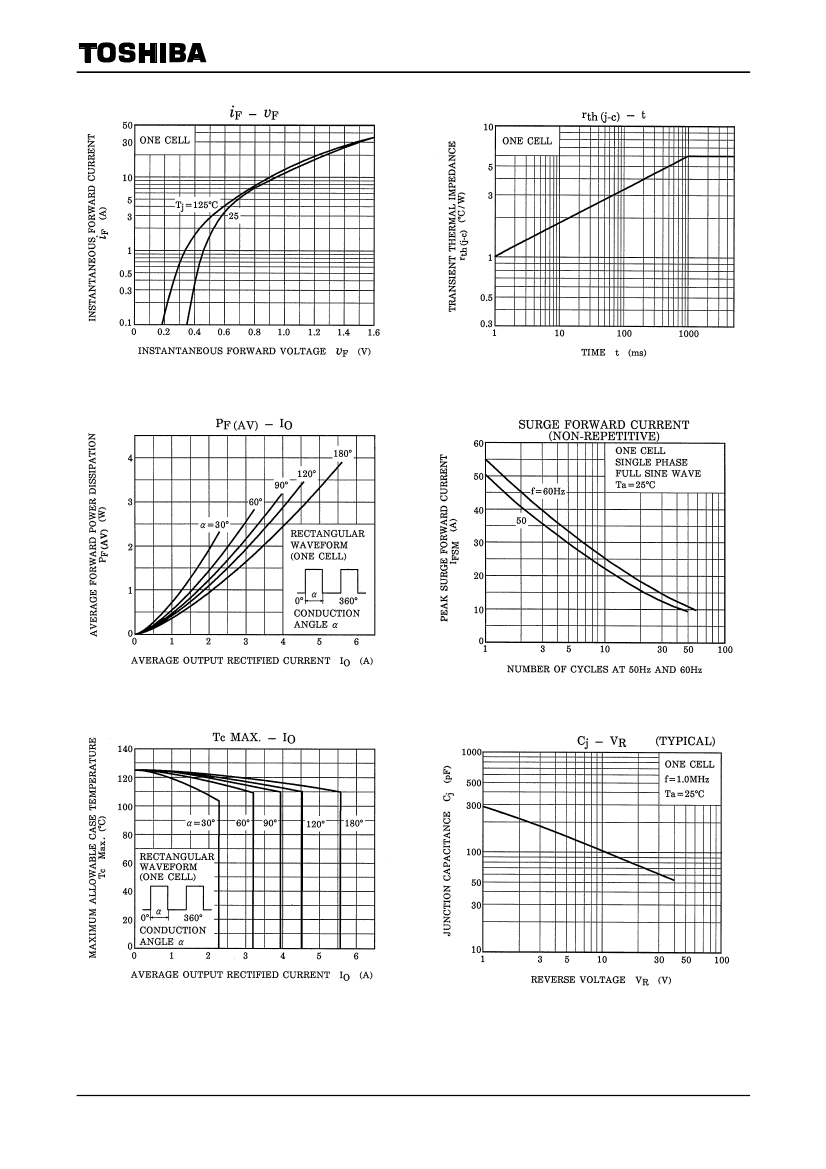

Please refer to the Rectifiers databook for further information.
2
2006-11-10
5GWJ2C48C,U5GWJ2C48C
