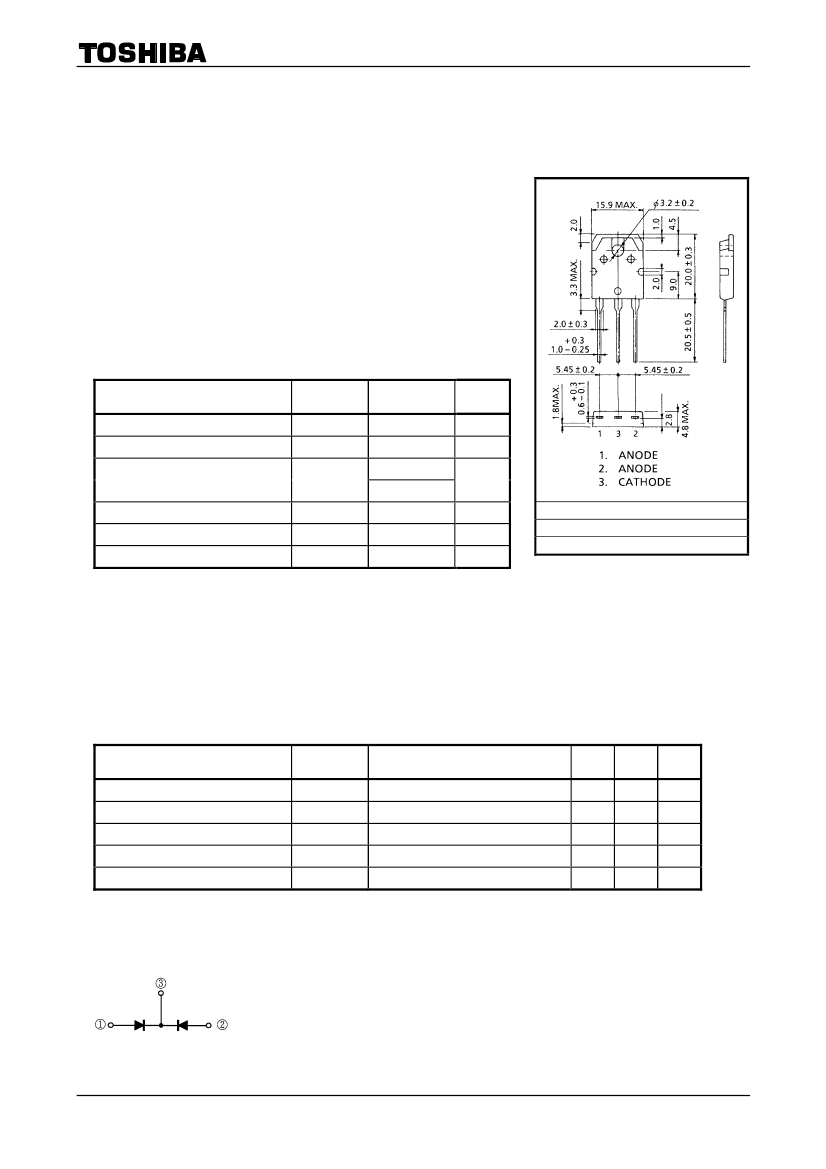

30JL2C41
TOSHIBA HIGH EFFICIENCY DIODE STACK (HED)
SILICON EPITAXIAL TYPE
30JL2C41
SWITCHING MODE POWER SUPPLY APPLICATON
CONVERTER & CHOPPER APPLICATION
Repetitive Peak Reverse Voltage
Average Output Rectified Current
Ultra Fast Reverse-Recovery Time
: V
RRM
= 600 V
: I
O
= 30 A
: t
rr
= 50 ns (Max)
Unit: mm
Low Switching Losses and Output Noise
ABSOLUTE MAXIMUM RATINGS (
Ta = 25°C)
CHARACTERISTIC
Repetitive Peak Reverse Voltage
Average Output Rectified Current
Peak One Cycle Surge Forward
Current (Sine Wave)
Junction Temperature
Storage Temperature Range
Screw Torque
SYMBOL
V
RRM
I
O
I
FSM
T
j
T
stg
―
RATING
600
30
150 (50Hz)
165 (60Hz)
−40~150
−40~150
0.8
UNIT
V
A
A
°C
°C
N·m
JEDEC
JEITA
TOSHIBA
Weight: 4.85g
―
―
12−16D1A
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
ELECTRICAL CHARACTERISTICS (
Ta = 25°C)
CHARACTERISTIC
Peak Forward Voltage
Repetitive Peak Reverse Current
Reverse Recovery time
Forward Recovery time
Thermal Resistance
SYMBOL
V
FM
I
RRM
t
rr
t
fr
R
th (j−c)
I
FM
= 15A
V
RRM
= 600V
I
F
= 2A, di / dt =
−50A
/
μs
I
F
= 1A
Total DC, Junction to Case
TEST CONDITION
MIN
―
―
―
―
―
MAX
2.0
50
50
150
1.0
UNIT
V
μA
ns
ns
°C / W
V
FM
, I
RRM
, t
rr
, t
fr
: A value applied to one cell.
POLARITY
1
2006-11-08
30JL2C41
MARKING
Abbreviation Code
30JL2C
Part No.
30JL2C41
30JL2C
Part No. (or abbreviation code)
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
Handling Precaution
The absolute maximum ratings denote the absolute maximum ratings, which are rated values and must not be
exceeded during operation, even for an instant. The following are the general derating methods that we recommend
when you design a circuit with a device.
V
RRM
:
We recommend that the worst case voltage, including surge voltage, be no greater than 80% of the
absolute maximum rating of V
RRM
for a DC circuit and be no greater than 50% of that of V
RRM
for
an AC circuit. V
RRM
has a temperature coefficient of 0.1%/°C. Take this temperature coefficient into
account designing a device at low temperature.
We recommend that the worst case current be no greater than 80% of the absolute maximum rating
of I
O
. Carry out adequate heat design. If you can’t design a circuit with excellent heat radiation, set
the margin by using an allowable Tamax-I
O
curve.
I
O
:
This rating specifies the non-repetitive peak current in one cycle of a 50-Hz sine wave, condition angle 180.
Therefore, this is only applied for an abnormal operation, which seldom occurs during the lifespan of the device.
We recommend that a device be used at a Tj of below 120°C under the worst load and heat radiation conditions.
Please refer to the Rectifiers databook for further information.
2
2006-11-08

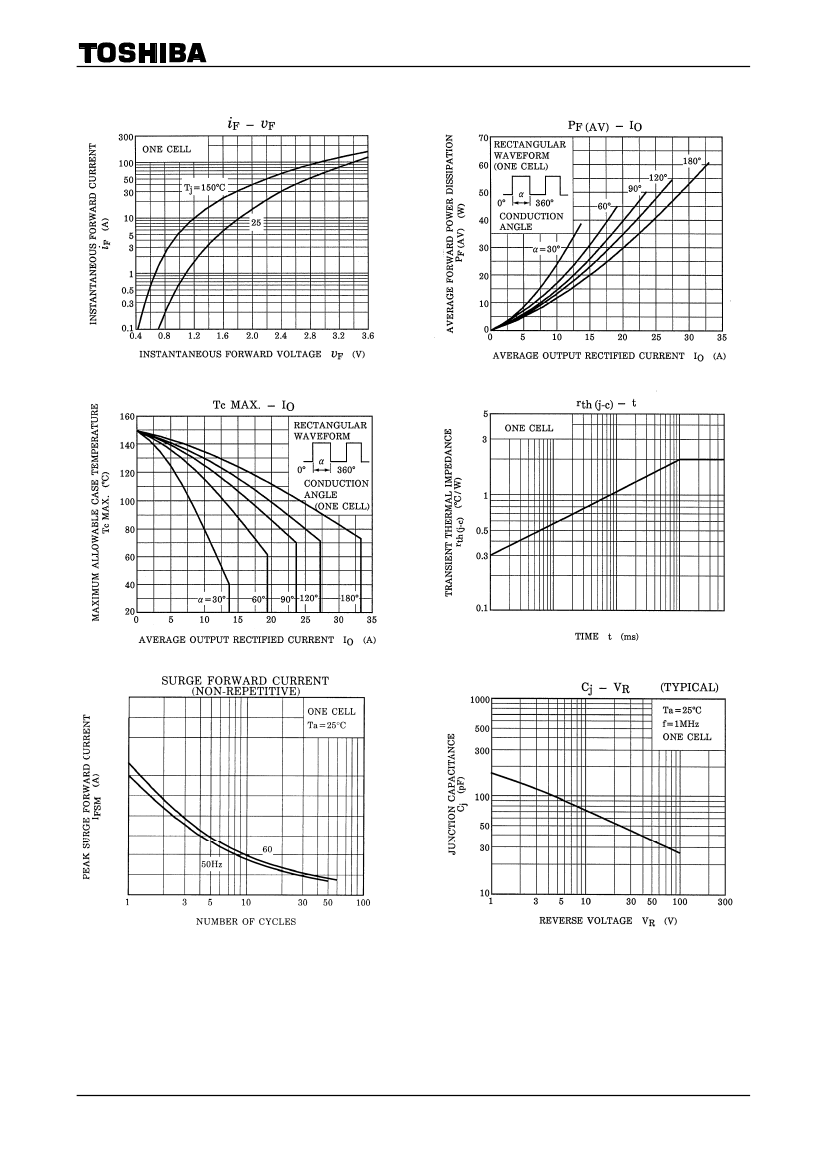

30JL2C41
１
10
100
1000
250
200
150
100
50
0
3
2006-11-08
30JL2C41
