5113A

Description
Circular Connector, 3 Contact(s), Zinc Alloy, Female, Solder Terminal, Receptacle
CategoryThe connector
File Size127KB,1 Pages
ManufacturerFluke
Websitehttps://www.fluke.com
Environmental Compliance
Download Datasheet Parametric View All

5113A Online Shopping

Suppliers Part Number Price MOQ In stock
5113A - - View Buy Now

5113A Overview

Circular Connector, 3 Contact(s), Zinc Alloy, Female, Solder Terminal, Receptacle

5113A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFluke
Reach Compliance Codeunknown
Is SamacsysN
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation typeCABLE AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceNICKEL
Shell materialZINC ALLOY
Termination typeSOLDER
Total number of contacts3
Base Number Matches1
Models 5113A

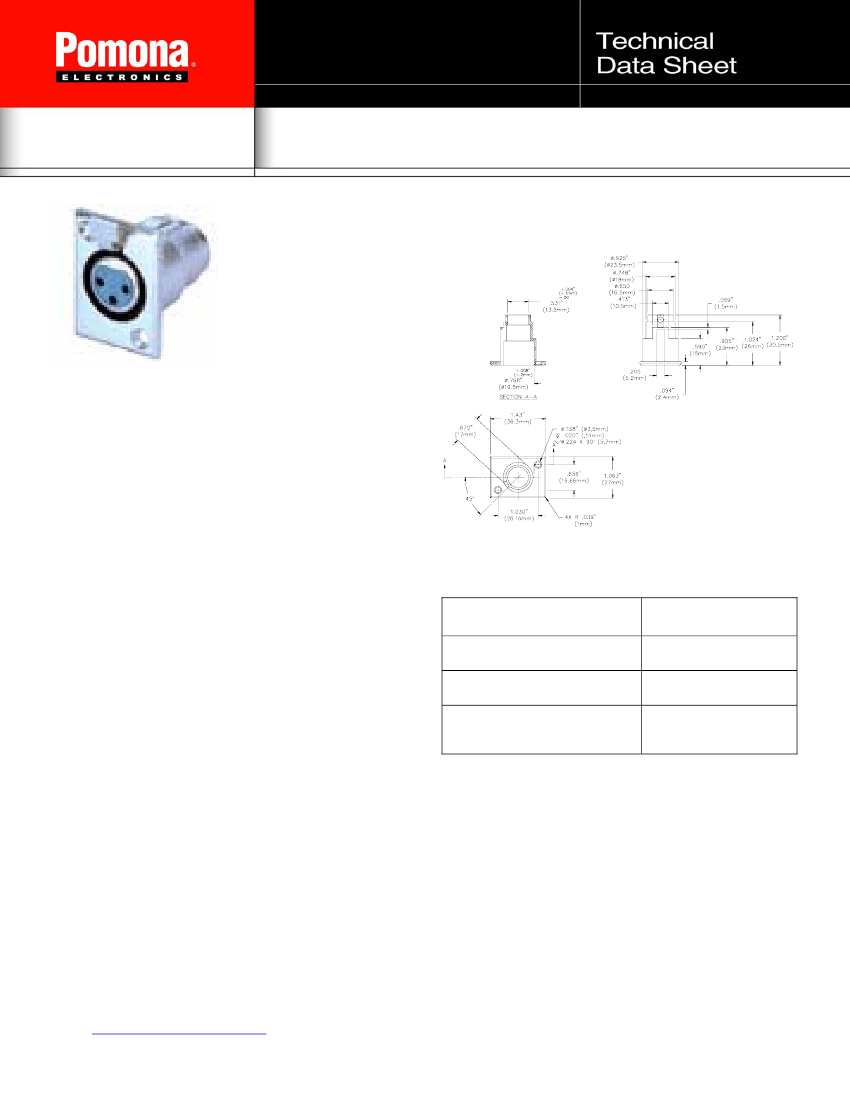

XLR (F) 3-Pin Rectangular Flanged Panel Mount
Model 5113A XLR (F) 3-pin rectangular flanged mount
Protect contacts and absorb
vibrations in your audio
applications
Features
3-pin XLR panel mount receptacle with sturdy all
metal one piece design
Solder cup terminations
Low contact resistance
Front mountable
Specifications
Number of contacts
Contact resistance
Dielectric strength
Wire size (AWG)
3
< 5 mΩ
1500 V dc
14 AWG (2.5 mm
2
)
max.
Materials
Housing is die-cast zinc alloy with tarnish resistant
nickel plating.
Contacts are bronze with tin finish (Ground tab is
steel.
Ordering
Information
Model: 5113A.
USA:
Sales: 800-490-2361 Technical Support: 800-241-
2060 Fax: 888-403-3360
Europe:
31-(0) 40 2675 150
International:
425-446-5500
e-mail:
technicalsupport@pomonatest.com
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
Copyright © 2004 11/2004 2414851 D-ENG-N Rev A
Page 1 of 1
