5117A

Description
Circular Connector, 3 Contact(s), Zinc Alloy, Male, Solder Terminal
CategoryThe connector
File Size125KB,1 Pages
ManufacturerFluke
Websitehttps://www.fluke.com
Environmental Compliance
Download Datasheet Parametric View All

5117A Online Shopping

Suppliers Part Number Price MOQ In stock
5117A - - View Buy Now

5117A Overview

Circular Connector, 3 Contact(s), Zinc Alloy, Male, Solder Terminal

5117A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFluke
Reach Compliance Codeunknown
Is SamacsysN
Back shell typeSOLID
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialBRASS
Coupling typeSNAP
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation typeCABLE AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceNICKEL
Shell materialZINC ALLOY
Termination typeSOLDER
Total number of contacts3
Base Number Matches1
Models 5117A

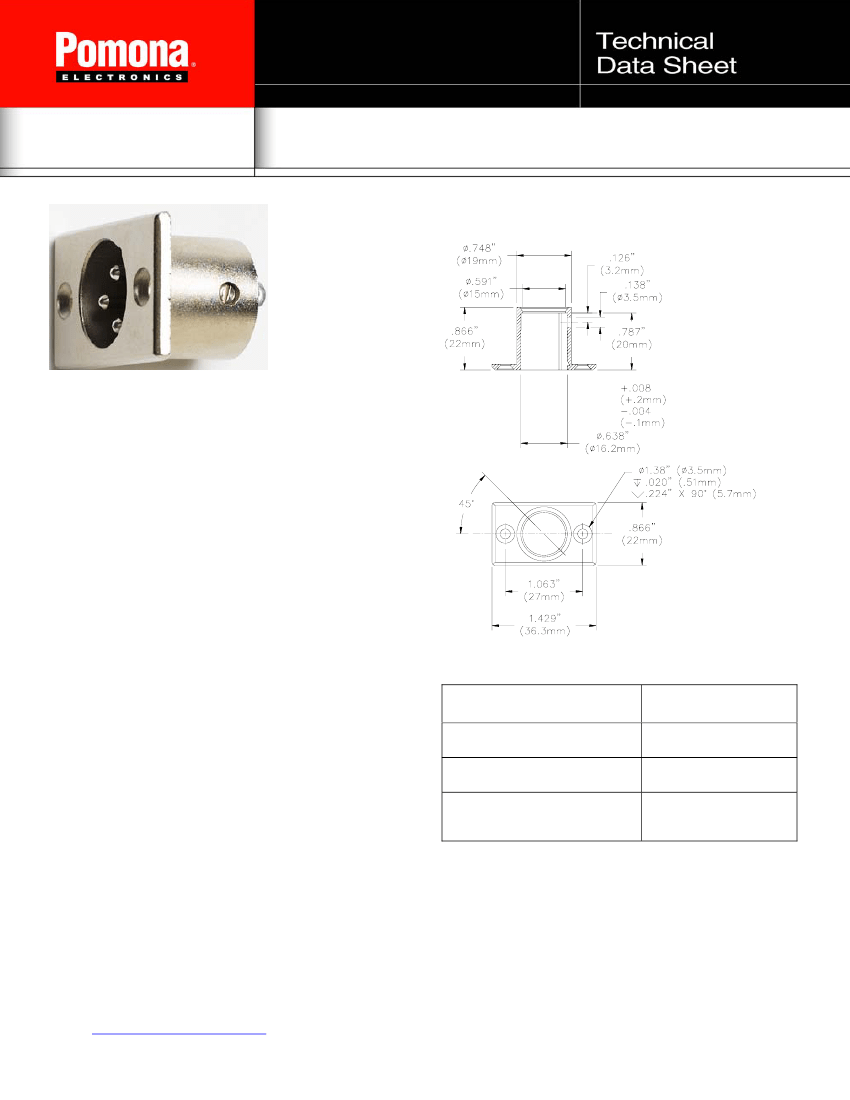

XLR (M) 3-Pin Rectangular Flanged Panel Mount
Model 5117A XLR (M) 3-Pin Rectangular Flanged Mount
Protect contacts and absorb
vibrations in your audio
applications
Features
3-pin XLR panel mount with sturdy all metal one
piece design
Solder cup terminations
Low contact resistance
Front mountable
Materials
Housing is die cast zinc alloy with tarnish resistant
nickel plating.
Contacts are brass with nickel finish (Ground tab
is steel.
Specifications
Number of contacts
Contact resistance
Dielectric strength
Wire size (AWG)
3
< 5 mΩ
1500 V dc
14 AWG (2.5 mm
2
)
max.
Ordering
Information
Model: 5117A.
USA:
Sales: 800-490-2361 Technical Support: 800-241-
2060 Fax: 888-403-3360
Europe:
31-(0) 40 2675 150
International:
425-446-5500
e-mail:
technicalsupport@pomonatest.com
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
Copyright © 2004 11/2004
2414897 D-ENG-N Rev A
Page 1 of 1
