TC7SL04F datasheet, PDF - EEWORLD Datasheet

TC7SL04F: DescriptionINVERTER; Categorylogic logic; File Size222KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

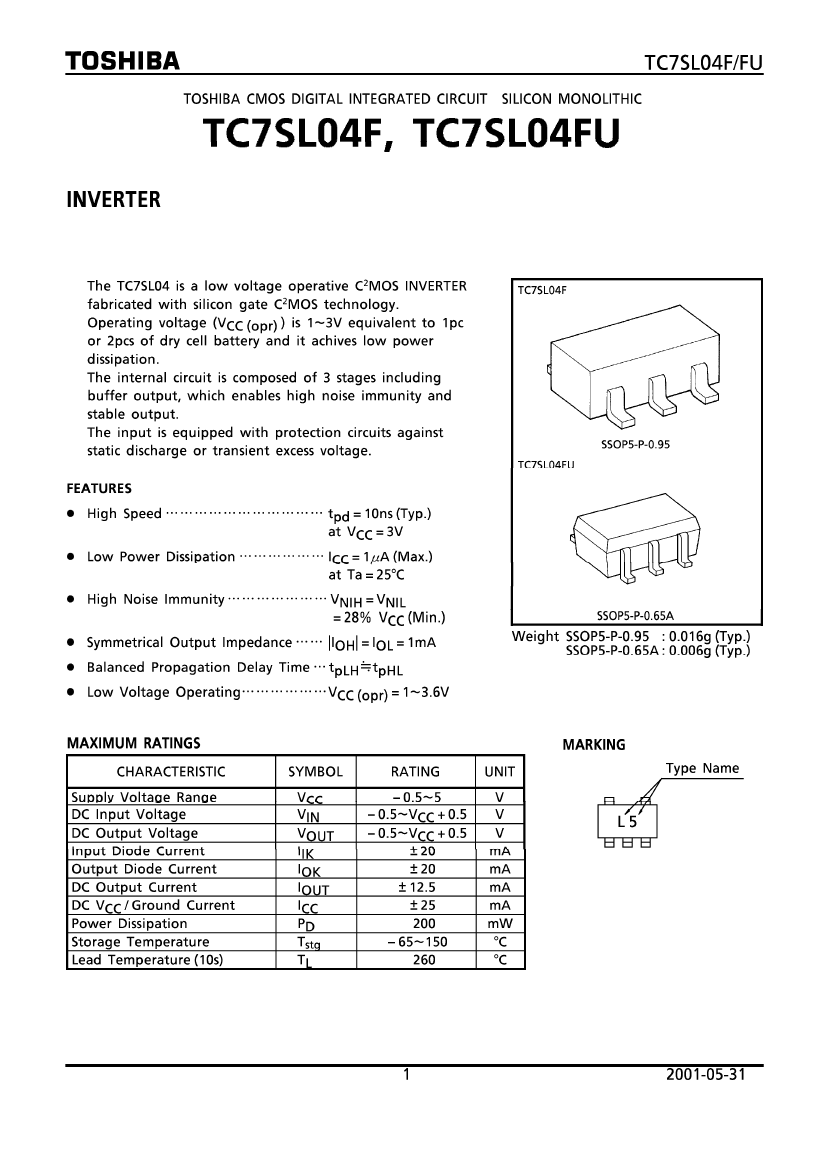

TC7SL04F Overview

INVERTER

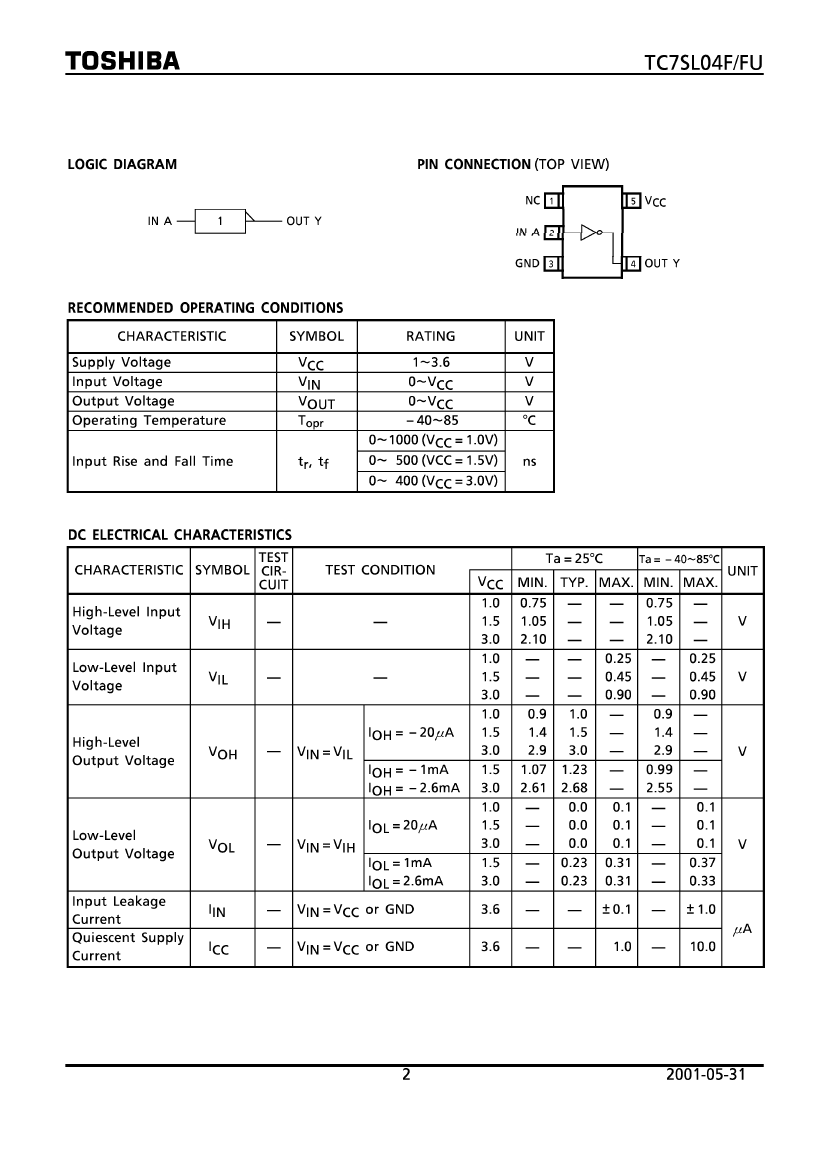

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor

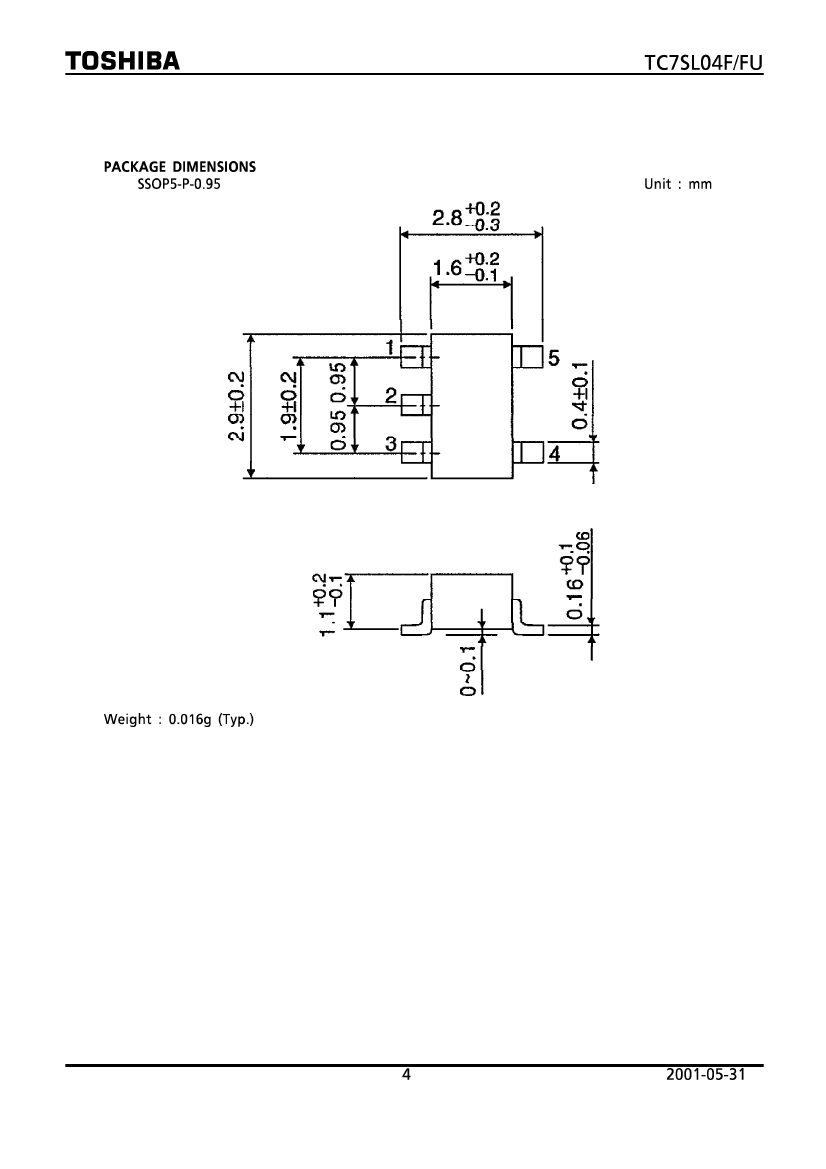

Parts packaging code	SSOP
package instruction	LSSOP, TSOP5/6,.11,37
Contacts	5
Reach Compliance Code	unknow
series	HC/UH
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
length	2.9 mm
Load capacitance (CL)	25 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.00002 A
Number of functions	1
Number of entries	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
power supply	1/3.6 V

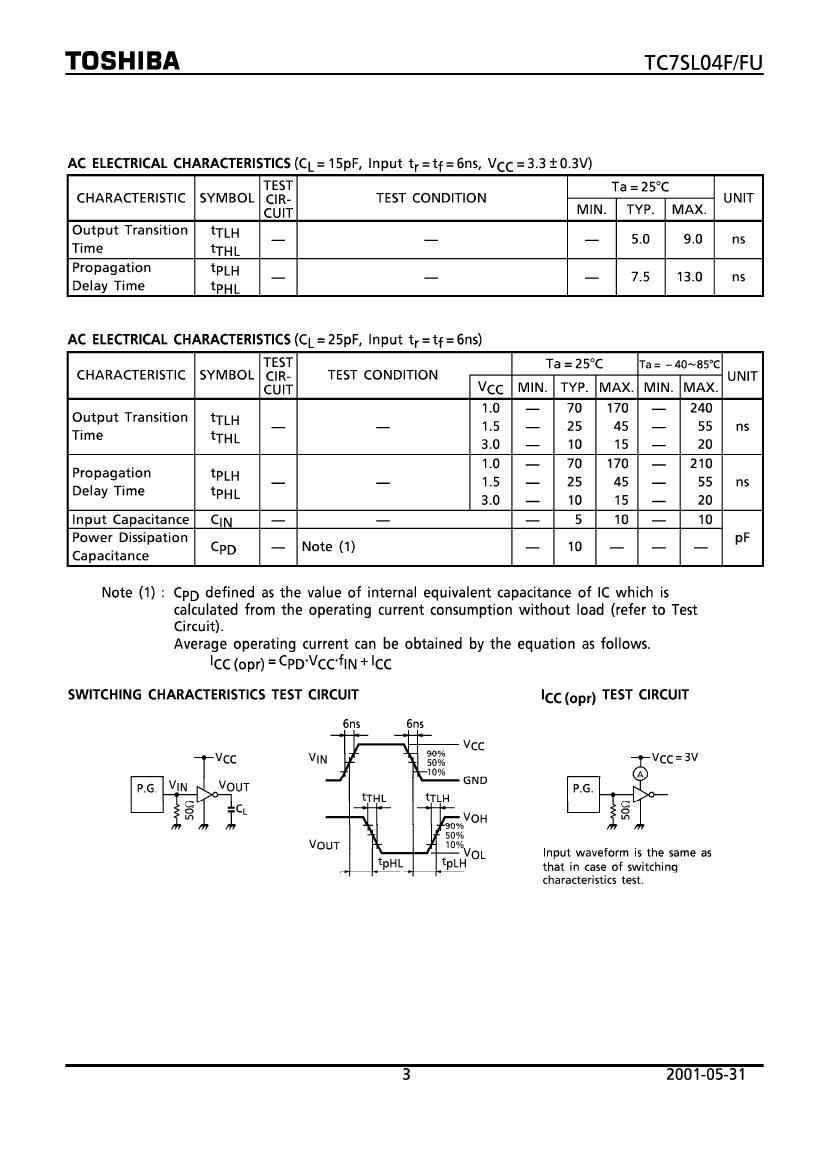

Prop。Delay @ Nom-Su	240 ns
propagation delay (tpd)	210 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.4 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
width	1.6 mm

	TC7SL04F	TC7SL04FU	TC7SL04F_01
Description	INVERTER	INVERTER	INVERTER
Is it Rohs certified?	incompatible	incompatible	-
Maker	Toshiba Semiconductor	Toshiba Semiconductor	-
Parts packaging code	SSOP	SSOP	-

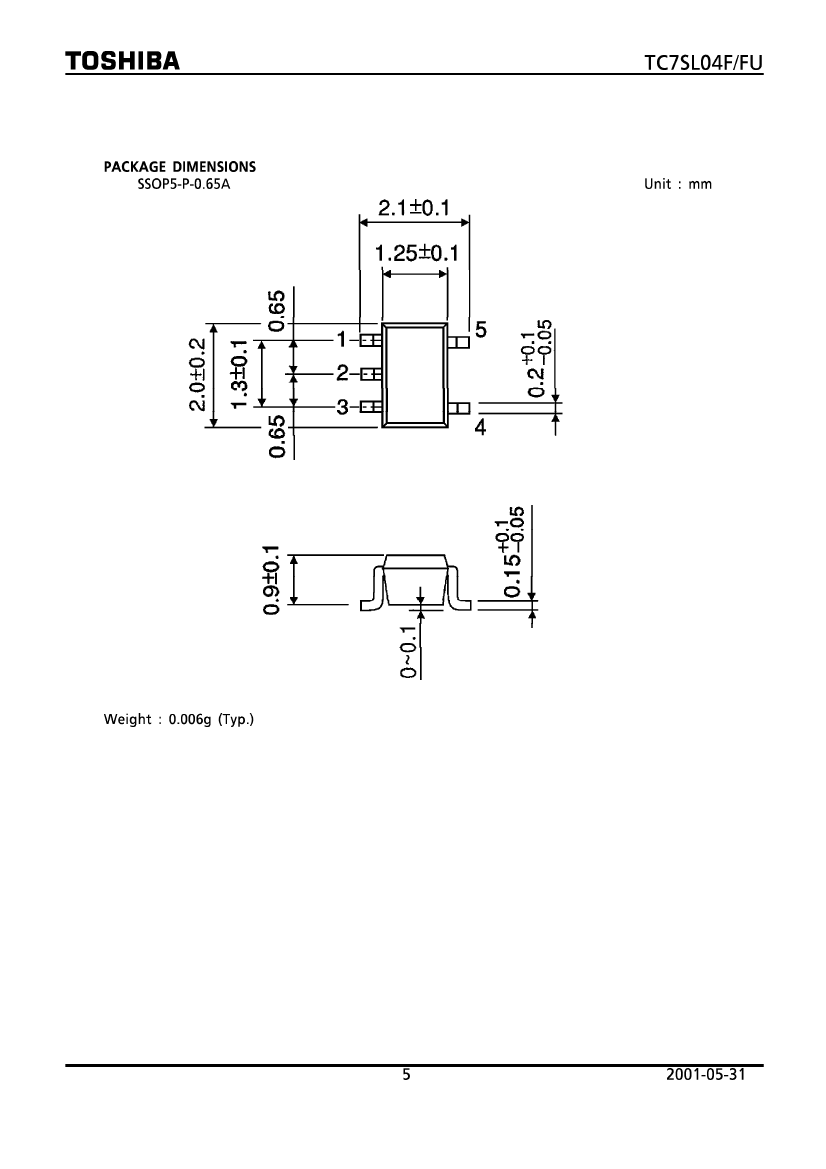

package instruction	LSSOP, TSOP5/6,.11,37	0.65 MM PITCH, PLASTIC, SSOP-5	-
Contacts	5	5	-
Reach Compliance Code	unknow	unknow	-
series	HC/UH	HC/UH	-
JESD-30 code	R-PDSO-G5	R-PDSO-G5	-
JESD-609 code	e0	e0	-
length	2.9 mm	2 mm	-
Load capacitance (CL)	25 pF	25 pF	-
Logic integrated circuit type	INVERTER	INVERTER	-
MaximumI(ol)	0.00002 A	0.00002 A	-
Number of functions	1	1	-
Number of entries	1	1	-
Number of terminals	5	5	-
Maximum operating temperature	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	LSSOP	TSSOP	-
Encapsulate equivalent code	TSOP5/6,.11,37	TSSOP6,.08	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	-
power supply	1/3.6 V	1/3.6 V	-
Prop。Delay @ Nom-Su	240 ns	240 ns	-
propagation delay (tpd)	210 ns	210 ns	-
Certification status	Not Qualified	Not Qualified	-
Schmitt trigger	NO	NO	-
Maximum seat height	1.4 mm	1.1 mm	-
Maximum supply voltage (Vsup)	3.6 V	3.6 V	-
Minimum supply voltage (Vsup)	1 V	1 V	-
surface mount	YES	YES	-
technology	CMOS	CMOS	-
Temperature level	INDUSTRIAL	INDUSTRIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	GULL WING	GULL WING	-
Terminal pitch	0.95 mm	0.65 mm	-
Terminal location	DUAL	DUAL	-
width	1.6 mm	1.25 mm	-
