Model 5309A
Replacement DMM Test
Lead Set For Industrial Use
FEATURES:
Designed for DMM’s with non-sheathed banana jacks.
Probe body incorporates a two step mold process. First step is Polypropylene for probe rigidity. Second
step is Santoprene® rubber for handling comfort, added insulation protection and wire strain relief.
Probe body and banana plug are molded directly to the wire for robust pull strength.
Wire is a high strand count silicone wire for extreme flexibility and high temperature resistance.
The Stainless Steel .080” (2mm) tip is provided for heavy-duty industrial applications.
MATERIALS:
Probe Body:
Outer Insulation - Santoprene® Rubber, Color: Gray
Inner Insulation – Polypropylene, Fire Retardant
Color:
One Black, One Red
Tip:
Stainless Steel
Wire:
18 AWG, 65 x 36 Tinned Copper Strand Silicone Insulation, Length: 48” (121,9cm), O.D. .144” (3,66mm)
Banana Plug:
Body – Brass, Nickel Plated
Spring – Beryllium Copper, Nickel Plated
Insulation:
Polypropylene, Color: One Black, One Red
RATINGS:
Voltage: Hands free testing in controlled voltage environments: 1000 Vrms Max. For CE compliance: not
intended for hand-held use at voltages above 33 Vrms/70 Vdc.
Current: 10 Amps
ORDERING INFORMATION:
Model 5309A (set of one Black and one Red test lead)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1094368
Page 1 of 2

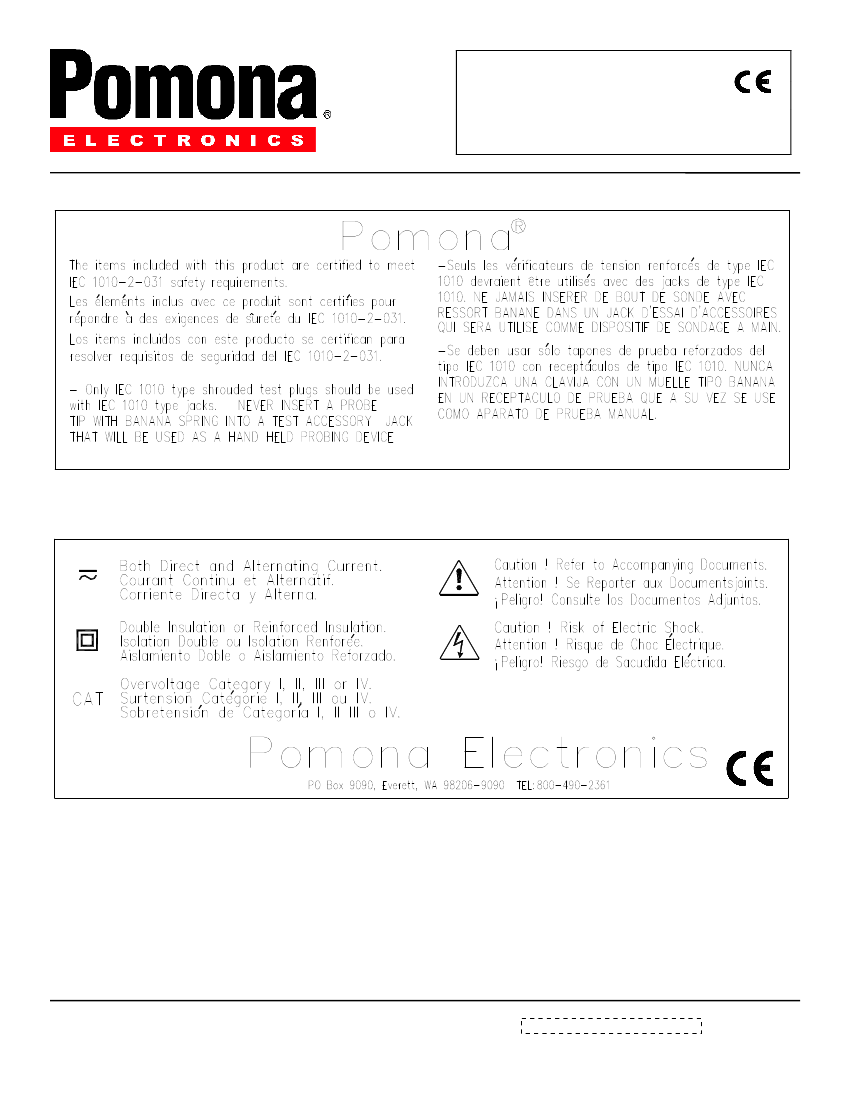

Model 5309A
Replacement DMM Test
Lead Set For Industrial Use
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 100
D1094368
Page 2 of 2
