15KP180AT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 15KP180AT

15KP180AT: DescriptionTrans Voltage Suppressor Diode, 15000W, 180V V(RWM), Unidirectional, 1 Element, Silicon, ROHS COMPLIANT, CASE P600, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size325KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

15KP180AT Overview

Trans Voltage Suppressor Diode, 15000W, 180V V(RWM), Unidirectional, 1 Element, Silicon, ROHS COMPLIANT, CASE P600, PLASTIC PACKAGE-2

15KP180AT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	O-PALF-W2
Contacts	2
Manufacturer packaging code	CASE P600
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Maximum breakdown voltage	190 V
Minimum breakdown voltage	210 V
Breakdown voltage nominal value	200 V
Shell connection	ISOLATED
Maximum clamping voltage	291 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	2
Maximum non-repetitive peak reverse power dissipation	15000 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	8 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	180 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

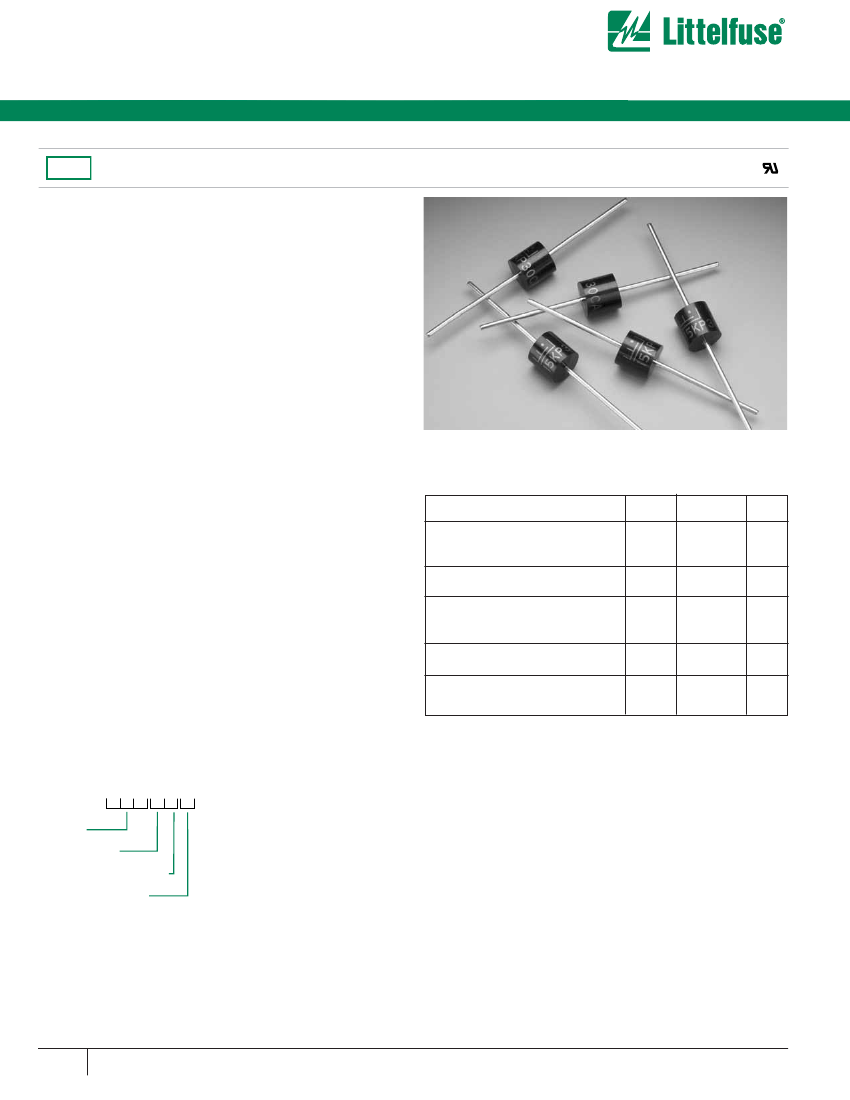

Silicon Avalanche Diodes

15000 Watt Axial Leaded Transient Voltage Suppressor

RoHS

15KP Series

The 15KP Series is designed specifically to protect sensitive

electronics equipment from voltage transients induced by

lightning and other transient voltage events. These devices are

ideal for the protection of I/O interfaces, Vcc bus and other

vulnerable circuits used in automotive, industrial and consumer

electronic applications.

FEATURES

•

RoHS

Compliant

•

17.0 to 280 Volts

•

Uni-directional and Bi-directional

•

Glass passivated junction

•

15000W peak pulse power capability on

10/1000µs waveform

•

Excellent clamping capability

•

Repetition rate(duty cycle): 0.05%

•

Low incremental surge resistance

•

Fast response time: typically less than 1.0ps from

RATING

(9.5mm)(Note 2)

MAXIMUM RATINGS AND CHARACTERISTICS @25˚C

AMBIENT TEMPERATURE (unless otherwise noted)

SYMBOL

PPPM

VALUE

Min

15000

UNIT

Watts

Peak Pulse Power Dissipation on

10/1000µs waveform

(note 1, FIG.1)

Peak pulse current of on 10\1000µs

waveform (note 1, FIG.3)

Steady State Power Dissipation at

TL=75˚C, Lead lengths .375",

Peak Forward Surge Current,

1/20 second/25˚C (JEDEC Method)

Operating junction and Storage

Temperature Range

0 Volts to BV, Bidirectional less than 10ns

•

High temperature soldering guaranteed:

265˚C/10 seconds/.375", (9.5mm) lead length,

51bs.(2.3kg) tension

program of underwriters laboratories.

Agency Approvals:

Recognized under the components

Agency File Number:

E128662

IPPM

PM(AV)

I FSM

SEE TABLE 1 Amps

Watts

400

Amps

°C

Tj, TSTG -55 to +175

ORDERING INFORMATION

15KP

C A

Voltage

Bi-Directional

5% Voltage Tolerance

Packaging Option

Mechanical Specifications:

Weight:

Case:

Mounting Position:

Polarity:

Terminal:

B = Bulk (500 pcs)

T = Tape and reeled (800 pcs)

0.07 ounce, 2.5 grams

Molded plastic over glass

passivated junction

Any

Color band denotes positive end

(cathode) except Bipolar

Plated Axial leads, solderable per

MIL-STD-750, Method 2026
